MERSEN FERRAZ Amp-Trap A70P Series Fuses, 700VAC/650VDC
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Amps | Dia. | Mounting | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Finish | Ac/dc | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A70P10-1 | 10A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | €58.56 | |
| B | A70P10-4 | 10A | 14.2 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €131.20 | |
| C | A70P12-1 | 12A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | €131.20 | |
| D | A70P15-4 | 15A | 14.2 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €104.35 | |
| E | A70P15-1 | 15A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 10 | €585.56 | |
| F | A70P20-4 | 20A | 14.2 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €113.83 | |

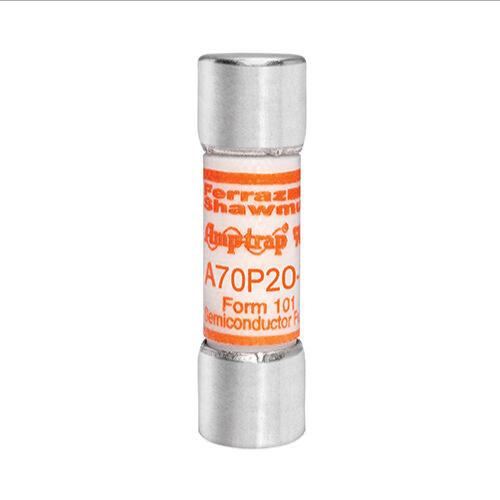

| G | A70P20-1 | 20A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | €98.36 | |
| C | A70P25-1 | 25A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | €39.59 | |
| H | A70P25-4 | 25A | 14.2 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €120.27 | |
| I | A70P30-1 | 30A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | €98.36 | |
| J | A70P30-4 | 30A | 14.2 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €113.83 | |
| C | A70P35-4TI | 35A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €302.28 | |
| K | A70P35-4 | 35A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €165.18 | |
| C | A70P40-4 | 40A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €214.40 | |
| C | A70P40-4TA | 40A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €302.28 | |
| C | A70P40-4TI | 40A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €285.12 | |
| L | A70P50-4 | 50A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €268.85 | |
| C | A70P60-4TA | 60A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €306.24 | |
| C | A70P60-4TI | 60A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €285.12 | |
| M | A70P60-4 | 60A | 25.4 mm | Bolted | Blade | 65 kA | Brass | TiN Plated | AC/DC | 1 | €165.18 | |
| C | A70P70-4TI | 70A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €357.72 | |
| N | A70P70-4 | 70A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €212.82 | |
| C | A70P80-4TA | 80A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €374.88 | |
| C | A70P80-4 | 80A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | - | RFQ
|
| C | A70P80-4TI | 80A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €353.76 | |
| O | A70P90-4 | 90A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €221.35 | |
| C | A70P100-4TA | 100A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €370.92 | |
| C | A70P100-4TI | 100A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €357.72 | |
| C | A70P100-4 | 100A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €291.95 | |
| P | A70P125-4 | 125A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €369.00 | |
| C | A70P125-4TI | 125A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €447.48 | |
| C | A70P125-4TA | 125A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €467.28 | |
| C | A70P150-4TI | 150A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €447.48 | |
| C | A70P150-4TA | 150A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €218.30 | |
| C | A70P150-4 | 150A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €402.55 | |
| Q | A70P175-4 | 175A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €369.00 | |
| C | A70P200-4TI | 200A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €447.48 | |
| R | A70P200-4 | 200A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €352.67 | |
| C | A70P200-4TA | 200A | 38.1 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €467.28 | |
| S | A70P225-4 | 225A | 50.8 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €461.23 | |
| C | A70P225-4TA | 225A | 50.8 mm | Bolted | Blade | 65 kA | Copper | TiN Plated | AC/DC | 1 | €666.60 | |
| T | A70P250-4 | 250A | 50.8 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €601.65 | |
| C | A70P250-4TI | 250A | 50.8 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €679.80 | |
| C | A70P250-4TA | 250A | 50.8 mm | Bolted | Blade | 65 kA | Copper | TiN Plated | AC/DC | 1 | €699.60 | |
| C | A70P300-4 | 300A | 50.8 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €237.59 | |
| C | A70P300-4TA | 300A | 50.8 mm | Bolted | Blade | 65 kA | Copper | TiN Plated | AC/DC | 1 | €706.20 | |
| C | A70P350-4 | 350A | 50.8 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | - | RFQ
|
| C | A70P350-4TA | 350A | 50.8 mm | Bolted | Blade | 65 kA | Copper | TiN Plated | AC/DC | 1 | €706.20 | |

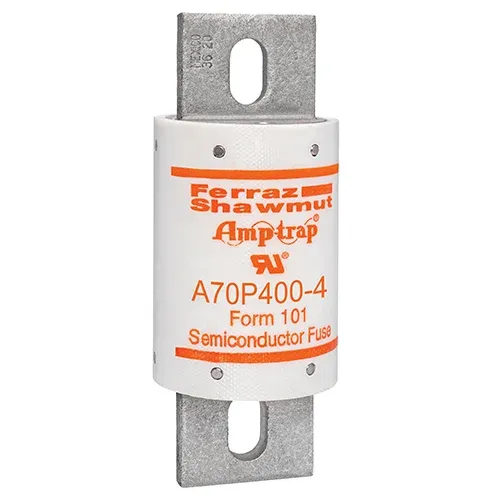

| U | A70P400-4 | 400A | 50.8 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €521.88 | |
| C | A70P400-4TA | 400A | 50.8 mm | Bolted | Blade | 65 kA | Copper | TiN Plated | AC/DC | 1 | €706.20 | |
| C | A70P400-4TI | 400A | 50.8 mm | Bolted | Blade | 50 kA | Copper | TiN Plated | AC/DC | 1 | €679.80 | |
| C | A70P450-4 | 450A | 60.5 mm | Bolted | Blade | 65 kA | Copper | Silver Plated | AC/DC | 1 | - | RFQ
|
| V | A70P500-4 | 500A | 60.5 mm | Bolted | Blade | 65 kA | Copper | Silver Plated | AC/DC | 1 | - | RFQ
|
| C | A70P500-4TA | 500A | 60.5 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,260.60 | |
| C | A70P600-4TA | 600A | 60.5 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,273.80 | |
| W | A70P600-4 | 600A | 60.5 mm | Bolted | Blade | 65 kA | Copper | Silver Plated | AC/DC | 1 | €869.43 | |
| C | A70P600-4TI | 600A | 60.5 mm | Bolted | Blade | 65 kA | Copper | Silver Plated | AC/DC | 1 | €1,234.20 | |
| C | A70P700-4TI | 700A | 73.2 mm | Bolted | Blade | 64 kA | Copper | Silver Plated | AC/DC | 1 | €1,518.00 | |
| X | A70P700-4 | 700A | 73.2 mm | Bolted | Blade | 64 kA | Copper | Silver Plated | AC/DC | 1 | €1,186.08 | |
| Y | A70P800-4 | 800A | 73.2 mm | Bolted | Blade | 64 kA | Copper | Silver Plated | AC/DC | 1 | €1,060.61 | |
| C | A70P800-4TA | 800A | 73.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,716.00 |
