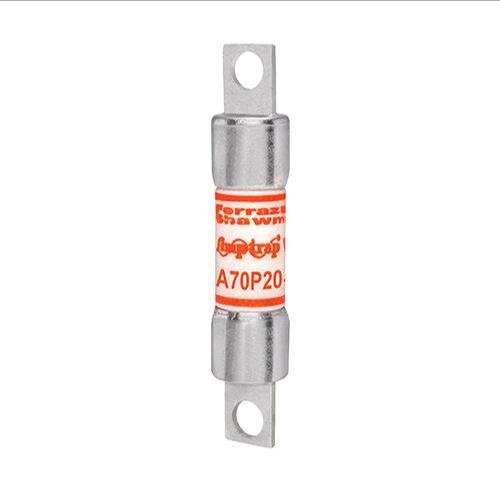

MERSEN FERRAZ A70P20-4 Semiconductor, High Speed, 700V, 20A, aR Class, Type 4
Item: CH4VTHModel: A70P20-4
7 In Stock
Ships within 2 days via
5.00% off
€108.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 700V AC |
| Ac/dc | AC/DC |
| Amps | 20A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dia. | 14.2 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Length | 73.2 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a70p1000-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 700V |
| Rated Voltage Dc Ul | 650V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 7.32 |
| Ship width (cm) | 1.42 |
Documentation:
Product Variants
| Model | Amps | Dia. | Mounting | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Finish | Ac/dc | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

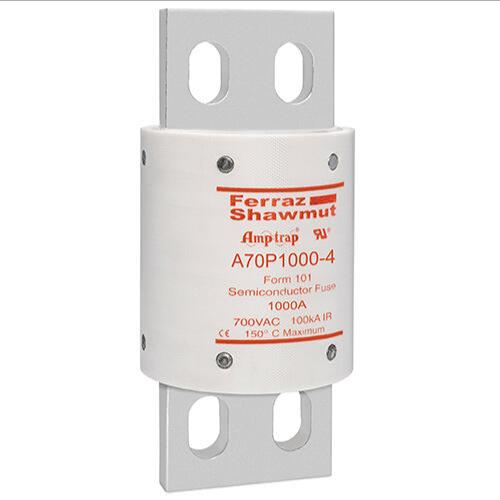

| A70P1000-4 | 1000A | 88.9 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC | 1 | €2,329.80 | |
| A70P1000-4TA | 1000A | 88.9 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC | 1 | €2,369.40 | |
| A70P1000-4TI | 1000A | 88.9 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC | 1 | €2,316.60 | |
| A70P100-4 | 100A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €291.95 | |
| A70P100-4TA | 100A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €370.92 | |
| A70P100-4TI | 100A | 31 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €357.72 | |
| A70P10-1 | 10A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | €58.56 |
