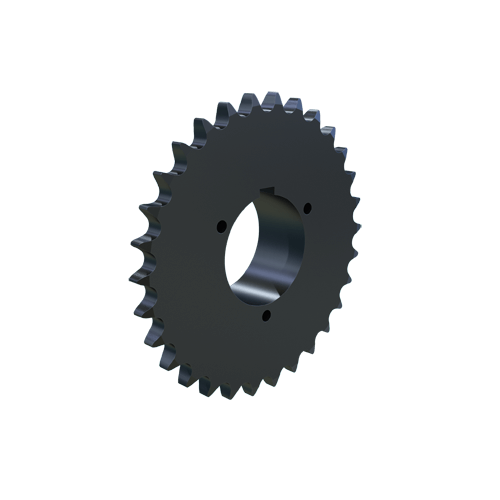

MARTIN SPROCKET 60Q30H Roller Chain Sprocket, 60 Chain, Bushed MST, 30 Teeth, 7.175 Inch Pitch Dia., Steel
Item: AL4XDQModel: 60Q30H
7 In Stock
Ships within 2 days via
€243.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | Type Q1 Split Taper |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Length Through Bore | 2 1/2" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 30 |
| Outside Dia. | 7.586" |
| Pitch | 3/4" |
| Pitch Dia. | 7.175" , 7.1751" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 7.586" |
| Storage Dimension Width | 7.586" |
| Type | MST Q1 Bushed Type 4 Welded |
Shipping Info:
| Ship weight (kg) | 3.04 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 19.28 |
| Ship width (cm) | 19.28 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Min. Bore Size | Max. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60Q48 | 11.4673" | 48 | 1 3/4" | 11.893" | 11.893" | 1 3/4" | 3/4" | 2 11/16" | €273.37 | |
 |
60Q31 | 7.4134" | 31 | 1 3/4" | 7.825" | 7.825" | 1 3/4" | 3/4" | 2 11/16" | €246.51 | |
 |
60Q32 | 7.652" | 32 | 2 1/2" | 8.065" | 8.065" | 1 3/4" | 3/4" | 2 11/16" | €249.51 | |
|
60Q33 | 7.8901" | 33 | 1 3/4" | 8.304" | 8.304" | 1 3/4" | 3/4" | 2 11/16" | €250.80 | |
 |
60Q34 | 8.129" | 34 | 2 1/2" | 8.544" | 8.544" | 1 3/4" | 3/4" | 2 11/16" | €252.08 | |
|
60Q35 | 8.3669" | 35 | 1 3/4" | 8.783" | 8.783" | 1 3/4" | 3/4" | 2 11/16" | €254.66 | |
 |
60Q36 | 8.605" | 36 | 2 1/2" | 9.023" | 9.023" | 1 3/4" | 3/4" | 2 11/16" | €257.08 |
