MARATHON MOTORS Close-Coupled Pump Motors, JM, Three Phase, Dripproof
Marathon close coupled pump motors are ideal for powering / driving electrical & electronic tools & automatic dispensers. These open enclosure motors are suitable for indoor locations. Marathon totally enclosed motors are also suitable for locations having presence of moisture & water.
A
B
C
D
E
F
G
H
I
J
K
L
M
N| Style | Model | Voltage | Rpm Range | Nameplate Rpm | Motor Mounting Type | Shaft Dia. | Hp | Motor Design | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 286TTDBD6007 | 230/460V AC | 3001-3600 RPM | 3560 RPM | Face, Base | 1 1/4" | 40 hp | 3-Phase | Class F | €5,012.67 | |
| B | 182TTDW16067 | 230/460V AC | 1701-1800 RPM | 1760 RPM | Face | 7/8" | 3 hp | 3-Phase | Class F | €1,412.58 | |
| C | 182TTDW16021 | 230/460V AC | 1701-1800 RPM | 3500 RPM | Face | 7/8" | 5 hp | 3-Phase | Class F | €1,523.55 | |
| D | 184TTDW16073 | 230/460V AC | 1701-1800 RPM | 1765 RPM | Face | 1 1/8" | - | 3-Phase | Class F | €1,590.84 | |
| E | 213TTDWD16333 | 230/460V AC | 1701-1800 RPM | 1765 RPM | Face | 7/8" | 7 1/2 hp | 3-Phase | Class F | €1,901.19 | |
| F | 215TTDWD16349 | 230/460V AC | 1701-1800 RPM | 1765 RPM | Face | 7/8" | 10 hp | 3-Phase | Class B | €2,594.46 | |
| G | 254TTDBD6007 | 230/460V AC | 3001-3600 RPM | 3550 RPM | Face, Base | 1 1/4" | 20 hp | 3 Phase | Class F | €3,635.48 | |
| H | 215TTDBD6007 | 230/460V AC | 3001-3600 RPM | 3515 RPM | Face, Base | 7/8" | 15 hp | 3 Phase | Class F | €1,841.94 | |
| I | 254TTDBD6032 | 230/460V AC | 1701-1800 RPM | 1775 RPM | Face, Base | 1 1/4" | 15 hp | - | Class F | €2,651.79 | |
| J | 256TTDBD6007 | 230/460V AC | 3001-3600 RPM | 3555 RPM | Face, Base | 1 1/4" | 25 hp | 3 Phase | Class F | €3,172.05 | |
| K | 256TTDBD6032 | 230/460V AC | 1701-1800 RPM | 1770 RPM | Face, Base | 1 1/4" | 20 hp | 3 Phase | Class F | €4,310.12 | |

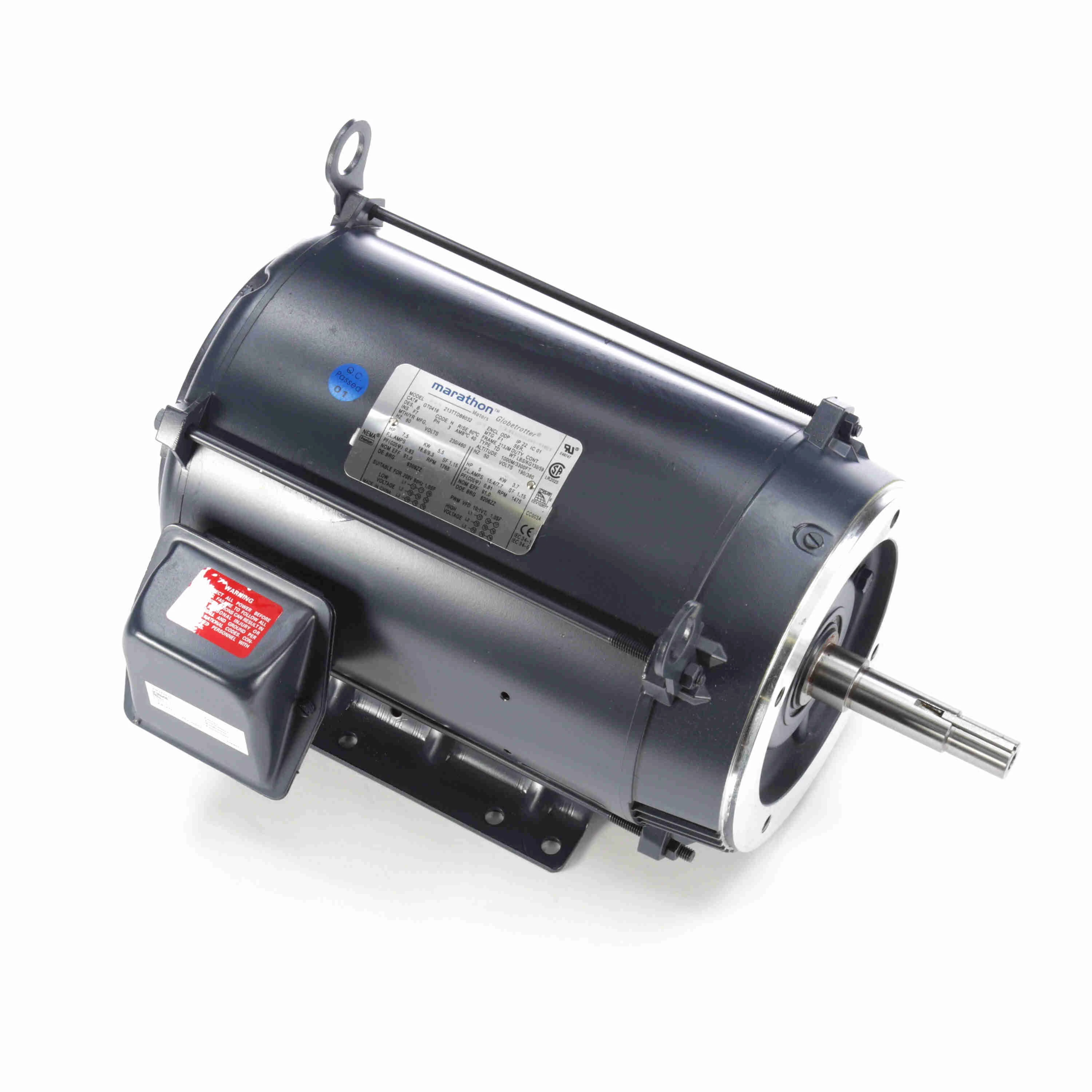

| L | 213TTDBD6032 | 230/460V AC | 1701-1800 RPM | 1765 RPM | Face, Base | 7/8" | 7 1/2 hp | 3-Phase | Class F | €2,232.71 | |

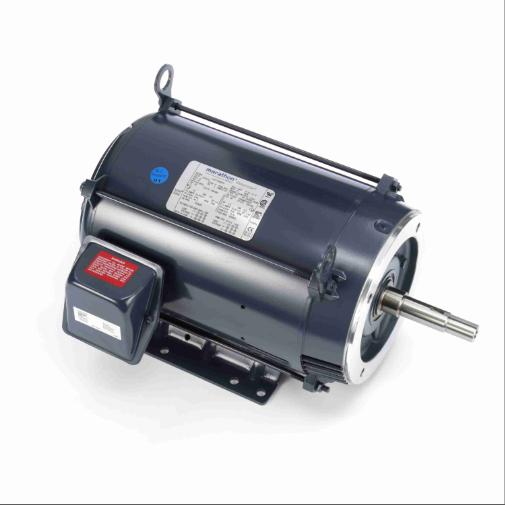

| M | 215TTDBD6032 | 230/460V AC | 1701-1800 RPM | 1770 RPM | Face, Base | 7/8" | 10 hp | 3 Phase | Class F | €2,611.43 | |
| N | 215TTDBD6008 | 575V AC | 3001-3600 RPM | 3515 RPM | Face, Base | 7/8" | 15 hp | 3-Phase | Class F | €1,999.64 |
Features
- These motors have rolled steel / cast iron / steel construction for structural integrity and protection against impacts.
- They feature open style enclosures for maintaining maximum airflow inside the motor, thus preventing overheating.
- They have a solid style base for secure installation onto fixed surfaces like concrete.
Standards and Approvals
- UL
- CSA
- CE
Frequently Asked Questions
Do Marathon close coupled pump motors require lubrication?
These motors do not require frequent lubrication as they have double sealed ball bearings that are mechanically locked on the shaft end.
How to install Marathon close coupled pump motors?
These motors have a solid base with pre-drilled holes. The base & motor can be bolted down onto the solid surface to minimise vibrations and keep the motor in place.
How to control speeds of Marathon close coupled motors?
These motors can be connected to VFDs (Variable Frequency Drives) for speed control. These VFDs can also control the ramp down & ramp-up of the motor during the motor's stop & start, respectively.
