MARATHON MOTORS 254TTDBD6032 GT0459 / 254TTDBD6032BB Close Coupled Pump Motor, 15/10 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Item: CH6JEQModel: 254TTDBD6032Cross Ref: 26ZY10 / GT0459 / 254TTDBD6032BB
In Stock
Get it by Wednesday, Dec 24
10.00% off
€2,386.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 11 4/5" |
| Bolt Circle Dia. | 7 1/4" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 93% |
| Efficiency Group | Premium |
| Frame Material | Steel |
| Frame Size | 254JM |
| Frame Type | 254JM |
| Frequency | 60 Hz |
| Full Load Amps | 37.5/18.8A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Height | 13 1/2" |
| Hp | 15 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |
| Length Less Shaft | 19 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1775 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 93% |
| Overall Height | 13 1/2" |
| Overall Length | 24 7/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 5 1/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 129.15 |
| Ship height (cm) | 71.48 |
| Ship length (cm) | 80.7 |
| Ship width (cm) | 71.2 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Rpm Range | Nameplate Rpm | Motor Mounting Type | Shaft Dia. | Hp | Motor Design | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

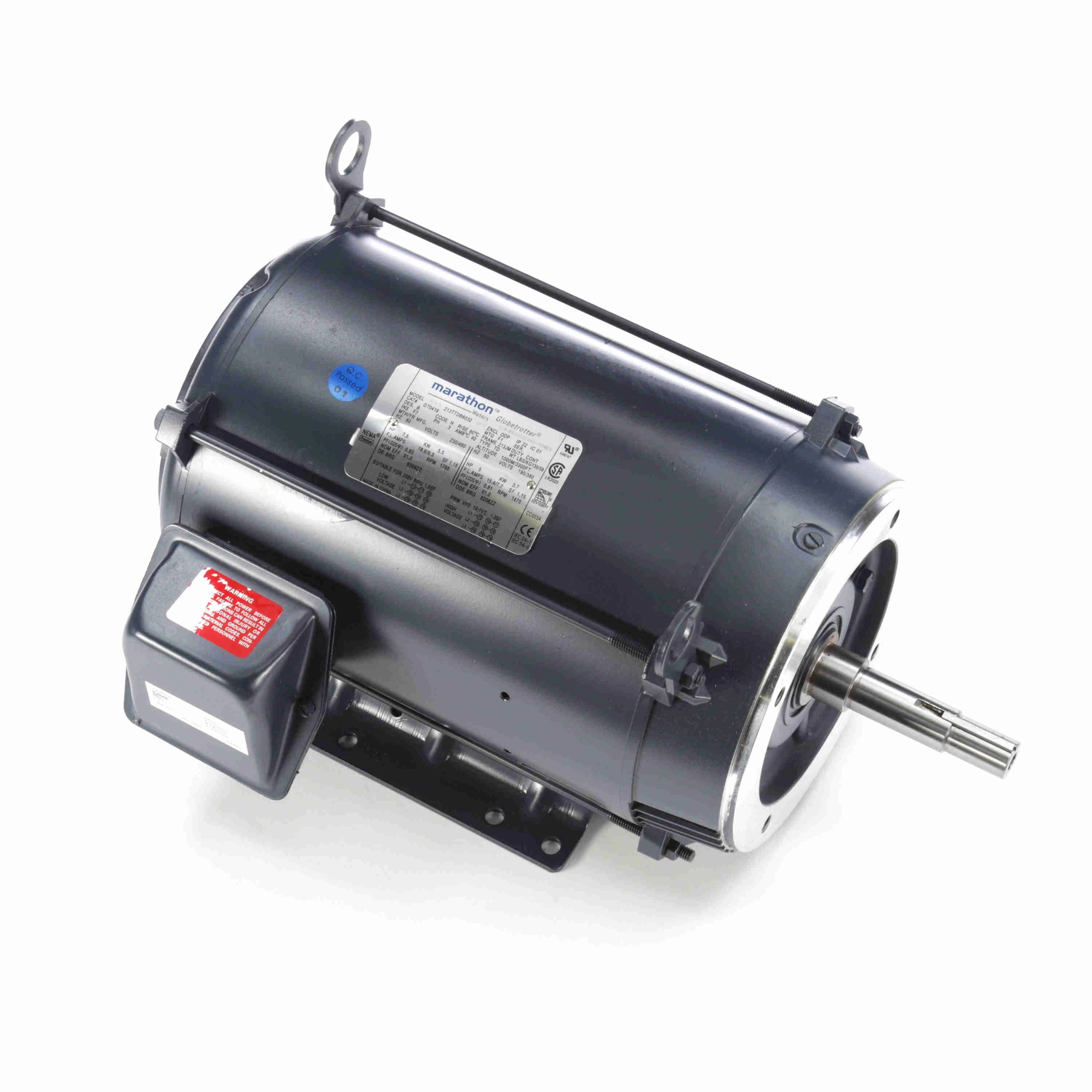

213TTDBD6032 | 230/460V AC | 1701-1800 RPM | 1765 RPM | Face, Base | 7/8" | 7 1/2 hp | 3-Phase | Class F | €2,232.71 | |
 |

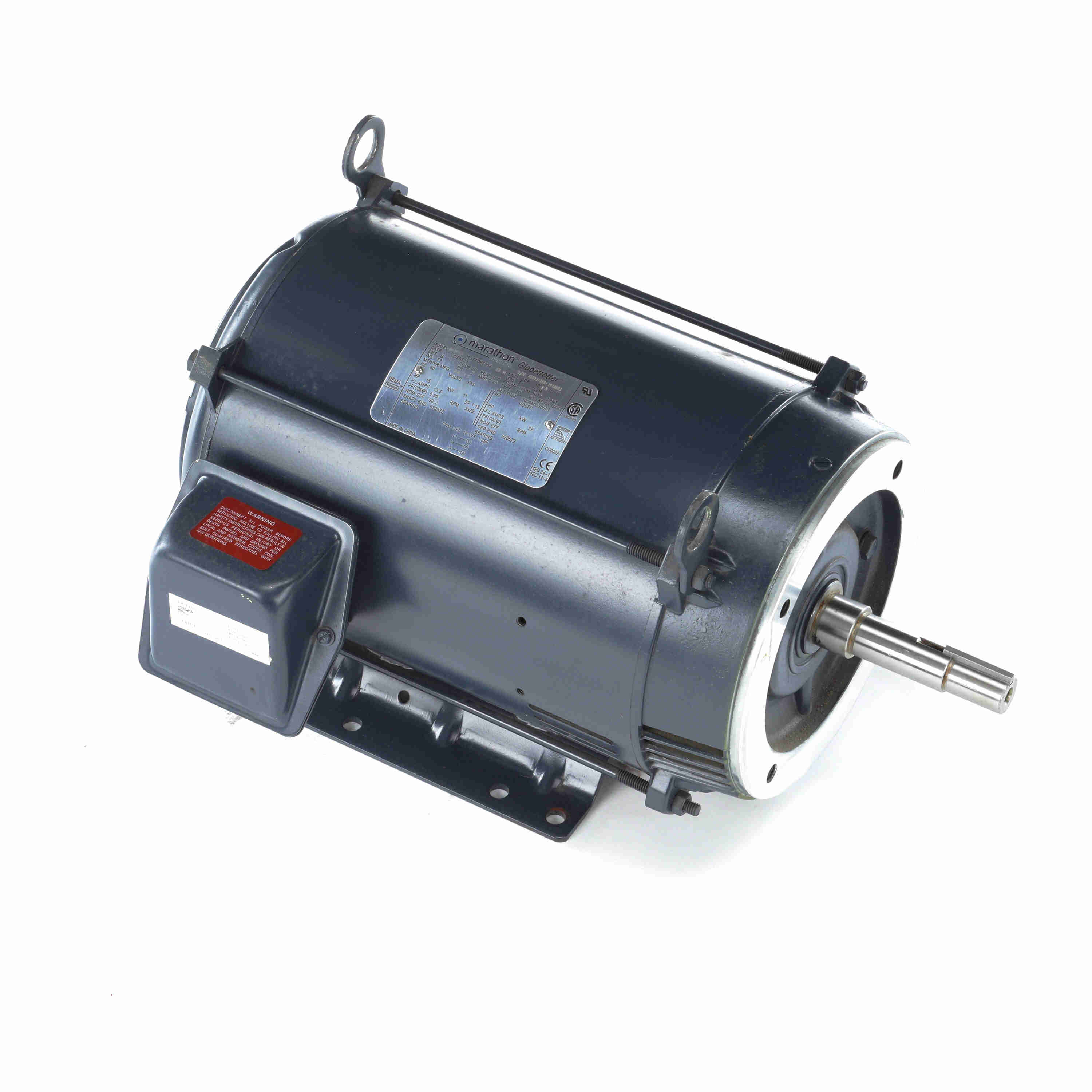

215TTDBD6008 | 575V AC | 3001-3600 RPM | 3515 RPM | Face, Base | 7/8" | 15 hp | 3-Phase | Class F | €1,999.64 | |
 |
286TTDBD6007 | 230/460V AC | 3001-3600 RPM | 3560 RPM | Face, Base | 1 1/4" | 40 hp | 3-Phase | Class F | €5,012.67 | |
 |

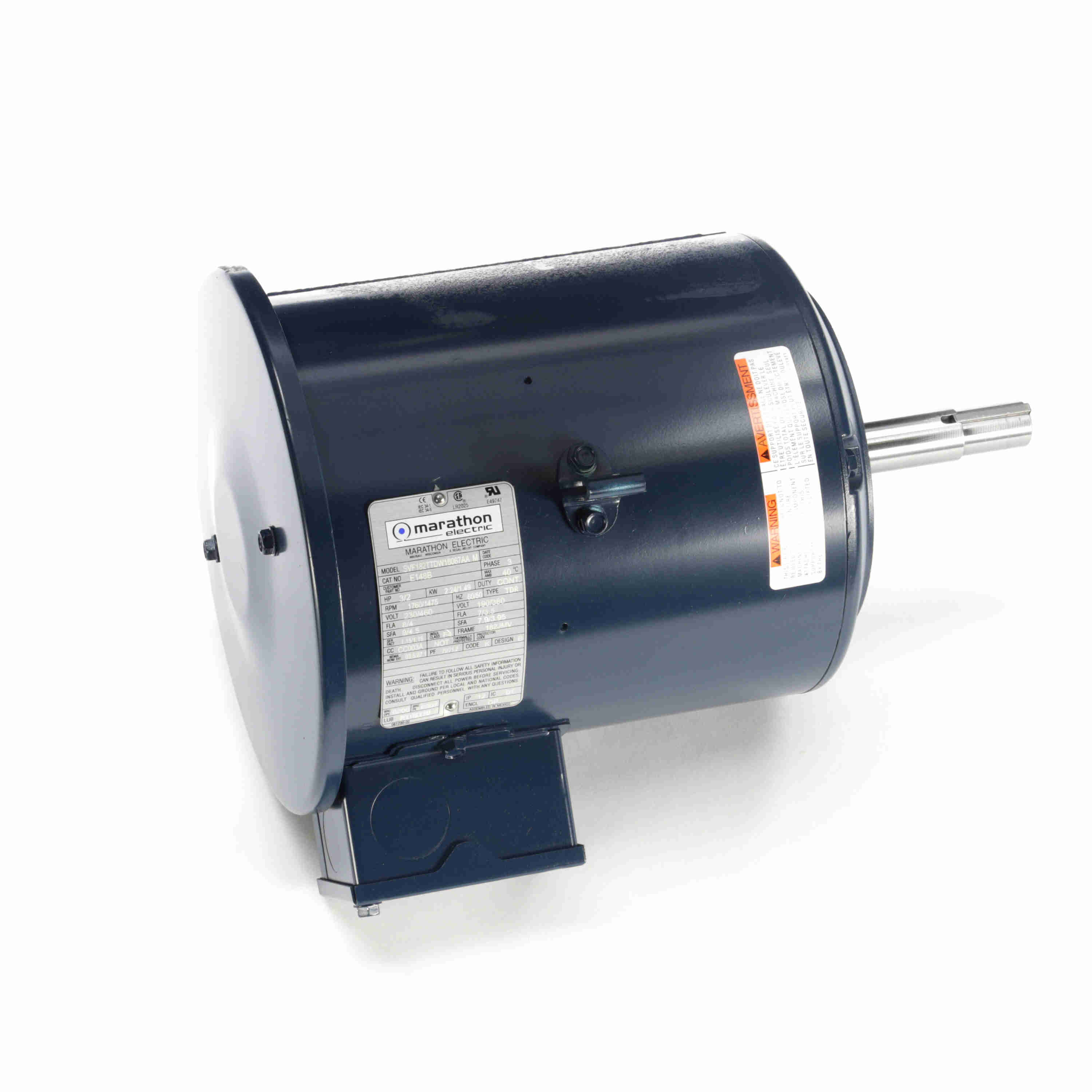

182TTDW16067 | 230/460V AC | 1701-1800 RPM | 1760 RPM | Face | 7/8" | 3 hp | 3-Phase | Class F | €1,412.58 | |
 |

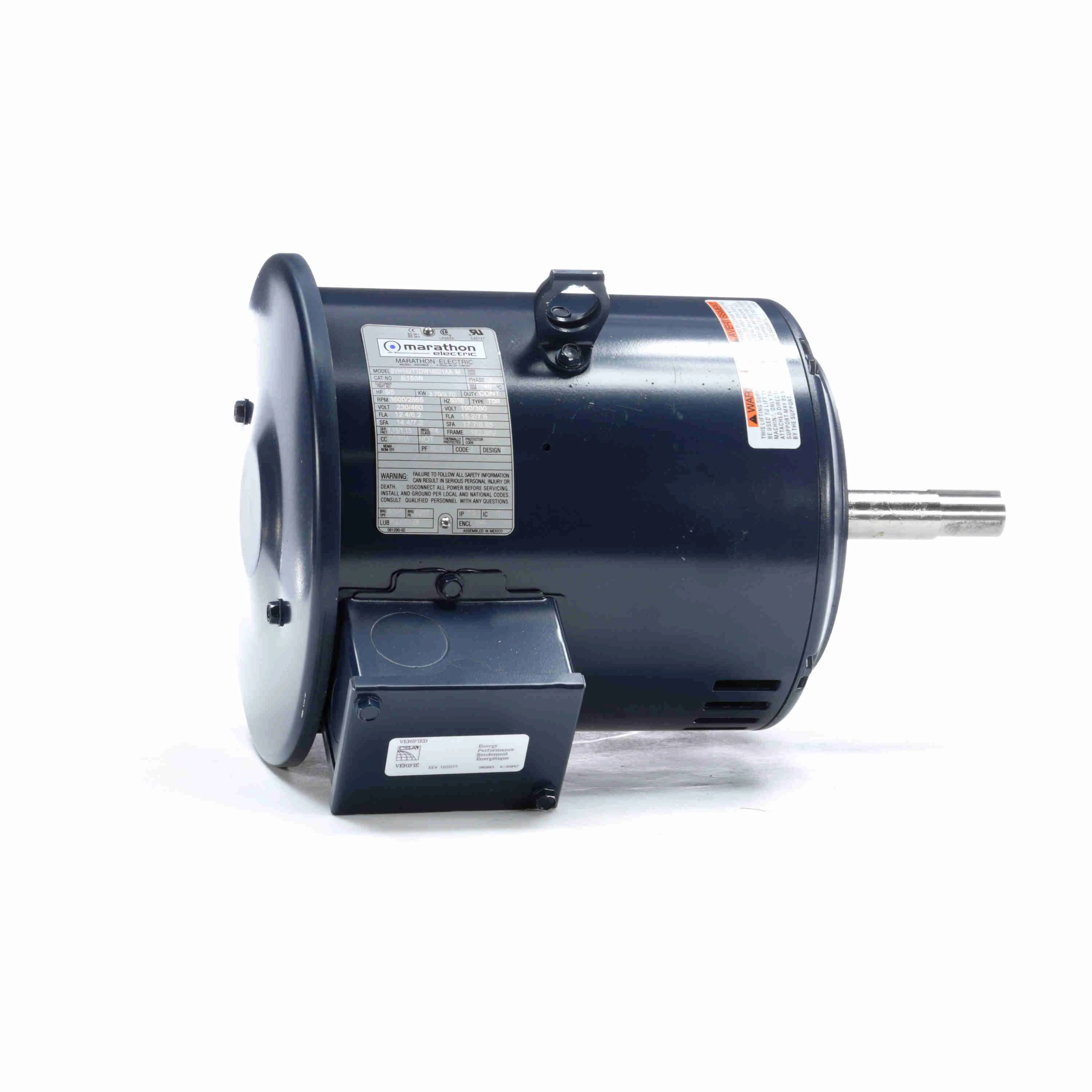

182TTDW16021 | 230/460V AC | 1701-1800 RPM | 3500 RPM | Face | 7/8" | 5 hp | 3-Phase | Class F | €1,523.55 | |
 |

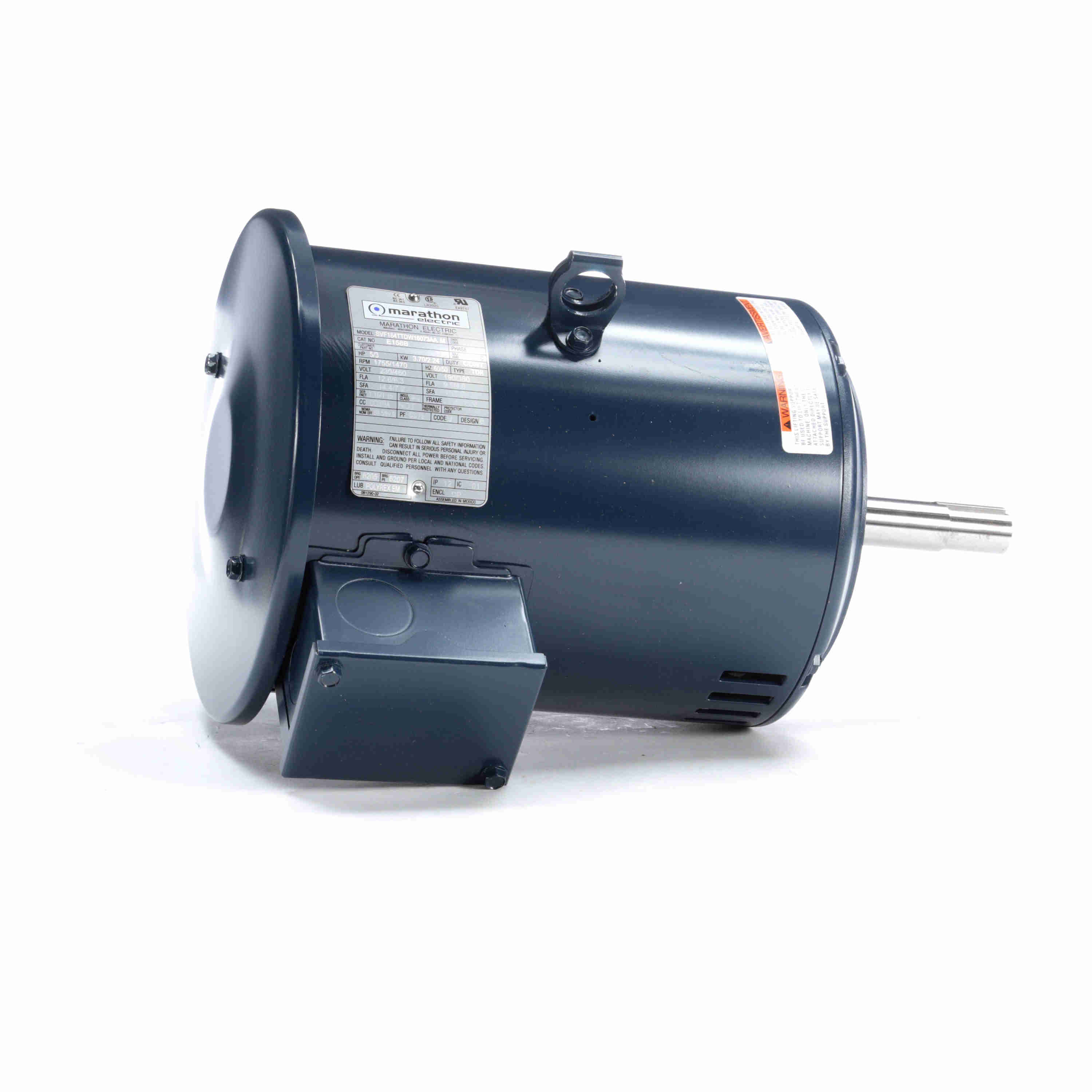

184TTDW16073 | 230/460V AC | 1701-1800 RPM | 1765 RPM | Face | 1 1/8" | - | 3-Phase | Class F | €1,590.84 | |
 |

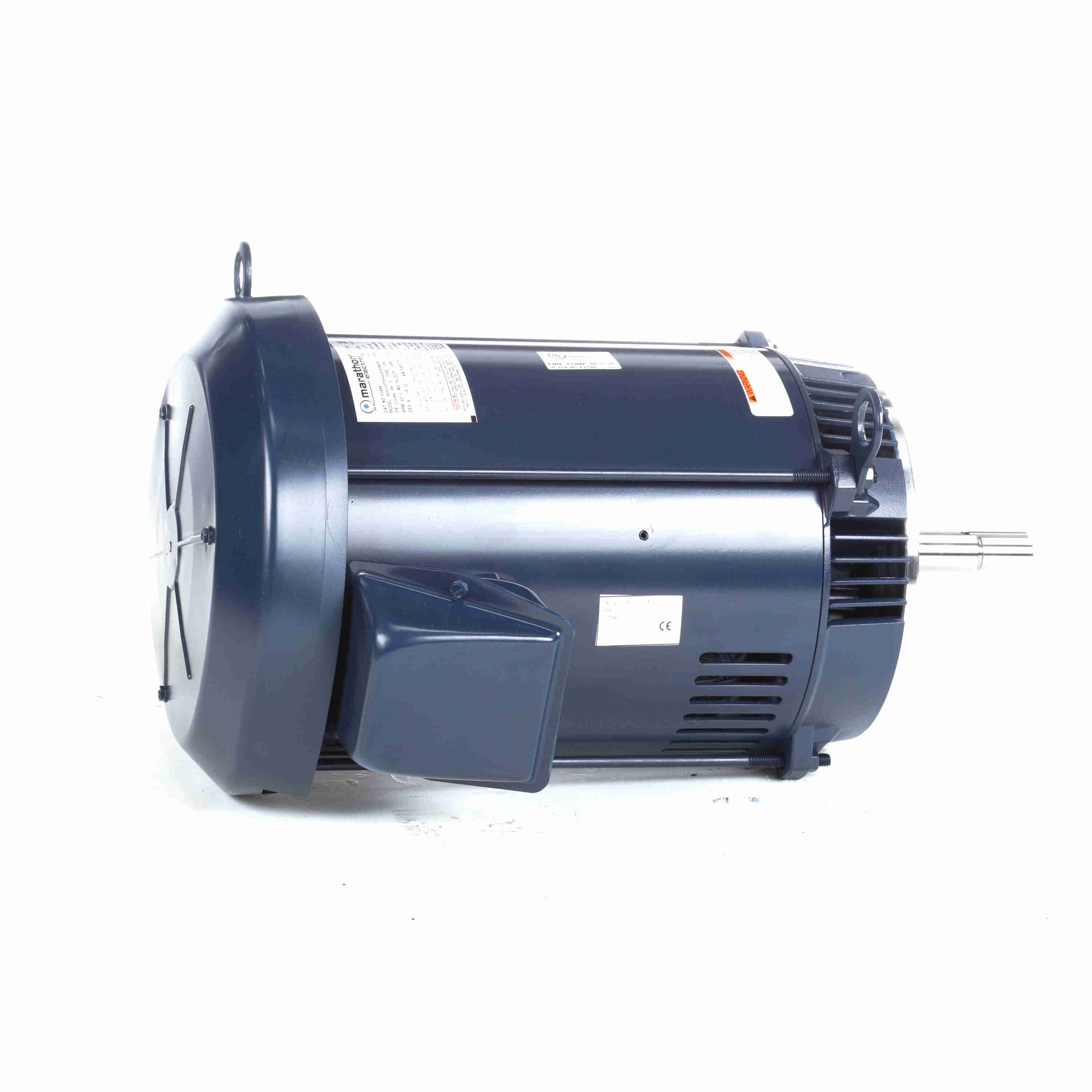

213TTDWD16333 | 230/460V AC | 1701-1800 RPM | 1765 RPM | Face | 7/8" | 7 1/2 hp | 3-Phase | Class F | €1,901.19 |
