IFM M12 Circular Connectors
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1| Style | Model | Min. Operating Temp. | Max. Operating Temp. | Mounting Style | Connector Body Type | Connector Type | Conductor Cross Section Size | Nominal Voltage | Connector Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | EVC811 | -13°F | 194°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 250V AC/300V DC | M12 Female Thread | €29.14 | |
| B | EVC813 | -13°F | 194°F | Male Thread | Pin | Field Wirable | 1.04 sq. mm | 250V AC/300V DC | M12 Male Thread | €29.47 | |
| C | EVC817 | -13°F | 194°F | Male Thread | Pin | Field Wirable | 1.04 sq. mm | 60V AC/DC | M12 Male Thread | €33.13 | |
| D | EVC814 | -13°F | 194°F | Female Thread | Socket | Field-Wirable | 1.04 sq. mm | 60V AC/DC | M12 Female Thread | €32.76 | |
| E | E10109 | -13°F | 185°F | Female Thread | Socket | Field-Wirable | 0.75 sq. mm | 45V AC/70V DC | M12 Female Thread | €34.75 | |
| F | E18343 | -13°F | 212°F | Male Thread | Pin | Field-Wirable | 0.75 sq. mm | 125V AC/DC | M12 Male Thread | €66.06 | |
| G | EVC816 | -13°F | 194°F | Male Thread | Pin | Field-Wirable | 1.04 sq. mm | 60V AC/DC | M12 Male Thread | €31.97 | |
| H | EVC812 | -13°F | 194°F | Male Thread | Pin | Field-Wirable | 1.04 sq. mm | 250V AC/300V DC | M12 Male Thread | €29.10 | |
| I | E12261 | -13°F | 185°F | Male Thread | Pin | Field-Wirable | 0.75 sq. mm | 250V AC/DC | M12 Male Thread | €40.99 | |
| J | E18061 | -13°F | 185°F | Female Thread | Socket | Field Wirable | 0.34 sq. mm | 250V DC | M12 Female Thread | €36.30 | |

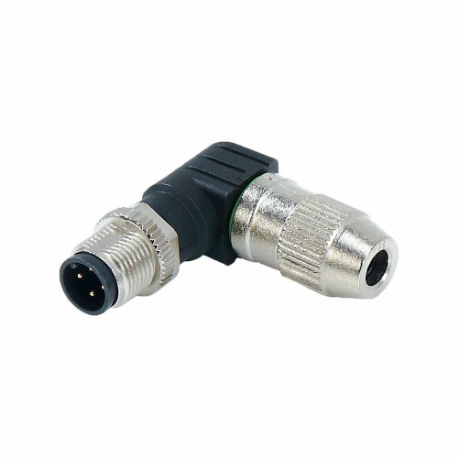

| K | E18060 | -13°F | 185°F | Male Thread | Pin | Field Wirable | 0.34 sq. mm | 250V DC | M12 Male Thread | €36.30 | |
| L | E11144 | -13°F | 140°F | Male Thread | Pin | Field-Wirable | 0.75 sq. mm | 250V AC/DC | M12 Male Thread | €45.02 | |
| M | E18165 | -13°F | 212°F | Female Thread | Socket | Field-Wirable | 0.75 sq. mm | 125V AC/DC | M12 Female Thread | €67.38 | |
| N | EVF566 | -13°F | 212°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 250V AC/300V DC | M12 Female Thread | €43.12 | |
| N | EVF570 | -13°F | 212°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 60V AC/DC | M12 Female Thread | €47.15 | |
| O | EVC815 | -13°F | 194°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 60V AC/DC | M12 Female Thread | €32.53 | |
| P | E11510 | -13°F | 185°F | Female Thread | Socket | Field Wirable | 0.75 sq. mm | 10-30V DC | M12 Female Thread | €39.64 | |
| Q | E11145 | -13°F | 140°F | Female Thread | Socket | Field-Wirable | 0.75 sq. mm | 45V AC/70V DC | M12 Female Thread | €42.33 | |
| R | E11764 | -13°F | 185°F | Female Thread | Socket | Field Wirable | 0.75 sq. mm | 250V AC | M12 Female Thread | €36.30 | |
| S | EVF569 | -13°F | 212°F | Female Thread | Socket | Field-Wirable | 1.04 sq. mm | 60V AC/DC | M12 Female Thread | €48.35 | |
| T | EVC810 | -13°F | 194°F | Female Thread | Socket | Field-Wirable | 1.04 sq. mm | 250V AC/300V DC | M12 Female Thread | €29.08 | |
| U | E18059 | -13°F | 185°F | Female Thread | Socket | Field-Wirable | 0.34 sq. mm | 250V DC | M12 Female Thread | €32.30 | |
| V | E30019 | -40°F | 185°F | Male Thread | Pin | Field-Wirable | 0.75 sq. mm | 10-55V DC | M12 Male Thread | €39.30 | |
| W | E11252 | -40°F | 185°F | Female Thread | Socket | Field Wirable | 0.75 sq. mm | 45V AC/70V DC | M12 Female Thread | €40.80 | |
| V | E18163 | -40°F | 185°F | Male Thread | Pin | Field-Wirable | 0.75 sq. mm | 250V AC/300V DC | M12 Male Thread | €35.65 | |
| X | E12672 | -40°F | 185°F | Female Thread | Socket | Field-Wirable | 2.5 sq. mm | 63V DC | M12 Female Thread | €47.71 | |
| Y | E12355 | -40°F | 185°F | Male Thread | Pin | Field-Wirable | 0.75 sq. mm | 45V AC/70V DC | M12 Male Thread | €38.30 | |
| Z | E12673 | -40°F | 185°F | Male Thread | Pin | Field-Wirable | 2.5 sq. mm | 63V DC | M12 Male Thread | €47.71 | |
| M | E12499 | -40°F | 185°F | Female Thread | Socket | Field-Wirable | 1.5 sq. mm | 60V DC | M12 Female Thread | €70.70 | |
| A1 | E12500 | -40°F | 185°F | Male Thread | Pin | Field-Wirable | 1.5 sq. mm | 60V DC | M12 Male Thread | €67.79 | |
| V | E18162 | -40°F | 185°F | Male Thread | Pin | Field-Wirable | 0.75 sq. mm | 250V AC/300V DC | M12 Male Thread | €38.17 | |
| B1 | E18164 | -40°F | 185°F | Female Thread | Socket | Field-Wirable | 0.75 sq. mm | 250V AC/300V DC | M12 Female Thread | €35.65 | |

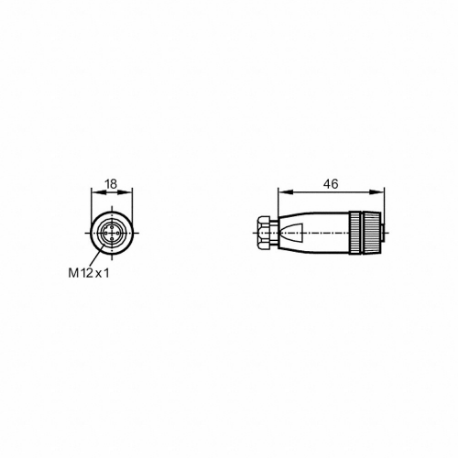

| C1 | E18161 | -40°F | 185°F | Female Thread | Socket | Field-Wirable | 0.75 sq. mm | 250V AC/300V DC | M12 Female Thread | €40.04 | |
| D1 | E12356 | -40°F | 185°F | Female Thread | Socket | Field-Wirable | 0.75 sq. mm | 45V AC/70V DC | M12 Female Thread | €49.59 | |
| E1 | E10108 | -40°F | 185°F | Female Thread | Socket | Field Wirable | 0.5 sq. mm | 250V AC | M12 Female Thread | €34.75 |
