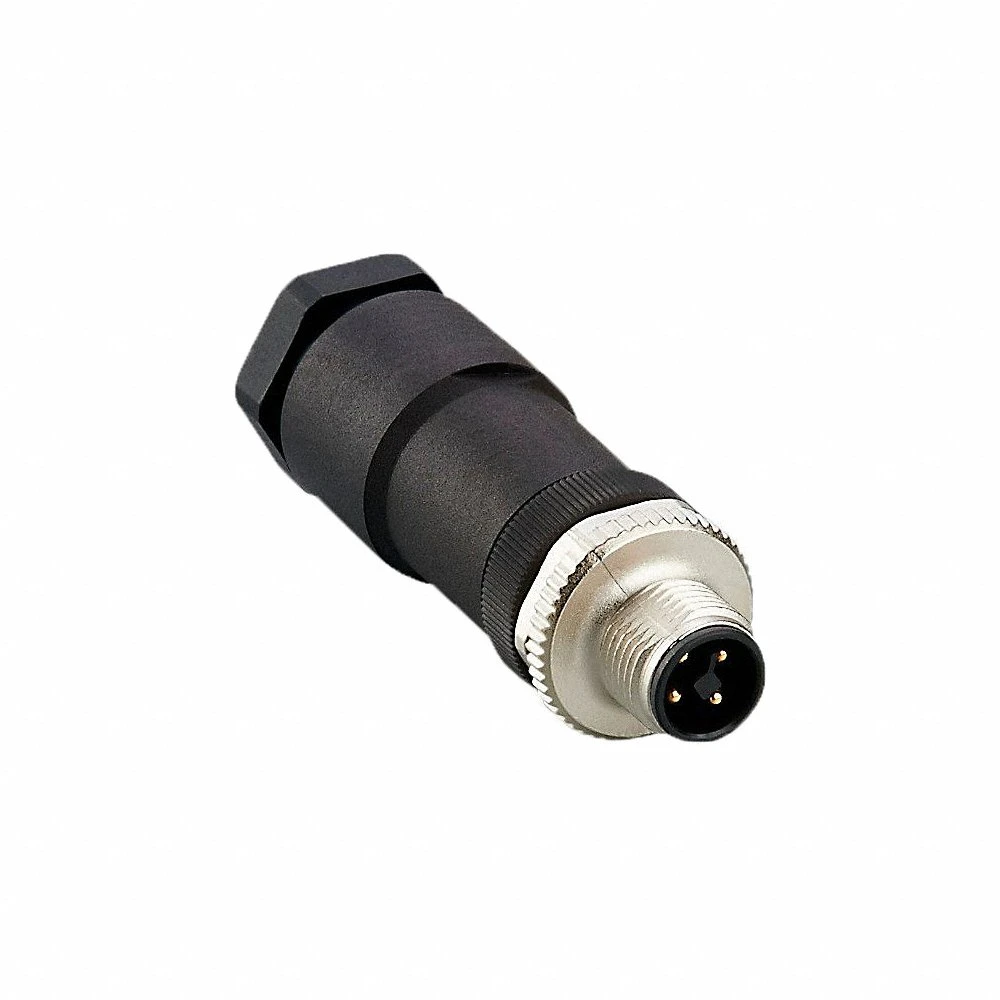

IFM E12500 Circular Connector, T Coded, Male Thread with Straight Connection, 4 Pin Contacts
Item: CR4KYNModel: E12500Cross Ref: 787GG4
7 In Stock
Ships within 2 days via
5.00% off
€64.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Application | DC Power |
| Cable Outside Dia. | 10 mm |
| Coding | T |
| Conductor Cross Section Size | 1.5 sq. mm |
| Connection Finish | Gold Plated |
| Connection Type | Plated Contacts |
| Connector Application | T Coded For DC Power |
| Connector Body Type | Pin |
| Connector Configuration | M12 Male Thread |
| Connector Gender | Male |
| Connector Orientation | Straight |
| Connector Size | M12 |
| Connector Type | Field-Wirable |
| For Max. Cable Dia. | 10 mm |
| Housing | Nylon |
| Housing Material | Nylon |
| Included Nuts | Yes |
| Ip Rating | IP67 |
| Lock Type | Screw Connection |
| Locking Style | Screw Connection |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | -40°F |
| Mounting Style | Male Thread |
| Mounting Type | Front Mounting |
| No. Of Contacts | 4 |
| No. Of Poles | 4 |
| Nominal Amps | 12A |
| Nominal Voltage | 60V DC |
| Pole Type | Pin |
| Temp. | -40°F to +185°F |
| Thread Size | M12 |
| Voltage | 60V DC |
| Wire Size | 1.5 sq. mm |
| Wiring Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Temp. | No. Of Poles | Voltage | Wire Size | Mounting Style | Nominal Voltage | Conductor Cross Section Size | Connector Orientation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EVC811 | -13°F to +194°F | 4 | 250V AC/300V DC | 1.04 sq. mm | Female Thread | 250V AC/300V DC | 1.04 sq. mm | 90° | €29.14 | |
 |
E18061 | -13°F to +185°F | 4 | 250V DC | 0.34 sq. mm | Female Thread | 250V DC | 0.34 sq. mm | 90° | €36.30 | |
 |
EVF570 | -13°F to +212°F | 5 | 60V AC/DC | 1.04 sq. mm | Female Thread | 60V AC/DC | 1.04 sq. mm | 90° | €47.15 | |
 |
EVC815 | -13°F to +194°F | 5 | 60V AC/DC | 1.04 sq. mm | Female Thread | 60V AC/DC | 1.04 sq. mm | 90° | €32.53 | |
 |
E11510 | -13°F to +185°F | 4 | 10-30V DC | 0.75 sq. mm | Female Thread | 10-30V DC | 0.75 sq. mm | 90° | €39.64 | |
 |
E11252 | -40°F to +185°F | 4 | 45V AC/70V DC | 0.75 sq. mm | Female Thread | 45V AC/70V DC | 0.75 sq. mm | 90° | €40.80 | |
|
EVF566 | +13°F to +212°F | 4 | 250V AC/300V DC | 1.04 sq. mm | Female Thread | 250V AC/300V DC | 1.04 sq. mm | 90° | €43.12 |
