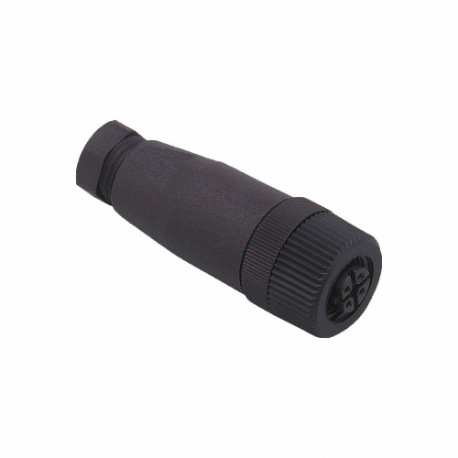

IFM E10109 Circular Connector, B Coded, Female Thread with Straight Connection
Item: CR4KYGModel: E10109Cross Ref: 787GK2
7 In Stock
Ships within 2 days via
10.00% off
€31.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Application | Fieldbus, Profinet |
| Coding | B |
| Conductor Cross Section Size | 0.75 sq. mm |
| Connection Finish | Gold Plated |
| Connection Type | Plated Contacts |
| Connector Application | B Coded For Profibus, Interbus |
| Connector Body Type | Socket |
| Connector Configuration | M12 Female Thread |
| Connector Gender | Female |
| Connector Orientation | Straight |
| Connector Size | M12 |
| Connector Type | Field-Wirable |
| Housing | Nylon |
| Housing Material | Nylon |
| Includes Nuts | Yes |
| Ip Rating | IP67 |
| Lock Type | Screw Connection |
| Locking Style | Screw Connection |
| Max. Operating Temp. | 185°F |
| Min. Operating Temp. | -13°F |
| Mounting Style | Female Thread |
| Mounting Type | Front Mounting |
| Nominal Voltage | 45V AC/70V DC |
| Number Of Contacts | 4 |
| Number Of Poles | 4 |
| Pole Type | Socket |
| Temp. Range | -13°F to +185°F |
| Thread Size | M12 |
| Voltage Rating | 45V AC/70V DC |
| Wire Size | 0.75 sq. mm |
| Wiring Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 2.71 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Min. Operating Temp. | Max. Operating Temp. | Number Of Poles | Mounting Style | Connector Body Type | Voltage Rating | Number Of Contacts | Connector Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EVC811 | -13°F | 194°F | 4 | Female Thread | Socket | 250V AC/300V DC | 4 | Field Wirable | €29.14 | |
 |
E18061 | -13°F | 185°F | 4 | Female Thread | Socket | 250V DC | 4 | Field Wirable | €36.30 | |
 |
EVF570 | -13°F | 212°F | 5 | Female Thread | Socket | 60V AC/DC | 5 Socket | Field Wirable | €47.15 | |
 |
EVC815 | -13°F | 194°F | 5 | Female Thread | Socket | 60V AC/DC | 5 Socket | Field Wirable | €32.53 | |
 |
E11510 | -13°F | 185°F | 4 | Female Thread | Socket | 10-30V DC | 4 | Field Wirable | €39.64 | |
 |
E11252 | -40°F | 185°F | 4 | Female Thread | Socket | 45V AC/70V DC | 4 | Field Wirable | €40.80 | |
|
EVF566 | -13°F | - | 4 | Female Thread | Socket | 250V AC/300V DC | 4 | Field Wirable | €43.12 |
