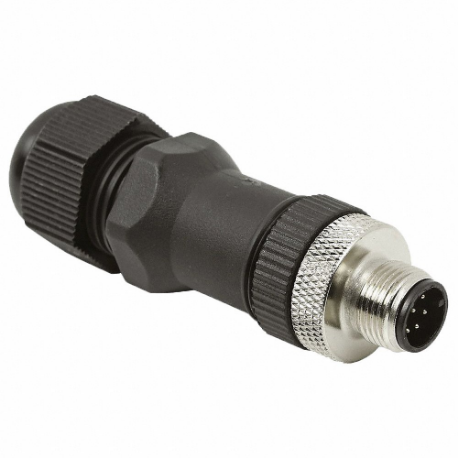

IFM E18343 Circular Connector, A Coded, Male Thread with Straight Connection, 8 Pin Contacts
Item: CR4KYDModel: E18343Cross Ref: 787GF6
7 In Stock
Ships within 2 days via
5.00% off
€62.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Application | DC Power, Gigabit Internet, Sensors, Signal |
| Cable Outside Dia. | 8 mm |
| Coding | A |
| Conductor Cross Section Size | 0.75 sq. mm |
| Connection Finish | Gold Plated |
| Connection Type | Plated Contacts |
| Connector Application | A Coded For Signal, Low Power, And Gigabit Data |
| Connector Body Type | Pin |
| Connector Configuration | M12 Male Thread |
| Connector Gender | Male |
| Connector Orientation | Straight |
| Connector Size | M12 |
| Connector Type | Field-Wirable |
| For Max. Cable Dia. | 8 mm |
| Housing | Nylon |
| Housing Material | Nylon |
| Included Nuts | Yes |
| Ip Rating | IP68 |
| Lock Type | Screw Connection |
| Locking Style | Screw Connection |
| Max. Operating Temp. | 212°F |
| Min. Operating Temp. | -13°F |
| Mounting Style | Male Thread |
| Mounting Type | Front Mounting |
| No. Of Contacts | 8 |
| No. Of Poles | 8 |
| Nominal Voltage | 125V AC/DC |
| Pole Type | Pin |
| Temp. | -13°F to +212°F |
| Thread Size | M12 |
| Voltage | 125V AC/DC |
| Wire Size | 0.75 sq. mm |
| Wiring Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 4.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Min. Operating Temp. | Max. Operating Temp. | Mounting Style | Connector Body Type | Connector Type | Conductor Cross Section Size | Nominal Voltage | Connector Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EVC811 | -13°F | 194°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 250V AC/300V DC | M12 Female Thread | €29.14 | |
 |
E18061 | -13°F | 185°F | Female Thread | Socket | Field Wirable | 0.34 sq. mm | 250V DC | M12 Female Thread | €36.30 | |
 |
EVF570 | -13°F | 212°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 60V AC/DC | M12 Female Thread | €47.15 | |
 |
EVC815 | -13°F | 194°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 60V AC/DC | M12 Female Thread | €32.53 | |
 |
E11510 | -13°F | 185°F | Female Thread | Socket | Field Wirable | 0.75 sq. mm | 10-30V DC | M12 Female Thread | €39.64 | |
 |
E11252 | -40°F | 185°F | Female Thread | Socket | Field Wirable | 0.75 sq. mm | 45V AC/70V DC | M12 Female Thread | €40.80 | |
|
EVF566 | -13°F | 212°F | Female Thread | Socket | Field Wirable | 1.04 sq. mm | 250V AC/300V DC | M12 Female Thread | €43.12 |
