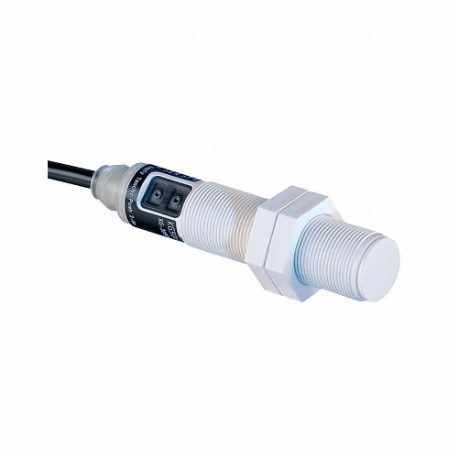

IFM KG5067 Cylindrical Proximity Sensor, 10 To 36VDC, 10 Hz Proximity Sensor Op Freq, 3 Wire Pnp/Npn
Item: CR4LFWModel: KG5067Cross Ref: 35T513
7 In Stock
Ships within 2 days via
€211.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Basic Proximity Sensor Case Material | Plastic |
| Body Material | Polyethylene |
| Cable Length | 2m |
| Dc Supply Voltage Rating | 10-36V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Electronic Lock | Yes |
| Housing | Threaded Type |
| Included | (2) Lock Nuts |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Length | 88 mm |
| Max. Detecting Distance | 8 mm |
| Max. Load Amps | 200 mA |
| Max. Operating Temp. | 176°F |
| Max. Output Circuit Voltage | 2.5V DC |
| Min. Operating Temp. | -13°F |
| No. Of Wires | 3 |
| Output Circuit | NPN, PNP |
| Output Circuit Amps-max. | 200 mA |
| Output Circuit Contact Form | NO, NC |
| Output Circuit Type | NPN And PNP |
| Output Mode | NC/No |
| Overload Protection | Yes |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Dia. | 18 mm |
| Proximity Sensor Electrical Connection | Cable |
| Reverse Polarity Protection | Yes |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Capacitive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 18 mm |
| Sensor Height | 77 mm |
| Shielded/unshielded | Unshielded |
| Short-circuit Proof | Yes |
| Sio Mode | Yes |
| Supply Voltage | 10-36V DC |
| Teach Function | Yes |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Included | Max. Detecting Distance | Output Mode | Proximity Sensor Dia. | Proximity Sensing Method | Supply Voltage | Sensor Dia. | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IIS229 | (2) Lock Nuts | 22 mm | No | 30 mm | Inductive | 10-30V DC | 30 mm | M12 | €106.07 | |
 |
IIS244 | (2) Lock Nuts | 15 mm | No | 30 mm | Inductive | 10-30V DC | 30 mm | Bare Wire | €108.46 | |
 |
IIS228 | (2) Lock Nuts | 15 mm | No | 30 mm | Inductive | 10-30V DC | 30 mm | M12 | €105.10 | |
 |
IIS248 | (2) Lock Nuts | 15 mm | NC | 30 mm | Inductive | 10-30V DC | 30 mm | M12 | €139.23 | |
|
IIS235 | (2) Lock Nuts | 15 mm | NC | 30 mm | Inductive | 10-30V DC | 30 mm | M12 | €139.20 | |
|
IIS237 | (2) Lock Nuts | 22 mm | NC | 30 mm | Inductive | 10-30V DC | 30 mm | M12 | €105.04 | |
 |
IIS249 | (2) Lock Nuts | 22 mm | NC | 30 mm | Inductive | 10-30V DC | 30 mm | M12 | €139.23 |
