HUBBELL WIRING DEVICE-KELLEMS Pin and Sleeve Receptacles
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R| Style | Model | Phase | Housing Material | Housing Color | Ip Rating | Amps | Hp | Max. Wire Size | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBLS330R6W | - | - | - | - | 30/32A | - | - | - | €1,040.88 | |
| B | HBLS430R9W | - | - | - | - | 30A | - | - | - | €1,026.38 | |
| C | HBL420R12W | 1 | Thermoplastic | Orange | IP67 | 20A | 2 hp | 10 AWG | 14 AWG | €419.39 | |
| D | HBLS460R12W | 1 | Polybutylene Terephthalate | Orange | IP69K | 60A | 3 hp | 2 AWG | 8 AWG | €2,135.87 | |
| E | HBLS332R4W | 1 | Polybutylene Terephthalate | Yellow | IP67 | 32A | 2 hp | 8 AWG | 12 AWG | €1,050.94 | |
| E | HBLS360R4W | 1 | Polybutylene Terephthalate | Yellow | IP69K | 60A | 3 hp | 2 AWG | 8 AWG | €1,979.04 | |
| F | HBLS360R7W | 1 | Polybutylene Terephthalate | Red | IP69K | 60A | 15 hp | 2 AWG | 8 AWG | €1,979.04 | |
| D | HBLS430R12W | 1 | Polybutylene Terephthalate | Orange | IP67 | 30A | 2 hp | 8 AWG | 12 AWG | €1,120.25 | |

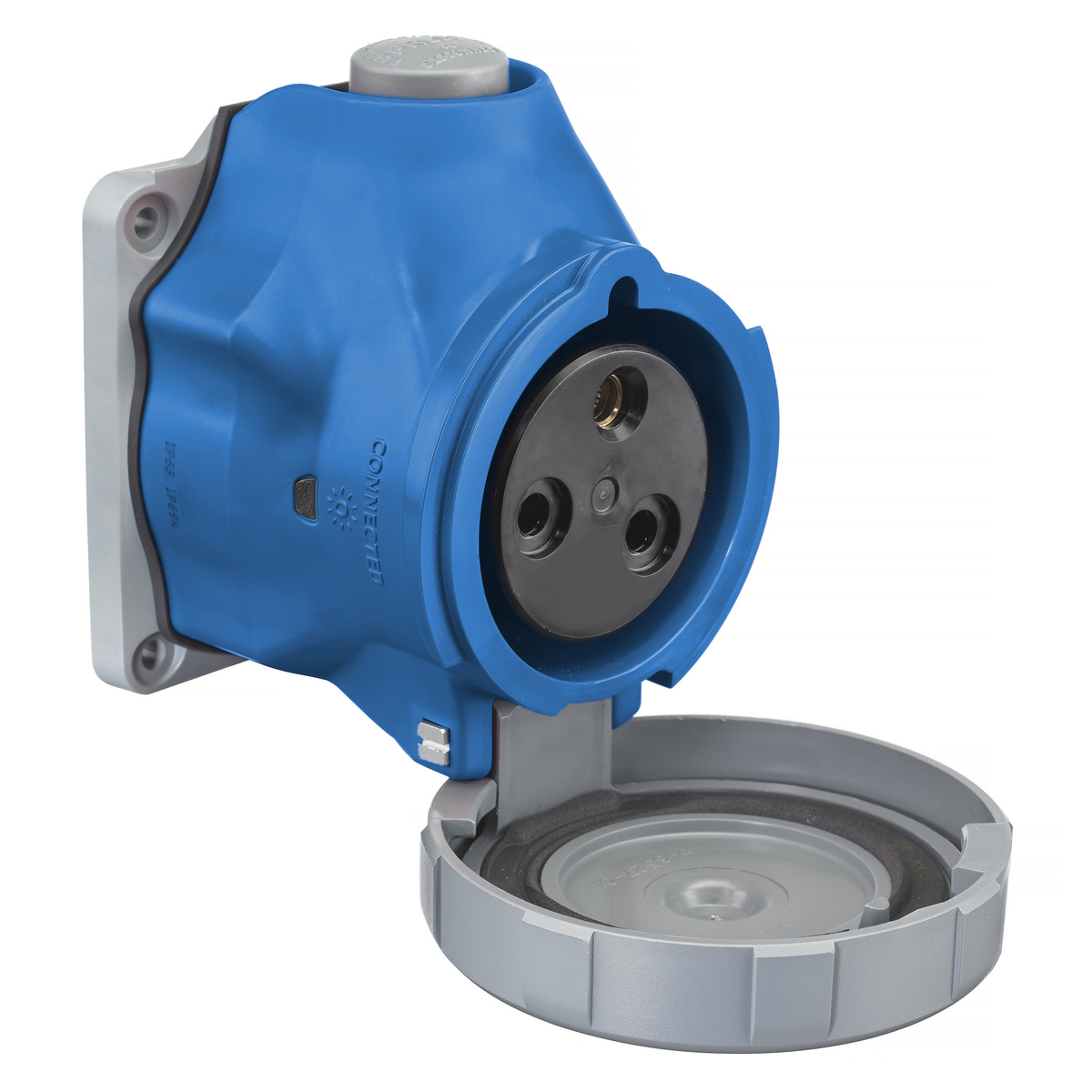

| A | HBLS360R6W | 1 | Polybutylene Terephthalate | Blue | IP69K | 60/63A | 7 1/2 hp | 2 AWG | 8 AWG | €1,850.47 | |
| G | HBLS560R6W | 1 | Polybutylene Terephthalate | Red | IP69K | 60/63A | 10 hp | 2 AWG | 8 AWG | €2,408.13 | |
| E | HBLS330R4W | 1 | Polybutylene Terephthalate | Yellow | IP67 | 30A | 2 hp | 8 AWG | 12 AWG | €1,053.11 | |
| F | HBLS330R7W | 1 | Polybutylene Terephthalate | Red | IP67 | 30A | 10 hp | 8 AWG | 12 AWG | €1,057.94 | |

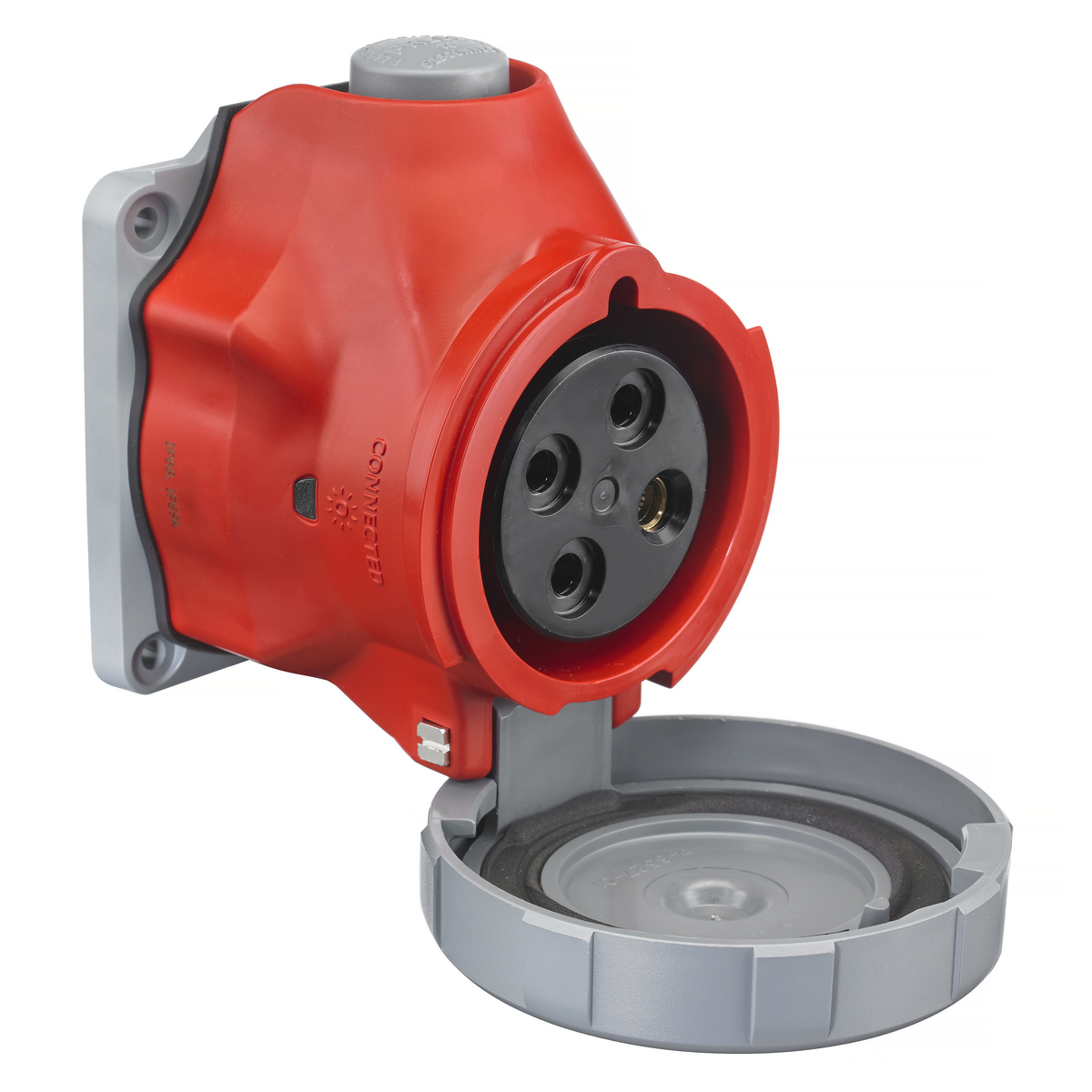

| H | HBLS432R3W | 1 | Polybutylene Terephthalate | Red | IP67 | 32A | 10 hp | 8 AWG | 12 AWG | €1,151.56 | |
| C | HBL4100R12W | 1 | Thermoplastic | Orange | IP67 | 100A | 10 hp | 1/0 AWG | 3 AWG | €1,116.43 | |
| C | HBL430R12W | 1 | Thermoplastic | Orange | IP67 | 30A | 3 hp | 2 AWG | 12 AWG | €543.05 | |
| C | HBL460R12W | 1 | Thermoplastic | Orange | IP67 | 60A | 7 1/2 hp | 2 AWG | 8 AWG | €801.11 | |
| I | HBLS430R6W | 3 | Polybutylene Terephthalate | Red | IP67 | 30/32A | 7 1/2 hp | 8 AWG | 12 AWG | €1,164.28 | |
| J | HBLS4100R9W | 3 | Composite | Black | IP69K | 100A | 15 hp | 1 AWG | 6 AWG | €5,148.91 | |
| K | HBL460R7W | 3 | Thermoplastic | Red | IP67 | 60A | 10 hp | 2 AWG | 8 AWG | €847.91 | |
| L | HBL460R9W | 3 | Thermoplastic | Blue | IP67 | 60A | 7 1/2 hp | 2 AWG | 8 AWG | €813.78 | |
| M | HBLS430R5W | 3 | Polybutylene Terephthalate | Black | IP67 | 30A | 30 hp | 8 AWG | 12 AWG | €1,108.14 | |
| B | HBLS460R9W | 3 | - | - | - | 60/63A | - | - | - | €1,793.06 | |
| N | HBLS4100R5W | 3 | Composite | Red | IP68, IP69K | 100A | 50 hp | 1 AWG | 6 AWG | €5,347.58 | |
| J | HBLS5100R9W | 3 | Composite | Blue | IP68, IP69K | 100A | 15 hp | 1 AWG | 6 AWG | €5,933.00 | |
| N | HBLS5100R5W | 3 | Composite | Red | IP68, IP69K | 100A | 50 hp | 1 AWG | 6 AWG | €6,020.35 | |
| O | HBLS4100R12W | 3 | Composite | Black | IP68, IP69K | 100A | 10 hp | 1 AWG | 6 AWG | €5,347.58 | |
| P | HBLS5100R7W | 3 | Composite | Blue | IP68, IP69K | 100A | 40 hp | 1 AWG | 6 AWG | €5,933.00 | |
| P | HBLS4100R7W | 3 | Composite | Blue | IP68, IP69K | 100A | 40 hp | 1 AWG | 6 AWG | €3,982.81 | |
| P | HBLS4100R6W | 3 | Composite | Red | IP68, IP69K | 100A | 15 hp | 1 AWG | 6 AWG | €5,574.80 | |
| Q | HBLS530R9W | 3 | Polybutylene Terephthalate | Blue | IP69K | 30/32A | 10 hp | 8 AWG | 12 AWG | €1,248.14 | |
| Q | HBLS560R9W | 3 | Polybutylene Terephthalate | Blue | IP69K | 60/63A | 10 hp | 2 AWG | 8 AWG | €2,244.49 | |
| M | HBLS460R5W | 3 | Polybutylene Terephthalate | Black | IP69K | 60A | 40 hp | 2 AWG | 8 AWG | €1,982.93 | |
| I | HBLS460R6W | 3 | Polybutylene Terephthalate | Red | IP69K | 60/63A | 10 hp | 2 AWG | 8 AWG | €2,215.35 | |
| K | HBL4100R7W | 3 | Thermoplastic | Blue | IP67 | 100A | 40 hp | 1/0 AWG | 3 AWG | €1,087.29 | |
| R | HBLS530R5W | 3 | Polybutylene Terephthalate | Black | IP69K | 30A | 30 hp | 8 AWG | 12 AWG | €1,290.14 | |
| I | HBLS460R7W | 3 | Polybutylene Terephthalate | Red | IP69K | 60A | 30 hp | 2 AWG | 8 AWG | €1,724.98 | |
| L | HBL430R9W | 3 | Thermoplastic | Blue | IP67 | 30A | 7 1/2 hp | 8 AWG | 12 AWG | €556.07 | |
| R | HBLS560R5W | 3 | Polybutylene Terephthalate | Black | IP69K | 60A | 40 hp | 2 AWG | 8 AWG | €2,238.91 | |
| L | HBL420R9W | 3 | Thermoplastic | Blue | IP67 | 20A | 2 hp | 10 AWG | 14 AWG | €409.89 | |
| G | HBLS560R7W | 3 | Polybutylene Terephthalate | Red | IP69K | 60A | 30 hp | 2 AWG | 8 AWG | €2,243.59 | |
| G | HBLS530R7W | 3 | Polybutylene Terephthalate | Red | IP69K | 30A | 20 hp | 8 AWG | 12 AWG | €1,218.81 | |
| K | HBL430R7W | 3 | Composite | Orange | IP68, IP69K | 30A | 15 hp | 1 AWG | 6 AWG | €575.15 | |
| G | HBLS530R6W | 3 | Polybutylene Terephthalate | Red | IP69K | 30/32A | 7 1/2 hp | 8 AWG | 12 AWG | €1,227.97 | |
| K | HBL420R7W | 3 | Thermoplastic | Blue | IP67 | 20A | 5 hp | 8 AWG | 12 AWG | €455.11 | |
| L | HBL4100R9W | 3 | Thermoplastic | Blue | IP67 | 100A | 15 hp | 2 AWG | 8 AWG | €1,018.30 | |
| I | HBLS430R7W | 3 | Polybutylene Terephthalate | Red | IP67 | 30A | 20 hp | 8 AWG | 12 AWG | €1,067.55 | |
| P | HBLS5100R6W | 3 | Composite | Red | IP68, IP69K | 100A | 15 hp | 1 AWG | 6 AWG | €6,020.35 |
Pin and Sleeve Receptacles
Hubbell Wiring Device-Kellems watertight pin and sleeve receptacles are used for supplying power to equipment such as conveyors, hand tools, welding machines and lighting fixtures. They are designed to meet IEC 60309-1 & 60309-2 international standards and feature a non conductive nylon housing and OSHA-compliant lockout holes in the plug shroud to ensure user safety. These receptacles come with neoprene glad seals to prevent water from entering into the cable. Choose from a wide range of these receptacles, available in 1 & 3 phase configurations.
Raptor Supplies also offers pin and sleeve plugsfeaturing zytel 801 nylon and nylon body construction for high dimensional stability and heat resistance.
