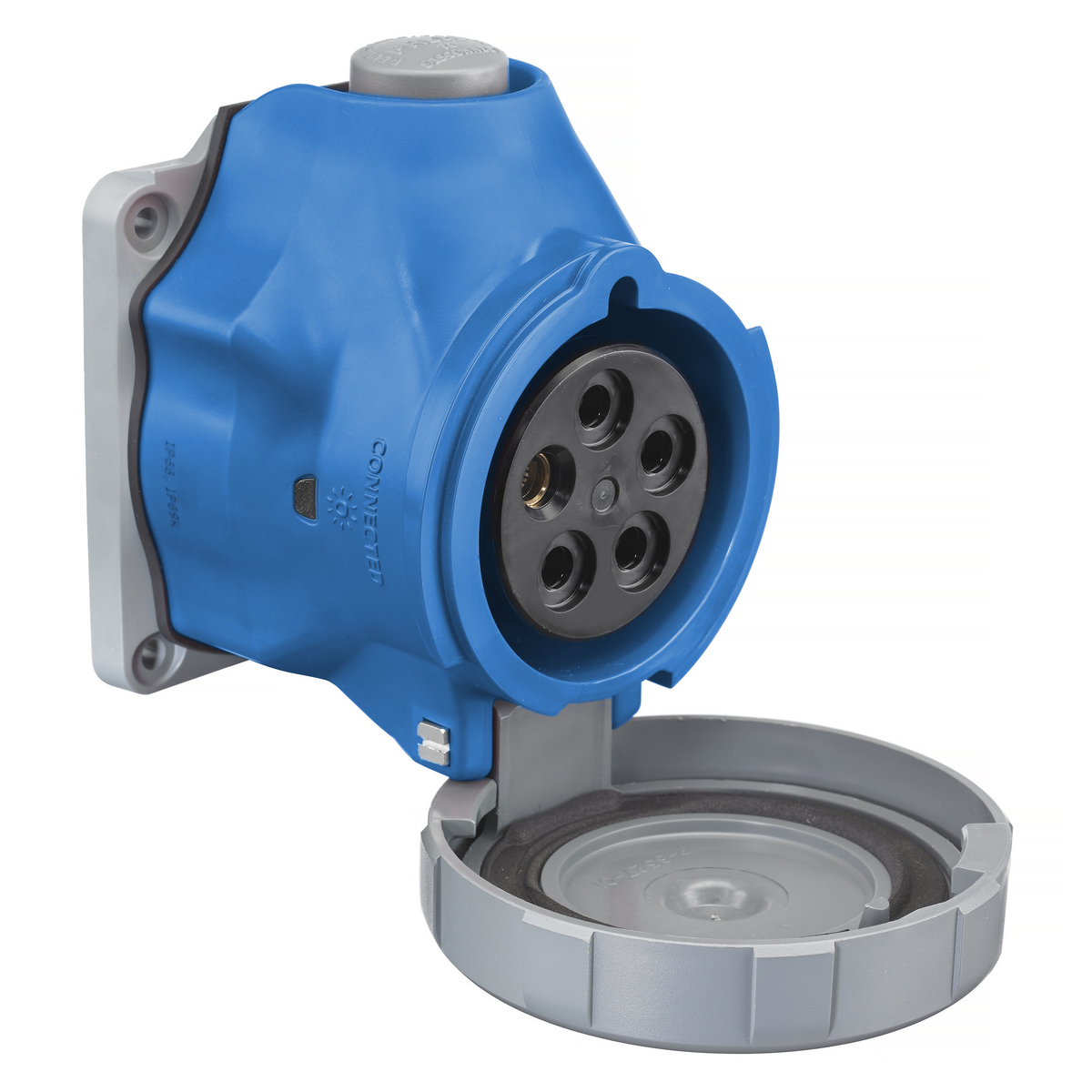

HUBBELL WIRING DEVICE-KELLEMS HBLS560R9W Watertight Pin and Sleeve Receptacle, 60A
Item: BD4JBZModel: HBLS560R9WCross Ref: 415H33
7 In Stock
Ships within 2 days via
5.00% off
€2,132.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Receptacle |
| Amps | 60/63A |
| Cap Type | Spring Loaded Cap |
| Color | Blue |
| Connection Orientation | Straight |
| Face Dia. | 3.88" |
| Features | Approved As A Disconnecting Means For Motor Circuits And Branch Circuits, Mates With Existing Installed Base Of Iec 60309-2 Pin And Sleeve Devices, Unswitched Ground |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Blue |
| Housing Material | Polybutylene Terephthalate |
| Housing Material Grade | Grade Valox 357 |
| Hp | 10 hp |
| Ip Rating | IP69K |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 2 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 8 AWG |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Gangs | 1 |
| No. Of Poles | 4.0 |
| No. Of Wires | 5 |
| Phase | 3 |
| Power Indicating Light | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbls560r9w.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 120/208V AC |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 19.3 |
| Ship width (cm) | 16.26 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Amps | Phase | Housing Material | Housing Color | Color | Type | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL420R12W | 3.0 | 20A | 1 | Thermoplastic | Orange | Orange | Female Receptacle | 14 AWG to 10 AWG | €419.39 | |
 |
HBL420R9W | 3.0 | 20A | 3 | Thermoplastic | Blue | Blue | Female Receptacle | 14 AWG to 10 AWG | €409.89 | |
|
HBL430R12W | 3.0 | 30/60A | 1 | Thermoplastic | Orange | Orange | Female Receptacle | 12 AWG to 8 AWG | €543.05 | |
|
HBL460R9W | 3.0 | 60A | 3 | Thermoplastic | Blue | Blue | Female Receptacle | 8 AWG to 2 AWG | €813.78 | |
 |
HBL460R7W | 3.0 | 60A | 3 | Thermoplastic | Red | Red | Female Receptacle | 8 AWG to 2 AWG | €908.46 | |
|
HBL4100R7W | 3.0 | 100A | 3 | Thermoplastic | Blue | Red | Female Receptacle | #3 AWG to #1/0 AWG | €1,087.29 | |
|
HBL430R9W | 3.0 | 30A | 3 | Thermoplastic | Blue | Blue | Female Receptacle | 12 AWG to 8 AWG | €556.07 |
