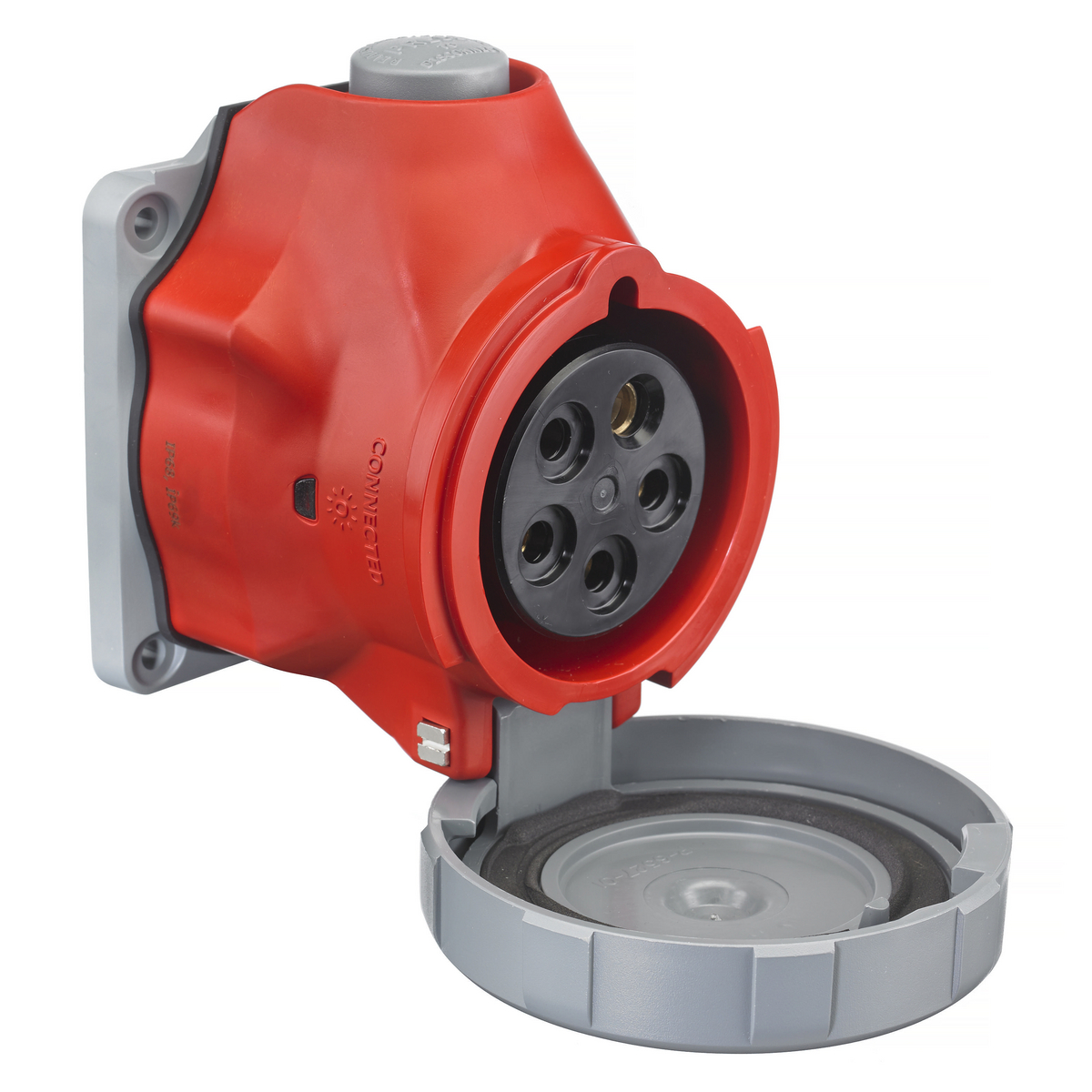

HUBBELL WIRING DEVICE-KELLEMS HBLS560R6W Watertight Pin and Sleeve Receptacle, 60A
Item: BD3XYBModel: HBLS560R6WCross Ref: 415H34
7 In Stock
Ships within 2 days via
10.00% off
€2,167.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Receptacle |
| Cap Type | Spring Loaded Cap |
| Connection Orientation | Straight |
| Current Rating | 60/63A |
| Face Diameter | 3.88" |
| Features | Approved As A Disconnecting Means For Motor Circuits And Branch Circuits, Mates With Existing Installed Base Of Iec 60309-2 Pin And Sleeve Devices, Unswitched Ground |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 10 hp |
| Housing Color | Red |
| Housing Material | Polybutylene Terephthalate |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 8 AWG |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Phase | Single |
| Power Indicating Light | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbls560r6w.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 200/346-240/415V AC |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 16.26 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Phase | Current Rating | Housing Material | Housing Color | Ip Rating | Hp Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL420R12W | 3.0 | 4 | 1 | 20A | Thermoplastic | Orange | IP67 | - | €419.39 | |
 |
HBL420R9W | 3.0 | 4 | 3 | 20A | Thermoplastic | Blue | IP67 | 2 hp | €409.89 | |
|
HBL430R12W | 3.0 | 4 | 1 | 30/60A | Thermoplastic | Orange | IP67 | - | €543.05 | |
|
HBL460R9W | 3.0 | 4 | 3 | 60A | Thermoplastic | Blue | IP67 | 7 1/2 hp | €879.86 | |
 |
HBL460R7W | 3.0 | 4 | 3 | 60A | Thermoplastic | Red | IP67 | 10 hp | €847.91 | |
|
HBL4100R7W | 3.0 | 4 | 3 | 100A | Thermoplastic | Blue | IP67 | 50 hp | €1,072.06 | |
|
HBL430R9W | 3.0 | 4 | 3 | 30A | Thermoplastic | Blue | IP67 | 7 1/2 hp | €556.07 |
