HUBBELL WIRING DEVICE-KELLEMS HBL4100R9W Iec Pin And Sleeve Receptacle, Female, 100 A, 250 VAC, 3 Pole, Blue
Item: AE7ZFVModel: HBL4100R9WCross Ref: 6C558
7 In Stock
Ships within 2 days via
10.00% off
€910.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 100A |
| Cap Type | Spring Loaded Cap |
| Color | Blue |
| Connection Orientation | Straight |
| Current Rating | 100A |
| Exposure Conditions | Wateright |
| Face Diameter | 4.71" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 15 hp |
| Housing Color | Blue |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Hp Rating | 25 hp |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 8 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl4100r9w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Female Receptacle |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V |
| Voltage Rating | 125/250V AC |
| Wattage | 25000 W |
| Wattage | 25000 |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.78 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 14.73 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Phase | Current Rating | Housing Material | Housing Color | Ip Rating | Hp Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

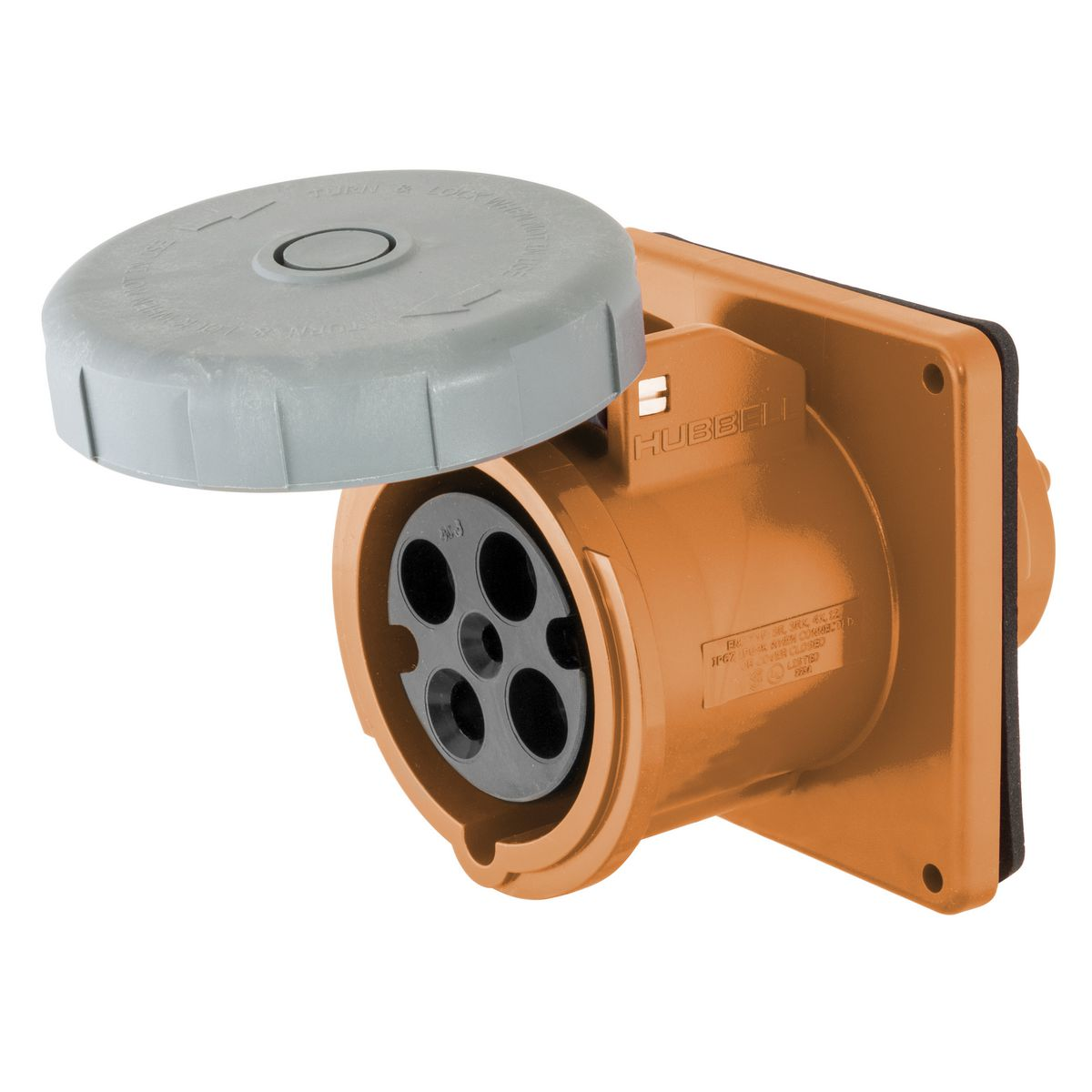

HBL420R12W | 3.0 | 4 | 1 | 20A | Thermoplastic | Orange | IP67 | - | €419.39 | |
|

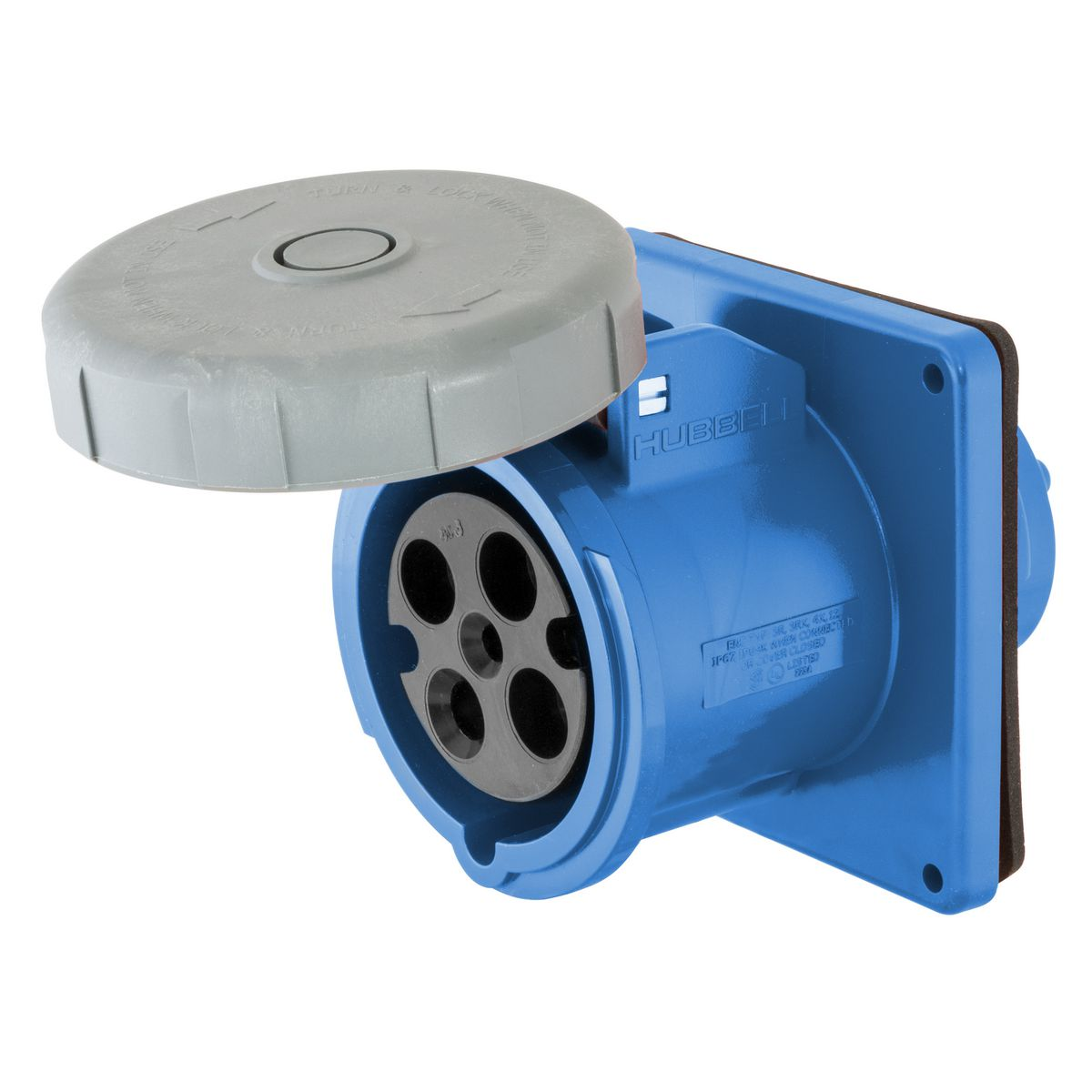

HBL420R9W | 3.0 | 4 | 3 | 20A | Thermoplastic | Blue | IP67 | 2 hp | €409.89 | |
|
HBL430R12W | 3.0 | 4 | 1 | 30/60A | Thermoplastic | Orange | IP67 | - | €543.05 | |
|
HBL460R9W | 3.0 | 4 | 3 | 60A | Thermoplastic | Blue | IP67 | 7 1/2 hp | €879.86 | |
 |

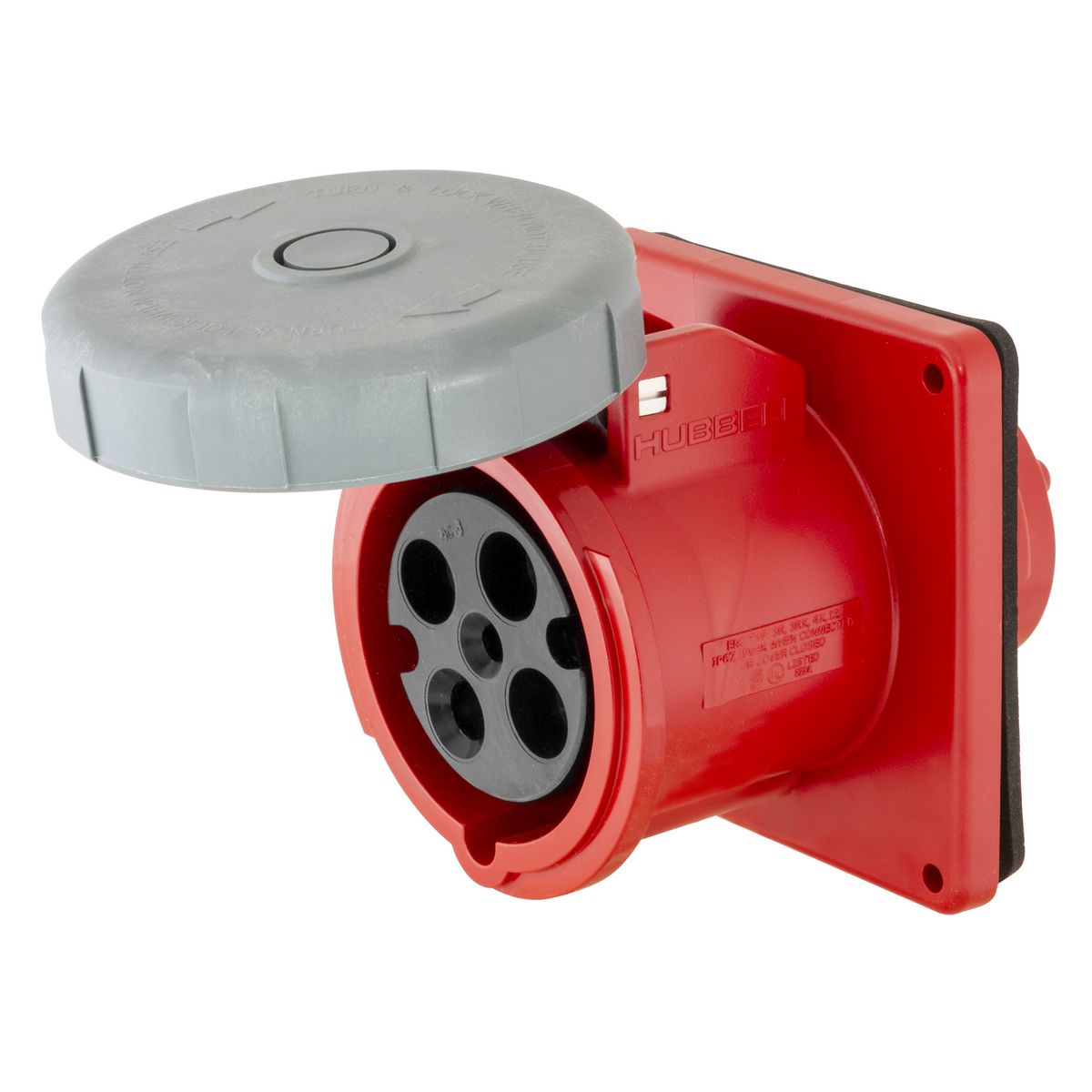

HBL460R7W | 3.0 | 4 | 3 | 60A | Thermoplastic | Red | IP67 | 10 hp | €847.91 | |
|
HBL4100R7W | 3.0 | 4 | 3 | 100A | Thermoplastic | Blue | IP67 | 50 hp | €1,072.06 | |
|
HBL430R9W | 3.0 | 4 | 3 | 30A | Thermoplastic | Blue | IP67 | 7 1/2 hp | €556.07 |
