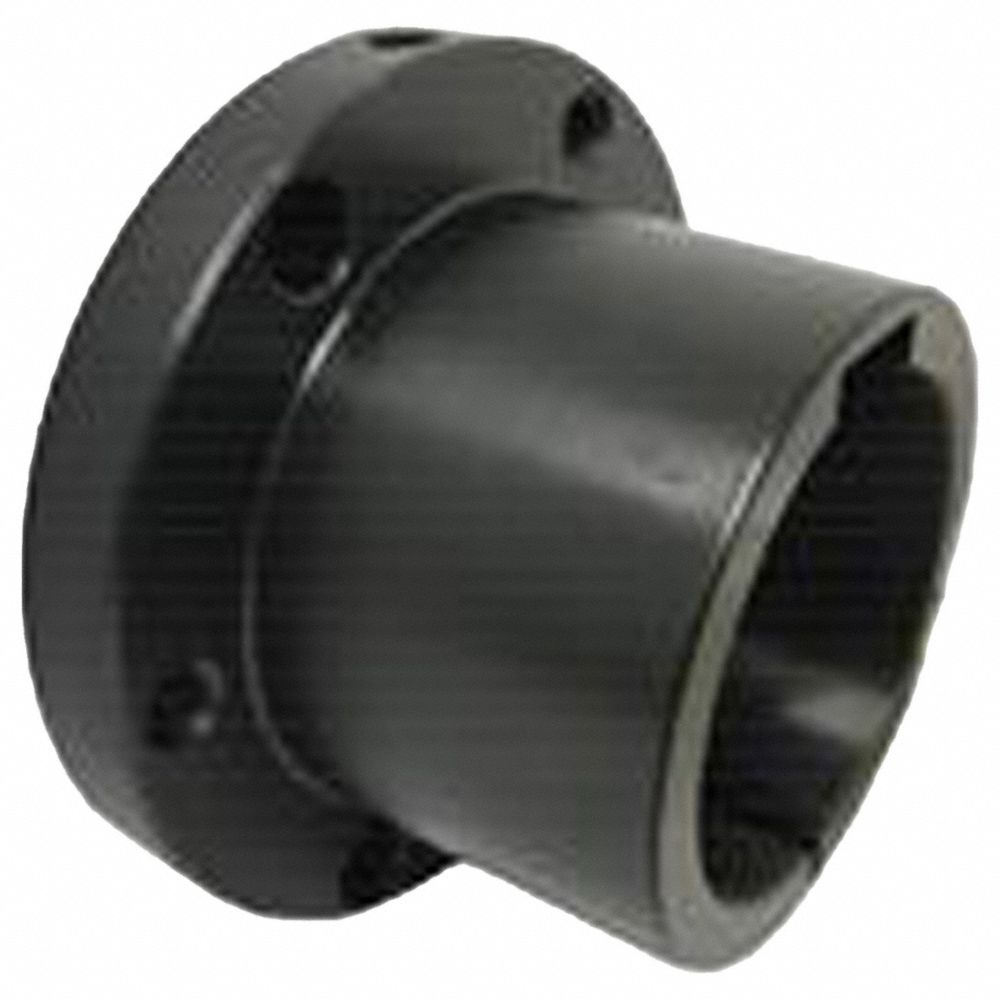

APPROVED VENDOR SDX1516 Quick Detachable Bushing, SD, 1 5/16 Inch Bore Dia, 1.813 Inch Overall Length
Item: EA4EETModel: SDX1516Cross Ref: 813CA0
7 In Stock
Ships within 2 days via
5.00% off
€65.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 2.69" |
| Bolt Size | 1/4"-20 x 1 7/8" |
| Bore Bushing Series | SD Series |
| Bore Dia. | 1 5/16" |
| Bushing Type | Quick Detachable |
| Flange Thickness | 7/16" |
| Flange Type | Split |
| For Shaft Type | Keyed |
| Includes | (3) Cap Screws |
| Keyway Depth | 3/16" |
| Keyway Width | 3/8" |
| Large Barrel Dia. | 2.188" |
| Length | 1.813" |
| Length Less Flange | 1 3/8" |
| Material | Steel |
| Max. Torque | 5000 lbs.-in. |
| Overall Dia. | 3.188" |
| System Of Measurement | Imperial |
| Taper | 0.75 in./ft. |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 8.89 |
| Country of Origin | CN |
Product Variants
| Model | Bolt Circle Dia. | Bore Dia. | Overall Dia. | Bore Bushing Series | Max. Torque | Length Less Flange | Taper | Large Barrel Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| F 1 1/2 | 5.63" | 1 1/2" | 6.625" | F Series | 40000 lbs.-in. | 2.813" | 3/4 in./ft. | 4.438" | - | RFQ
|
| F 1 15/16 | 5 5/8" | 1 15/16" | 6.625" | F Series | 40000 lbs.-in. | 2.813" | 0.75 in./ft. | 4.438" | €434.60 | |
| F 1 3/4 | 5 5/8" | 1 3/4" | 6.625" | F Series | 40000 lbs.-in. | 2.813" | 0.75 in./ft. | 4.438" | €473.43 | |
| F 2 1/4 | 5 5/8" | 2 1/4" | 6.625" | F Series | 40000 lbs.-in. | 2.813" | 0.75 in./ft. | 4.438" | €473.43 | |
| F 2 5/16 | 5.63" | 2 5/16" | 6.625" | F Series | 40000 lbs.-in. | 2.813" | 3/4 in./ft. | 4.438" | - | RFQ
|
| F 2 7/16 | 5 5/8" | 2 7/16" | - | F | - | - | 0.75 in./ft. | - | - | RFQ
|
| F 2 7/8 | 5.63" | 2 7/8" | 6.625" | F Series | 40000 lbs.-in. | 2.813" | 3/4 in./ft. | 4.438" | - | RFQ
|
