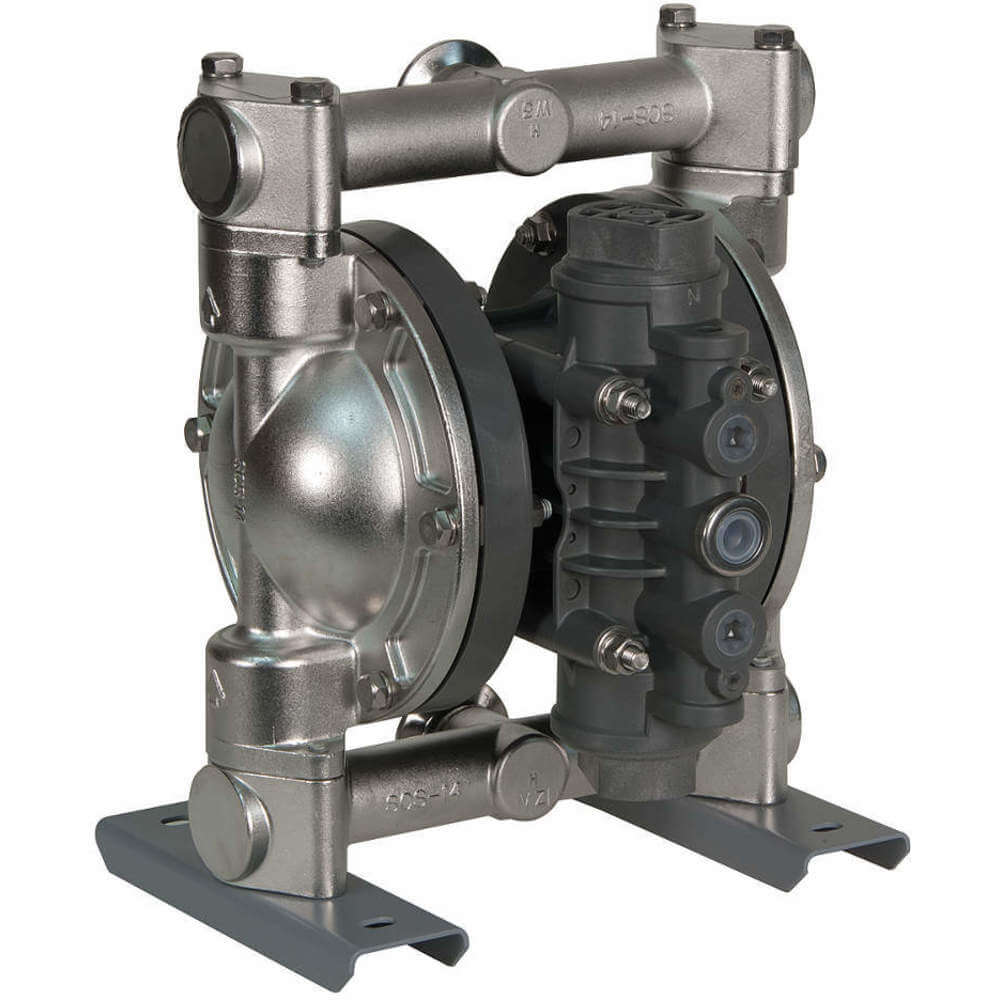

DAYTON 22A606 Pump 1-1/2 Inch Tri-clmp 46 Gpm Hytrel
Get it by Wednesday, Dec 24
10.00% off
€4,637.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 55 SCFM |
| Air Consumption (maximum) | 55 SCFM |
| Air Inlet | 3/8" FNPT |
| Air Inlet Size | 3/8" |
| Air Intake Connection Size | 3/8" |
| Air Intake Pressure (maximum) | 100 psi |
| Ball Material | PTFE |
| Center Section Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Connection Size | 1 1/2" |
| Connection Type | Tri Clamp |
| Diaphragm Material | Hytrel |
| Discharge Port Configuration | Top |
| Discharge Port Size | 1 1/2" |
| Discharge Port Type | Tri Clamp |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | Not Applicable |
| Flow Rate (maximum) | 46 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 45 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | Not Applicable |
| Flow Rate @ 30 Psi | 28 GPM |
| Flow Rate @ 40 Psi | 30 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 41 GPM |
| Flow Rate @ 70 Psi | 43 GPM |
| Flow Rate @ 80 Psi | Not Applicable |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Connection Size | 1 1/2" |
| Fluid Connection Type | Tri-Clamp |
| For Use With Potable Systems | No |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Includes | Ball Valve |
| Inlet Size | 3/8" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 1 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Tri Clamp |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 3/16" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Gpm | 46 |
| Max. Flow Rate | 46 GPM |
| Max. Media Temp. | 212°F |
| Max. Operating Pressure | 100 psi |
| Max. Viscosity | 40000 cPS |
| Media Discharge Connection Size | 1 1/2" |
| Media Discharge Connection Type | Tri Clamp |
| Media Discharge Location | Top |
| Media Intake Connection Size | 1 1/2" |
| Media Intake Connection Type | Tri Clamp |
| Media Intake Location | Bottom |
| Min. Media Temp. | 0°F |
| Mounting Hardware Material | Stainless Steel, Steel |
| Nameplate Voltage | Not Applicable |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Overall Height | 15.1" |
| Overall Length | 8 1/2" |
| Overall Width | 11.3" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Self Priming | Yes |
| Self Priming Dry | 18 ft. |
| Self Priming Wet | 28 ft. |
| Self-priming Dry | 18 ft. |
| Self-priming Wet | 28 ft. |
| Series Family | Not Applicable |
| Solid Diameter (maximum) | 0.19" |
| Suction Port | 1 1/2" TRI Clamp |
| Suction Port Configuration | Bottom |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 20.41 |
| Ship height (cm) | 38.35 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 28.7 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Valve Type | Housing Material | Valve Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N5100020G | 2.5 GPM | Viton | Viton | 0.13" | 120°F | Ball | Acetal | Polypropylene | €438.67 | |
 |
22A592 | 32 GPM | Buna N | Aluminum | 1/16" | 180°F | Ball | Aluminum | Buna N | €1,769.62 | |
 |
22A594 | 50 GPM | Buna N | Aluminum | 0.19" | 180°F | Ball | Aluminum | - | €1,821.35 | |
 |
22A595 | 215 GPM | Buna N | Buna N | 0.41" | 180°F | Ball | Aluminum | Buna N | €5,278.39 | |
 |
22A596 | 215 GPM | Santoprene | Santoprene | 0.41" | 212°F | Ball | Aluminum | Santoprene | €4,425.12 | |
 |
22A597 | 14 GPM | Santoprene | Stainless Steel | 1/32" | 212°F | Ball | Stainless Steel | Santoprene | €2,185.14 | |
 |
22A598 | 107 GPM | Santoprene | Santoprene | 0.28" | 212°F | Ball | Cast Iron | Santoprene | €3,233.21 |
