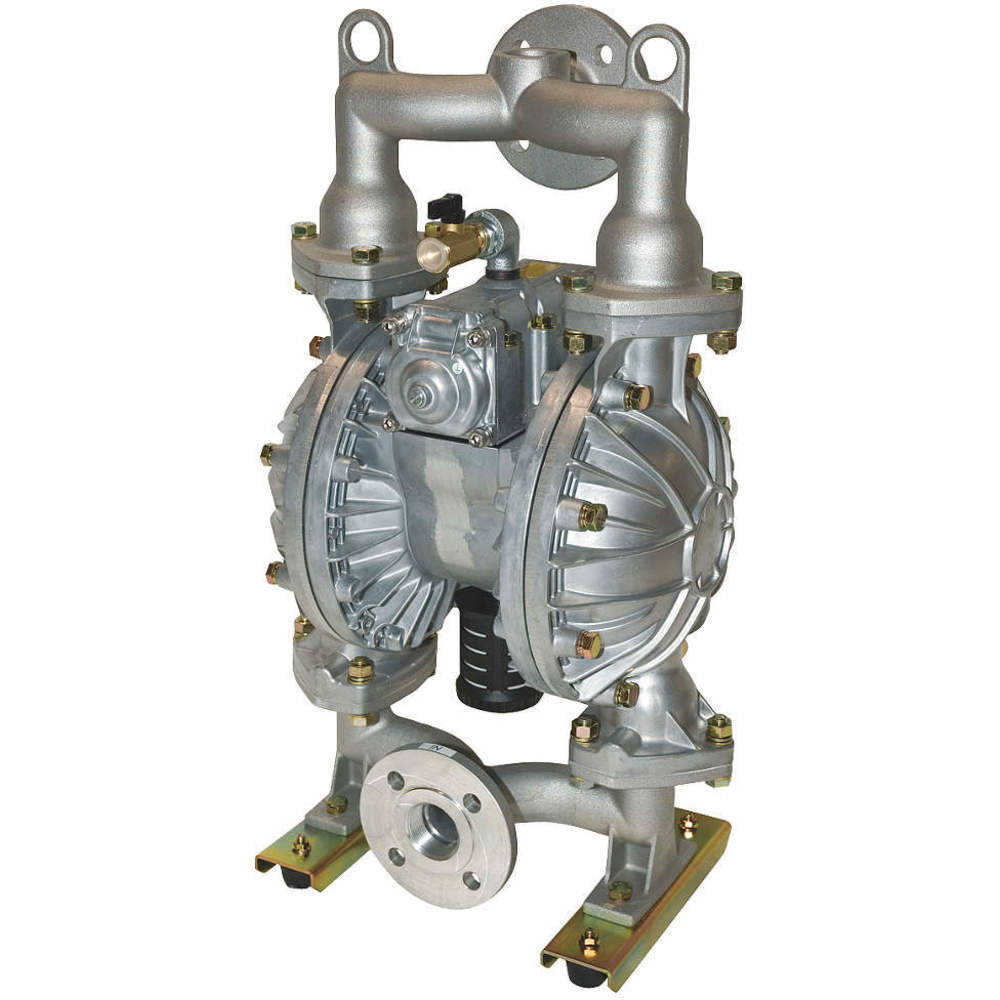

DAYTON 6PY56 Pump Diaphragm 1 1/2in
Get it by Tuesday, Dec 23
10.00% off
€2,952.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 70 SCFM |
| Air Consumption (maximum) | 70 SCFM |
| Air Inlet | 1/2" NPT Threaded Flange |
| Air Inlet Size | 1/2" |
| Air Intake Connection Size | 1/2" |
| Air Intake Pressure (maximum) | 100 psi |
| Ball Material | PTFE |
| Body Material | Aluminum |
| Check Seat Material | Aluminum |
| Connection Size | 1 1/2" |
| Connection Type | Flanged, NPT |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | Not Applicable |
| Flow Rate (maximum) | 100 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 99 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | Not Applicable |
| Flow Rate @ 30 Psi | 63 GPM |
| Flow Rate @ 40 Psi | 65 GPM |
| Flow Rate @ 50 Psi | 82 GPM |
| Flow Rate @ 60 Psi | 85 GPM |
| Flow Rate @ 70 Psi | 90 GPM |
| Flow Rate @ 80 Psi | 95 GPM |
| Flow Rate @ 90 Psi | 98 GPM |
| Fluid Intake Connection | 1 1/2" Npt Threaded Flange |
| Fluid Outlet Connection | 1 1/2" Npt Threaded Flange |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 1/2" |
| Inlet/outlet Size | 1 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 9/32" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Gpm | 100 |
| Max. Flow Rate | 100 GPM |
| Max. Media Temp. | 212°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 7/25" |
| Max. Viscosity | 50000 cPS |
| Media Discharge Connection Size | 1 1/2" |
| Media Discharge Location | Top |
| Media Intake Connection Size | 1 1/2" |
| Media Intake Location | Bottom |
| Min. Media Temp. | 40°F |
| Mounting Hardware Material | Stainless Steel, Steel |
| Nameplate Voltage | Not Applicable |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Overall Height | 28" |
| Overall Length | 16.3" |
| Overall Width | 11.3" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self Priming Dry | 15 ft. |
| Self Priming Wet | 28 ft. |
| Self-priming Dry | 15 ft. |
| Self-priming Wet | 28 ft. |
| Series | Not Applicable |
| Series Family | Not Applicable |
| Solid Diameter (maximum) | 7/25" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 34.65 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 41.4 |
| Ship width (cm) | 28.7 |
| HS code | 8413500050 |
| Country of Origin | JP |
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Valve Type | Housing Material | Valve Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N5100020G | 2.5 GPM | Viton | Viton | 0.13" | 120°F | Ball | Acetal | Polypropylene | €438.67 | |
 |
22A592 | 32 GPM | Buna N | Aluminum | 1/16" | 180°F | Ball | Aluminum | Buna N | €1,769.62 | |
 |
22A594 | 50 GPM | Buna N | Aluminum | 0.19" | 180°F | Ball | Aluminum | - | €1,821.35 | |
 |
22A595 | 215 GPM | Buna N | Buna N | 0.41" | 180°F | Ball | Aluminum | Buna N | €5,278.39 | |
 |
22A596 | 215 GPM | Santoprene | Santoprene | 0.41" | 212°F | Ball | Aluminum | Santoprene | €4,425.12 | |
 |
22A597 | 14 GPM | Santoprene | Stainless Steel | 1/32" | 212°F | Ball | Stainless Steel | Santoprene | €2,185.14 | |
 |
22A598 | 107 GPM | Santoprene | Santoprene | 0.28" | 212°F | Ball | Cast Iron | Santoprene | €3,233.21 |
