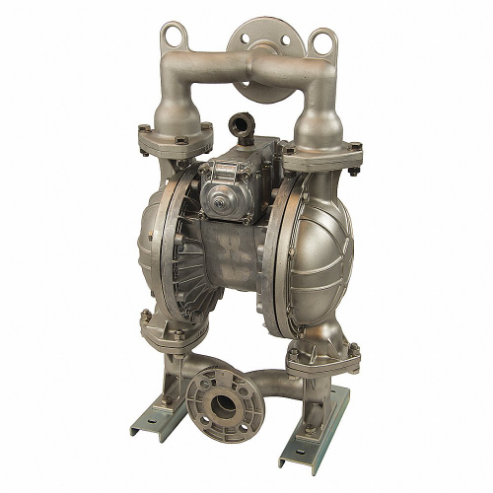

DAYTON 34TJ43 Double Diaphragm Pump 1-1/2 Inch 90 Gpm
Get it by Thursday, Dec 25
10.00% off
€7,781.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 1/2" |
| Ball Material | PTFE |
| Body Material | Stainless Steel |
| Check Seat Material | PTFE |
| Connection Size | 1 1/2" |
| Connection Style | Flange |
| Connection Type | Flanged |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate (maximum) | 90 GPM |
| Fluid Discharge Connection | 1 1/2" |
| Fluid Intake Connection | 1 1/2" Npt |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 1/2" |
| Inlet/outlet Size | 1 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange |
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 9/32" |
| Max. Flow Gpm | 90 |
| Max. Flow Rate | 90 GPM |
| Max. Media Temp. | 212°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 7/25" |
| Media Discharge Connection Size | 1 1/2" |
| Media Intake Connection Size | 1 1/2" |
| Operation Type | Air Operated |
| Overall Height | 27 4/5" |
| Overall Length | 11.3" |
| Overall Width | 16 1/5" |
| Power Source | Air |
| Pump Operation Type | Air |
| Self Priming Dry | 15 ft. |
| Self Priming Wet | 28 ft. |
| Self-priming Dry | 15 ft. |
| Self-priming Wet | 28 ft. |
| Solid Diameter (maximum) | 7/25" |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 49.5 |
| Ship height (cm) | 70.61 |
| Ship length (cm) | 28.7 |
| Ship width (cm) | 41.15 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Valve Type | Housing Material | Valve Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N5100020G | 2.5 GPM | Viton | Viton | 0.13" | 120°F | Ball | Acetal | Polypropylene | €438.67 | |
 |
22A592 | 32 GPM | Buna N | Aluminum | 1/16" | 180°F | Ball | Aluminum | Buna N | €1,769.62 | |
 |
22A594 | 50 GPM | Buna N | Aluminum | 0.19" | 180°F | Ball | Aluminum | - | €1,821.35 | |
 |
22A595 | 215 GPM | Buna N | Buna N | 0.41" | 180°F | Ball | Aluminum | Buna N | €5,278.39 | |
 |
22A596 | 215 GPM | Santoprene | Santoprene | 0.41" | 212°F | Ball | Aluminum | Santoprene | €4,425.12 | |
 |
22A597 | 14 GPM | Santoprene | Stainless Steel | 1/32" | 212°F | Ball | Stainless Steel | Santoprene | €2,185.14 | |
 |
22A598 | 107 GPM | Santoprene | Santoprene | 0.28" | 212°F | Ball | Cast Iron | Santoprene | €3,233.21 |
