ENERPAC RC-256 General Purpose Hydraulic Cylinder, 6.25 Inch Stroke Length, 232 kN
Get it by Thursday, Dec 18
10.00% off
€1,439.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Base Bolt Circle Dia. | 2.31" |
| Base Mounting Holes Bolt Circle | 2.31" |
| Base Mounting Holes Thread Depth | 3/4" |
| Base To Advance Port | 1" |
| Body Material | Steel |
| Bolt Circle Dia. | 2.31" |
| Center Hole Diameter | 2 1/4" |
| Collapsed Height | 10 3/4" |
| Collapsed Height | 10.75" |
| Collar Thread Length | 1.94" |
| Collar Thread Size | 3 5/16"-12 |
| Collar Thread Size | 3 5/16"-12 UN |
| Cylinder Bore | 2 14/25" |
| Cylinder Type | General Purpose |
| Effective Push Area | 5.16 sq. in. |
| Extended Height | 17" |
| Handle | No |
| Includes | Coupler, Dust Cap |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 25 ton. |
| Nominal Capacity | 25 ton. |
| Nominal Stroke Length | 6" |
| Oil Capacity | 32.23 cu. in. |
| Oil Capacity Push | 32.23 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 1.97" |
| Outside Dia. | 3.38" |
| Plunger Dia. | 2.25" |
| Plunger Dia. | 2 1/4" |
| Plunger Internal Thread Size | 1 1/2"-16 |
| Plunger Thread Length | 1" |
| Plunger Thread Size | 1 1/2"-16 |
| Plunger Type | Solid |
| Product Datasheet | enerpac-rc-256.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 10.75" |
| Saddle Diameter | 1.97" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 0.41" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 6 1/4" |
| Thread Size | 1/2"-13 |
| Weighing Capacity | 25 ton. |
Shipping Info:
| Ship weight (kg) | 10.26 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 8.59 |
| HS code | 8412210075 |
| Country of Origin | CN |
Product Details:
Enerpac RC-256 hydraulic cylinder is designed to lift heavy loads in any position. They have general-purpose rams attached to a hydraulic pump to lift heavy loads with minimal effort. These hydraulic cylinders are beneficial in marines and many offshore engineering applications.
Features:
- Enerpac RC-256 hydraulic cylinder features a TRIO bearing system with hardened composite wear bands for optimal side-load resistance.
- This hydraulic cylinder has a strengthened TRIO stop ring for durability.
- Its collar & plunger threads and base mounting holes enable easy fixturing.
- This hydraulic cylinder has high-grade polyethylene seals to reduce wear.
- It comes with a plunger wiper to reduce contamination.
- This general-purpose hydraulic cylinder has a steel body with baked enamel finish for corrosion resistance.
- It comes with a CR-400 coupler and dust cap to prevent environmental contamination.
- This hydraulic cylinder has a hybrid pre-tensioned spring-return system for fast retraction.
Compatible Accessories:
- Enerpac RB25 Mounting Block: This block is suitable for proper installation.
- Enerapac CATS52 Tilt Saddle: It increases contact in long-term loading.
Frequently Asked Questions:
Q. What is the maximum pressure this hydraulic cylinder can produce?
A. Enerpac general purpose hydraulic cylinder can produce up to 10000 psi.
Q. Is this cylinder a single-acting or double-acting type?
A. Enerpac RC-256 general purpose hydraulic cylinder is a single-acting cylinder.
Q. What is the weight capacity of this hydraulic cylinder?
A. This hydraulic cylinder can lift loads weighing up to 25 tonnes.
Documentation:
Product Variants
| Product | Model | Stroke Length | Retracted Height | Outside Dia. | Handle | Oil Capacity | Cylinder Bore | Weighing Capacity | Collar Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RC10010 | 10 1/4" | - | 7" | Yes | 211.45 cu. in. | 5.13" | 100 ton. | 1 3/4" | €11,386.14 | |
 |
RC1512 | 12" | 16.69" | 2 3/4" | No | 37.7 cu. in. | 2" | 15 ton. | 1.19" | €3,626.09 | |
 |

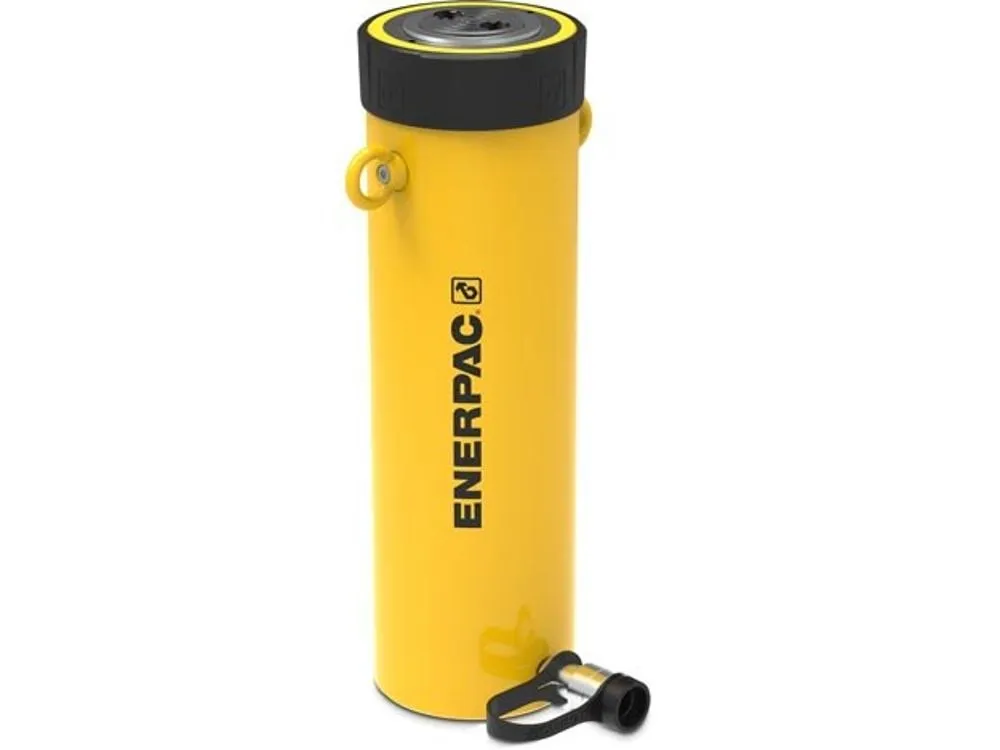

RC7513 | 13 1/8" | 19.38" | 5 3/4" | Yes | 208.74 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | €10,252.06 | |
 |

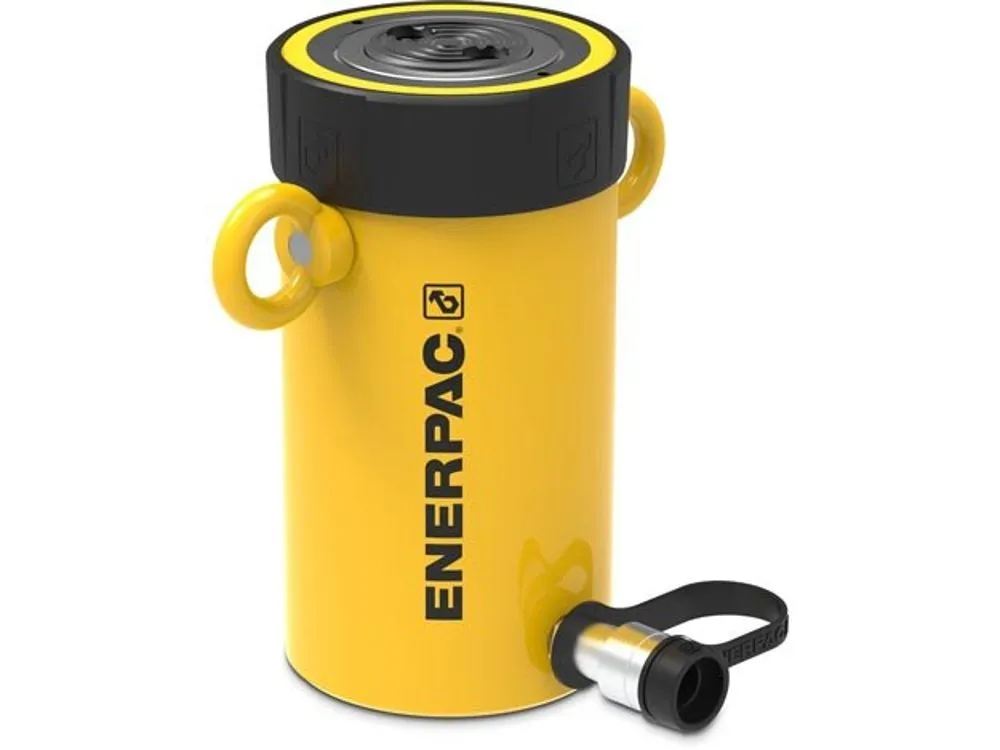

RC756 | 6 1/8" | 11.25" | 5 3/4" | Yes | 97.41 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | €7,381.33 | |
 |
RC1006 | 6 5/8" | 14.06" | 7" | Yes | 136.67 cu. in. | 5.13" | 100 ton. | 1 3/4" | €6,854.07 | |
 |
RC1012 | 12" | 15.75" | 2 1/4" | No | 26.84 cu. in. | 1.69" | 10 ton. | 1.06" | €1,655.98 | |
 |
RC1014 | 14" | 17.75" | 2 1/4" | No | 31.31 cu. in. | 1.69" | 10 ton. | 1.06" | €1,686.56 |
