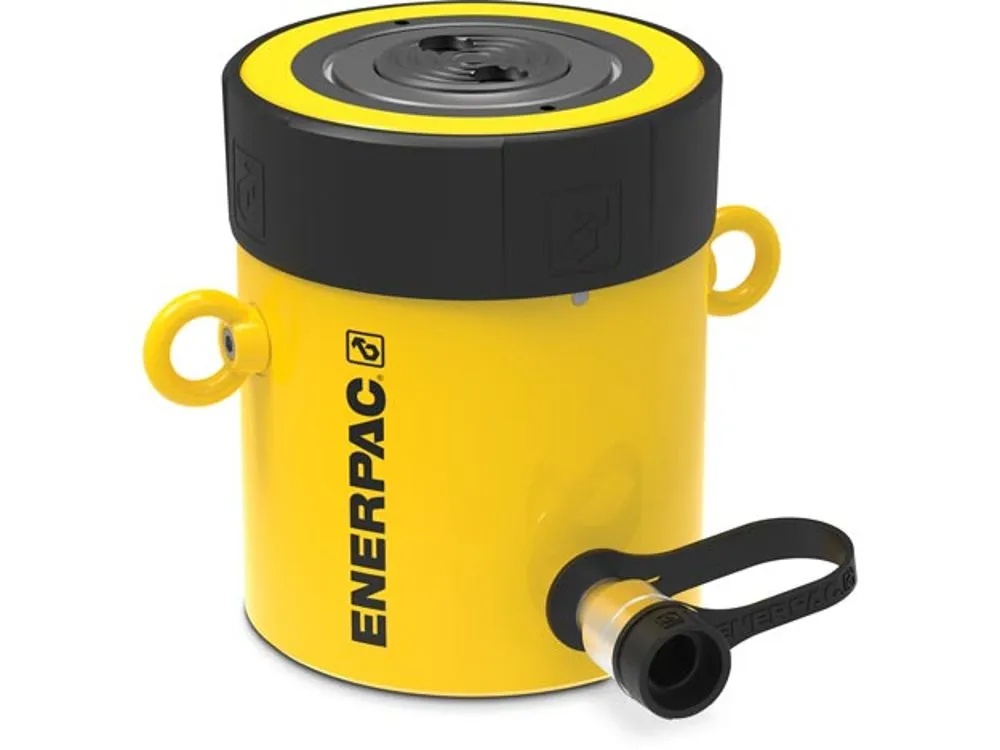

ENERPAC RC1002 Cylinder, Single Acting, 100 Ton
Get it by Monday, Dec 22
10.00% off
€6,960.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Capacity Class | 100 ton. |
| Center Hole Diameter | 3/4" |
| Collapsed Height A | 8.62" |
| Collapsed Height A (mm) | 219 mm |
| Cylinder Effective Area Advance | 133.1 sq. cm , 20.63 sq. in. |
| Effective Push Area | 20.63 sq. in. |
| Extended Height | 10.63" |
| Finish | Paint |
| Material | Steel |
| Max. Cylinder Capacity Advance (short Tons) | 103.1 ton. |
| Max. Pressure | 10000 psi |
| Maximum Cylinder Capacity Advance (kn) | 933 kN |
| Maximum Operating Pressure (psi) | 10000 psi |
| Nominal Capacity | 105 ton. |
| Nominal Stroke Length | 2" |
| Oil Capacity Advance (cm3) | 676 cu. cm |
| Oil Capacity Advance (in3) | 41.26 cu. in. |
| Oil Capacity Push | 41.26 cu. in. |
| Outside Dia. | 7" |
| Plunger Dia. | 4.13" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 8.62" |
| Return Type | Single-Acting, Spring Return |
| Single Acting/double Acting | Single Acting |
| Stroke | 50 mm |
| Stroke (in) | 2" |
| Stroke Length | 2" |
| Surface Treatment | Paint |
Shipping Info:
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 25.17 |
| Ship length (cm) | 28.75 |
| Ship width (cm) | 20.45 |
| Country of Origin | CN |
Product Variants
| Product | Model | Stroke Length | Retracted Height | Outside Dia. | Handle | Oil Capacity | Cylinder Bore | Weighing Capacity | Collar Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RC10010 | 10 1/4" | - | 7" | Yes | 211.45 cu. in. | 5.13" | 100 ton. | 1 3/4" | €11,386.14 | |
 |
RC1512 | 12" | 16.69" | 2 3/4" | No | 37.7 cu. in. | 2" | 15 ton. | 1.19" | €3,626.09 | |
 |
RC7513 | 13 1/8" | 19.38" | 5 3/4" | Yes | 208.74 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | €10,252.06 | |
 |
RC756 | 6 1/8" | 11.25" | 5 3/4" | Yes | 97.41 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | €7,381.33 | |
 |
RC1006 | 6 5/8" | 14.06" | 7" | Yes | 136.67 cu. in. | 5.13" | 100 ton. | 1 3/4" | €6,854.07 | |
 |
RC1012 | 12" | 15.75" | 2 1/4" | No | 26.84 cu. in. | 1.69" | 10 ton. | 1.06" | €1,655.98 | |
 |
RC1014 | 14" | 17.75" | 2 1/4" | No | 31.31 cu. in. | 1.69" | 10 ton. | 1.06" | €1,686.56 |
