EATON BR Series Convertible Loadcenters
Eaton BR Series convertible load centres are electrical panels used to convert a main lug panel to a main breaker panel and vice-versa. They distribute power to circuits in a building or main breaker panel to shut off power of the entire panel.
Filter
A
B
C
D
E
F
G
H
I
J
K| Style | Model | Height | Amps | Phase | Voltage | Bus Material | No. Of Spaces | No. Of Circuits | Nema Enclosure Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

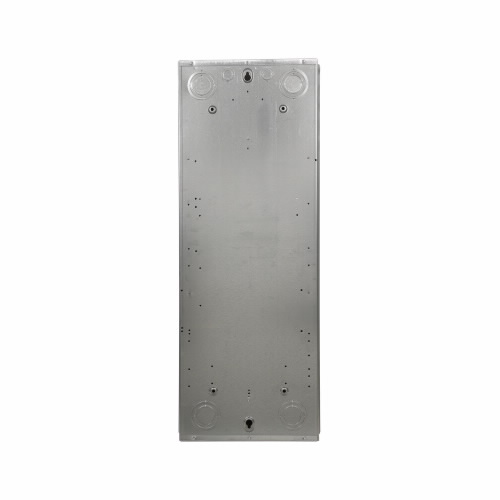

| A | BR4050N200 | 4 1/2" | 200A | 1 | 120/240V | Aluminum | 60 | 120 | NEMA 1 | €422.55 | |

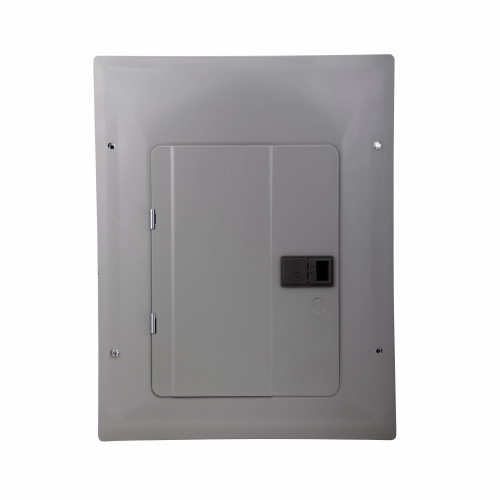

| B | BR1224NC125 | 18 3/4" | 125A | 1 | 120/240V | Copper | 12 | 24 | NEMA 1 | €168.24 | |

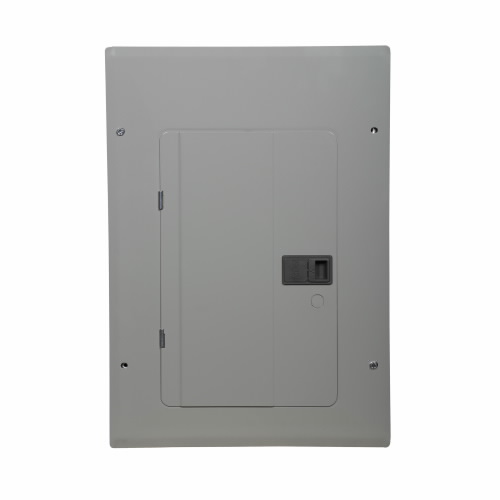

| C | 3BR1224NC125 | 21" | 125A | 3 | 120/208/240V | Copper | 12 | 24 | NEMA 1 | €1,098.41 | |

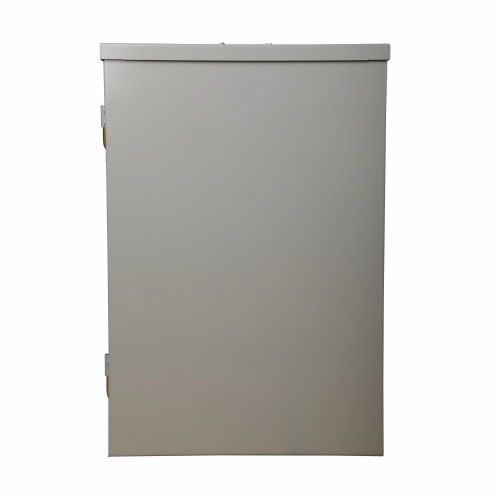

| D | 3BR1224N125R | 21" | 125A | 3 | 120/208/240V | Aluminum | 12 | 24 | NEMA 3R | €265.97 | |
| C | 3BR1224N125 | 21" | 125A | 3 | 120/208/240V | Aluminum | 12 | 24 | NEMA 1 | €187.66 | |
| D | 3BR1224NC125R | 21" | 125A | 3 | 120/208/240V | Copper | 12 | 24 | NEMA 3R | €1,482.93 | |
| C | 3BR1224N125S | 21" | 125A | 3 | 120/208/240V | Aluminum | 12 | 24 | NEMA 1 | - | RFQ
|

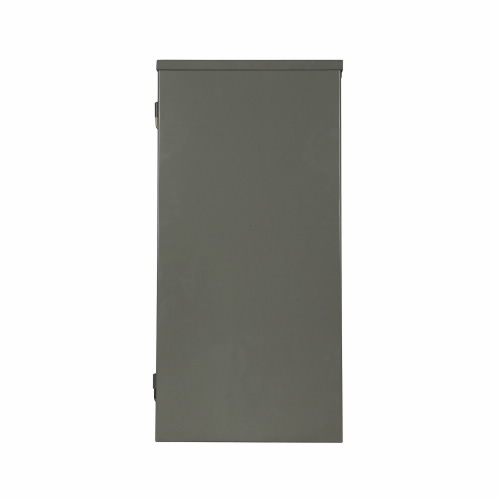

| E | 3BR3030NC100R | 29.13" | 100A | 3 | 120/208/240V | Copper | 30 | 30 | NEMA 3R | €2,370.32 | |

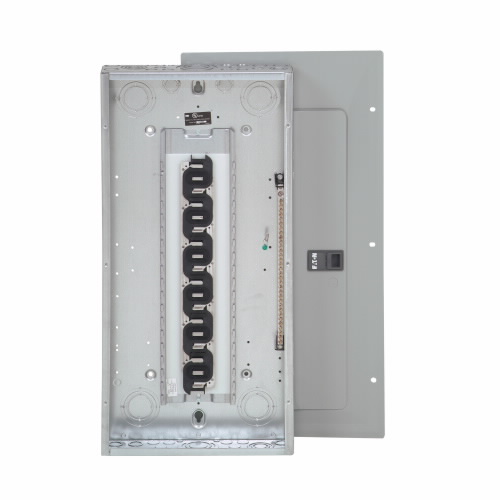

| F | 3BR3030N100 | 29.13" | 100A | 3 | 120/208/240V | Aluminum | 30 | 30 | NEMA 1 | €1,672.28 | |
| F | 3BR3030NC100 | 29.13" | 100A | 3 | 120/208/240V | Copper | 30 | 30 | NEMA 1 | €337.81 | |
| E | 3BR3030N100R | 29.13" | 100A | 3 | 120/208/240V | Aluminum | 30 | 30 | NEMA 3R | €2,314.56 | |
| F | 3BR3030N100S | 29.13" | 100A | 3 | 120/208/240V | Aluminum | 30 | 30 | NEMA 1 | €307.93 | |
| G | BR3060NLQN200G | 34.13" | 200A | 1 | 120/240V | Aluminum | 30 | 60 | NEMA 1 | €686.90 | |

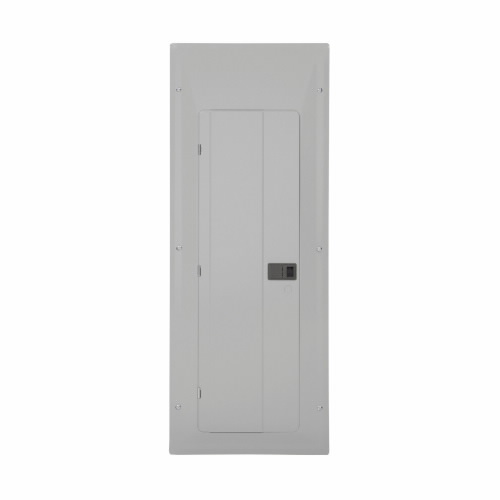

| H | 3BR3042N200 | 39" | 200A | 3 | 120/208/240V | Aluminum | 30 | 42 | NEMA 1 | €2,109.39 | |

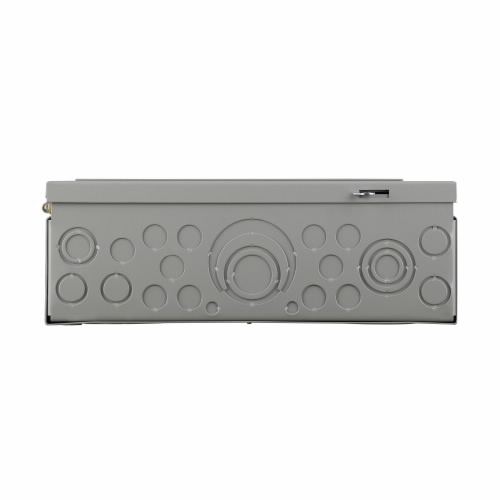

| I | BR3060NQN200R | 39" | 200A | 1 | 120/240V | Aluminum | 30 | 60 | NEMA 1 | €518.66 | |
| J | BR4050N200R | 39" | 200A | 1 | 120/240V | Aluminum | 40 | 50 | NEMA 3R | €443.52 | |
| K | 3BR4242N225NY | 44" | 225A | 3 | 120/208/240V | Aluminum | 42 | 42 | NEMA 1 | €651.88 | |
| K | 3BR4242N225 | 45" | 225A | 3 | 120/240V | Aluminum | 42 | 42 | NEMA 1 | €2,725.70 |
Features
- Eaton BR Series convertible load centres are equipped with BREQS125 hold-down screws for a tight hold and increased strength.
- They come with a copper bus ensuring high electrical and thermal conductivity.
- These convertible load centres offer NEMA 1 enclosures to prevent dust and dirt.
- They have voltage ratings up to 240V and an interrupting capacity of 10kAIC.
Compatible Accessories
- Eaton Field Installation Kit: This kit & part unit is used to screw in and tighten the load centres for strong hold and rigid mounting.
Standards and Approvals
- UL 67
- UL 50
Frequently Asked Questions
How many circuits are present in these laid centres?
24 circuits.
How to obtain trip codes in Eaton BR Series convertible load centres?
- Remove the black load wire from the breaker.
- Detach the white load wire from the breaker.
- Keep the white pigtail wire connected to the neutral bar and reset the handle to the on position.
- Trip codes are then displayed for 30 patterns immediately after the breaker is reset.
How to remove twist-outs from these load centres?
- Strike the twist-outs with a screwdriver and twist them back and forth with pliers.
- If any twist-out gets removed accidentally, it can be closed with filler plates.
