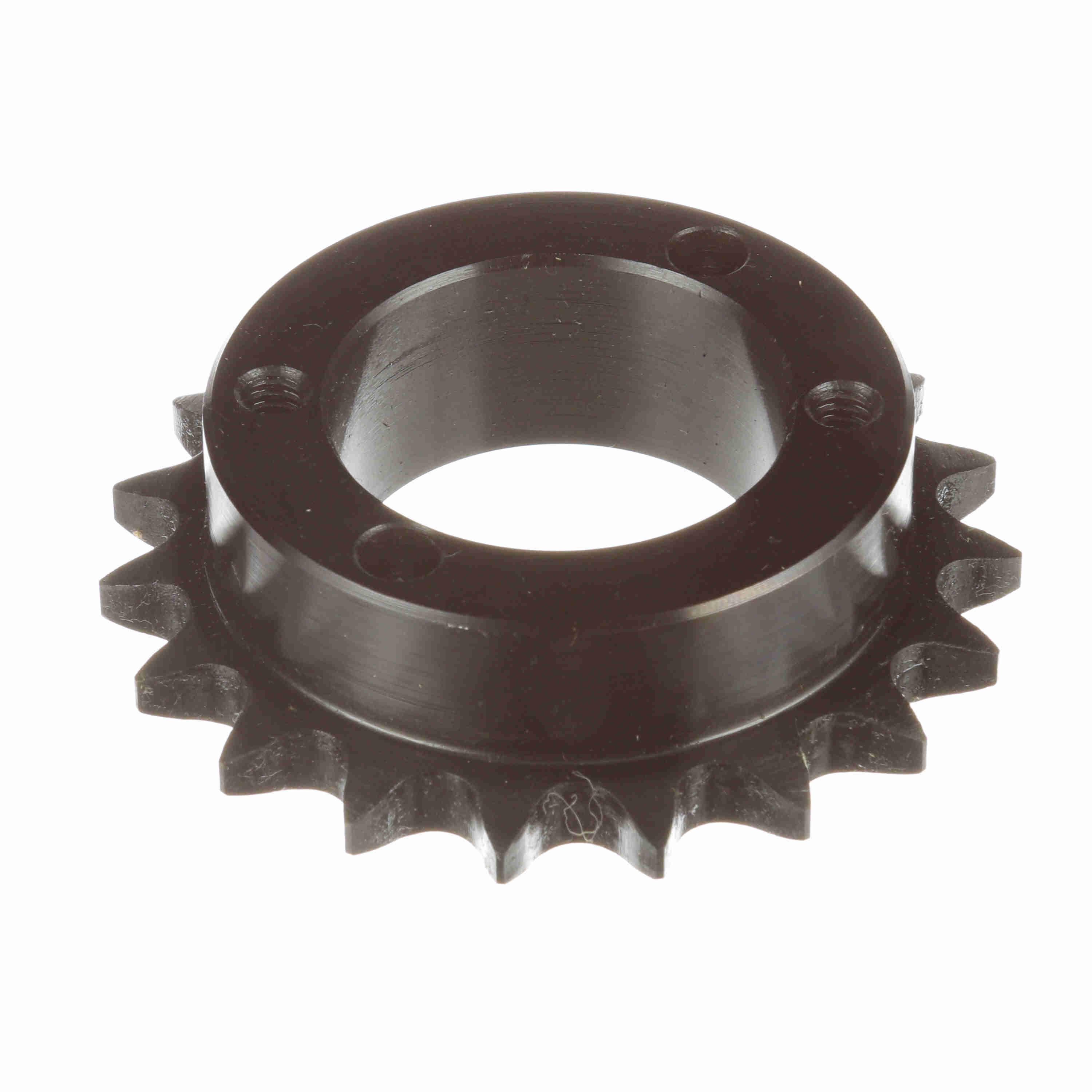

BROWNING 1176973 H40H19 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9FZMModel: 1176973Cross Ref: H40H19
7 In Stock
Ships within 2 days via
€187.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Chain Pitch | 1/2" |
| Chain Size | 40 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.5123" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 19 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 3.292" |
| Pitch Dia. | 3.038" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 3 |
| Weight | 0.9 lbs. |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 11.18 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Type | Hub Dia. | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1176890 | 1.932" | 2.166" | 3/8" | 1.026" | Single Strand | 2.015" | Type 3 Split Taper | B Hub One Side | €86.80 | |
 |
1176908 | 2.089" | 2.328" | 3/8" | 1.026" | Single Strand | 2.015" | Type 3 Split Taper | B Hub One Side | €165.01 | |
 |
1176916 | 2.247" | 2.49" | 3/8" | 1.026" | Single Strand | 2.015" | Type 3 Split Taper | B Hub One Side | €163.80 | |
 |
3938958 | 2.563" | 2.814" | - | 1.2683" | Single Strand Type 3 | 2.015" | - | B Hub One Side | €209.36 | |
 |
1176932 | 2.563" | 2.814" | - | 1.6083" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €178.62 | |
 |
1176940 | 2.721" | 2.974" | - | 1.5063" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €193.96 | |
 |
1176957 | 2.879" | 3.136" | - | 1.5063" | Single Strand Type 3 | 2.494" | - | B Hub One Side | €181.17 |
