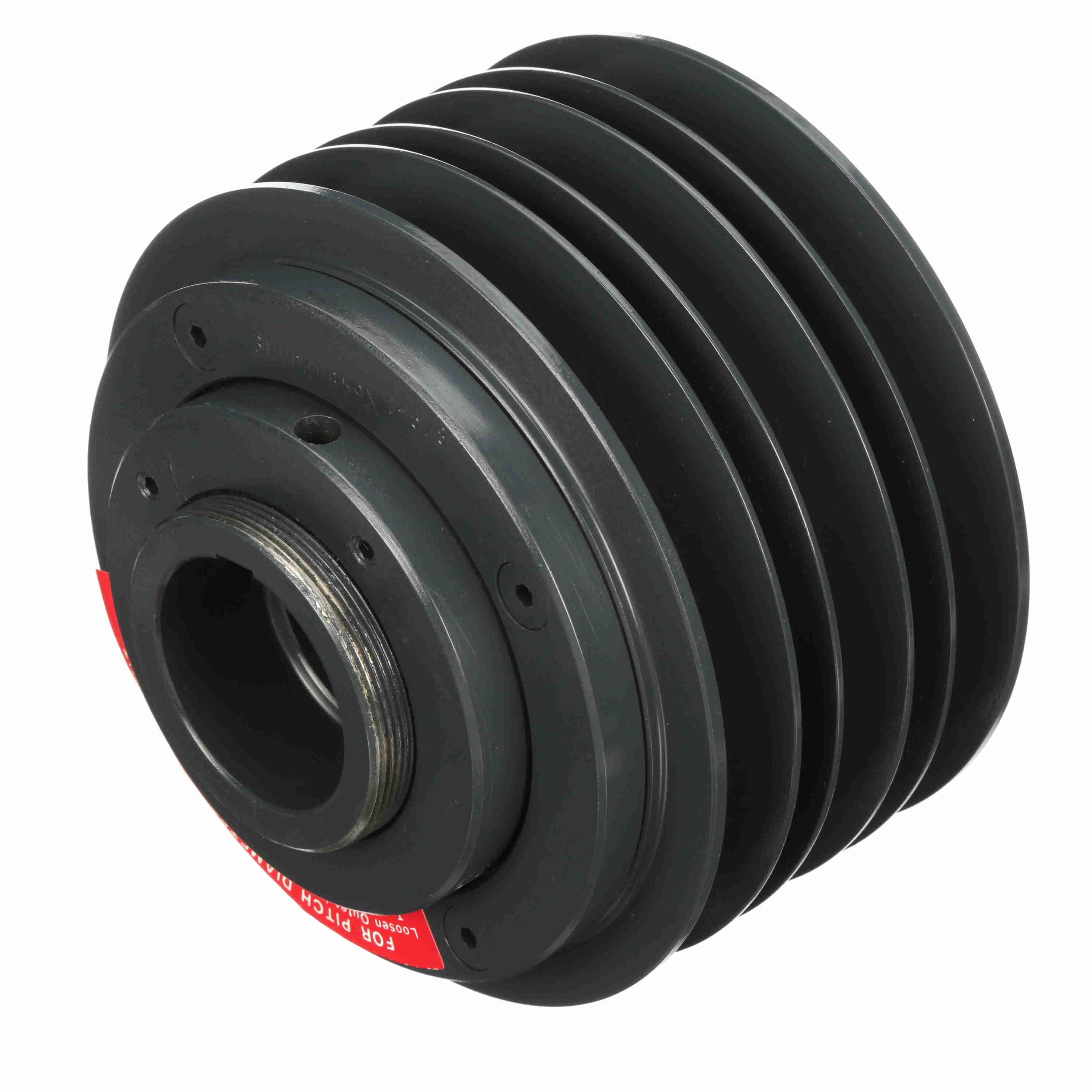

BROWNING 1020056 3MVP45B59X 1 5/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 3 Groove, Cast Iron, 6.18 in OD, 1-5/8 in Bore Dia, 4.6 to 5.7 in A/4.8 to 6.2 in B Pitch Dia
Get it by Friday, Aug 14
€1,220.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 3 1/16" to 3 7/16 |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 3.438" |
| Max. Pitch Dia. | 5.9" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 3.063" |
| Min. Pitch Dia. | 4 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 6.18" |
| Overall Length | 4 3/4" |
| Pitch Dia. | 4.6" to 5.7" |
| Pitch Dia. (b) | 4 4/5" to 6 1/5" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 7.9 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 15.7 |
| Ship width (cm) | 15.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bore Type | Bushing Type | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1019892 | 4.1" to 5.2" | 1 1/8" | 5 2/5" | 3.9" | 4.3" to 5.7" | Finished | No Bushing | - | €2,134.41 | |
 |
1020031 | 4.6" to 5.7" | 1 1/8" | - | - | 4 4/5" to 6 1/5" | Finished | - | - | €2,947.62 | |
 |
1020189 | 5.1" to 6.2" | 1 1/8" | 6 2/5" | 4.9" | 5.3" to 6.7" | Finished | No Bushing | - | €2,345.35 | |
 |
1020197 | 5.1" to 6.2" | 1 3/8" | 6 2/5" | 4.9" | 5.3" to 6.7" | Finished | No Bushing | - | €1,671.56 | |
 |
1020320 | 5.6" to 6.7" | 1 3/8" | 6.9" | 5 2/5" | 5 4/5" to 7 1/5" | Finished | No Bushing | - | €1,743.19 | |
 |
1020551 | 7.1" to 8.2" | 3/4" to 1 3/4" | - | - | 7.3" to 8.7" | Bushed | P2 | - | €1,691.12 | |
 |
1019918 | 4.1" to 5.2" | 1 5/8" | 5 2/5" | 3.9" | 4.3" to 5.7" | Finished | No Bushing | - | €1,156.26 |
