Schneider Electric Illuminated Push Buttons With Contact Blocks

SCHNEIDER ELECTRIC -

Illuminated Push Buttons

A

B

Style	Model	Lamp Voltage	Nema Rating	Color	Action Type	Contact Form	Action	Lamp Module Type	Terminal Connection	Price

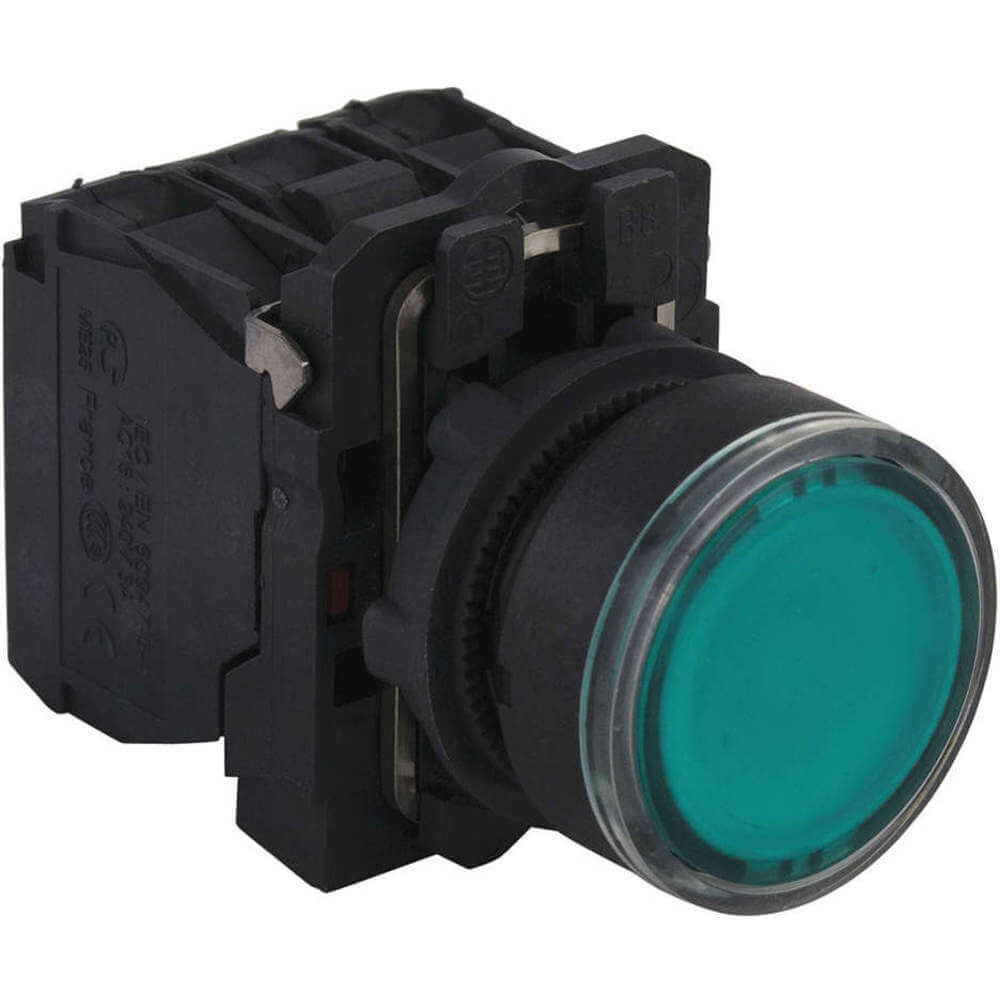

A	XB5AW33G5	110-120V AC	NEMA 13, NEMA 4, NEMA 4X	Green	Momentary/Momentary	1NO/1NC	Momentary	Full Voltage	Screw Clamp	€206.01
B	XB5AW3565	250V	NEMA 13, NEMA 4X	Orange	Momentary	1NO/1NC	Momentary	Full Voltage	Screw Clamp	€158.74

SCHNEIDER ELECTRIC -

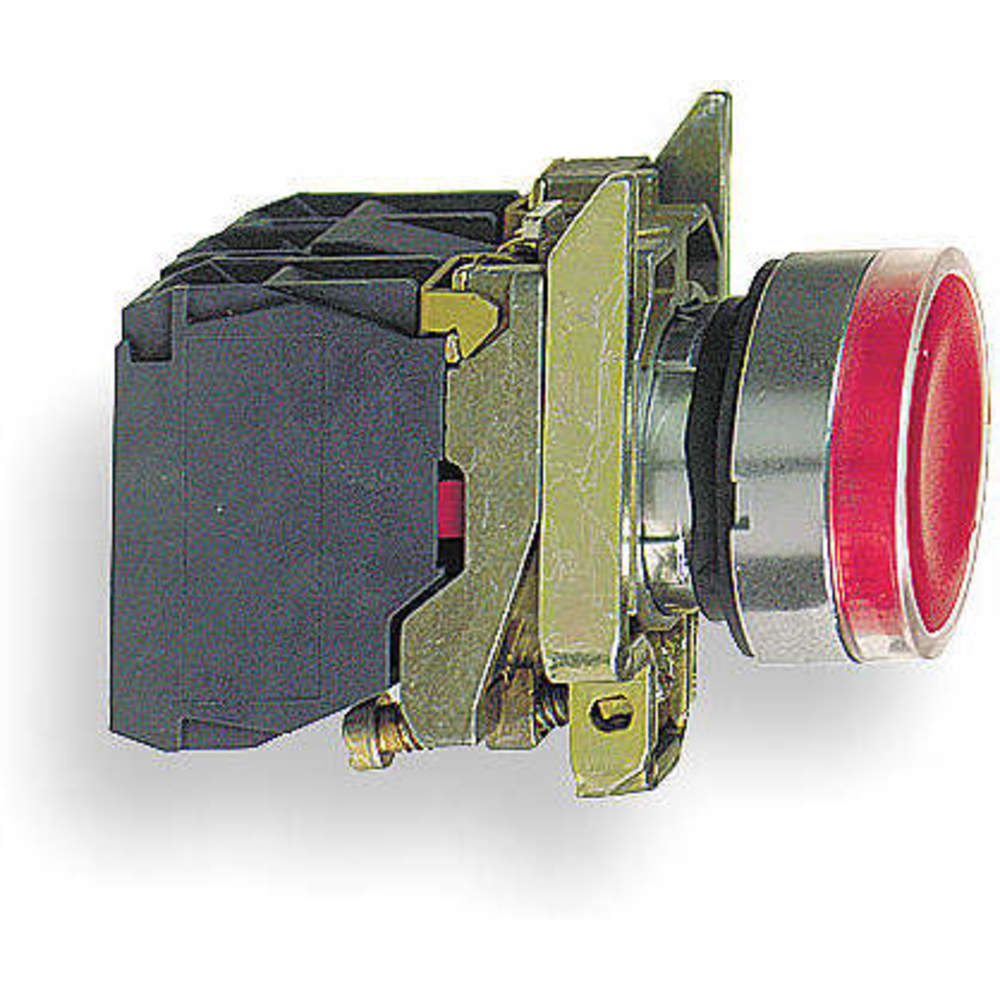

Illuminated Push Button, 22mm, 1NO/1NC, Red

A

B

C

Style	Model	Terminal Connection	Ip Rating	Lamp Voltage	Lamp Module Voltage	Lamp Type	Bezel Material	Contact Form	Action	Price

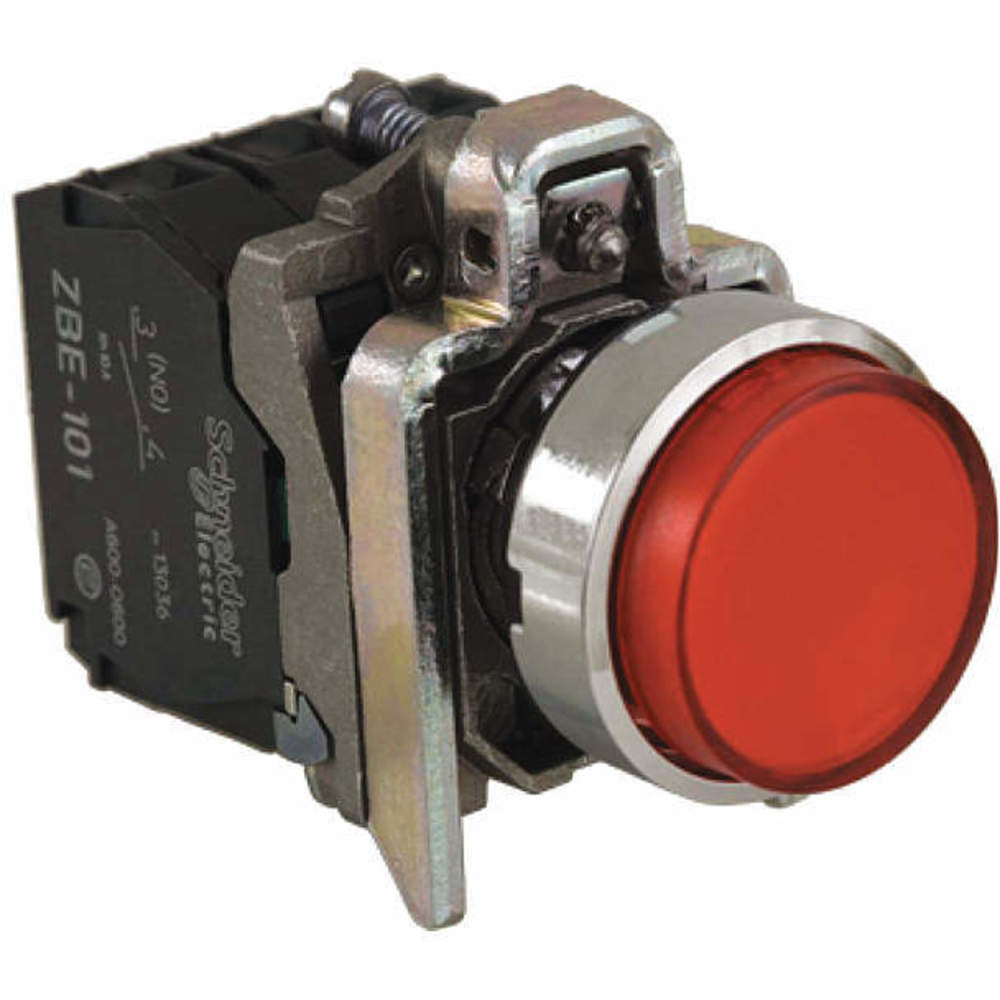

A	XB4BW14B5	Pressure Plate	IP65	24V AC/DC	24V AC/DC	LED	Chrome	1NO/1NC	Momentary	€206.21
B	XB4BW3465	Screw Clamp	IP66, IP67, IP69, IP69K	-	240V AC	Incandescent	Chrome	1NO/1NC	Momentary	€178.21
B	XB4BW34B5	Screw Clamp	IP66, IP67, IP69, IP69K	24V AC/DC	24V AC/DC	LED	Chrome	1NO/1NC	Momentary	€219.31
B	XB4BW34G5	Screw Clamp	IP66, IP67, IP69, IP69K	120V AC	120V AC	LED	Chrome	1NO/1NC	Momentary	€219.31

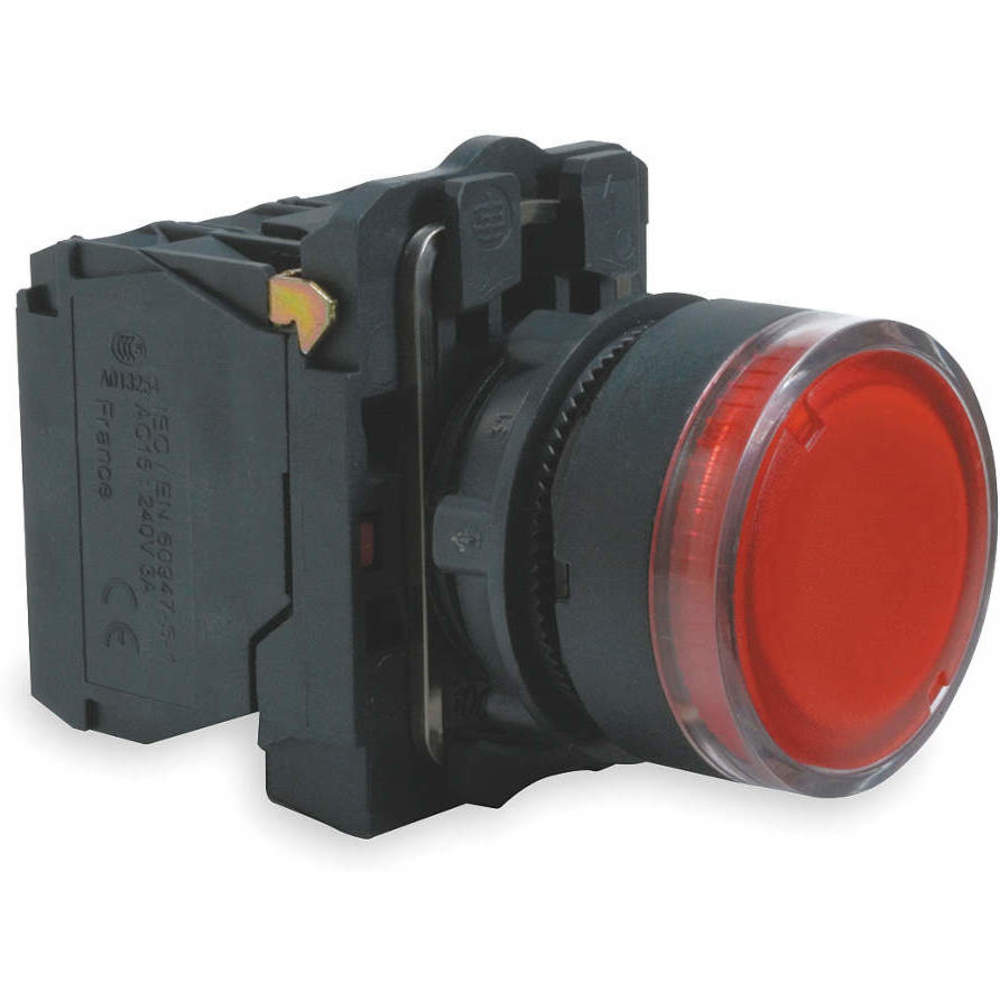

C	XB5AW3465	Screw Clamp	IP66, IP67, IP69, IP69K	250V	250V	LED	Plastic	1NO/1NC	Momentary	€167.17

SCHNEIDER ELECTRIC -

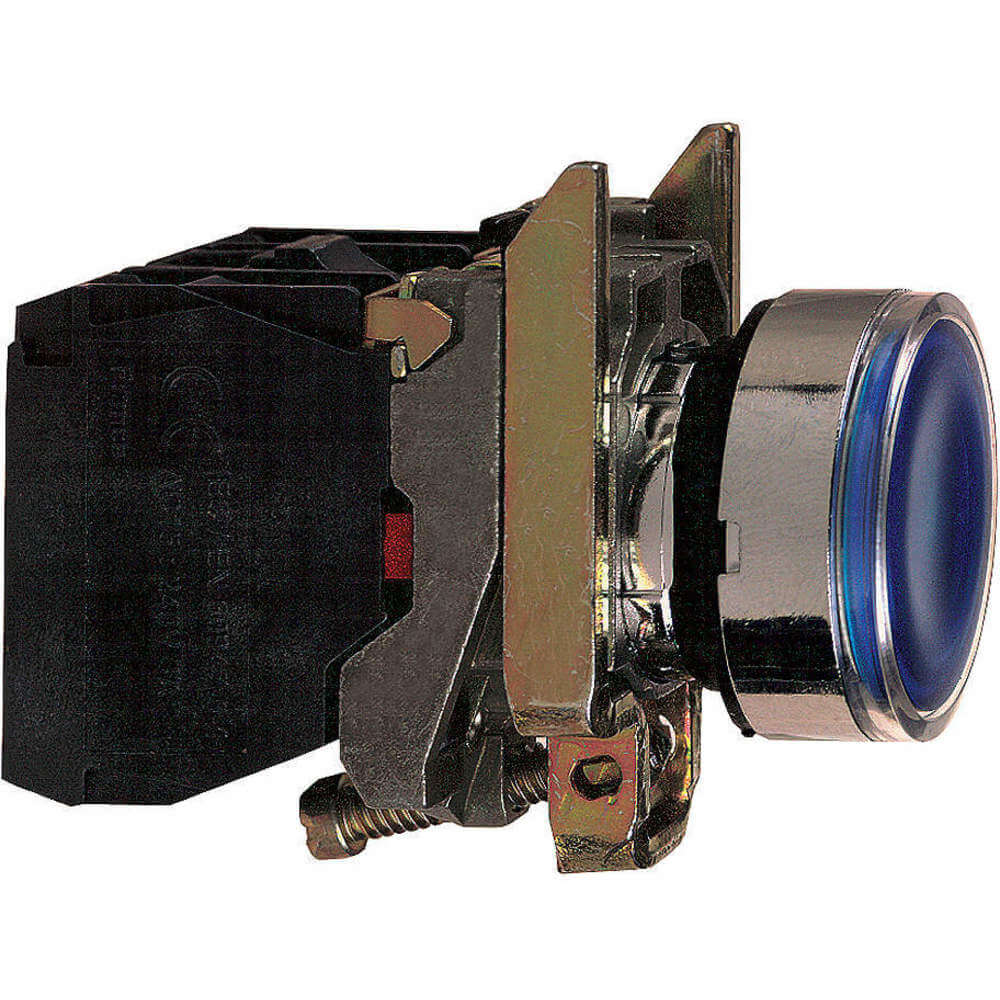

Illuminated Push Button, 22mm, 1NO/1NC, Blue

A

B

Style	Model	Contact Form	Action	Lamp Voltage	Ip Rating	Lamp Module Type	Lamp Module Voltage	Lamp Type	Nema Rating	Price
A	XB4BW36G5	1NO/1NC	Momentary	120V AC	IP66, IP67, IP69, IP69K	Full Voltage	120V AC	LED	NEMA 13, NEMA 4, NEMA 4X	€219.31
A	XB4BW36B5	1NO/1NC	Momentary	24V AC/DC	IP66, IP67, IP69, IP69K	-	24V AC/DC	LED	NEMA 13, NEMA 4, NEMA 4X	€219.31

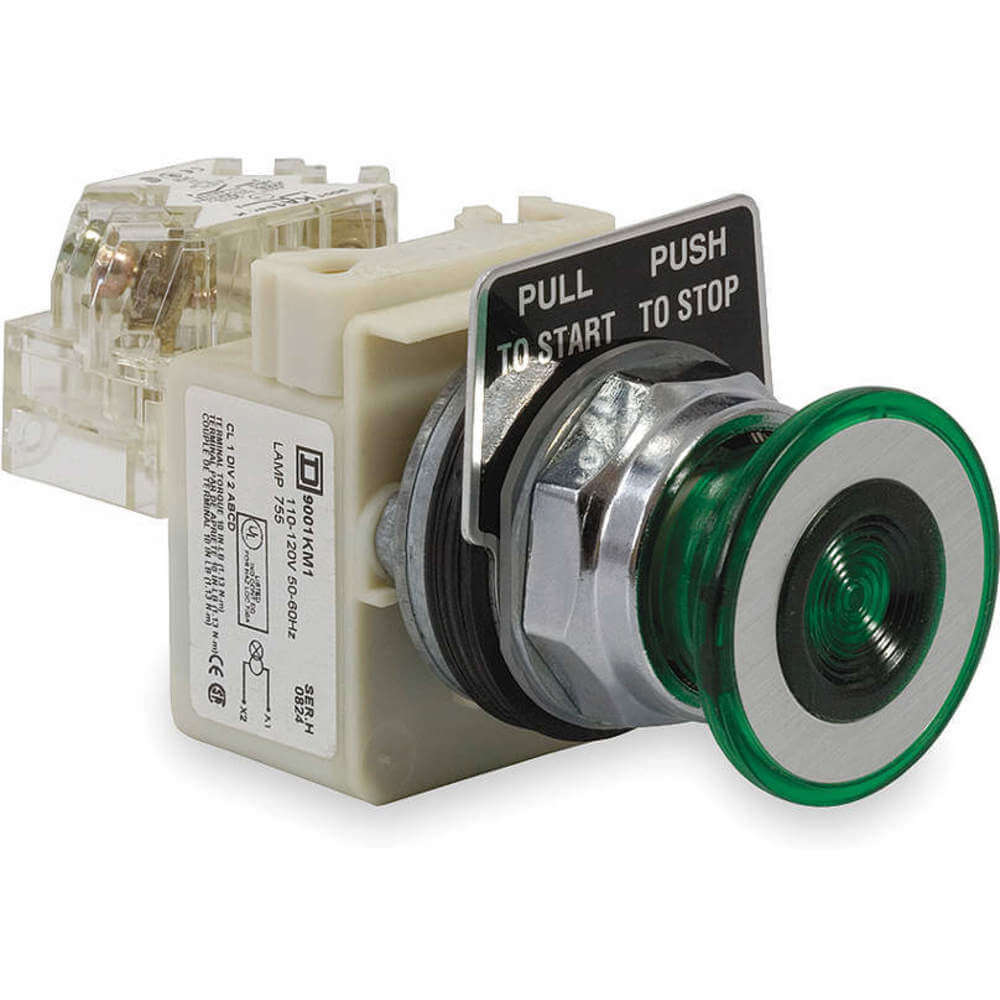

B	9001KR9P1GH13	SPDT	Maintained	6V AC	IP65	Transformer	120V AC	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€583.11

SCHNEIDER ELECTRIC -

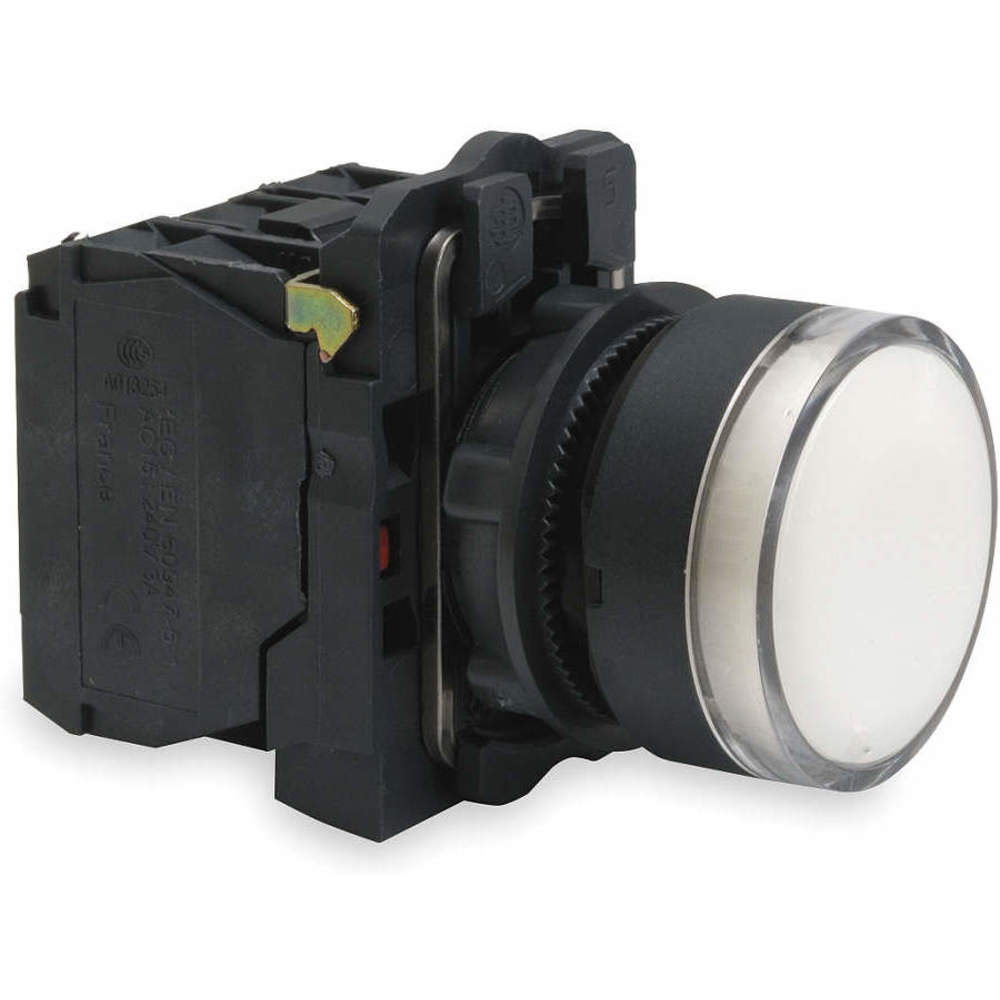

Illuminated Push Button, 22mm, 1NO/1NC, White

A

B

Style	Model	Terminal Connection	Lamp Voltage	Lamp Module Voltage	Lamp Type	Bezel Material	Contact Form	Action	Lamp Module Type	Price
A	XB4BW31B5	Pressure Plate	24V AC/DC	24V AC/DC	LED	-	-	-	-	€219.31

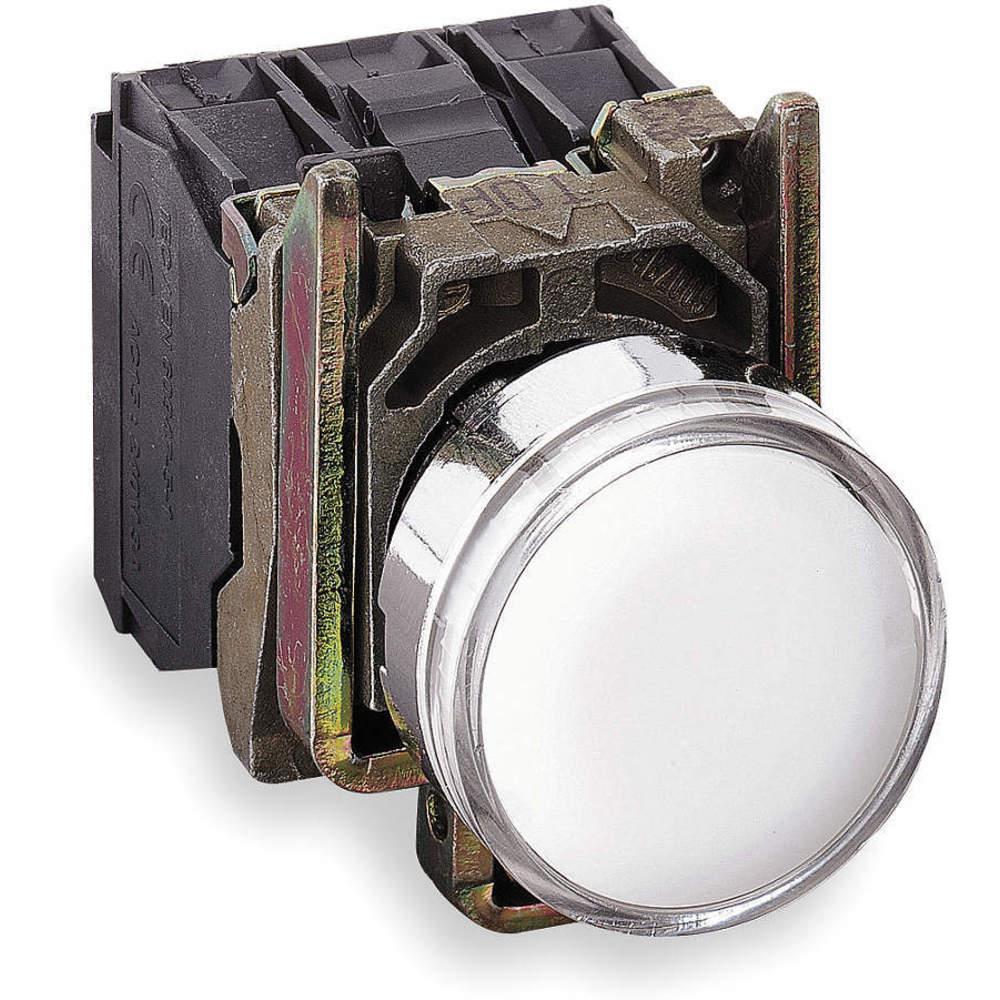

A	XB4BW3165	Screw Clamp	-	240V AC	Incandescent	Chrome	1NO/1NC	Momentary	Full Voltage	€178.21
A	XB4BW31G5	Screw Clamp	120V AC	120V AC	LED	Chrome	1NO/1NC	Momentary	Full Voltage	€219.31
B	XB5AW3165	Screw Clamp	250V	250V	LED	Plastic	1NO/1NC	Momentary	Full Voltage	€217.34

SCHNEIDER ELECTRIC -

Illuminated Push Button, 22mm, 1NO/1NC, Yellow

A

B

Style	Model	Lamp Voltage	Lamp Module Voltage	Lamp Type	Contact Form	Action	Terminal Connection	Ip Rating	Lamp Module Type	Price
A	XB4BW3565	-	240V AC	Incandescent	1NO/1NC	Momentary	Screw Clamp	IP66, IP67, IP69, IP69K	Full Voltage	€178.21
B	XB4BW35B5	24V AC/DC	24V AC/DC	LED	1NO/1NC	Momentary	Screw Clamp	IP66, IP67, IP69, IP69K	Full Voltage	€219.31
B	XB4BW35G5	120V AC	120V AC	LED	1NO/1NC	Momentary	Screw Clamp	IP66, IP67, IP69, IP69K	-	€219.31

SCHNEIDER ELECTRIC -

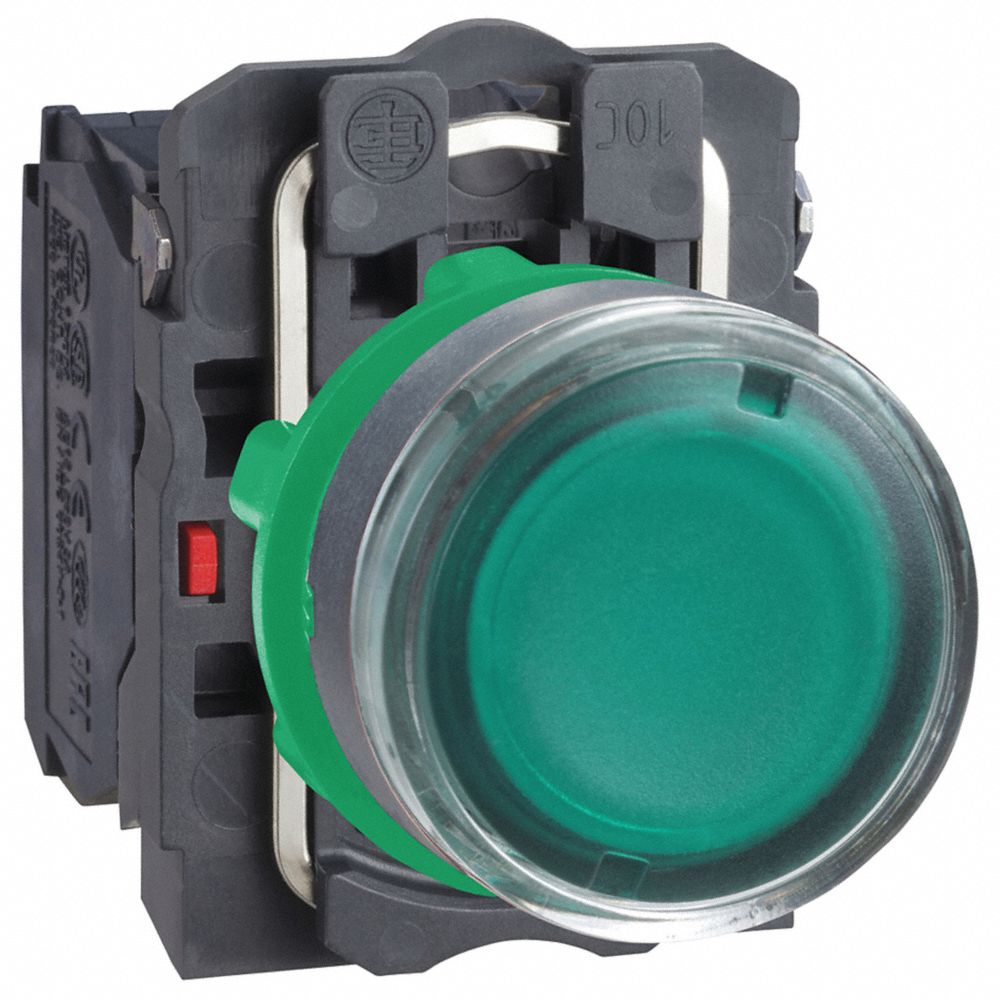

Illuminated Push Button, 22mm, 1NO/1NC, Green

A

B

C

D

Style	Model	Lamp Module Type	Terminal Connection	Lamp Voltage	Ip Rating	Lamp Module Voltage	Lamp Type	Bezel Material	Contact Form	Price

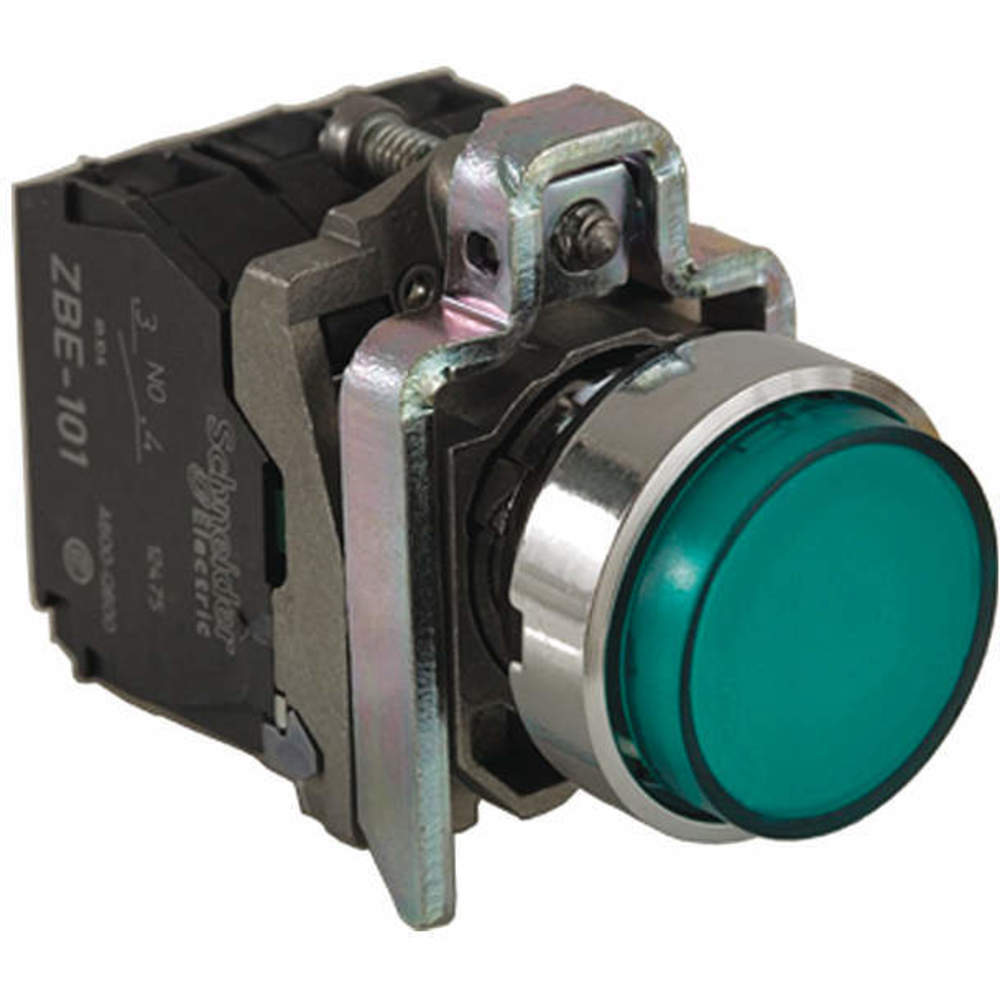

A	XB4BW13B5	Full Voltage	Pressure Plate	24V AC/DC	IP65	24V AC/DC	LED	Chrome	1NO/1NC	€206.21

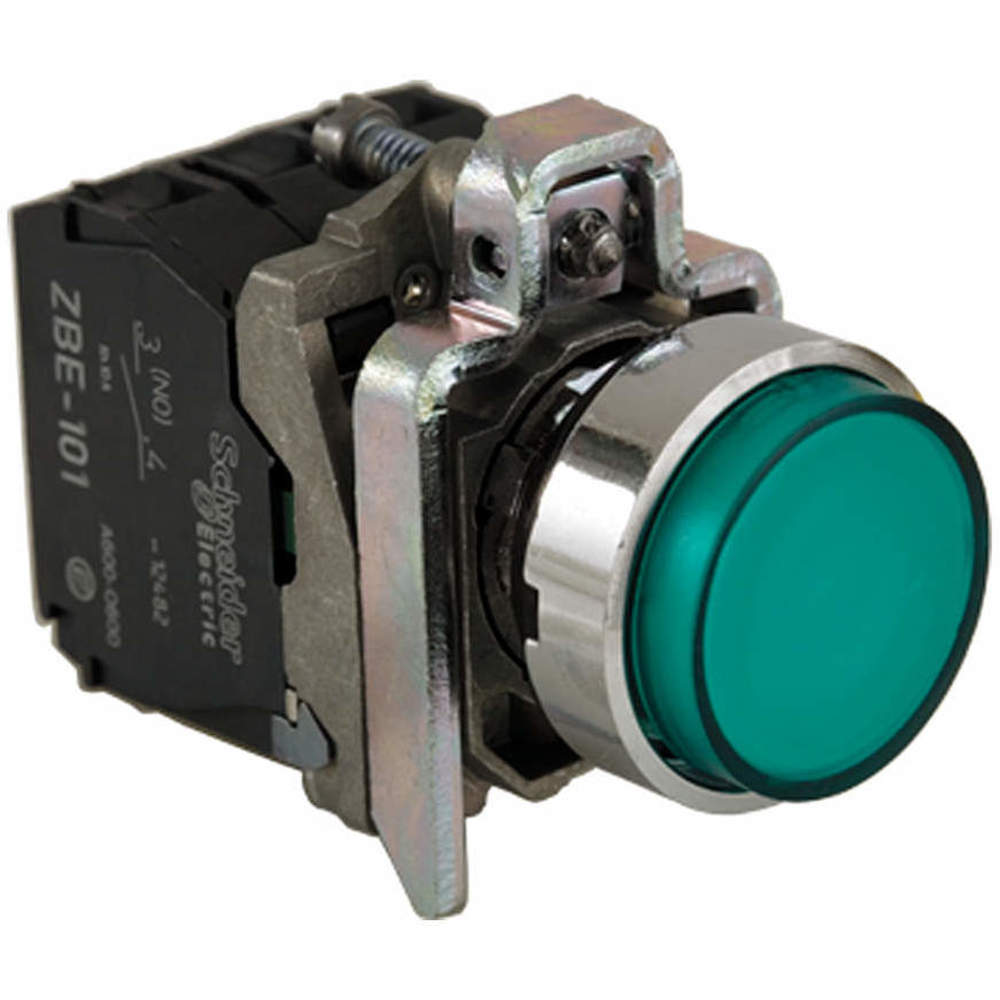

B	XB4BW13G5	Full Voltage	Screw Clamp	120V AC	IP65	120V AC	LED	Chrome	1NO/1NC	€206.21

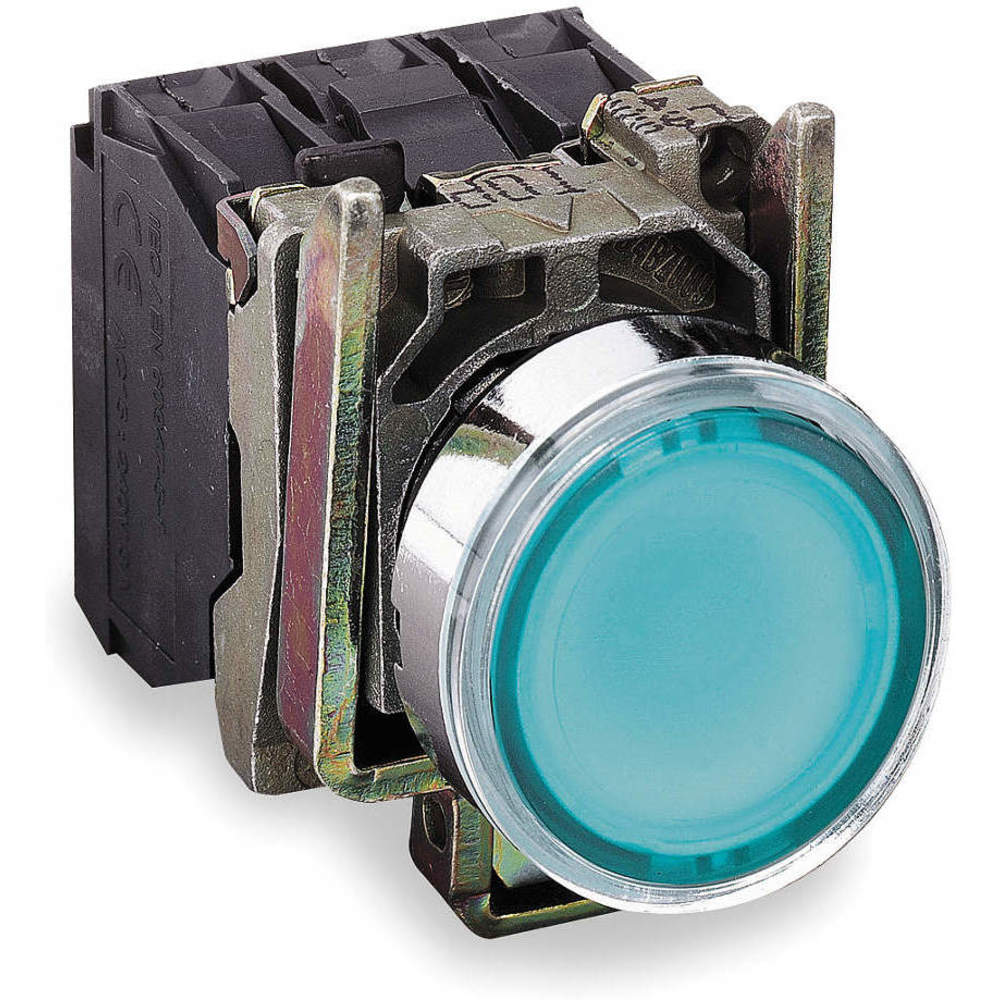

C	XB4BW3365	Full Voltage	Screw Clamp	-	IP66, IP67, IP69, IP69K	240V AC	Incandescent	Chrome	1NO/1NC	€178.21
C	XB4BW33B5	Full Voltage	Pressure Plate	24V AC/DC	-	24V AC/DC	LED	Metal	-	€219.31
C	XB4BW33G5	Full Voltage	Screw Clamp	120V AC	IP66, IP67, IP69, IP69K	120V AC	LED	Chrome	1NO/1NC	€219.31

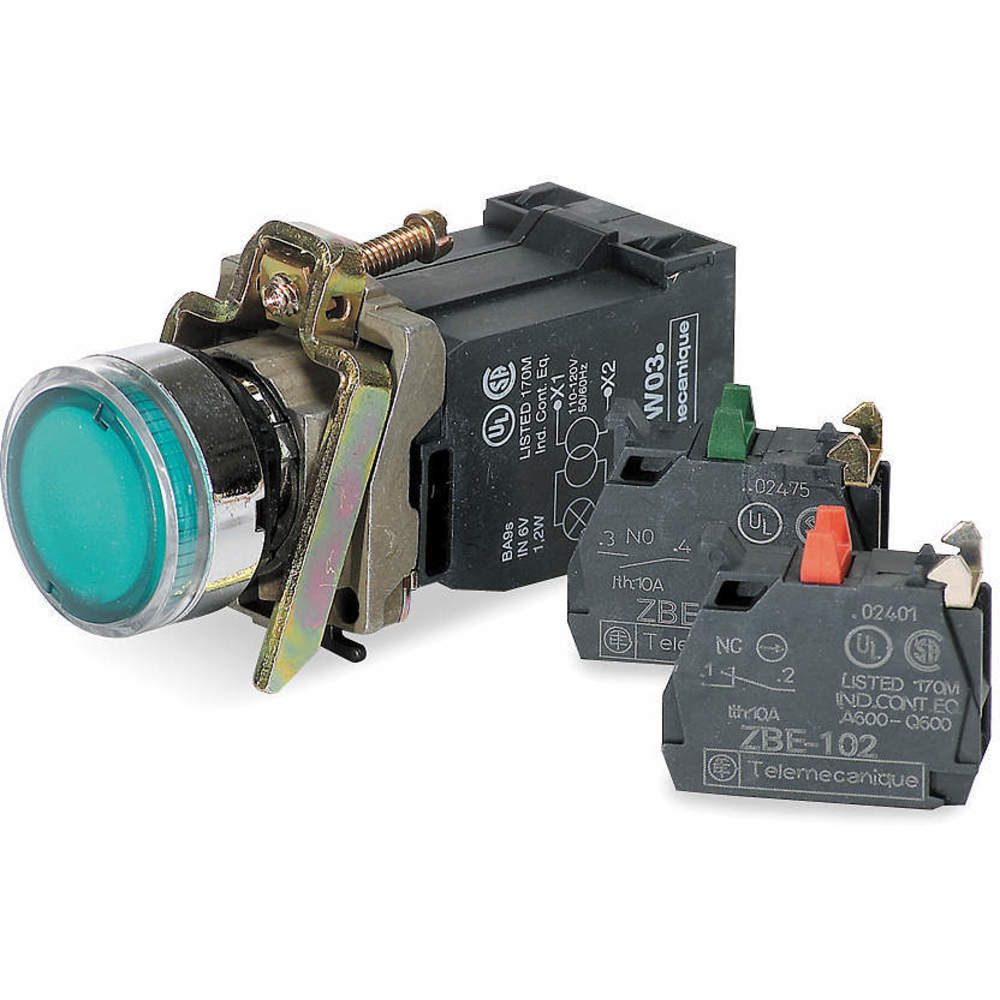

D	XB4BW3335	Transformer	Screw Clamp	24V AC/DC	IP66, IP67, IP69, IP69K	120V AC	Incandescent	Chrome	1NO/1NC	€274.49
D	XB4BW3345	Transformer	Screw Clamp	24V AC/DC	IP66, IP67, IP69, IP69K	240V AC	Incandescent	Chrome	1NO/1NC	€274.49

SCHNEIDER ELECTRIC -

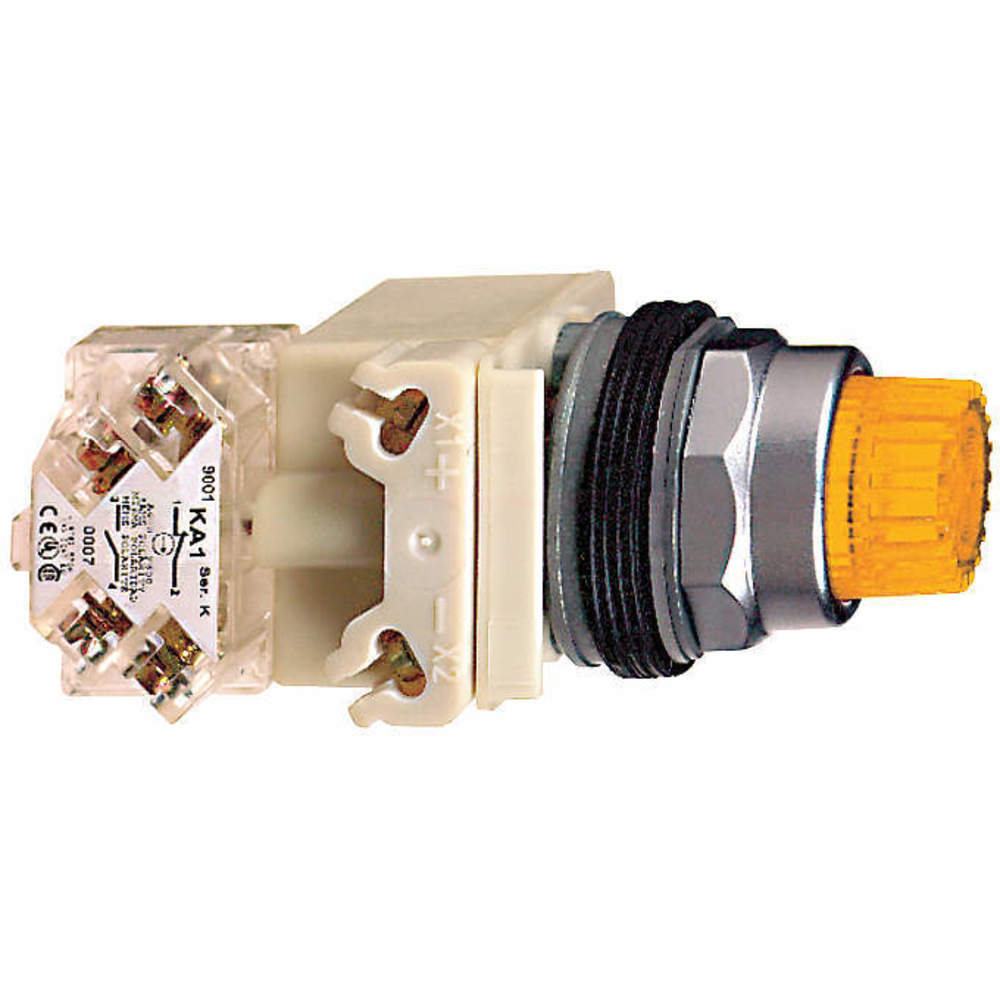

Illuminated Push Button, 30mm, 1NO/1NC, Amber

A

B

Style	Model	Lamp Module Type	Lamp Voltage	Terminal Connection	Lamp Module Voltage	Lamp Type	Contact Form	Action	Ip Rating	Price
A	9001K2L35LYAH13	Full Voltage	24V AC/DC	Screw Clamp	24V AC/DC	LED	SPDT	Momentary	IP66	€389.60
A	9001K2L38LYAH13	Full Voltage	120V AC	Screw Clamp	120V AC	LED	SPDT	Momentary	IP66	€389.60

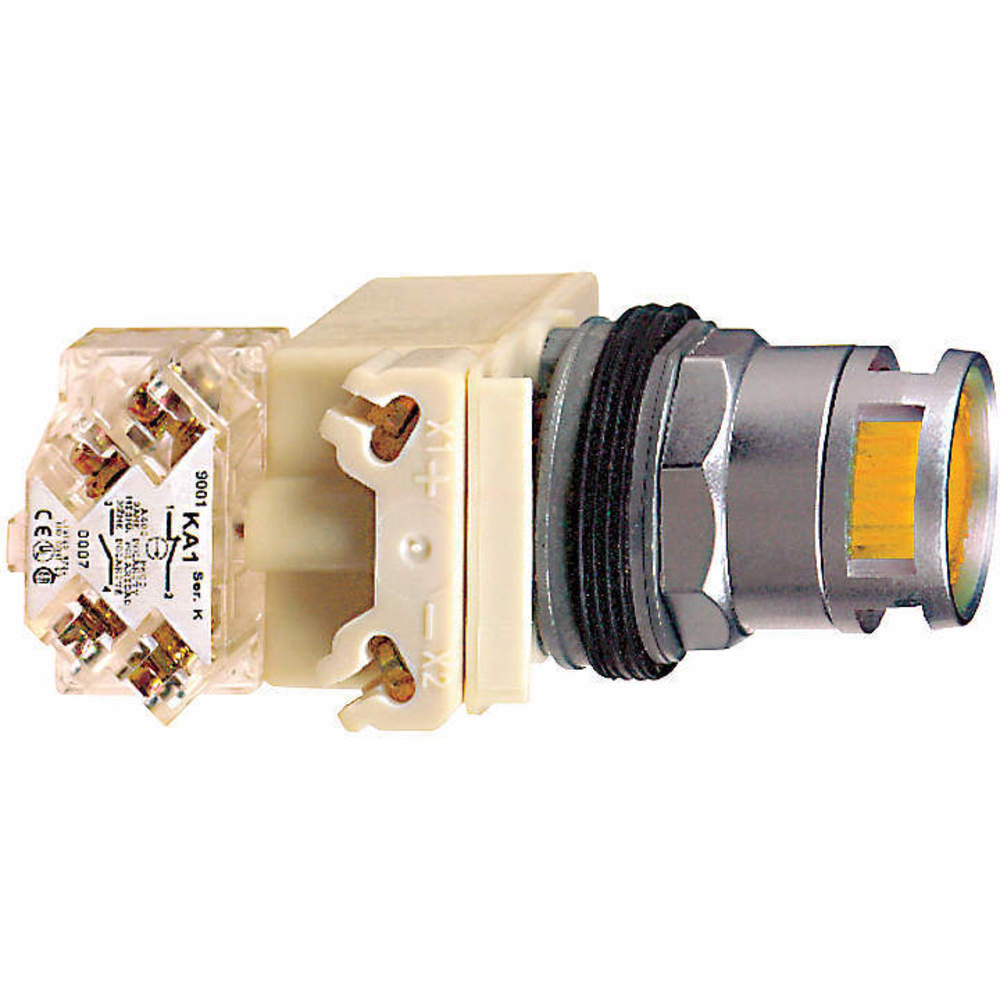

B	9001K3L35LYAH13	Full Voltage	24V AC/DC	Pressure Plate	24V AC/DC	LED	-	-	-	€455.03
B	9001K3L38LYAH13	Full Voltage	120V AC	Screw Clamp	120V AC	LED	SPDT	Momentary	IP66	€455.03
A	9001K2L1AH13	Transformer	6V AC	Screw Clamp	120V AC	Incandescent	SPDT	Momentary	IP66	€399.34

SCHNEIDER ELECTRIC -

Illuminated Push Button, 22mm, 1NO/1NC, Green/Red

A

B

Style	Model	Lamp Voltage	Lamp Module Voltage	Bezel Material	Contact Form	Action	Legend	Lamp Module Type	Terminal Connection	Price

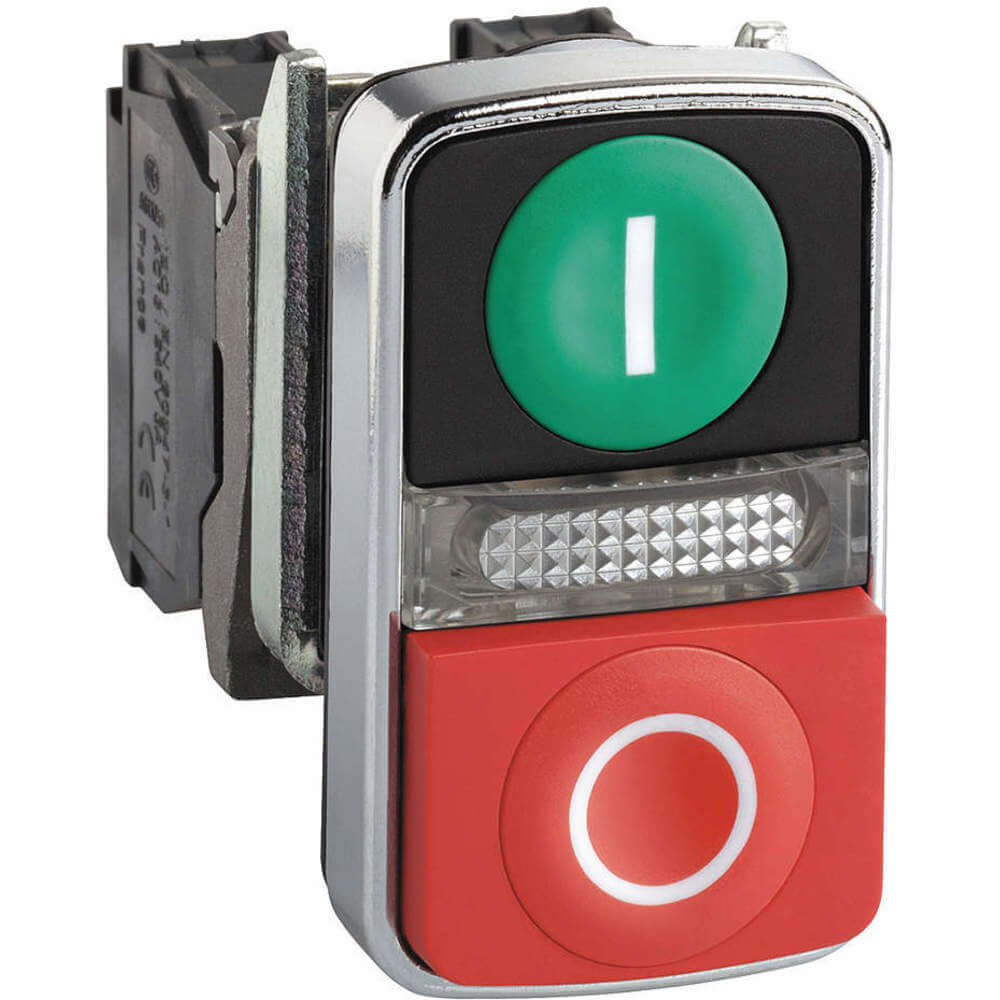

A	XB4BW73731B5	24V AC/DC	24V AC/DC	Chrome	1NO/1NC	Momentary	I/O	Full Voltage	Screw Clamp	€220.15

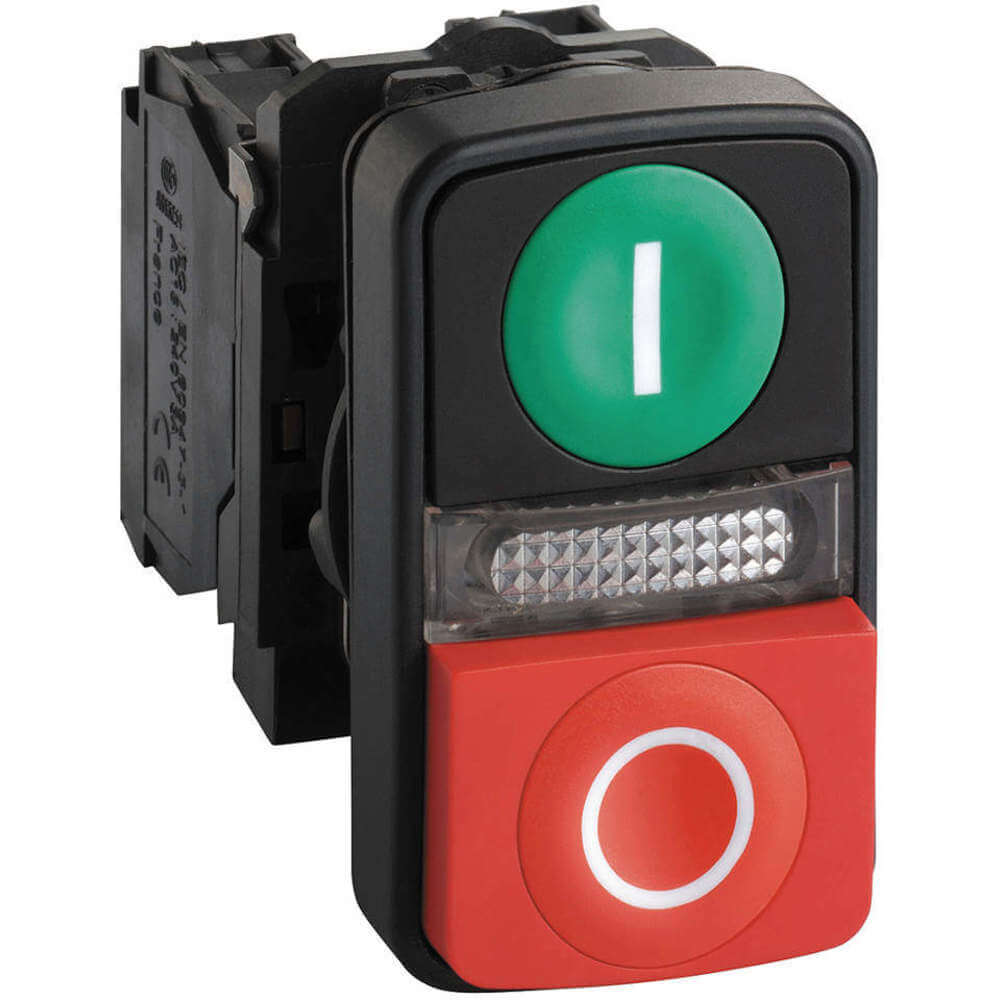

B	XB5AW73731B5	24V AC/DC	24V AC/DC	Plastic	1NO/1NC	Momentary	I/O	Full Voltage	Screw Clamp	€220.15
A	XB4BW73731G5	120V AC	120V AC	Chrome	1NO/1NC	Momentary	I/O	Full Voltage	Screw Clamp	€220.15
B	XB5AW73731G5	120V AC	120V AC	Plastic	1NO/1NC	Momentary	I/O	Full Voltage	Screw Clamp	€220.15

SCHNEIDER ELECTRIC -

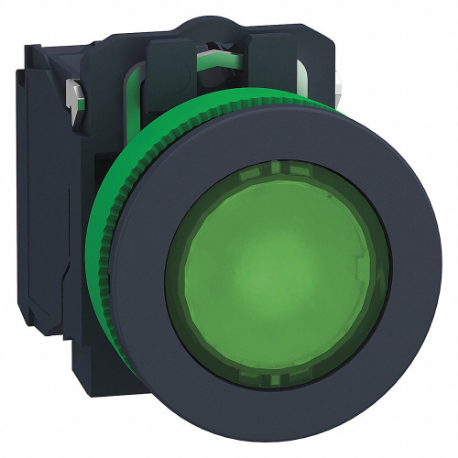

Illuminated Push Buttons with Contact Blocks

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Legend	Ip Rating	Terminal Connection	Action	Lamp Voltage	Contact Form	Bezel Material	Color	Price

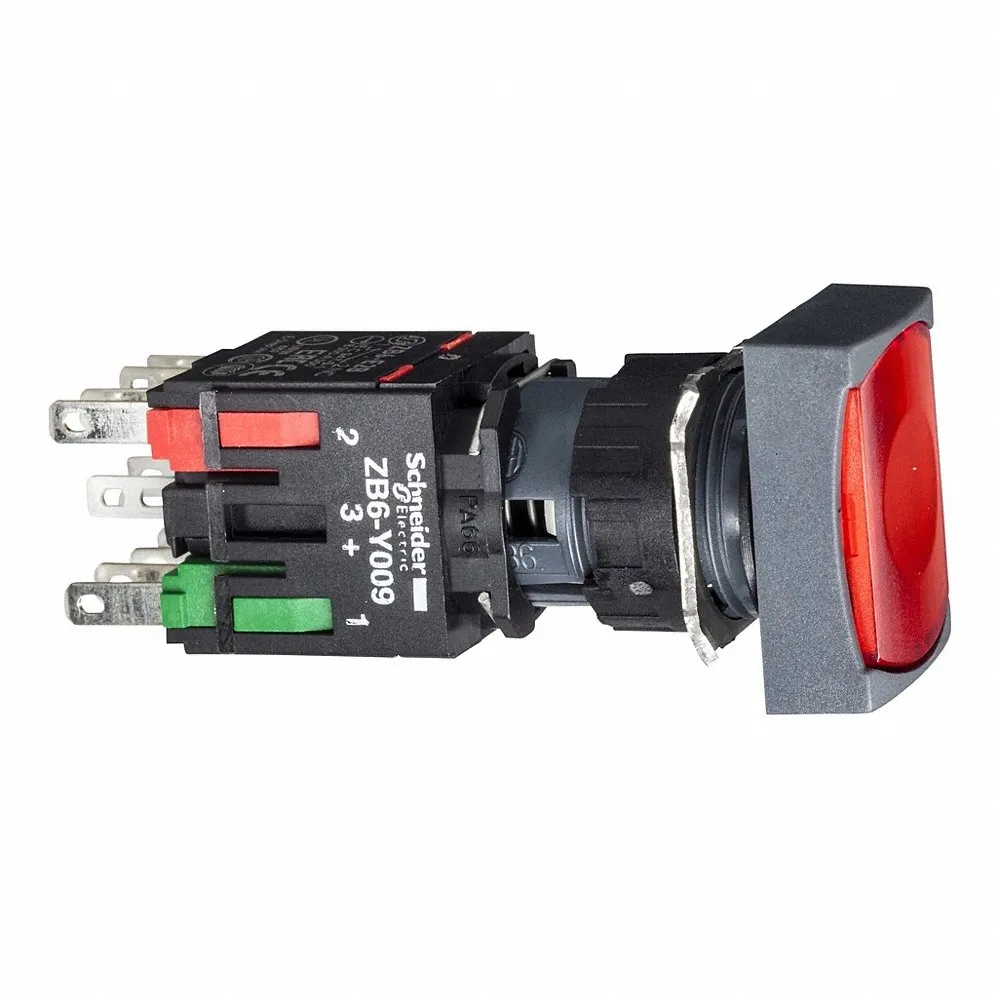

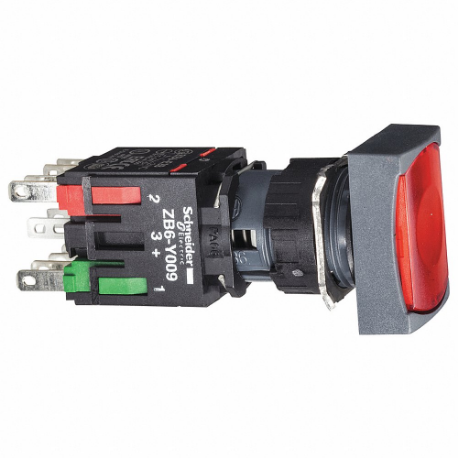

A	XB6DW4B5B	-	-	-	-	-	-	-	-	€105.84

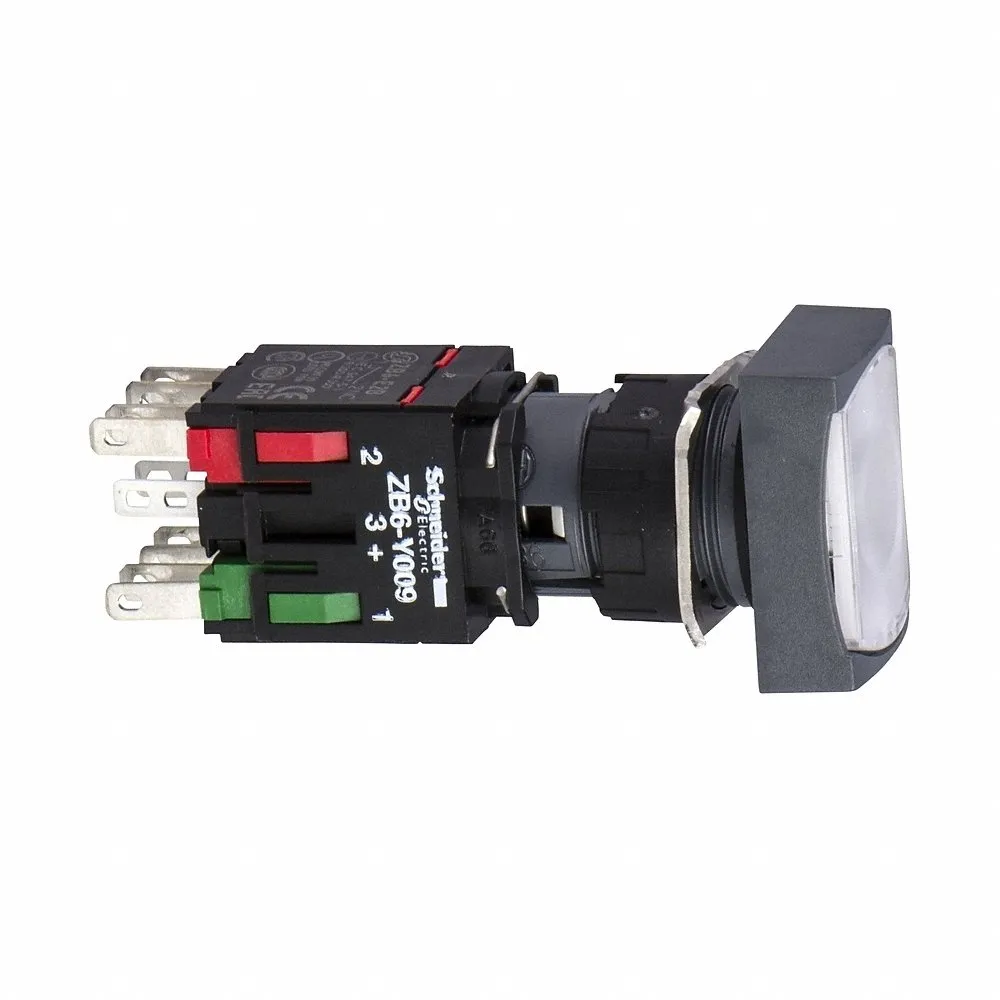

B	XB6DW1B5B	-	-	-	-	-	-	-	-	€101.66
C	XB6DF3B1B	No Legend	IP65	Quick Connect	Maintained	12-24V AC/DC	1 NO	Plastic	Green	€70.70
D	XB4FW31G5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	110-120V AC/DC	1NO/1NC	Chrome	White	€198.76
E	XB5FW34G5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	110-120V AC	1NO/1NC	Plastic	Red	€191.96
F	XB5FW34M5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	230-240V AC	1NO/1NC	Plastic	Red	€191.92
G	XB4FW34M5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	230-240V AC/DC	1NO/1NC	Chrome	Red	€192.64
E	XB5FW34B5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	24V AC/DC	1NO/1NC	Plastic	Red	€191.23
H	XB4FW34B5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	24V AC/DC	1NO/1NC	Chrome	Red	€195.93

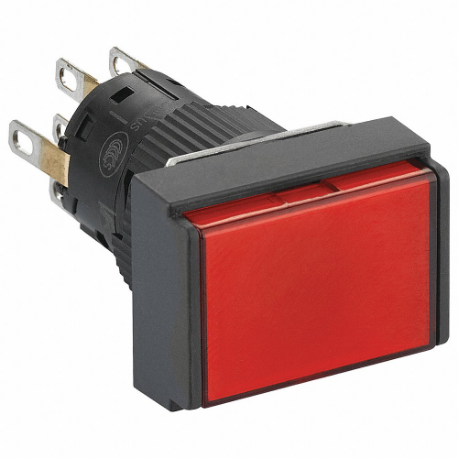

I	XB6EDW4B2P	No Legend	IP65	Quick Connect	Momentary	24V DC	DPDT	Plastic	Red	€34.13
J	XB5FW31G5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	110-120V AC	1NO/1NC	Plastic	White	€193.67
D	XB4FW31M5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	230-240V AC/DC	1NO/1NC	Chrome	White	€197.22
J	XB5FW31M5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	230-240V AC	1NO/1NC	Plastic	White	€193.67
K	XB5FW35B5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	24V AC/DC	1NO/1NC	Plastic	Orange	€193.45
L	XB5FW31B5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	24V AC/DC	1NO/1NC	Plastic	White	€195.91
M	XB4FW31B5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	24V AC/DC	1NO/1NC	Chrome	White	€193.93

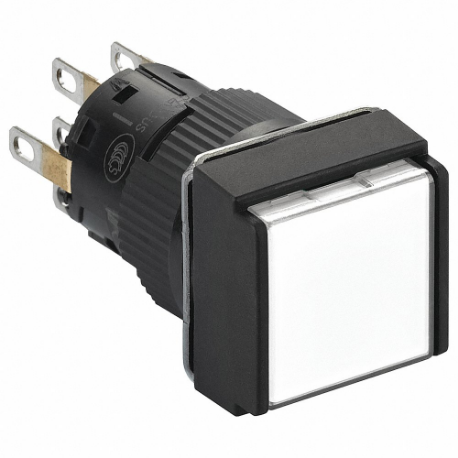

N	XB6ECF1B2P	No Legend	IP65	Quick Connect	Maintained	24V DC	DPDT	Plastic	White	€36.27
H	XB4FW34G5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	110-120V AC/DC	-	Chrome	Red	€196.03

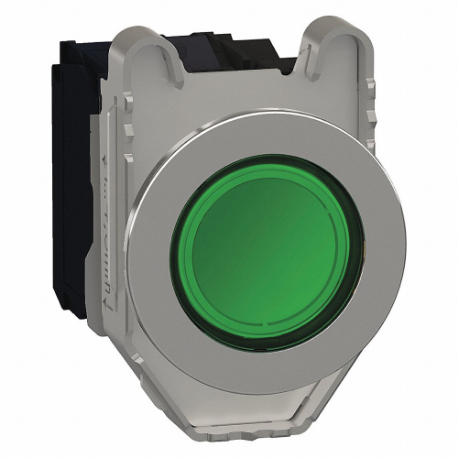

O	XB4FW33B5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	24V AC/DC	1NO/1NC	Chrome	Green	€203.12

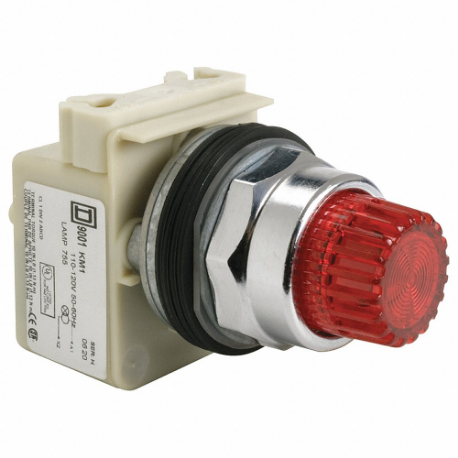

P	9001K2L35LRR	No Legend	IP66	Screw Clamp	Momentary	-	-	Metal	Red	€306.84

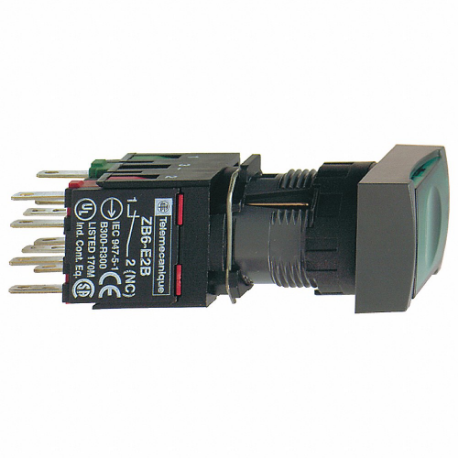

C	XB6DF3B5B	No Legend	IP65	Quick Connect	Maintained	12-24V AC/DC	1NO/1NC	Plastic	Green	€76.70
Q	XB4FW35B5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	24V AC/DC	1NO/1NC	Chrome	Orange	-	RFQ
R	XB4FW35M5	No Legend	IP66, IP67, IP69, IP69K	Screw Clamp	Momentary	230-240V AC/DC	1NO/1NC	Chrome	Orange	€196.41
S	XB6DW4B2B	No Legend	IP65	Quick Connect	Momentary	12-24V AC/DC	1 NC	Plastic	Red	€75.63
K	XB5FW35M5	No Legend	IP66, IP67, IP69, IP69K	-	Momentary	230-240V AC	1NO/1NC	Plastic	Orange	€193.67

SCHNEIDER ELECTRIC -

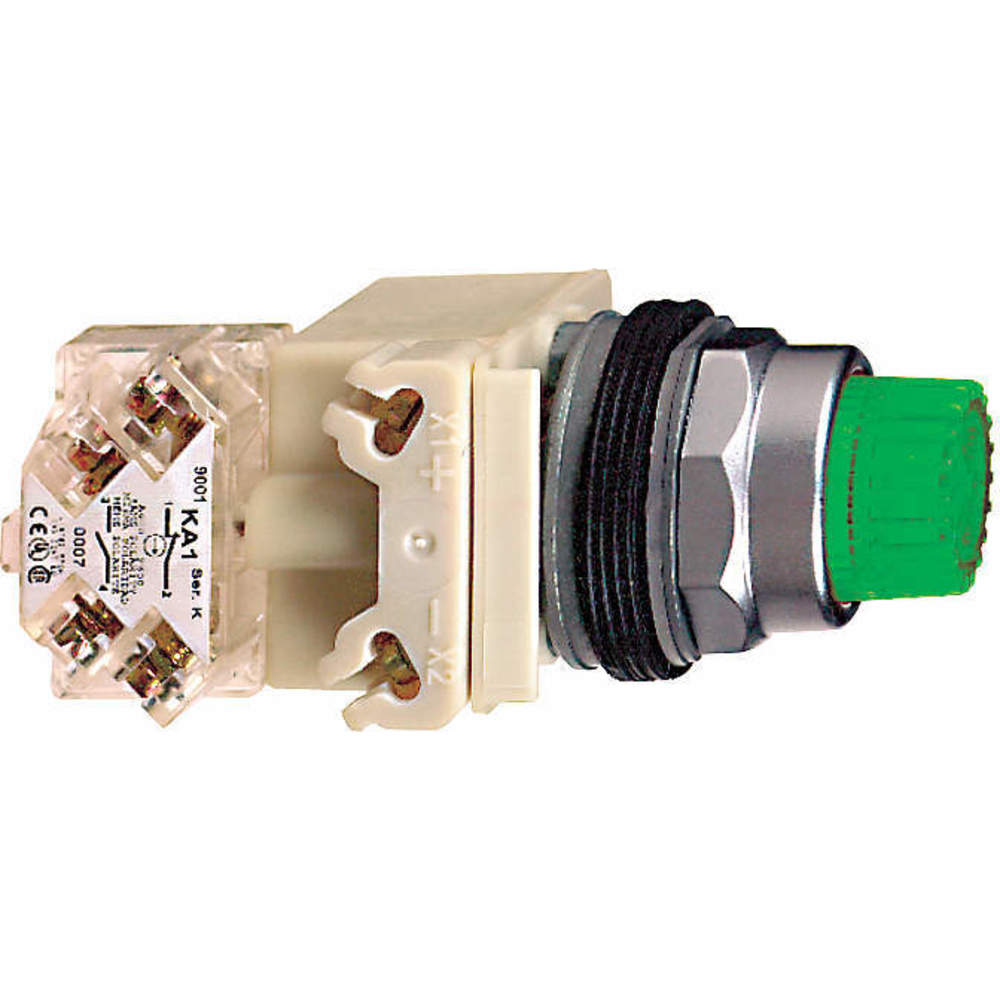

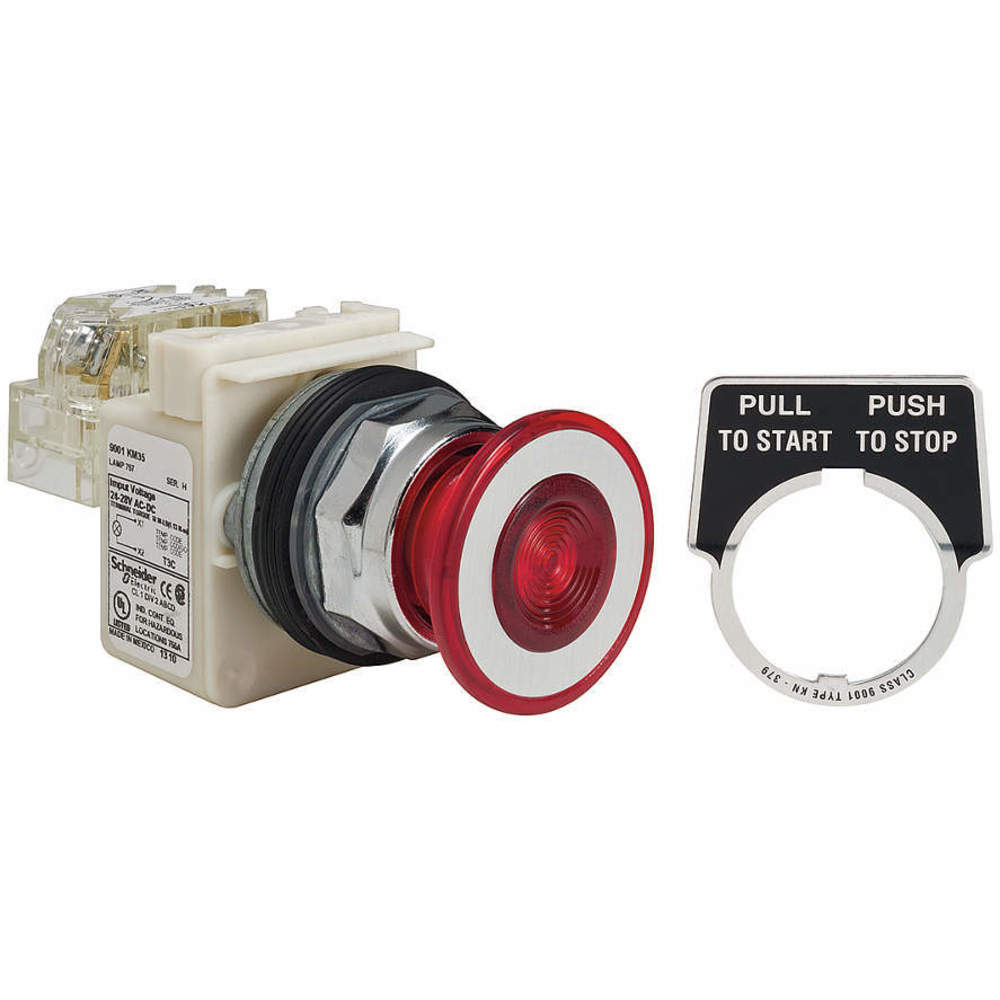

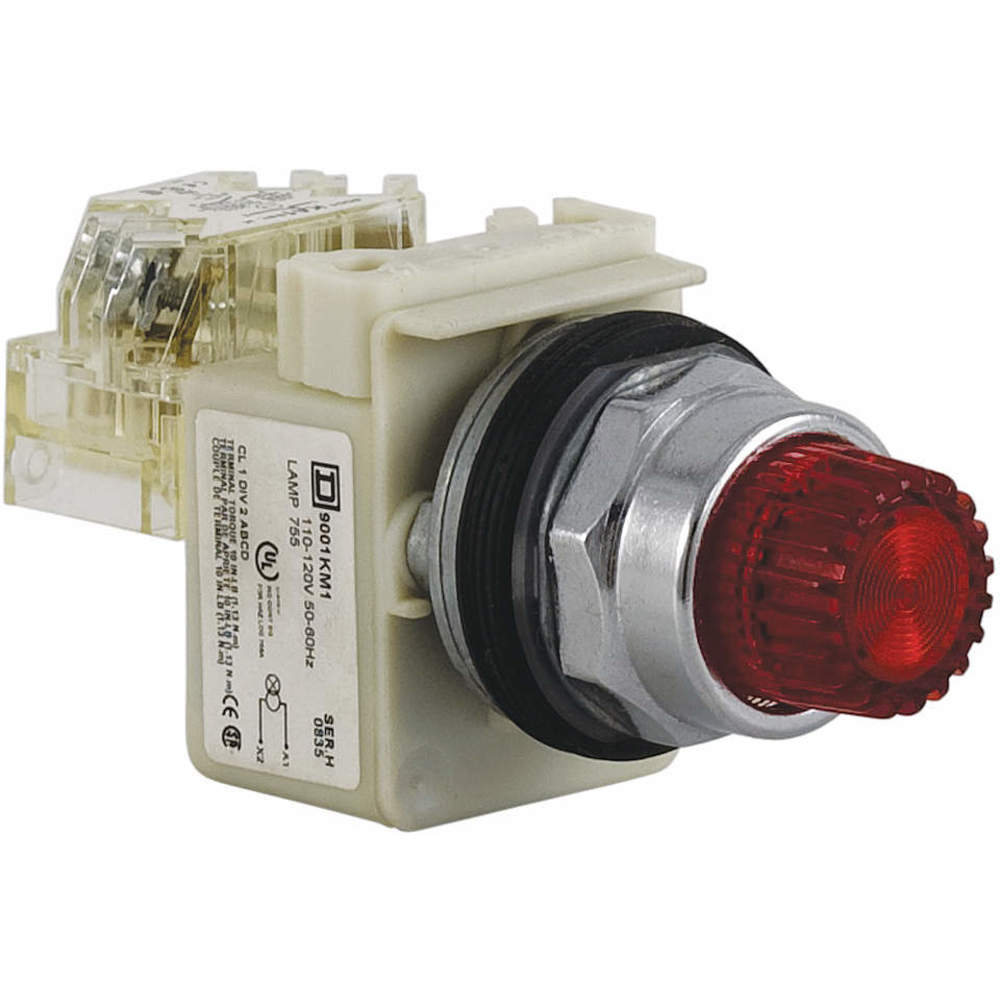

Harmony 9001K Pushbutton

A

B

C

D

E

F

G

H

I

J

K

L

M

Style	Model	Lamp Module Type	Lamp Voltage	Terminal Connection	Contact Form	Action	Ip Rating	Lamp Type	Nema Rating	Price
A	9001K3L38LRRH13	Full Voltage	120V AC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€455.03
B	9001K2L35RH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€352.93
A	9001K3L38LGGH13	Full Voltage	120V AC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€455.03
A	9001K3L35RH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€343.42
A	9001K3L35LRRH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€455.03
A	9001K3L35LGGH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€455.03
A	9001K3L35GH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€343.42
B	9001K2L35LGGH13	Full Voltage	24V AC/DC	Pressure Plate	-	-	-	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€389.60
C	9001KR9P35RH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Maintained	IP65	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€516.08
D	9001K1L38LRRH13	Full Voltage	120V AC	Pressure Plate	1NO/1NC	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€455.03

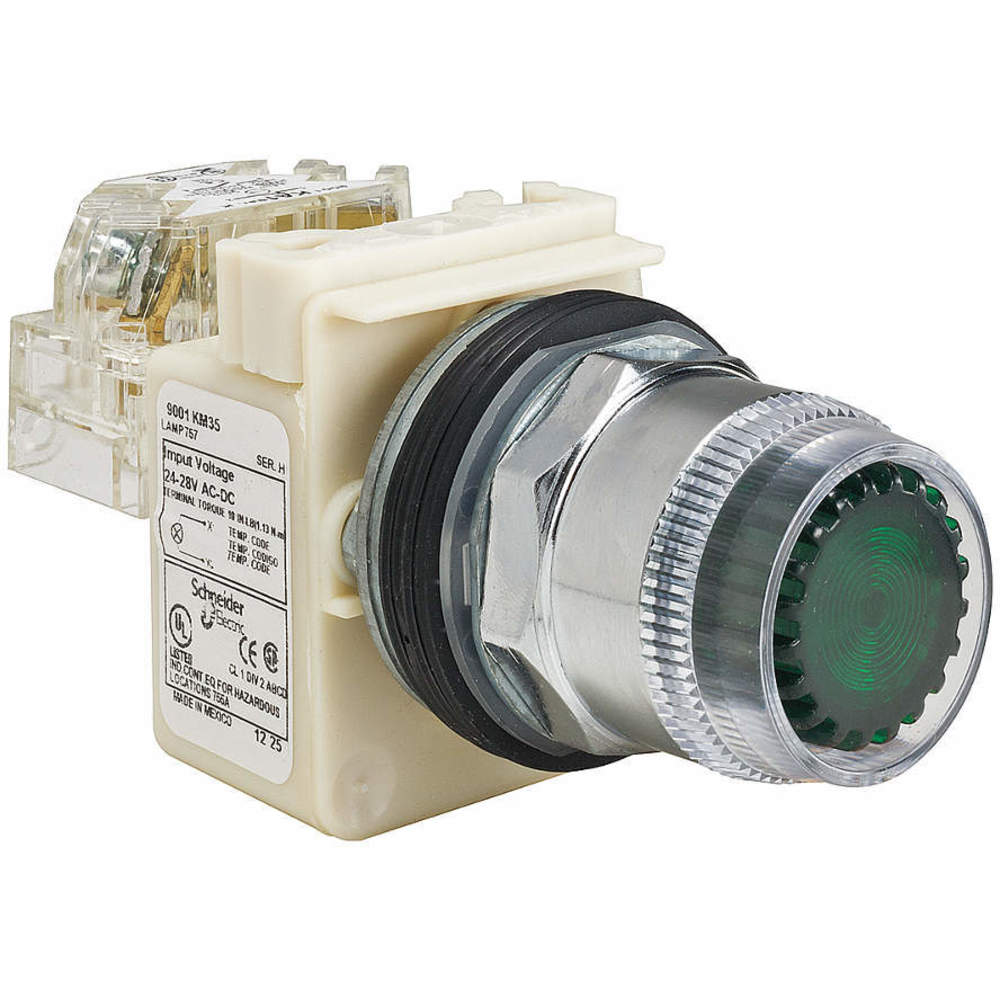

E	9001K1L35GH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€343.42

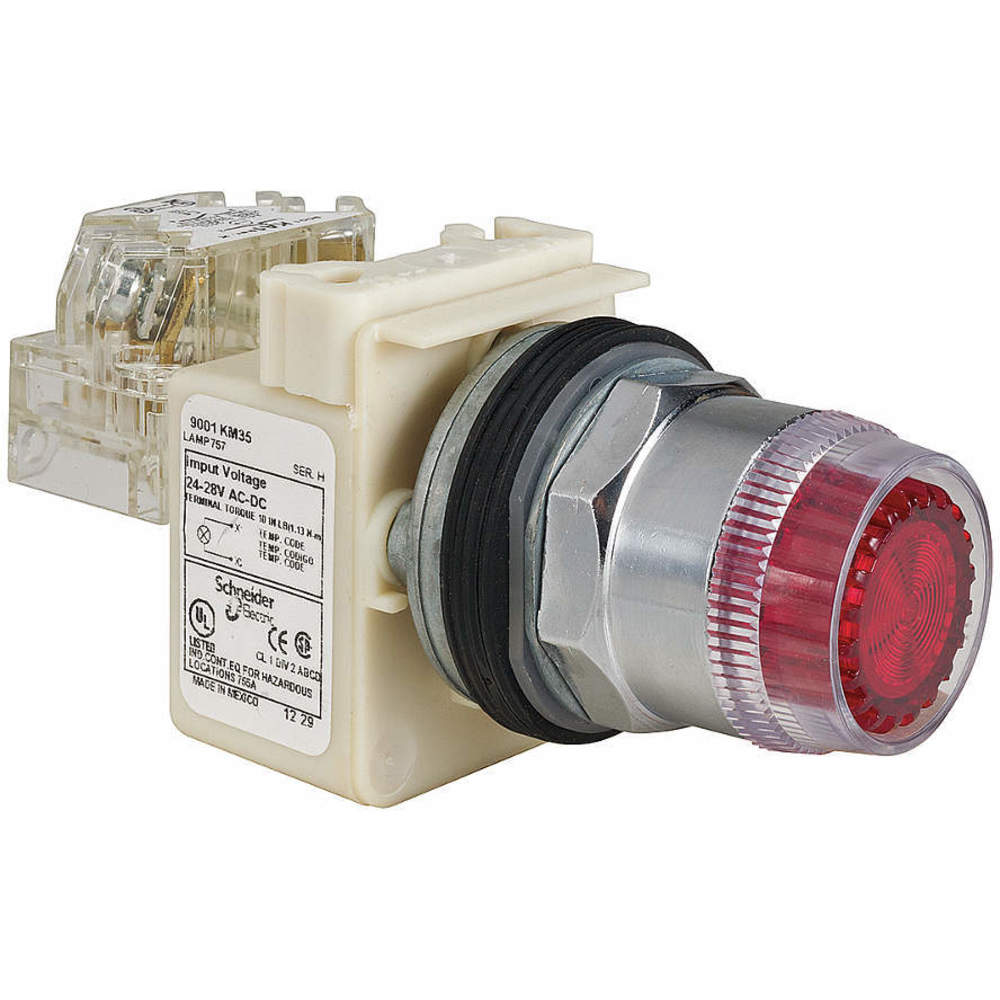

F	9001K1L35RH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€356.54
B	9001K2L38LGGH13	Full Voltage	120V AC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€389.60
B	9001K2L35GH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€352.93

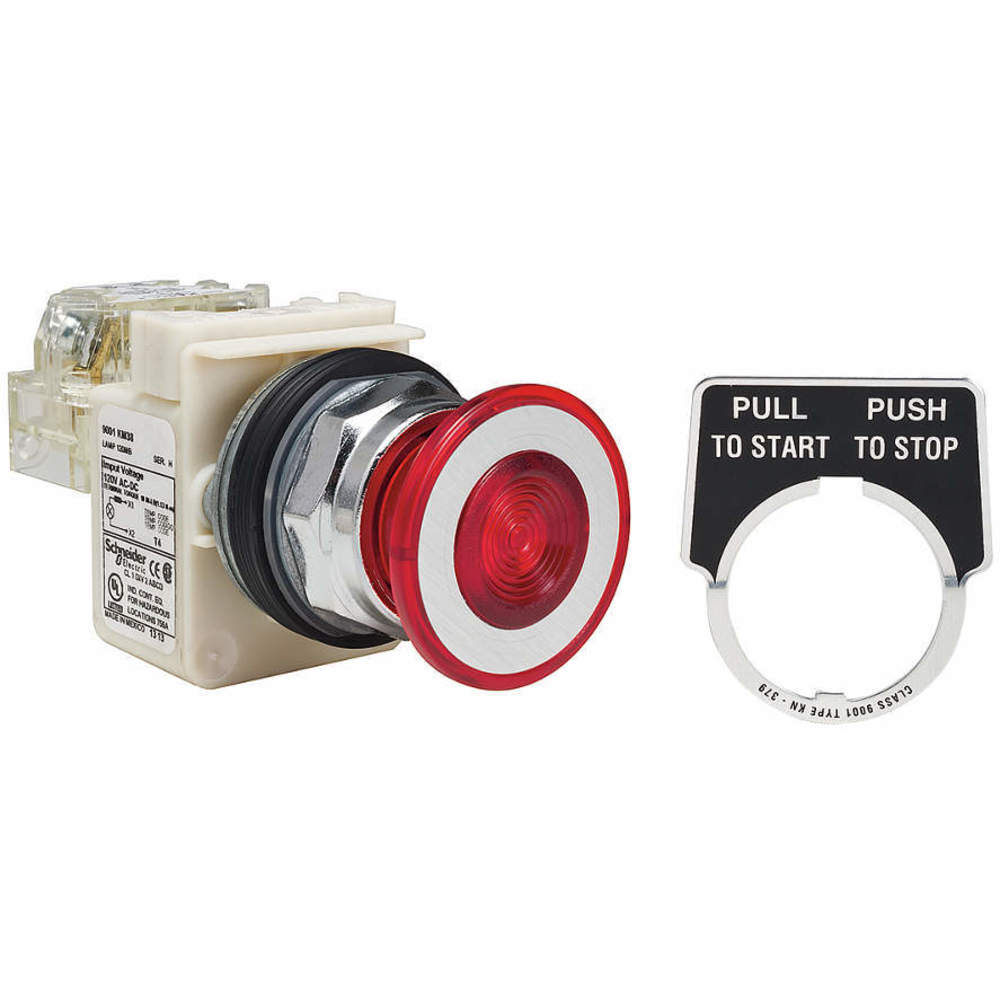

G	9001KR9P38RH13	Full Voltage	120V AC	Screw Clamp	SPDT	Maintained	IP66	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€516.08

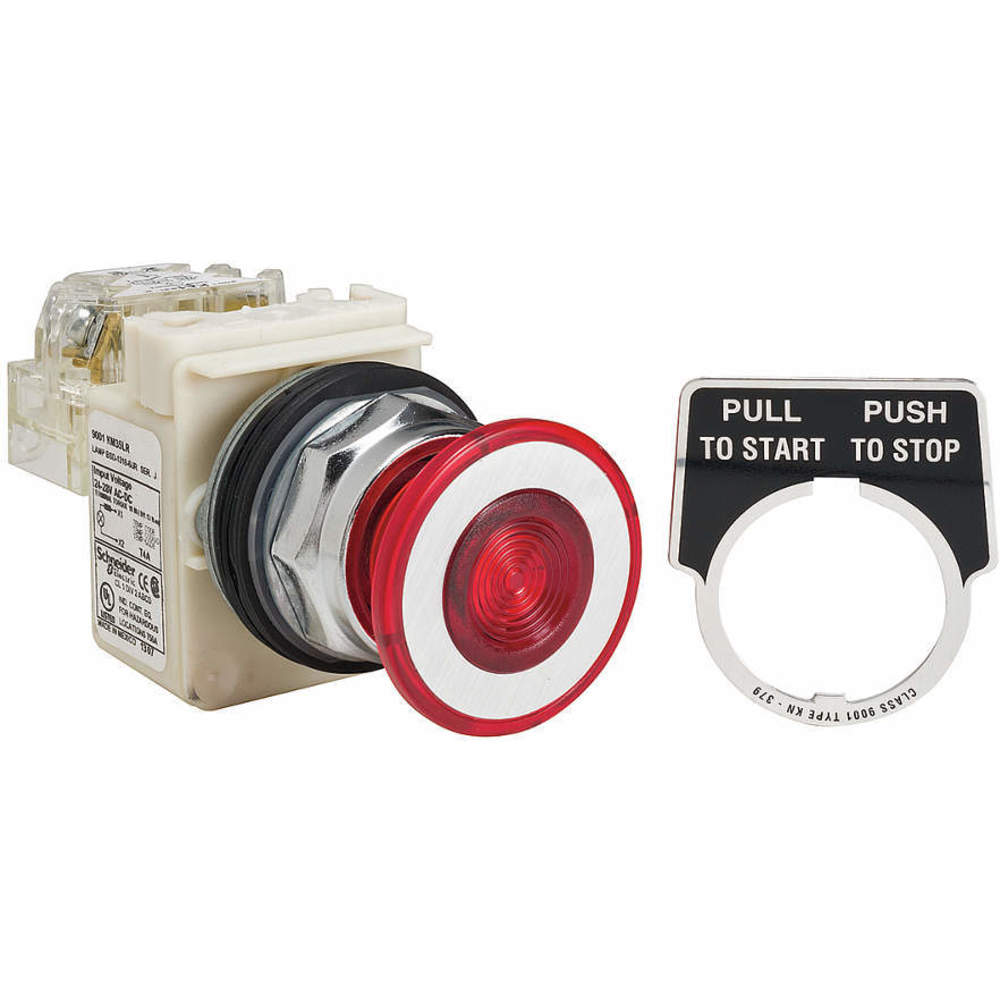

H	9001KR9P35LRRH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Maintained	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€591.71
I	9001K1L35R	Full Voltage	1.2 VA	Screw Clamp	1NO/1NC	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€256.99
B	9001K2L38LRRH13	Full Voltage	120V AC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€389.60

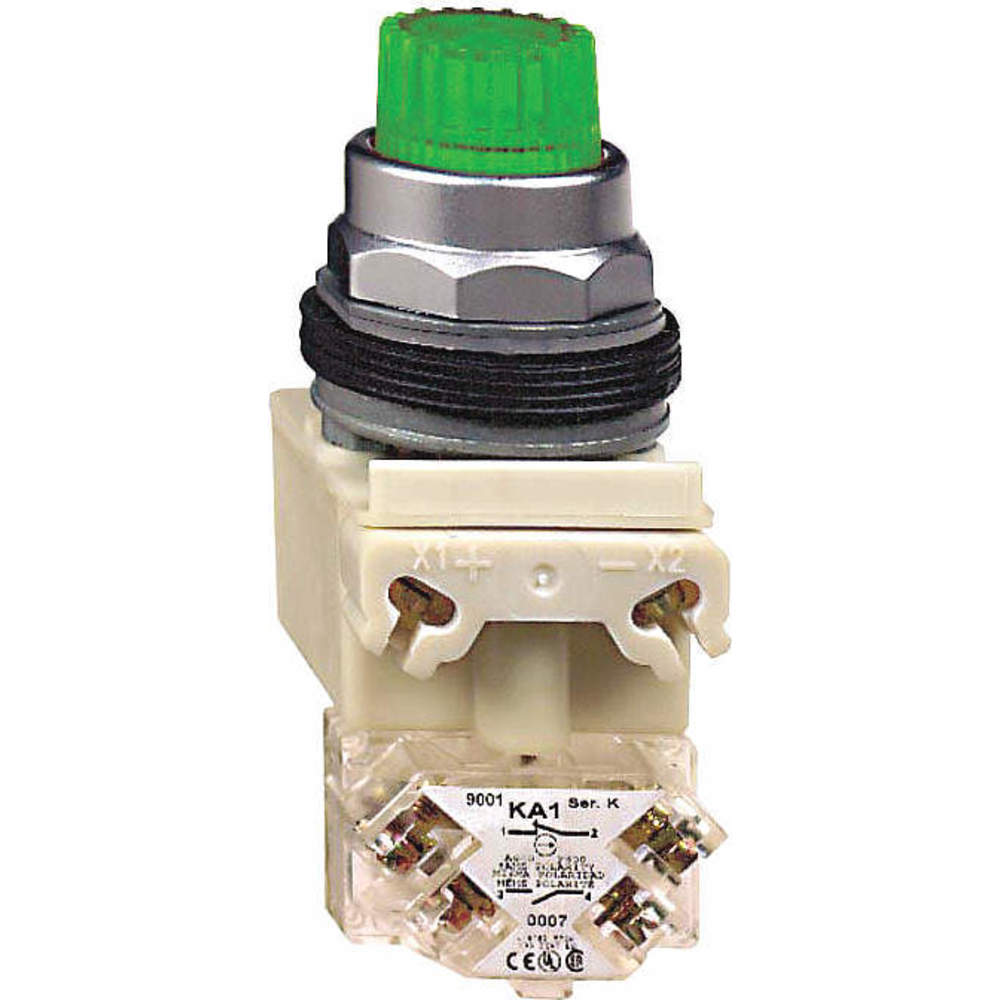

J	9001K2L35LRRH13	Full Voltage	24V AC/DC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€389.60
K	9001KR9P38LRRH13	Full Voltage	120V AC	Screw Clamp	SPDT	Maintained	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€591.71

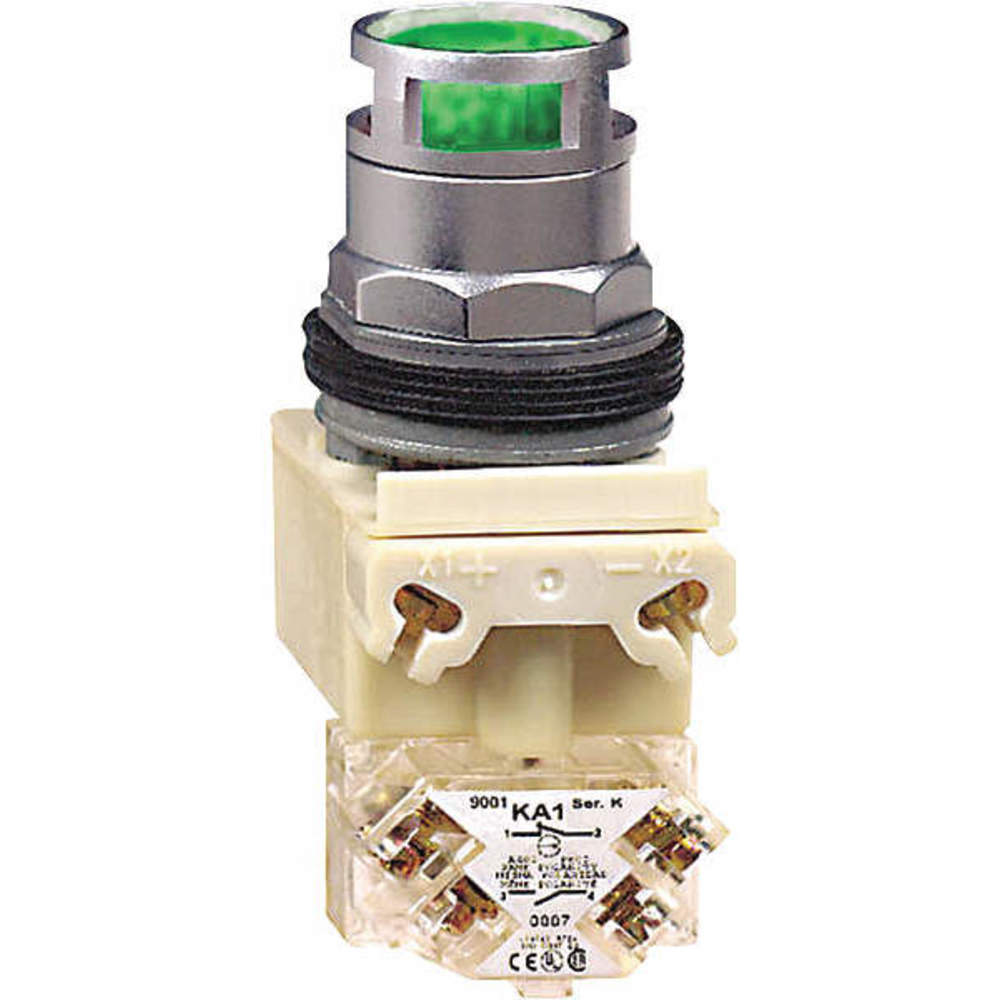

L	9001K3L1GH13	Transformer	6V AC	Screw Clamp	SPDT	Momentary	IP66	Incandescent	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4	€405.50
M	9001KR9P1RH13	Transformer	6V AC	Screw Clamp	SPDT	Maintained	IP65	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€583.11
D	9001K1L38LGGH13	Transformer	120V AC	Screw Clamp	SPDT	Momentary	IP66	LED	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€415.37
D	9001K1L1RH13	Transformer	6V AC	Pressure Plate	-	-	-	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€405.50
B	9001K2L1GH13	Transformer	6V AC	Screw Clamp	SPDT	Momentary	IP66	Incandescent	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13	€399.34

SCHNEIDER ELECTRIC -

Push Button, 16mm, Momentary Action

A

B

Style	Model	Color	Contact Form	Action	Lamp Module Type	Lamp Voltage	Terminal Connection	Ip Rating	Legend	Price

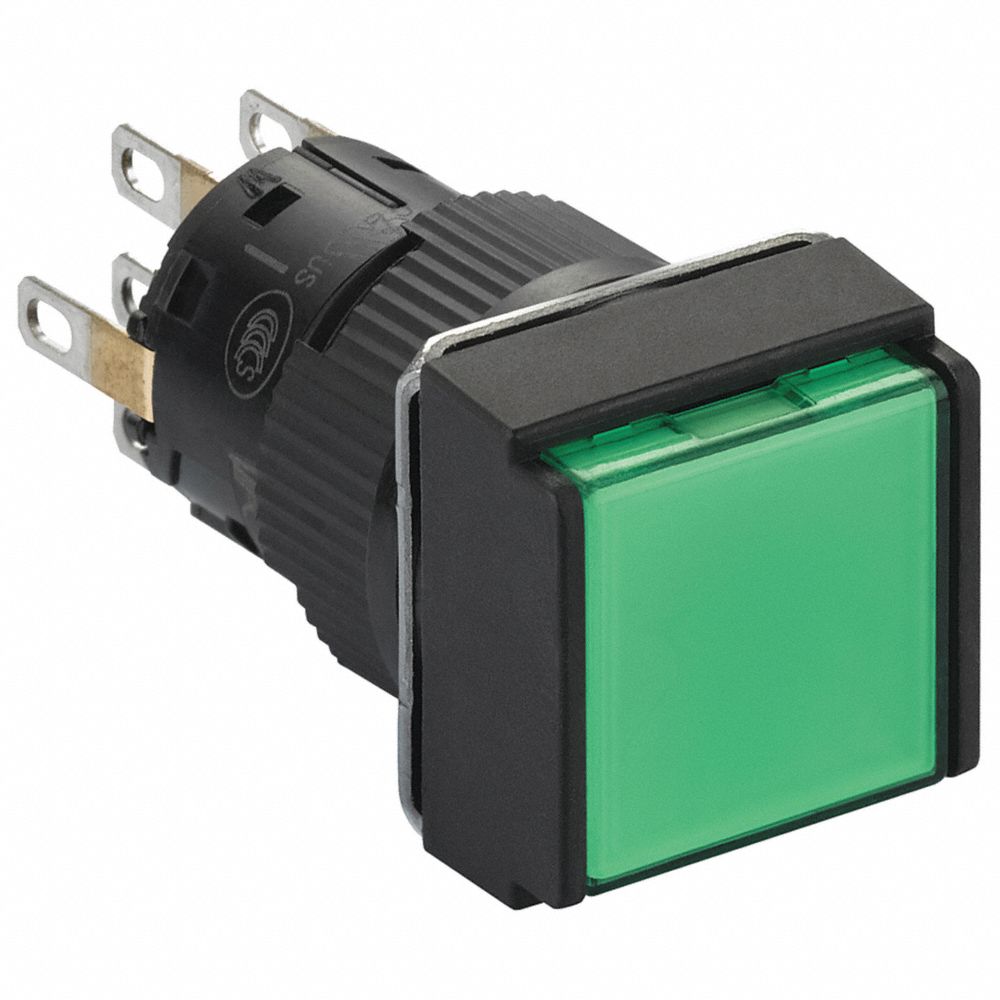

A	XB6ECW3B2P	Green	DPDT	Momentary	Full Voltage	24V DC	Quick Connect	IP65	No Legend	€29.32

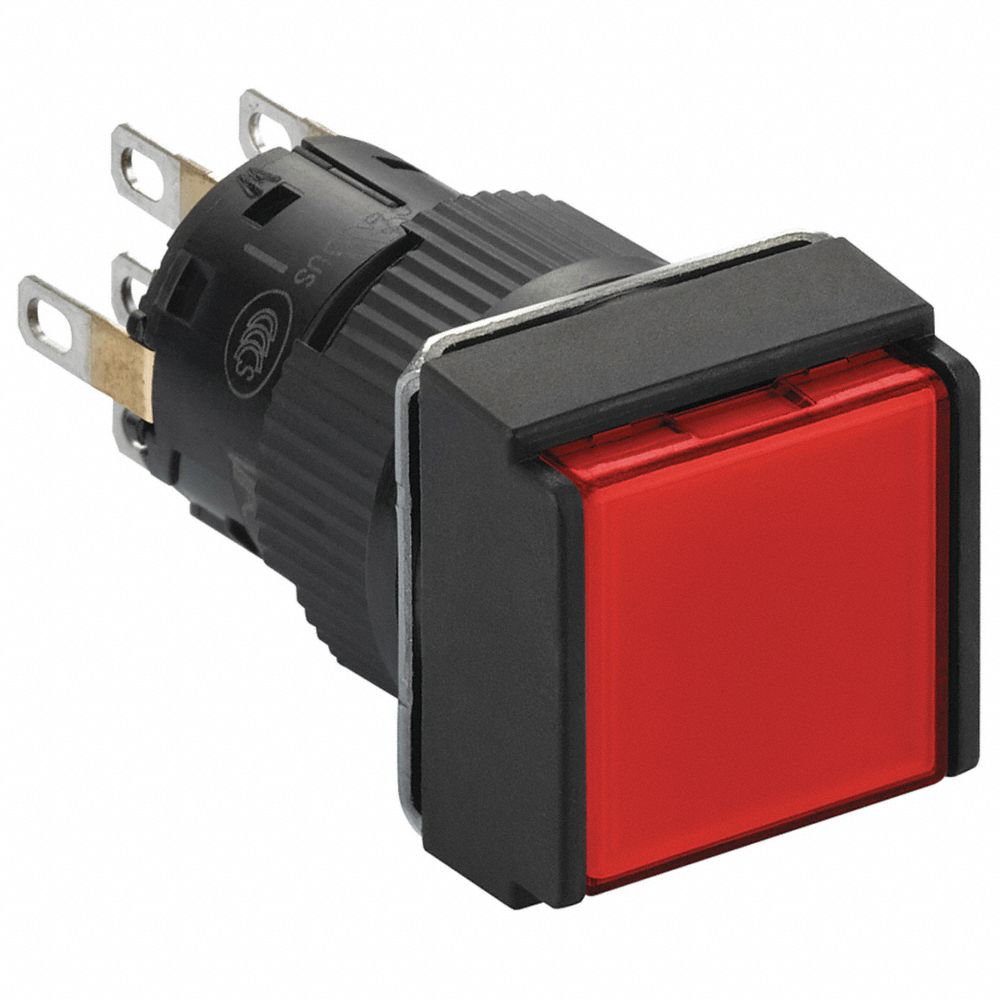

B	XB6ECW4B2P	Red	DPDT	Momentary	Full Voltage	24V DC	Quick Connect	IP65	-	€26.97

SCHNEIDER ELECTRIC -

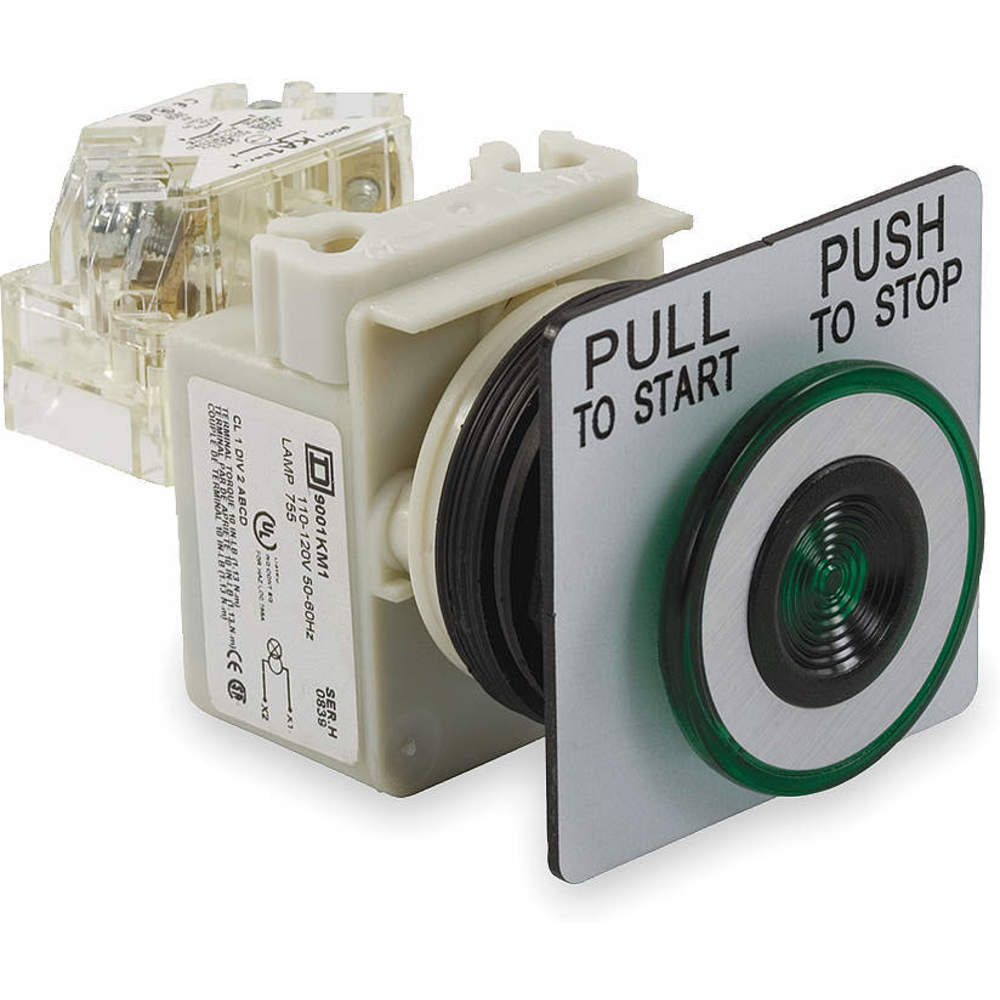

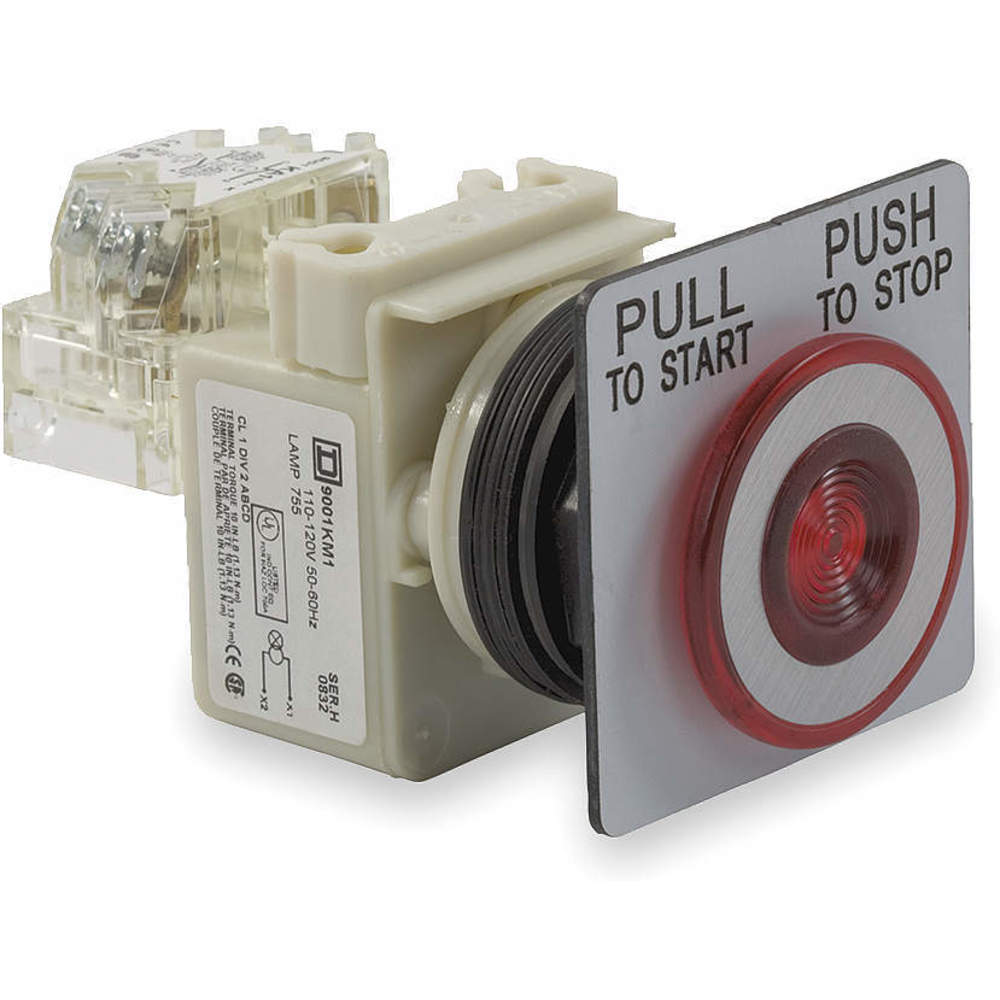

Harmony 9001SK Pushbutton

A

B

C

D

E

F

G

Style	Model	Lamp Module Type	Lamp Voltage	Terminal Connection	Action	Lamp Module Voltage	Lamp Type	Color	Action Type	Price

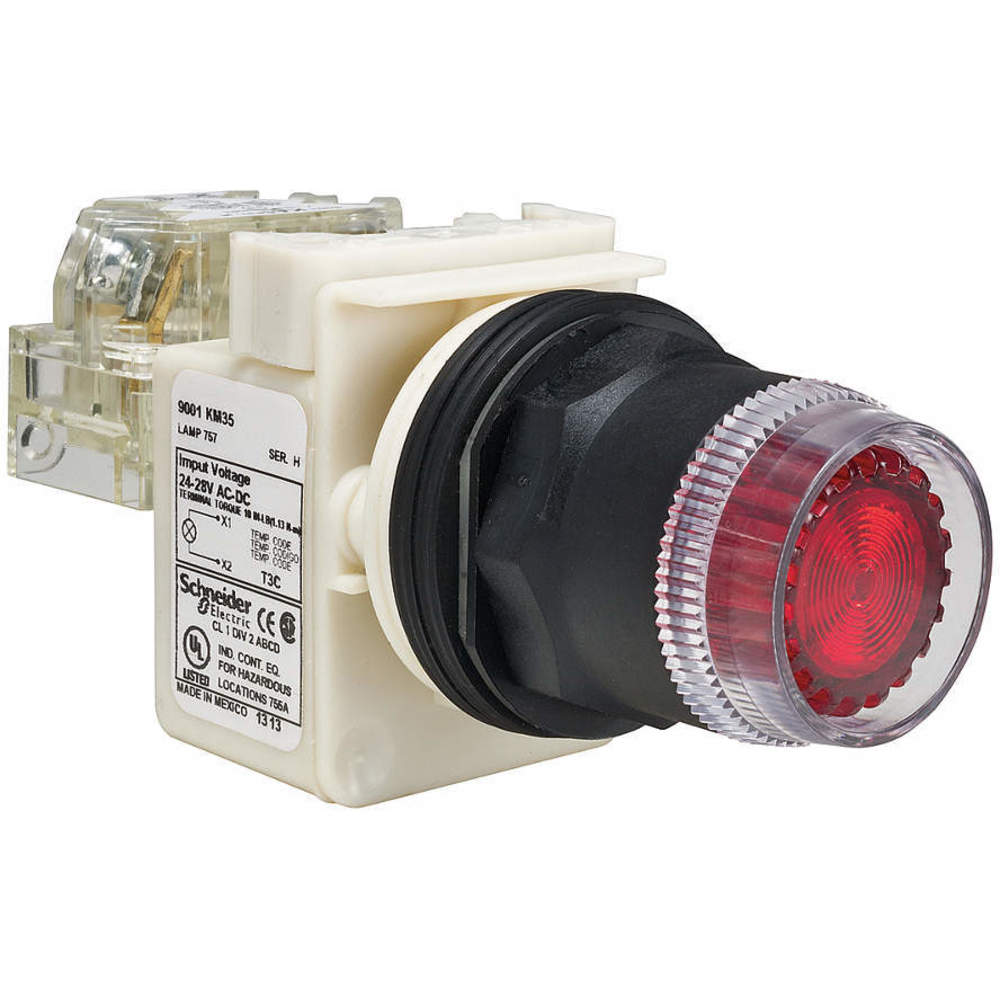

A	9001SK1L35RH13	Full Voltage	24V AC/DC	Screw Clamp	Momentary	24V AC/DC	Incandescent	Red	Momentary	€387.28
B	9001SK2L35GH13	Full Voltage	24V AC/DC	Screw Clamp	Momentary	24V AC/DC	Incandescent	Green	Momentary	€491.79

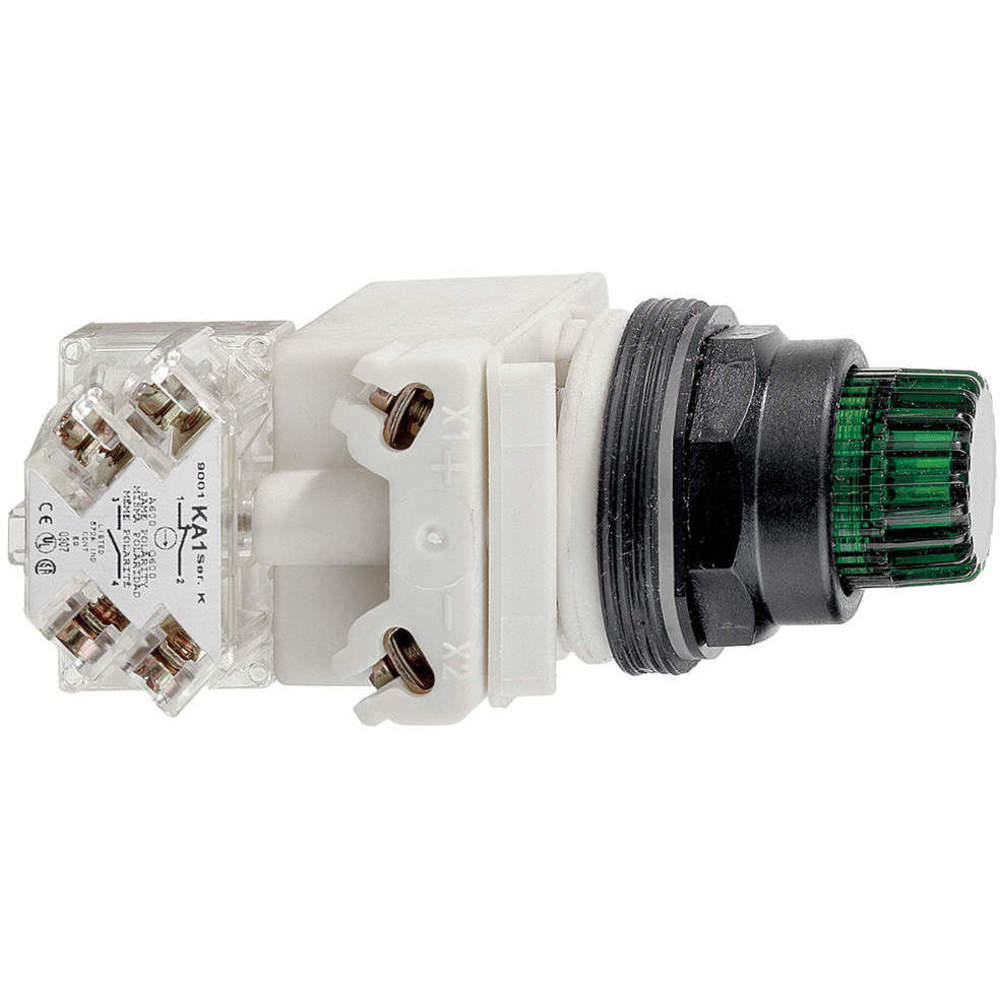

B	9001SK2L38LGGH13	Full Voltage	120V AC	Screw Clamp	Momentary	120V AC	LED	Green	Momentary	€408.43
C	9001SK1L38LGGH13	Full Voltage	120V AC	Screw Clamp	Momentary	120V AC	LED	Green	Momentary	€472.40
D	9001SK2L35LRRH13	Full Voltage	24V AC/DC	Screw Clamp	Momentary	24V AC/DC	LED	Red	Momentary	€399.26

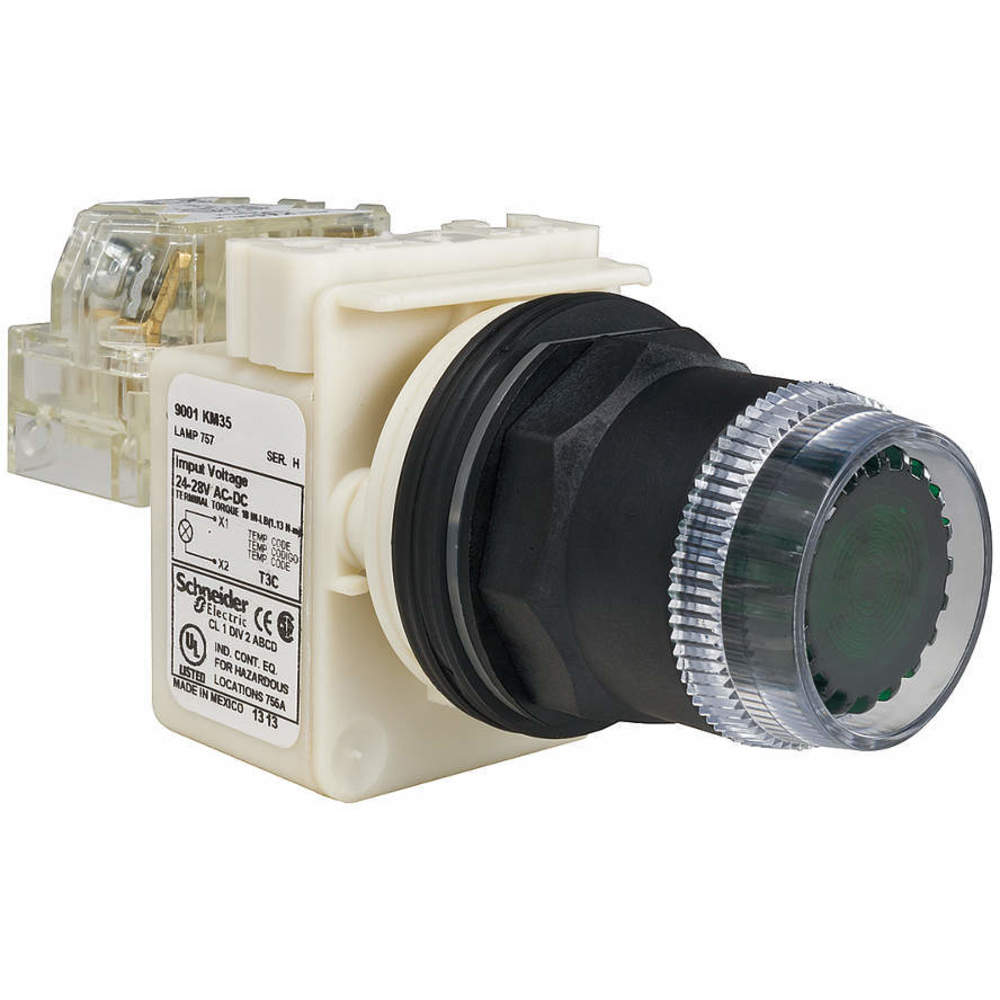

E	9001SK1L35GH13	Full Voltage	24V AC/DC	Screw Clamp	Momentary	24V AC/DC	LED	Green	Momentary	€390.86
D	9001SK2L38LRRH13	Full Voltage	120V AC	Pressure Plate	-	120V AC	LED	Red	Momentary	€408.43
F	9001SKR9P1RH13	Transformer	6V AC	Screw Clamp	Maintained	120V AC	Incandescent	Red	Push/Pull	€583.11
C	9001SK1L1RH13	Transformer	6V AC	Screw Clamp	Momentary	120V AC	Incandescent	Red	Momentary	€422.60
B	9001SK2L1GH13	Transformer	6V AC	Screw Clamp	Momentary	120V AC	Incandescent	Green	Momentary	€464.99
C	9001SK1L1GH13	Transformer	6V AC	Screw Clamp	Momentary	120V AC	Incandescent	Green	Momentary	€422.60
G	9001SKR9P1GH13	Transformer	6V AC	Screw Clamp	Maintained	120V AC	Incandescent	Green	Push/Pull	€583.11

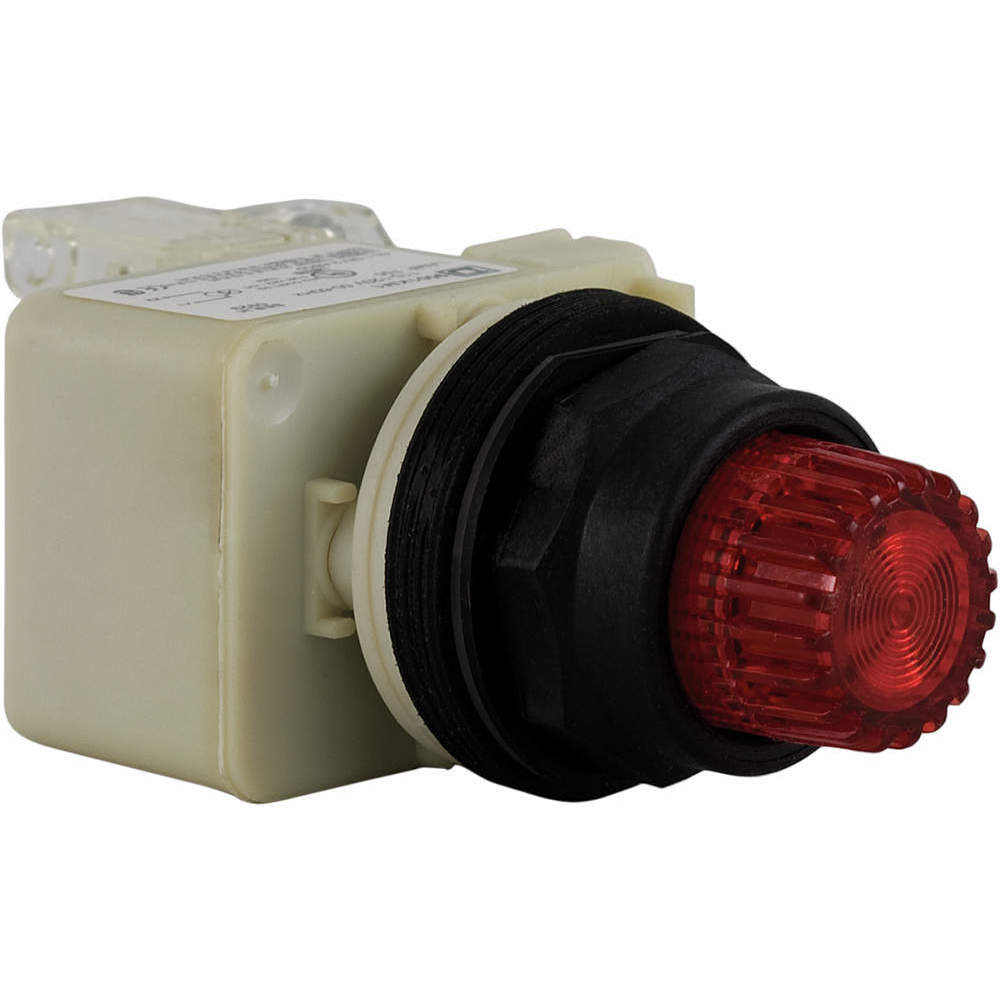

D	9001SK2L1RH13	Transformer	6V AC	Screw Clamp	Momentary	120V AC	Incandescent	Red	Momentary	€464.99

SCHNEIDER ELECTRIC -

Illuminated Push Button 30mm 1no/1nc White

Model	Item	Price (ex. VAT)

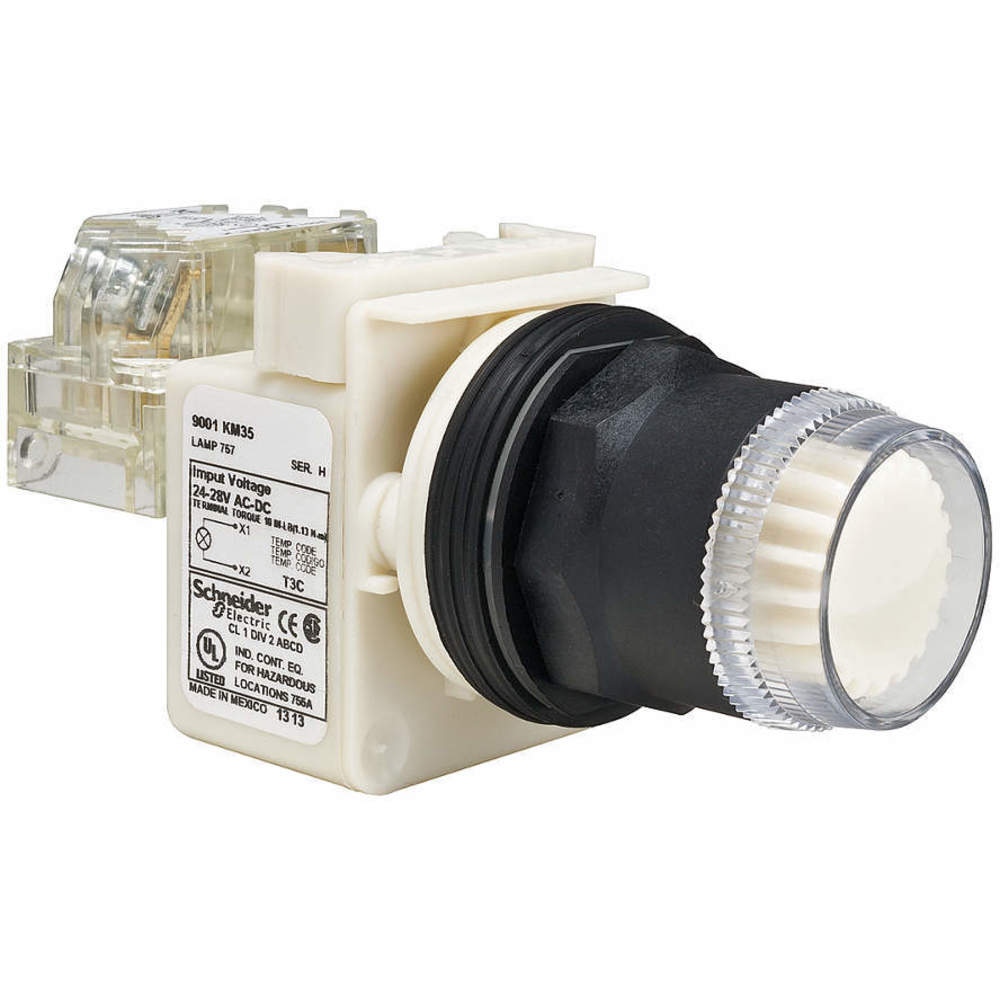

9001SK1L35WH13	AG6QVZ	€304.14

SCHNEIDER ELECTRIC -

Illuminated Push Button 30mm 1no/1nc White

Model	Item	Price (ex. VAT)
9001K3L35LWWH13	AG7DNH	€382.15

SCHNEIDER ELECTRIC -

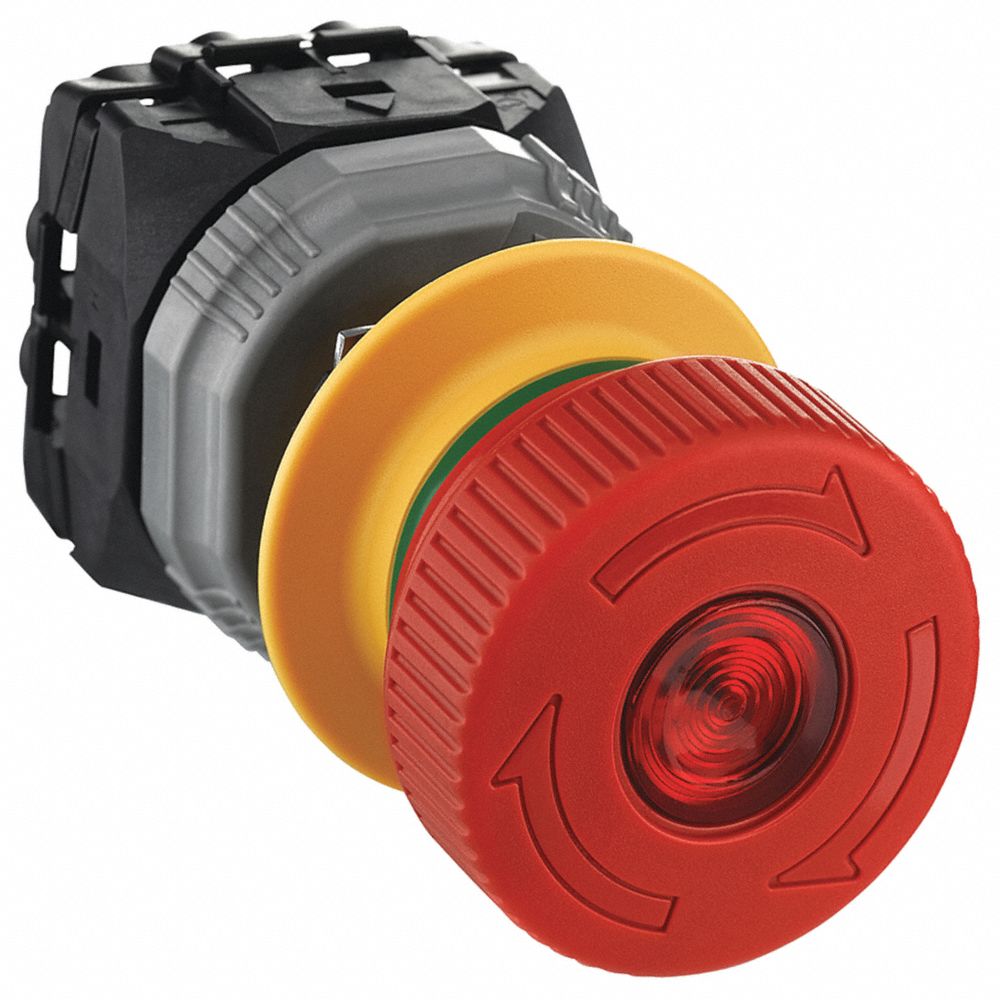

Illuminated Emergency Stop Button, 22mm Size

Model	Item	Price (ex. VAT)
XB5AS86449B4	CE9ZPA	-	RFQ
