SCHNEIDER ELECTRIC Harmony 9001K Pushbutton
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O| Style | Model | Lamp Module Type | Lamp Voltage | Terminal Connection | Contact Form | Action | Ip Rating | Lamp Type | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 9001KR9P38RH13 | Full Voltage | 120V AC | Screw Clamp | SPDT | Maintained | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €334.98 | |
| B | 9001K3L35LRRH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €276.60 | |
| C | 9001KR9P38LRRH13 | Full Voltage | 120V AC | Screw Clamp | SPDT | Maintained | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €372.59 | |
| D | 9001KR9P35RH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Maintained | IP65 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €334.98 | |
| E | 9001KR9P35LRRH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Maintained | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €372.59 | |
| F | 9001K1L38LRRH13 | Full Voltage | 120V AC | Pressure Plate | 1NO/1NC | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €276.60 | |
| G | 9001K1L35RH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €229.28 | |
| H | 9001K1L35GH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €224.74 | |
| I | 9001K1L35R | Full Voltage | 1.2 VA | Screw Clamp | 1NO/1NC | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €167.32 | |
| B | 9001K3L38LRRH13 | Full Voltage | 120V AC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €276.60 | |
| B | 9001K3L35RH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €224.74 | |
| B | 9001K3L38LGGH13 | Full Voltage | 120V AC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €276.60 | |
| B | 9001K3L35LGGH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €276.60 | |
| B | 9001K3L35GH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €224.74 | |
| J | 9001K2L35GH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €214.51 | |
| J | 9001K2L35LGGH13 | Full Voltage | 24V AC/DC | Pressure Plate | - | - | - | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €241.44 | |
| K | 9001K2L35LRRH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €241.44 | |
| J | 9001K2L35RH13 | Full Voltage | 24V AC/DC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €214.51 | |
| J | 9001K2L38LGGH13 | Full Voltage | 120V AC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €241.44 | |
| J | 9001K2L38LRRH13 | Full Voltage | 120V AC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €241.44 | |
| F | 9001K1L1RH13 | Transformer | 6V AC | Pressure Plate | - | - | - | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €255.16 | |

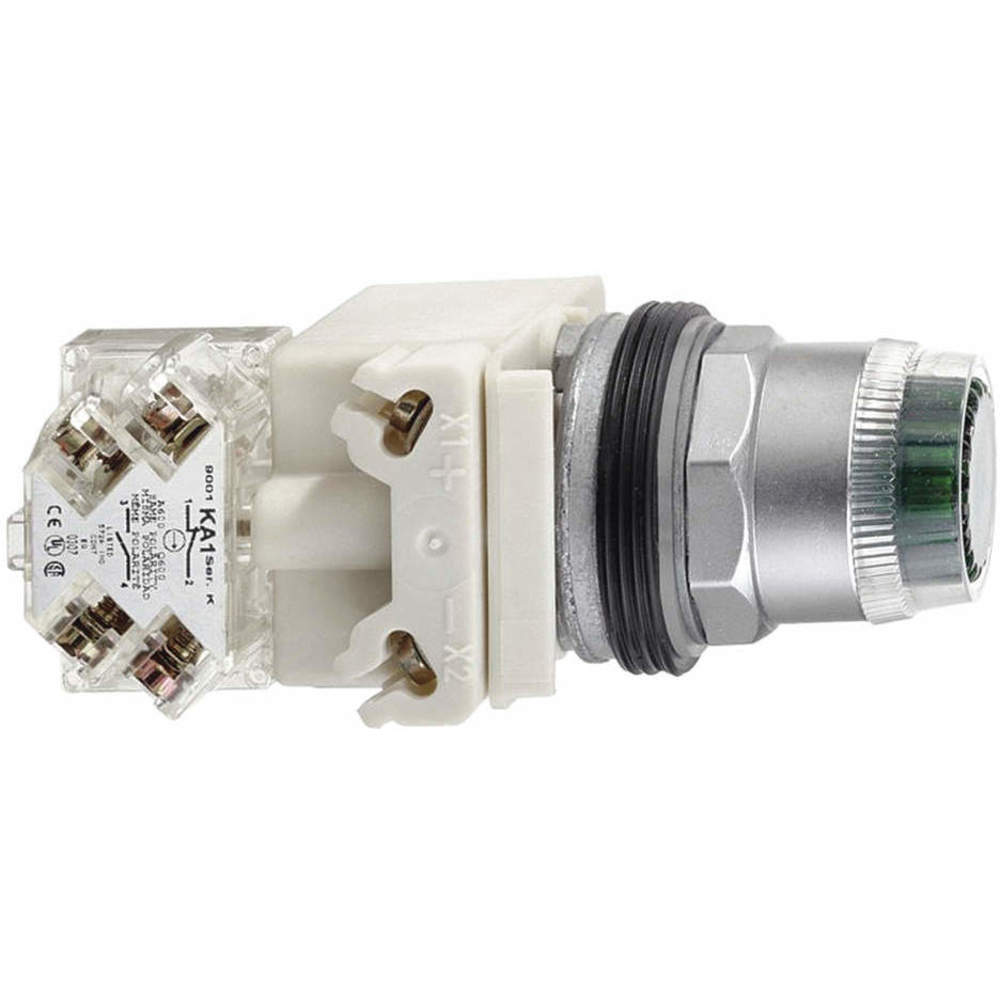

| L | 9001K1L1GH13 | Transformer | 6V AC | - | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €255.16 | |
| F | 9001K1L38LGGH13 | Transformer | 120V AC | Screw Clamp | SPDT | Momentary | IP66 | LED | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €255.81 | |

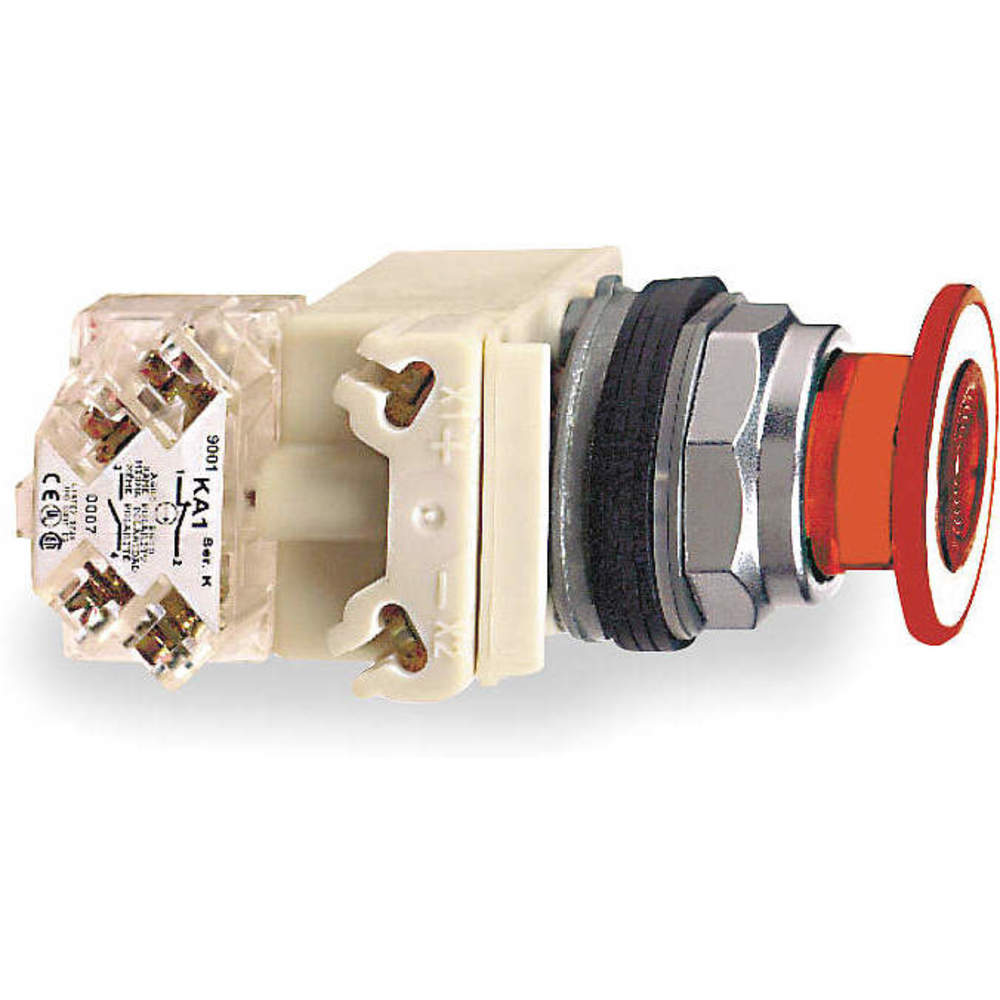

| M | 9001KR9P1RH13 | Transformer | 6V AC | Screw Clamp | SPDT | Maintained | IP65 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €354.46 | |
| F | 9001K2L1R20H13 | Transformer | 6V AC | Screw Clamp | SPDT | Momentary | IP65 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €259.09 | |
| N | 9001K3L1GH13 | Transformer | 6V AC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4 | €255.16 | |
| B | 9001K3L1RH13 | Transformer | 6V AC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €255.16 | |
| O | 9001K2L1RH13 | Transformer | 6V AC | Pressure Plate | 1NO/1NC | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €253.94 | |
| J | 9001K2L1GH13 | Transformer | 6V AC | Screw Clamp | SPDT | Momentary | IP66 | Incandescent | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 | €253.94 |
