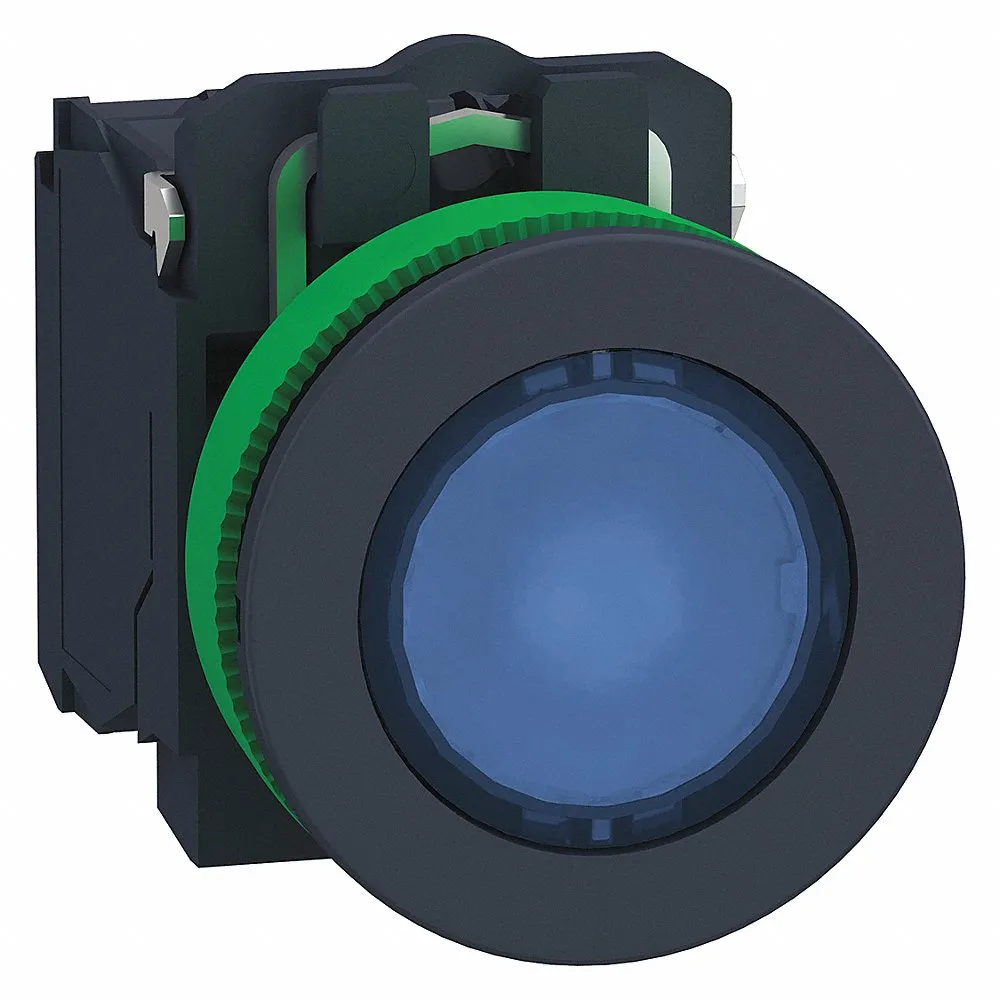

SCHNEIDER ELECTRIC XB5FW36B5 Push Button, Push Button, Momentary, Blue, 24 V AC/Dc, Led, 1No/1Nc, Flush Button | CU2CYZ 55WK44

SCHNEIDER ELECTRIC XB5FW36B5 Push Button, Momentary, Blue, 24 V AC/Dc, Led, 1No/1Nc, Flush Button

Item: CU2CYZModel: XB5FW36B5Cross Ref: 55WK44
7 In Stock

Ships within 2 days via

€192.56
10.00% off
€173.30 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Push Button
Ac Contact Rating 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
Action Momentary
Action Type Momentary
Amps Consumption 18 mA
Basic Material Plastic
Bezel Material Plastic
Cap/operator Or Lens Colour Blue
Color Blue
Contact Form 1NO/1NC
Contact Rating 0.1A @ 600V 0.27A @ 250V 0.55A @ 125V 1.2A @ 600V 3A @ 240V 6A @ 120V
Dc Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V
Device Presentation Complete Product
Display Qty 1
Features Spring Return
Finish Chrome Plated
Fixing Collar Material Plastic
Head Material Plastic
Head/lens Color Blue
Ip Rating IP66, IP67, IP69, IP69K
Lamp Bulb Type LED
Lamp Module Type Full Voltage
Lamp Module Voltage 24V AC/DC
Lamp Voltage 24V AC/DC
Lamp Voltage - Maximum 24V AC/DC
Legend No Legend
Legend/background Color No Legend
Mechanical Operating Durability 1 x 10^7
Mounting Diameter 30.5 mm
Nema Contact Rating Designation A600/Q600
Nema Enclosure Rating NEMA 4X, NEMA 13
Number Of Indicator Lights 0
Number Of Operators 1
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -40°F
Operator Illumination Illuminated
Operator Material Plastic
Operator Voltage Rating - Maximum 600V AC/DC
Overall Depth 2.17"
Overall Height 1.65"
Overall Width 1 11/25"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Flush
Resistance Properties Antimicrobial, Vibration Resistant
Series XB5 Series
Shape Of Signaling Unit Head Round
Signalling Type Steady
Terminal Connection Screw Clamp
Type Of Operator Flush Button

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)4.2
Ship length (cm)5.5
Ship width (cm)3.66
Country of OriginFR

Product Variants

ProductModelLegendIp RatingTerminal ConnectionActionLamp VoltageContact FormBezel MaterialColorPrice
SCHNEIDER ELECTRIC 9001K2L35LRR Complete Illuminated Push Button, Complete Illuminated Push Button, Momentary | CU2BTH 55WP80 9001K2L35LRRNo LegendIP66Screw ClampMomentary--MetalRed€306.84
SCHNEIDER ELECTRIC XB6DF3B5B Illuminated Push Button, Momentary, Green, Led | CU2BTJ 55WU48 XB6DF3B5BNo LegendIP65Quick ConnectMaintained12-24V AC/DC1NO/1NCPlasticGreen€76.70
SCHNEIDER ELECTRIC XB6DW3B1B Illuminated Push Button, Momentary, Green, Led, 1 No | CU2BTK 55WU64 XB6DW3B1BNo LegendIP65Quick ConnectMomentary12-24V AC/DC1 NOPlasticGreen€70.70
SCHNEIDER ELECTRIC XB6DF3B1B Illuminated Push Button, Momentary, Green, Led, 1 No, 65 | CU2BTL 55WU47 XB6DF3B1BNo LegendIP65Quick ConnectMaintained12-24V AC/DC1 NOPlasticGreen€70.70
SCHNEIDER ELECTRIC XB6DW4B2B Illuminated Push Button, Momentary, Red, 12 To 24V Ac/Dc | CU2BTM 55WU66 XB6DW4B2BNo LegendIP65Quick ConnectMomentary12-24V AC/DC1 NCPlasticRed€75.63
SCHNEIDER ELECTRIC XB6DF4B5B Illuminated Push Button, Momentary, Red, 12 To 24V Ac/Dc | CU2BTN 55WU50 XB6DF4B5BNo LegendIP65Quick ConnectMaintained12-24V AC/DC1NO/1NCPlasticRed€90.99
SCHNEIDER ELECTRIC XB6DW1B1B Illuminated Push Button, Momentary, White, Led, 1 No, 65 | CU2BTP 55WU62 XB6DW1B1BNo LegendIP65Quick ConnectMomentary12-24V AC/DC1 NOPlasticWhite€78.37
