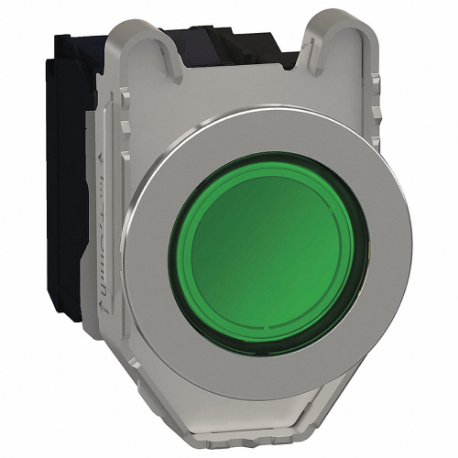

SCHNEIDER ELECTRIC XB4FW33G5 Push Button, Push Button, Momentary, Green, 110 To 120V AC/Dc, Led, 1No/1Nc
Item: CU2CZCModel: XB4FW33G5Cross Ref: 55WG85
7 In Stock
Ships within 2 days via
13.00% off
€129.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Amps Consumption | 14 mA |
| Basic Material | Metal |
| Bezel Material | Chrome |
| Color | Green |
| Contact Rating | 0.1A @ 600V 0.27A @ 250V 0.55A @ 125V 1.2A @ 600V 3A @ 240V 6A @ 120V |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Display Qty | 1 |
| Features | Spring Return |
| Finish | Chrome Plated |
| Fixing Collar Material | Zamak |
| Head Material | Metal |
| Head/lens Color | Green |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 110-120V AC |
| Lamp Voltage | 110-120V AC/DC |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Max. Lamp Voltage | 120V AC |
| Max. Operating Temp. | 158°F |
| Max. Operator Voltage Rating | 600V AC/DC |
| Mechanical Operating Durability | 1 x 10^7 |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 30.5 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Illuminated |
| Operator Material | Metal |
| Overall Depth | 2.17" |
| Overall Height | 1.85" |
| Overall Width | 1 11/25" |
| Panel Mounting Hole Dia. | 30 mm |
| Product Datasheet | schneider-electric-xb4fw33g5.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Vibration Resistant |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Signalling Type | Steady |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 5.5 |
| Ship width (cm) | 3.66 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Basic Material | Terminal Connection | Head Material | Lamp Module Type | Panel Mounting Hole Dia. | Operator Material | Lamp Bulb Type | Bezel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5AW33G5 | Plastic | Screw Clamp | Plastic | Full Voltage | 22 mm | Plastic | LED | Plastic | €147.32 | |
 |
XB5AW33B5 | Plastic | Screw Clamp | Plastic | Full Voltage | 22 mm | Plastic | LED | Plastic | €143.59 | |
 |
XB5AW34B5 | Plastic | Screw Clamp | Plastic | Full Voltage | 22 mm | Plastic | LED | Plastic | €143.95 | |
 |
XB5AW35B5 | Plastic | Screw Clamp | Plastic | Full Voltage | 22 mm | Plastic | LED | Plastic | €146.63 | |
 |
9001KR8P1RH25 | Metal | Pressure Plate | Plastic | Transformer | - | - | - | Die Cast Aluminum | €369.62 | |
 |
XB5AW3565 | Plastic | Screw Clamp | Plastic | Full Voltage | 22 mm | Plastic | No Lamp Module Included | Plastic | €115.04 | |
 |
XB5FW33M5 | Plastic | Screw Clamp | Plastic | Full Voltage | 30 mm | Plastic | LED | Plastic | €137.76 |
