Style	Model	Number Of Teeth	Face Width	Outside Dia.	Pitch Dia.	Module Pitch	Precision Class	Inside Dia.	Pressure Angle	Price
A	SI3-50	50	30 mm	220 mm	150 mm	3	JIS N8 (JIS B1702-1:1998)	144 mm	20°	€664.60
A	SI2.5-50	50	25 mm	185 mm	125 mm	2.5	JIS N8 (JIS B1702-1:1998)	120 mm	20°	€434.35
A	SI2-50	50	20 mm	150 mm	100 mm	2	JIS N8 (JIS B1702-1:1998)	96 mm	20°	€299.32
A	SI1.5-50	50	15 mm	115 mm	75 mm	1.5	JIS N8 (JIS B1702-1:1998)	72 mm	20°	€199.75
A	SI0.5-60	60	5 mm	50 mm	30 mm	0.5	JIS N8 (JIS B1702-1:1998)	29 mm	20°	€102.55
A	SI0.8-60	60	8 mm	75 mm	48 mm	0.8	JIS N8 (JIS B1702-1:1998)	46.4 mm	20°	€147.74
A	SI1-60	60	10 mm	90 mm	60 mm	1	JIS N8 (JIS B1702-1:1998)	58 mm	20°	€156.06
A	SI3-60	60	30 mm	250 mm	180 mm	3	JIS N8 (JIS B1702-1:1998)	174 mm	20°	€661.57
A	SI2.5-60	60	25 mm	210 mm	150 mm	2.5	JIS N8 (JIS B1702-1:1998)	145 mm	20°	€546.68
A	SI1.5-60	60	15 mm	130 mm	90 mm	1.5	JIS N8 (JIS B1702-1:1998)	87 mm	20°	€235.53
A	SI2-60	60	20 mm	170 mm	120 mm	-	JIS N8 (JIS B1702-1:1998)	116 mm	20°	€360.62
A	SI2.5-80	80	25 mm	260 mm	200 mm	2.5	JIS N8 (JIS B1702-1:1998)	195 mm	20°	€696.34
A	SI2-80	80	20 mm	210 mm	-	2	JIS N8 (JIS B1702-1:1998)	156 mm	20°	€470.14
A	SI0.8-80	80	8 mm	90 mm	64 mm	0.8	JIS N8 (JIS B1702-1:1998)	62.4 mm	20°	€170.19
A	SI0.5-80	80	5 mm	60 mm	40 mm	0.5	JIS N8 (JIS B1702-1:1998)	39 mm	20°	€117.18
A	SI1.5-80	80	15 mm	160 mm	120 mm	1.5	JIS N8 (JIS B1702-1:1998)	117 mm	20°	€308.97
A	SI1-80	80	10 mm	110 mm	80 mm	1	JIS N8 (JIS B1702-1:1998)	78 mm	20°	€195.40
A	SI0.5-100	100	5 mm	70 mm	50 mm	0.5	JIS N8 (JIS B1702-1:1998)	49 mm	20°	€133.12
A	SI2-100	100	20 mm	250 mm	200 mm	2	JIS N8 (JIS B1702-1:1998)	196 mm	20°	€574.69
A	SI1.5-100	100	15 mm	190 mm	150 mm	1.5	JIS N8 (JIS B1702-1:1998)	147 mm	20°	€378.35
A	SI1-100	100	10 mm	130 mm	100 mm	1	JIS N8 (JIS B1702-1:1998)	98 mm	20°	€249.22
A	SI0.8-100	100	8 mm	105 mm	80 mm	0.8	JIS N8 (JIS B1702-1:1998)	78.4 mm	20°	€192.29

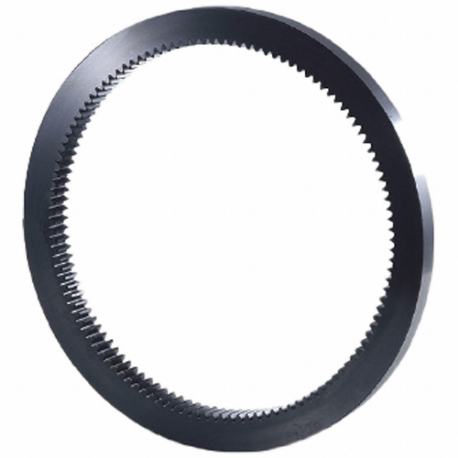

B	SIR2-120	120	20 mm	286 mm	240 mm	-	JIS N9 (JIS B1702-1:1998)	236 mm	20°	€897.34
B	SIR2.5-120	120	25 mm	355 mm	300 mm	2.5	JIS N9 (JIS B1702-1:1998)	295 mm	20°	€1,031.28
B	SIR3-120	120	30 mm	424 mm	360 mm	3	JIS N9 (JIS B1702-1:1998)	354 mm	20°	€1,740.22

Style	Model	Helix Direction	Material	Bore Type	Module Pitch	Finish	Price

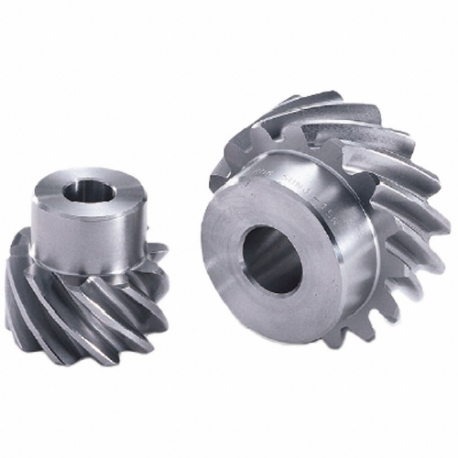

A	SUN2.5-15L	-	Stainless Steel	Plain	-	-	€218.42

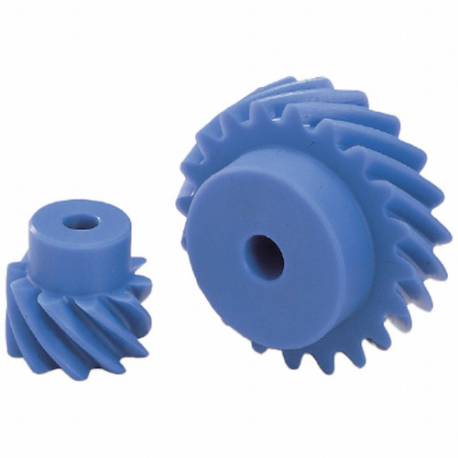

B	PN2-20R	-	-	-	-	-	€109.52

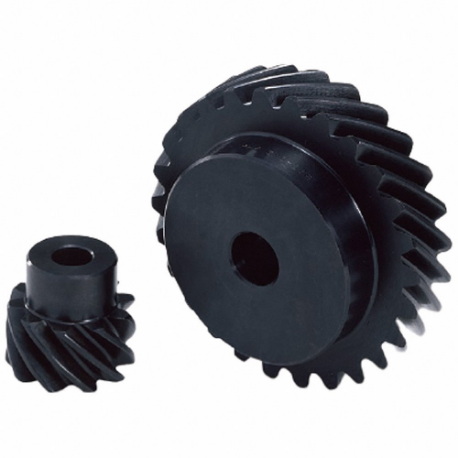

C	SN1.5-20R	-	-	-	-	-	€60.80
A	SUN1.5-10R	-	-	-	-	-	€70.70
C	SN2-15R	-	-	-	-	-	€70.70
B	PN1-20L	-	-	-	-	-	€56.89
C	SN1-13L	-	Carbon Steel	Plain	1	Black Oxide	€31.79
C	SN1-15R	-	-	-	-	-	€33.47
A	SUN2-13R	-	-	-	-	-	€131.30
A	SUN1-13R	-	-	-	-	-	€67.15
C	SN2.5-10R	-	-	-	-	-	€57.43
C	SN2.5-26R	-	-	-	-	-	€182.39
C	SN4-15R	-	-	-	-	-	€204.11
A	SUN2.5-13R	-	-	-	-	-	€188.24
A	SUN3-13R	-	-	-	-	-	€261.36
B	PN3-20R	-	-	-	-	-	€193.22
C	SN3-10R	-	-	-	-	-	€76.54
B	PN1.5-15L	-	-	-	-	-	€60.92
C	SN3-26R	-	-	-	-	-	€257.31
B	PN2.5-20L	-	-	-	-	-	€141.41
C	SN2-30L	Left Hand	-	-	-	-	€158.31
C	SN2.5-20L	Left Hand	-	-	-	-	€130.49
C	SN1-15L	Left Hand	-	-	-	-	€33.47
C	SN1-26L	Left Hand	-	-	-	-	€48.48
C	SN2.5-10L	Left Hand	-	-	-	-	€57.43

Style	Model	MPN	Price

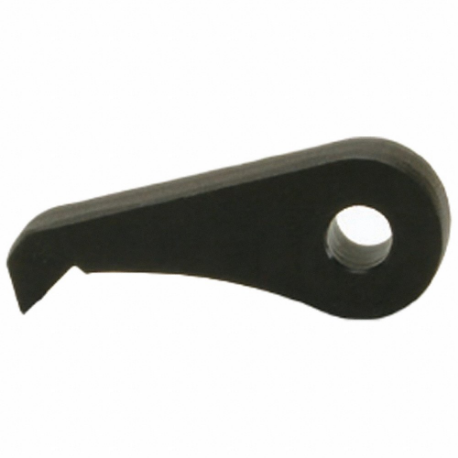

A	SRT1-C	SRT1-C	€67.39
A	SRT2-C	SRT2-C	€81.65
A	SRT2/3-C	SRT2/3-C	€47.92
A	SRT3-C	SRT3-C	€95.27
A	SRT4-C	SRT4-C	€130.68

Style	Model	Module Pitch	Number Of Teeth	Bore Dia.	Hub Design	Bore Type	Outside Dia.	Pitch Dia.	Face Width	Price

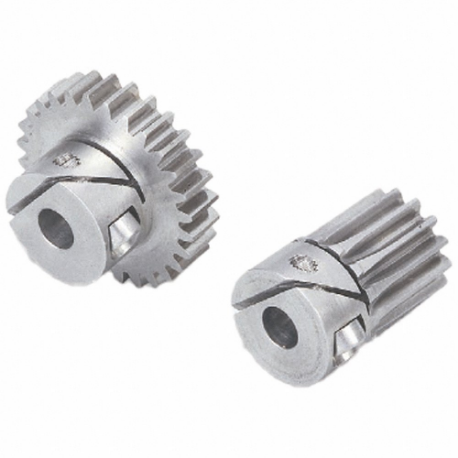

A	SUSF1-90	-	90	10 mm	Hub With Clamping Lock	Finished	92 mm	90 mm	6 mm	-	RFQ
B	SS1.5-90	-	90	15 mm	Hub With Set Screw	Plain	138 mm	135 mm	15 mm	€218.42

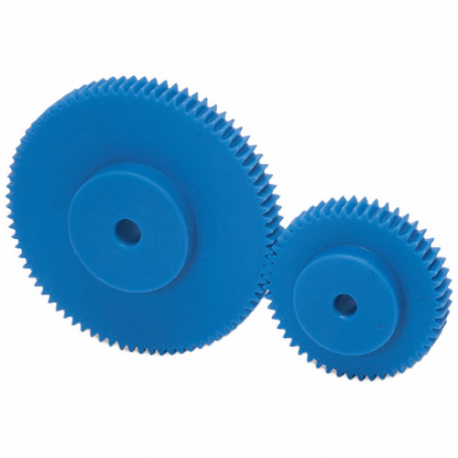

C	PS2-30	-	30	10 mm	Hub Without Set Screw	Plain	64 mm	60 mm	20 mm	€89.73
B	SS0.5-20A	0.5	20	3 mm	Hub With Set Screw	Plain	11 mm	10 mm	-	€32.80

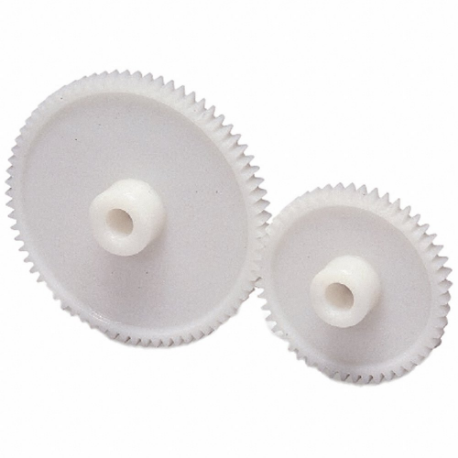

D	DS0.5-20	0.5	20	4 mm	Hub Without Set Screw	Plain	11 mm	10 mm	3 mm	€9.40
B	SS0.5-28A	0.5	28	4 mm	Hub With Set Screw	Plain	15 mm	14 mm	5 mm	€39.14
A	SUSF0.5-30	0.5	30	5 mm	Hub With Clamping Lock	Finished	16 mm	15 mm	5 mm	€151.34
D	DS0.5-40	0.5	40	5 mm	Hub Without Set Screw	Plain	21 mm	20 mm	3 mm	€9.41

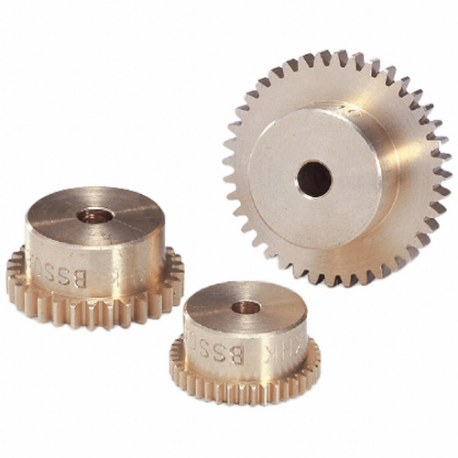

E	BSS0.5-50A	0.5	50	4 mm	Hub With Set Screw	Finished	26 mm	25 mm	3 mm	€49.53
F	DSF0.5-64	0.5	64	5 mm	Hub With Clamping Lock	Finished	33 mm	32 mm	5 mm	-	RFQ
D	DS0.5-60	0.5	60	6 mm	Hub Without Set Screw	Plain	31 mm	30 mm	3 mm	€10.24
F	DSF0.5-48	0.5	48	5 mm	Hub With Clamping Lock	Finished	25 mm	24 mm	5 mm	€150.41
E	BSS0.5-20A	0.5	20	3 mm	Hub With Set Screw	Finished	11 mm	10 mm	3 mm	€28.27
B	SS0.5-24B	0.5	24	5 mm	Hub With Set Screw	Plain	13 mm	12 mm	5 mm	€35.34
B	SS0.5-30B	0.5	30	5 mm	-	Plain	16 mm	15 mm	5 mm	€39.83
E	BSS0.5-38A	0.5	38	4 mm	Hub With Set Screw	Finished	20 mm	19 mm	-	€39.57
A	SUSF0.5-45	0.5	45	6 mm	Hub With Clamping Lock	-	23.5 mm	22.5 mm	5 mm	€159.18
D	DS0.5-16	0.5	16	3 mm	Hub Without Set Screw	Plain	9 mm	8 mm	-	€8.95
E	BSS0.5-16A	0.5	16	3 mm	Hub With Set Screw	Finished	9 mm	-	3 mm	€24.52
D	DS0.5-70	0.5	70	6 mm	Hub Without Set Screw	Plain	36 mm	35 mm	3 mm	€10.63
D	DS0.5-12	0.5	12	2 mm	Hub Without Set Screw	Plain	7 mm	6 mm	3 mm	€8.19
B	SS0.5-25B	0.5	25	5 mm	Hub With Set Screw	Plain	13.5 mm	12.5 mm	5 mm	€35.34
D	DS0.5-24	0.5	24	4 mm	Hub Without Set Screw	Plain	13 mm	12 mm	3 mm	€9.40
D	DS0.5-50	0.5	50	5 mm	Hub Without Set Screw	Plain	26 mm	25 mm	3 mm	€9.77
F	DSF0.5-90	0.5	90	8 mm	Hub With Clamping Lock	Finished	46 mm	45 mm	5 mm	-	RFQ

Style	Model	MPN	Price

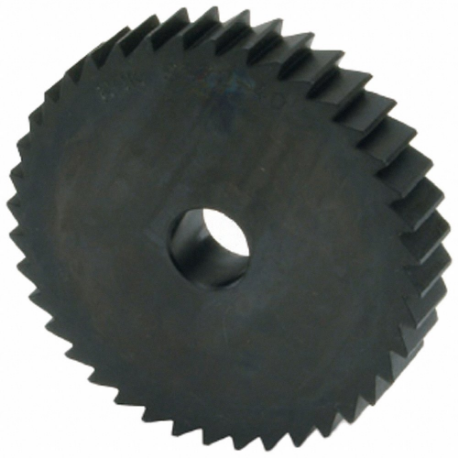

A	SRT1-50	SRT1-50	€61.61
A	SRT1-60	SRT1-60	€73.86
A	SRT1-80	SRT1-80	€102.00
A	SRT1-90	SRT1-90	€110.82
A	SRT1-100	SRT1-100	€132.23
A	SRT2-30	SRT2-30	€84.81
A	SRT2-40	SRT2-40	€114.63
A	SRT2-50	SRT2-50	€150.22
A	SRT2-60	SRT2-60	€183.88
A	SRT2/3-50	SRT2/3-50	€52.27
A	SRT2/3-60	SRT2/3-60	€60.68
A	SRT2/3-80	SRT2/3-80	€80.59
A	SRT2/3-90	SRT2/3-90	€95.53
A	SRT2/3-100	SRT2/3-100	€97.13
A	SRT3-30	SRT3-30	€149.79
A	SRT3-40	SRT3-40	€215.62
A	SRT3-50	SRT3-50	€308.97
A	SRT4-30	SRT4-30	€267.59
A	SRT4-40	SRT4-40	€401.38
A	SRT4-50	SRT4-50	€502.57

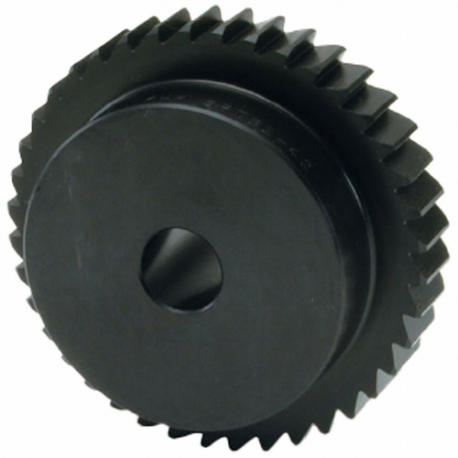

B	SRTB1-50	SRTB1-50	€70.70
B	SRTB1-60	SRTB1-60	€87.12
B	SRTB1-80	SRTB1-80	€120.98
B	SRTB1-90	SRTB1-90	€135.34
B	SRTB1-100	SRTB1-100	€159.43

Style	Model	Module Pitch	Number Of Teeth	Pitch Dia.	Hub Dia.	Bore Dia.	Face Width	Outside Dia.	Hub Projection	Price

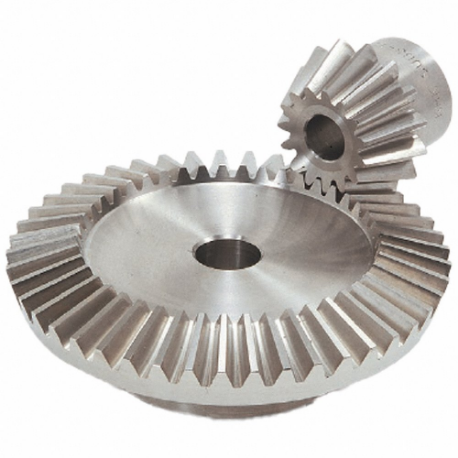

A	SUB2.5-3020	-	30	75 mm	45 mm	15 mm	15 mm	77.07 mm	18 mm	€312.70

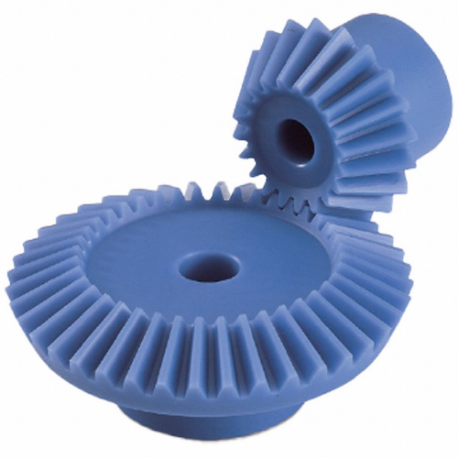

B	PB1-2040	1	20	20 mm	16 mm	-	6 mm	22.41 mm	7 mm	€46.17

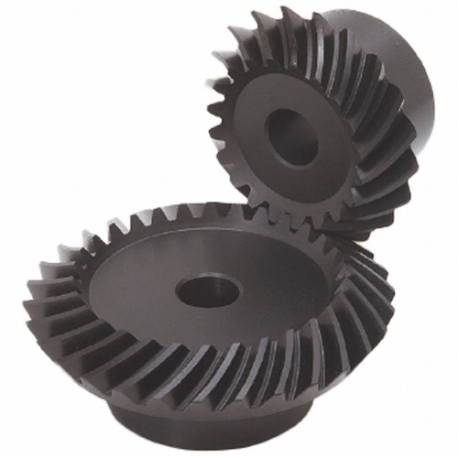

C	SBS1-2040L	1	20	20 mm	16 mm	6 mm	6 mm	22.08 mm	7 mm	€64.59
B	PB1-4020	1	40	40 mm	25 mm	8 mm	6 mm	-	8 mm	€78.41

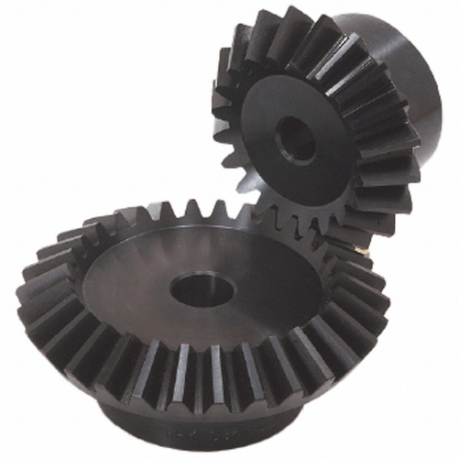

D	SB1-4020	1	40	40 mm	25 mm	8 mm	6 mm	40.59 mm	8 mm	€73.56
D	SB1-2040	1	20	20 mm	16 mm	6 mm	6 mm	22.41 mm	7 mm	€43.82
D	SB1-1845	1	18	18 mm	15 mm	6 mm	7 mm	20.57 mm	8.9 mm	€45.48
C	SBS1-4020R	1	40	40 mm	25 mm	8 mm	6 mm	40.52 mm	8 mm	€104.54
D	SB1-4518	1	45	45 mm	30 mm	8 mm	7 mm	45.46 mm	10 mm	€83.13
D	SB1-4515	1	45	45 mm	30 mm	8 mm	6 mm	45.37 mm	5 mm	€78.97
D	SB1-1545	1	15	15 mm	12 mm	6 mm	-	17.67 mm	6 mm	€40.19
A	SUB1.5-1545	1.5	15	22.5 mm	18 mm	8 mm	10 mm	-	-	€78.77
D	SB1.5-2030	1.5	20	30 mm	25 mm	8 mm	9 mm	33.13 mm	-	€55.57
C	SBS1.5-6015R	1.5	60	90 mm	60 mm	12 mm	12 mm	90.36 mm	12 mm	€377.10
B	PB1.5-1545	1.5	15	22.5 mm	18 mm	8 mm	10 mm	26.54 mm	12.5 mm	€54.01
D	SB1.5-3020	1.5	30	45 mm	30 mm	10 mm	9 mm	46.24 mm	8 mm	€76.54
B	PB1.5-3020	1.5	30	45 mm	30 mm	10 mm	-	46.24 mm	8 mm	€76.36
A	SUB1.5-3020	1.5	30	45 mm	30 mm	10 mm	9 mm	46.24 mm	8 mm	€141.41
D	SB1.5-1545	1.5	15	22.5 mm	18 mm	8 mm	10 mm	26.54 mm	-	€46.99
A	SUB1.5-2030	1.5	20	30 mm	25 mm	8 mm	9 mm	33.13 mm	8.8 mm	€97.21
D	SB1.5-1530	1.5	15	22.5 mm	16 mm	6 mm	8 mm	26.11 mm	7.9 mm	€44.62
D	SB1.5-1845	1.5	18	27 mm	23 mm	8 mm	11 mm	30.86 mm	10.5 mm	€52.90
B	PB1.5-4515	1.5	45	67.5 mm	40 mm	10 mm	10 mm	68.06 mm	-	€113.32
C	SBS1.5-1560L	1.5	15	22.5 mm	18 mm	8 mm	12 mm	26.09 mm	10.4 mm	€128.50
C	SBS1.5-4020R	1.5	40	60 mm	38 mm	10 mm	10 mm	60.75 mm	15 mm	€131.12

Style	Model	Number Of Teeth	Bore Dia.	Hub Dia.	Pitch Dia.	Bore Type	Face Width	Outside Dia.	Hub Projection	Price

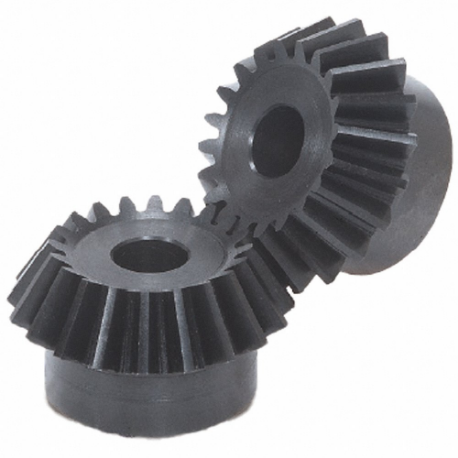

A	SAM2-20120	-	12 mm	34 mm	40 mm	Plain	6.5 mm	42 mm	17.26 mm	€131.24
A	SAM1.5-20045	20	8 mm	25 mm	30 mm	Plain	11 mm	32.77 mm	7.75 mm	€108.47

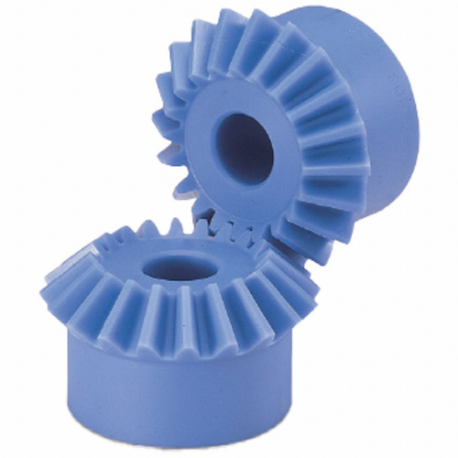

B	PM3-20	20	14 mm	50 mm	60 mm	Plain	15 mm	64.24 mm	-	€214.31

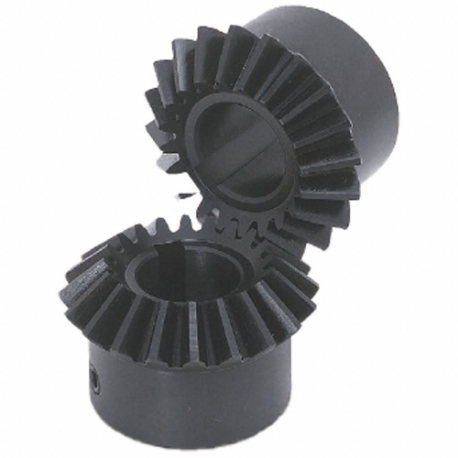

C	SMB2.5-20	20	20 mm	42 mm	50 mm	Finished	12 mm	53.54 mm	19 mm	€201.92
B	PM1-20	20	6 mm	16 mm	20 mm	Plain	5 mm	-	8 mm	€77.74

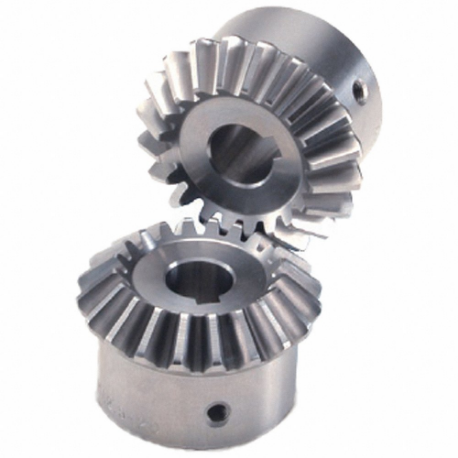

D	SUMA1-20	20	6 mm	16 mm	20 mm	Finished	5 mm	-	8 mm	€141.41
B	PM1.25-20	20	8 mm	22 mm	25 mm	Plain	6 mm	26.77 mm	9 mm	€87.12
B	PM1.5-20	20	8 mm	26 mm	30 mm	Plain	8 mm	32.12 mm	13 mm	€96.55
D	SUMA1.5-20	20	8 mm	26 mm	30 mm	Finished	8 mm	32.12 mm	13 mm	€193.44
A	SAM1.5-20120	20	8 mm	26 mm	30 mm	Plain	5 mm	31.5 mm	13.88 mm	€108.66
D	SUMA2-20	20	12 mm	34 mm	40 mm	Finished	10 mm	42.83 mm	14 mm	€267.30
B	PM2.5-20	20	12 mm	42 mm	50 mm	Plain	12 mm	53.54 mm	19 mm	€169.05
B	PM3.5-20	20	20 mm	60 mm	70 mm	Plain	18 mm	74.95 mm	25 mm	€266.55
C	SMA1.5-20	20	10 mm	26 mm	30 mm	Finished	8 mm	32.12 mm	13 mm	€113.29
B	PM4-20	20	20 mm	64 mm	80 mm	Plain	20 mm	85.66 mm	27 mm	€372.10

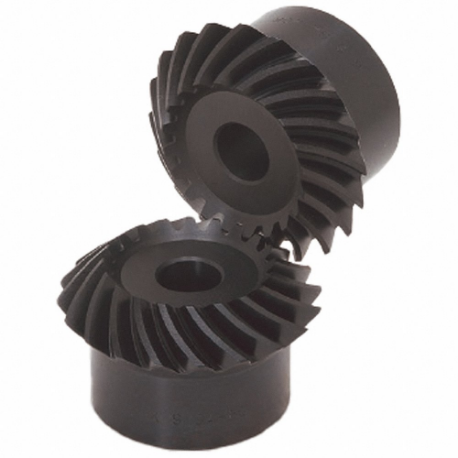

E	SMS1-20L	20	6 mm	16 mm	20 mm	Plain	5 mm	21.3 mm	8 mm	€102.30
E	SMS1.5-20L	20	8 mm	26 mm	30 mm	Plain	8 mm	31.74 mm	13 mm	€118.90
E	SMS2-20L	20	12 mm	34 mm	40 mm	Plain	10 mm	42.4 mm	14 mm	€147.94
E	SMS2.5-20L	20	14 mm	42 mm	50 mm	Plain	12 mm	52.94 mm	19 mm	€249.05
E	SMS2-20R	20	12 mm	34 mm	40 mm	Plain	10 mm	42.4 mm	14 mm	€147.94
E	SMS2.5-20R	20	14 mm	42 mm	50 mm	Plain	-	52.94 mm	19 mm	€249.05
D	SUMA2.5-20	20	14 mm	42 mm	50 mm	Finished	12 mm	53.54 mm	19 mm	€381.48
E	SMS1-20R	20	6 mm	16 mm	20 mm	Plain	5 mm	21.3 mm	8 mm	€102.30
C	SMB1.5-20	20	12 mm	26 mm	30 mm	Finished	8 mm	-	13 mm	€120.68
B	PM2-20	20	10 mm	34 mm	40 mm	Plain	10 mm	42.83 mm	14 mm	€128.31

Style	Model	Module Pitch	Outside Dia.	Pressure Angle	Face Width	Bore Dia.	Pitch Dia.	Hub Dia.	Hub Projection	Price
A	BG0.5-30R1	0.5	16 mm	20°	5 mm	4 mm	15.02 mm	12 mm	7 mm	€49.84
B	AG0.5-20R2	0.5	11 mm	20°	5 mm	4 mm	10 mm	9 mm	7 mm	€58.00
C	DG0.5-40R1	0.5	21 mm	20°	5 mm	5 mm	20.02 mm	15 mm	7 mm	€24.48
B	AG0.5-40R1	0.5	21 mm	20°	5 mm	5 mm	20 mm	15 mm	7 mm	€79.66
A	BG0.5-50R1	0.5	26 mm	20°	5 mm	5 mm	25.03 mm	20 mm	7 mm	€71.62
A	BG0.5-20R1	0.5	11 mm	20°	5 mm	4 mm	10.01 mm	9 mm	7 mm	€39.70
C	DG0.5-20R1	0.5	11 mm	20°	5 mm	4 mm	-	9 mm	7 mm	€20.01
D	SW0.5-R1	0.5	12 mm	-	10 mm	5 mm	11 mm	-	-	€28.27
E	KWG0.5-R1	0.5	10 mm	20°	12 mm	-	9 mm	-	-	€168.14
A	BG0.5-20R2	0.5	11 mm	20°	-	4 mm	10.04 mm	9 mm	7 mm	€39.70
B	AG0.5-20R1	0.5	11 mm	20°	5 mm	4 mm	10 mm	9 mm	7 mm	€58.00
F	SUW0.5-R2	0.5	12 mm	20°	10 mm	5 mm	11 mm	-	-	€59.80
A	BG0.5-60R1	0.5	31 mm	20°	5 mm	5 mm	30.03 mm	25 mm	7 mm	€81.39
C	DG0.5-60R1	0.5	31 mm	20°	5 mm	5 mm	30.03 mm	25 mm	7 mm	€31.37
A	BG0.5-40R1	0.5	21 mm	20°	5 mm	5 mm	20.02 mm	15 mm	7 mm	€62.73
B	AG0.5-60R1	0.5	31 mm	20°	5 mm	5 mm	30 mm	25 mm	7 mm	€101.44
C	DG0.5-20R2	0.5	11 mm	20°	5 mm	4 mm	10.04 mm	9 mm	7 mm	€20.01
B	AG0.5-30R2	0.5	16 mm	20°	5 mm	4 mm	15 mm	12 mm	7 mm	€60.49
B	AG0.5-50R1	0.5	26 mm	20°	5 mm	5 mm	25 mm	20 mm	7 mm	€82.20
C	DG0.5-30R1	0.5	16 mm	20°	5 mm	4 mm	-	12 mm	7 mm	€21.49
A	BG0.5-30R2	0.5	16 mm	20°	5 mm	4 mm	15.06 mm	12 mm	7 mm	€49.84
C	DG0.5-30R2	0.5	16 mm	20°	5 mm	-	15.06 mm	12 mm	7 mm	€21.49
B	AG0.5-30R1	0.5	16 mm	20°	5 mm	4 mm	15 mm	12 mm	7 mm	€60.49
C	DG0.5-50R1	0.5	26 mm	20°	5 mm	5 mm	25.03 mm	20 mm	7 mm	€27.75
D	SW0.5-R2	0.5	12 mm	20°	10 mm	5 mm	11 mm	-	-	€28.27

Style	Model	Number Of Teeth	Bore Dia.	Outside Dia.	Module Pitch	Pitch Dia.	Hub Dia.	Hub Projection	Face Width	Price

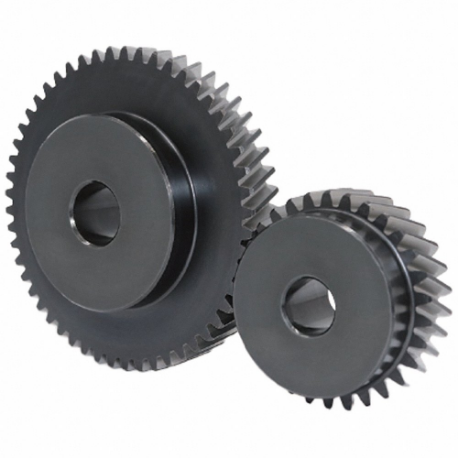

A	KHG2-15L	15	12 mm	34 mm	2	30 mm	24 mm	13 mm	16 mm	€162.98
A	KHG2-15R	15	12 mm	34 mm	2	30 mm	24 mm	13 mm	-	€162.98
A	KHG2-18R	18	12 mm	40 mm	2	36 mm	30 mm	13 mm	16 mm	€179.66
A	KHG2-18L	18	12 mm	40 mm	2	36 mm	30 mm	13 mm	16 mm	€179.66
A	KHG1-20R	20	6 mm	22 mm	1	20 mm	17 mm	10 mm	8 mm	€175.92
A	KHG1.5-20L	20	12 mm	33 mm	1.5	30 mm	24 mm	12 mm	12 mm	€177.67
A	KHG1.5-20R	20	12 mm	33 mm	1.5	30 mm	24 mm	12 mm	12 mm	€177.67
A	KHG1-20L	20	6 mm	22 mm	1	20 mm	17 mm	10 mm	8 mm	€175.92
A	KHG2-20L	20	15 mm	44 mm	2	40 mm	32 mm	13 mm	16 mm	€192.59
A	KHG2-20R	20	15 mm	44 mm	2	40 mm	32 mm	13 mm	-	€192.59
A	KHG2-22L	22	15 mm	48 mm	2	44 mm	36 mm	13 mm	16 mm	€204.11
A	KHG1-22L	22	8 mm	24 mm	1	22 mm	-	10 mm	8 mm	€178.34
A	KHG1.5-22L	22	12 mm	36 mm	1.5	33 mm	26 mm	12 mm	12 mm	€185.81
A	KHG1.5-22R	22	12 mm	36 mm	1.5	33 mm	26 mm	12 mm	12 mm	€185.81
A	KHG2-22R	22	15 mm	48 mm	2	44 mm	36 mm	13 mm	16 mm	€204.11
A	KHG1-22R	22	8 mm	24 mm	1	22 mm	18 mm	10 mm	8 mm	€178.34
A	KHG1-24R	24	8 mm	26 mm	1	24 mm	20 mm	10 mm	8 mm	€182.07
A	KHG1.5-24R	24	12 mm	39 mm	1.5	36 mm	28 mm	12 mm	12 mm	€199.45
A	KHG1.5-24L	24	12 mm	39 mm	1.5	36 mm	28 mm	12 mm	-	€199.45
A	KHG2-24R	24	15 mm	52 mm	2	48 mm	-	13 mm	16 mm	€217.49
A	KHG2-24L	24	15 mm	52 mm	2	48 mm	38 mm	13 mm	16 mm	€217.49
A	KHG1-24L	24	8 mm	26 mm	1	24 mm	20 mm	10 mm	8 mm	€182.07
A	KHG2-25R	25	15 mm	54 mm	2	50 mm	40 mm	13 mm	-	€226.21
A	KHG1.5-25L	25	12 mm	40.5 mm	1.5	37.5 mm	30 mm	12 mm	12 mm	€206.60
A	KHG1.5-25R	25	12 mm	40.5 mm	1.5	37.5 mm	30 mm	12 mm	12 mm	€206.60

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

KHK GEARS Gears

Popular Search Queries

Explore More
