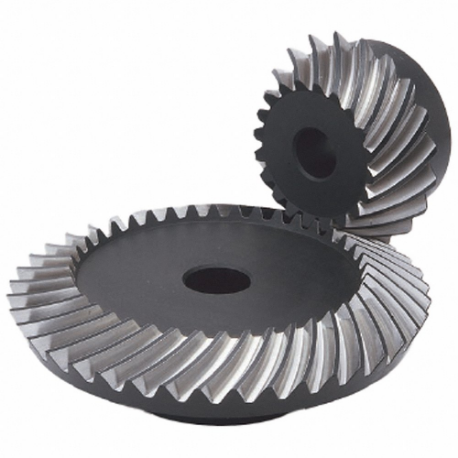

KHK GEARS Bevel Gears

Filter

Style	Model	Module Pitch	Number Of Teeth	Pitch Dia.	Hub Dia.	Bore Dia.	Face Width	Outside Dia.	Hub Projection	Price
A	SUB2.5-3020	-	30	75 mm	45 mm	15 mm	15 mm	77.07 mm	18 mm	€312.70
B	SBS1-4020R	1	40	40 mm	25 mm	8 mm	6 mm	40.52 mm	8 mm	€104.54
C	SB1-4518	1	45	45 mm	30 mm	8 mm	7 mm	45.46 mm	10 mm	€83.13
D	PB1-2040	1	20	20 mm	16 mm	-	6 mm	22.41 mm	7 mm	€46.17
D	PB1-4020	1	40	40 mm	25 mm	8 mm	6 mm	-	8 mm	€78.41
C	SB1-4020	1	40	40 mm	25 mm	8 mm	6 mm	40.59 mm	8 mm	€73.56
C	SB1-2040	1	20	20 mm	16 mm	6 mm	6 mm	22.41 mm	7 mm	€43.82
C	SB1-1845	1	18	18 mm	15 mm	6 mm	7 mm	20.57 mm	8.9 mm	€45.48
C	SB1-4515	1	45	45 mm	30 mm	8 mm	6 mm	45.37 mm	5 mm	€78.97
C	SB1-1545	1	15	15 mm	12 mm	6 mm	-	17.67 mm	6 mm	€40.19
B	SBS1-2040L	1	20	20 mm	16 mm	6 mm	6 mm	22.08 mm	7 mm	€64.59
B	SBS1.5-2040L	1.5	20	30 mm	25 mm	8 mm	10 mm	33.08 mm	14.8 mm	€87.18
C	SB1.5-4515	1.5	45	67.5 mm	36 mm	10 mm	10 mm	68.06 mm	11 mm	€117.74
D	PB1.5-1545	1.5	15	22.5 mm	18 mm	8 mm	10 mm	26.54 mm	12.5 mm	€54.01
C	SB1.5-1545	1.5	15	22.5 mm	18 mm	8 mm	10 mm	26.54 mm	-	€46.99
C	SB1.5-2030	1.5	20	30 mm	25 mm	8 mm	9 mm	33.13 mm	-	€55.57
C	SB1.5-3020	1.5	30	45 mm	30 mm	10 mm	9 mm	46.24 mm	8 mm	€76.54
C	SB1.5-4518	1.5	45	67.5 mm	36 mm	10 mm	11 mm	68.18 mm	10 mm	€118.67
C	SB1.5-1845	1.5	18	27 mm	23 mm	8 mm	11 mm	30.86 mm	10.5 mm	€52.90
A	SUB1.5-4020	1.5	-	60 mm	-	10 mm	10 mm	-	15 mm	€217.80
B	SBS1.5-4020R	1.5	40	60 mm	38 mm	10 mm	10 mm	60.75 mm	15 mm	€131.12
C	SB1.5-1530	1.5	15	22.5 mm	16 mm	6 mm	8 mm	26.11 mm	7.9 mm	€44.62
B	SBS1.5-1560L	1.5	15	22.5 mm	18 mm	8 mm	12 mm	26.09 mm	10.4 mm	€128.50
B	SBS1.5-6015R	1.5	60	90 mm	60 mm	12 mm	12 mm	90.36 mm	12 mm	€377.10
A	SUB1.5-3020	1.5	30	45 mm	30 mm	10 mm	9 mm	46.24 mm	8 mm	€141.41
A	SUB1.5-1545	1.5	15	22.5 mm	18 mm	8 mm	10 mm	-	-	€78.77
D	PB1.5-3020	1.5	30	45 mm	30 mm	10 mm	-	46.24 mm	8 mm	€76.36
D	PB1.5-4515	1.5	45	67.5 mm	40 mm	10 mm	10 mm	68.06 mm	-	€113.32
A	SUB1.5-2030	1.5	20	30 mm	25 mm	8 mm	9 mm	33.13 mm	8.8 mm	€97.21
D	PB1.5-4020	1.5	40	60 mm	38 mm	10 mm	10 mm	-	15 mm	€110.77
C	SB1.5-3015	1.5	30	45 mm	25 mm	8 mm	8 mm	45.88 mm	9 mm	€76.10
A	SUB1.5-2040	1.5	20	30 mm	25 mm	8 mm	10 mm	-	-	€109.34
D	PB1.5-2040	1.5	20	30 mm	25 mm	8 mm	10 mm	-	14.8 mm	€60.18
C	SB1.5-2040	1.5	20	30 mm	25 mm	8 mm	10 mm	33.61 mm	-	€57.43
C	SB1.5-6012	1.5	60	90 mm	50 mm	12 mm	12 mm	90.33 mm	12 mm	€174.37
C	SB1.5-1260	1.5	12	18 mm	15 mm	12.2 mm	12 mm	22.24 mm	4.7 mm	€96.02
D	PB1.5-2030	1.5	20	30 mm	25 mm	8 mm	9 mm	-	8.8 mm	€54.08
A	SUB1.5-4515	1.5	45	67.5 mm	36 mm	10 mm	10 mm	68.06 mm	11 mm	€233.98
C	SB1.5-6015	1.5	60	90 mm	50 mm	12 mm	12 mm	90.41 mm	12 mm	€174.37
C	SB1.5-4020	1.5	40	60 mm	-	10 mm	10 mm	60.88 mm	15 mm	€108.46
C	SB1.5-1560	1.5	15	22.5 mm	18 mm	8 mm	-	26.66 mm	10.4 mm	€50.03
C	SB1.25-1845	1.25	18	22.5 mm	19 mm	8 mm	9 mm	25.72 mm	11.2 mm	€48.28
C	SB1.25-2040	1.25	20	25 mm	22 mm	8 mm	8 mm	28.01 mm	10.3 mm	€50.09
D	PB1.25-2040	1.25	20	25 mm	22 mm	8 mm	8 mm	-	-	€52.64
D	PB1.25-4020	1.25	40	50 mm	32 mm	10 mm	8 mm	50.73 mm	10 mm	€94.02
C	SB1.25-4518	1.25	45	56.25 mm	-	10 mm	-	56.82 mm	10 mm	€98.14
C	SB1.25-1545	1.25	15	18.75 mm	15 mm	8 mm	8 mm	22.09 mm	7.3 mm	€43.37
C	SB1.25-4020	1.25	40	50 mm	32 mm	10 mm	8 mm	50.73 mm	10 mm	€88.61
C	SB1.25-4515	1.25	45	56.25 mm	34 mm	-	8 mm	56.72 mm	6 mm	€93.59
A	SUB2-1545	2	15	30 mm	24 mm	10 mm	-	35.35 mm	14 mm	€111.34
C	SB2-3020	2	30	60 mm	35 mm	-	11 mm	61.65 mm	15 mm	€99.75
C	SB2-6012	2	60	120 mm	60 mm	15 mm	16 mm	120.43 mm	16 mm	€270.07
C	SB2-1260	2	12	24 mm	20 mm	15.2 mm	16 mm	29.65 mm	5.6 mm	€119.92
A	SUB2-4515	2	45	90 mm	60 mm	12 mm	15 mm	90.75 mm	-	€370.26
C	SB2-4515	2	45	90 mm	40 mm	12 mm	15 mm	-	17 mm	€164.65
C	SB2-6015	2	60	120 mm	60 mm	15 mm	16 mm	120.55 mm	16 mm	€267.59
C	SB2-2030	2	20	40 mm	30 mm	10 mm	11 mm	44.18 mm	11.7 mm	€72.44
D	PB2-2030	2	20	40 mm	35 mm	10 mm	11 mm	44.18 mm	13.3 mm	€73.25
A	SUB2-2030	2	20	40 mm	35 mm	10 mm	11 mm	44.18 mm	13.3 mm	€141.41
D	PB2-3020	2	30	60 mm	35 mm	10 mm	-	61.65 mm	15 mm	€108.59
D	PB2-1545	2	15	30 mm	24 mm	10 mm	15 mm	35.35 mm	14 mm	€65.78
