KHK GEARS Miter Gears

Filter

Style	Model	Number Of Teeth	Bore Dia.	Hub Dia.	Pitch Dia.	Bore Type	Face Width	Outside Dia.	Hub Projection	Price
A	SAM2-20120	-	12 mm	34 mm	40 mm	Plain	6.5 mm	42 mm	17.26 mm	€131.24
A	SAM2-20060	20	12 mm	32 mm	40 mm	Plain	12 mm	-	-	€130.87
A	SAM1.5-20120	20	8 mm	26 mm	30 mm	Plain	5 mm	31.5 mm	13.88 mm	€108.66
B	PM2-20	20	10 mm	34 mm	40 mm	Plain	10 mm	42.83 mm	14 mm	€128.31
C	SUMA2-20	20	12 mm	34 mm	40 mm	Finished	10 mm	42.83 mm	14 mm	€267.30
B	PM2.5-20	20	12 mm	42 mm	50 mm	Plain	12 mm	53.54 mm	19 mm	€169.05
D	SMA1.5-20	20	10 mm	26 mm	30 mm	Finished	8 mm	32.12 mm	13 mm	€113.29
A	SAM2.5-20120	20	14 mm	-	50 mm	Plain	8.5 mm	52.5 mm	20.64 mm	€194.23
B	PM3-20	20	14 mm	50 mm	60 mm	Plain	15 mm	64.24 mm	-	€214.31
A	SAM1.5-20060	20	8 mm	25 mm	30 mm	Plain	9 mm	32.59 mm	12.58 mm	€108.86
B	PM3.5-20	20	20 mm	60 mm	70 mm	Plain	18 mm	74.95 mm	25 mm	€266.55
C	SUMA1.5-20	20	8 mm	26 mm	30 mm	Finished	8 mm	32.12 mm	13 mm	€193.44
B	PM4-20	20	20 mm	64 mm	80 mm	Plain	20 mm	85.66 mm	27 mm	€372.10
E	SMS1-20L	20	6 mm	16 mm	20 mm	Plain	5 mm	21.3 mm	8 mm	€102.30
A	SAM1.5-20045	20	8 mm	25 mm	30 mm	Plain	11 mm	32.77 mm	7.75 mm	€108.47
E	SMS1.5-20L	20	8 mm	26 mm	30 mm	Plain	8 mm	31.74 mm	13 mm	€118.90
E	SMS2.5-20R	20	14 mm	42 mm	50 mm	Plain	-	52.94 mm	19 mm	€249.05
E	SMS2-20L	20	12 mm	34 mm	40 mm	Plain	10 mm	42.4 mm	14 mm	€147.94
E	SMS2-20R	20	12 mm	34 mm	40 mm	Plain	10 mm	42.4 mm	14 mm	€147.94
E	SMS2.5-20L	20	14 mm	42 mm	50 mm	Plain	12 mm	52.94 mm	19 mm	€249.05
E	SMS1.5-20R	20	8 mm	26 mm	30 mm	Plain	8 mm	31.74 mm	13 mm	€118.90
A	SAM3-20045	20	14 mm	50 mm	60 mm	Plain	22 mm	65.54 mm	15.51 mm	€251.36
B	PM1.5-20	20	8 mm	26 mm	30 mm	Plain	8 mm	32.12 mm	13 mm	€96.55
D	SMB1-20	20	10 mm	16 mm	20 mm	Finished	5 mm	21.41 mm	8 mm	€101.54
D	SMB2-20	20	15 mm	34 mm	40 mm	-	10 mm	42.83 mm	14 mm	€149.59
B	PM1.25-20	20	8 mm	22 mm	25 mm	Plain	6 mm	26.77 mm	9 mm	€87.12
D	SMB2.5-20	20	20 mm	42 mm	50 mm	Finished	12 mm	53.54 mm	19 mm	€201.92
A	SAM3-20120	20	16 mm	50 mm	60 mm	Plain	10 mm	63 mm	24 mm	€250.61
D	SMA2-20	20	14 mm	34 mm	40 mm	Finished	10 mm	42.83 mm	14 mm	€149.96
C	SUMA1-20	20	6 mm	16 mm	20 mm	Finished	5 mm	-	8 mm	€141.41
C	SUMA2.5-20	20	14 mm	42 mm	50 mm	Finished	12 mm	53.54 mm	19 mm	€381.48
A	SAM2.5-20060	20	14 mm	40 mm	50 mm	Plain	15 mm	54.33 mm	13.82 mm	€192.66
B	PM1-20	20	6 mm	16 mm	20 mm	Plain	5 mm	-	8 mm	€77.74
A	SAM2.5-20045	20	12 mm	40 mm	50 mm	Plain	18 mm	54.62 mm	12.58 mm	€194.23
A	SAM2-20045	20	10 mm	30 mm	40 mm	Plain	15 mm	43.69 mm	9.65 mm	€130.87
D	SMB1.5-20	20	12 mm	26 mm	30 mm	Finished	8 mm	-	13 mm	€120.68
A	SAM3-20060	20	16 mm	50 mm	60 mm	Plain	18 mm	65.19 mm	15.16 mm	€248.25
D	SMA1-20	20	8 mm	16 mm	20 mm	Finished	5 mm	21.41 mm	8 mm	€101.64

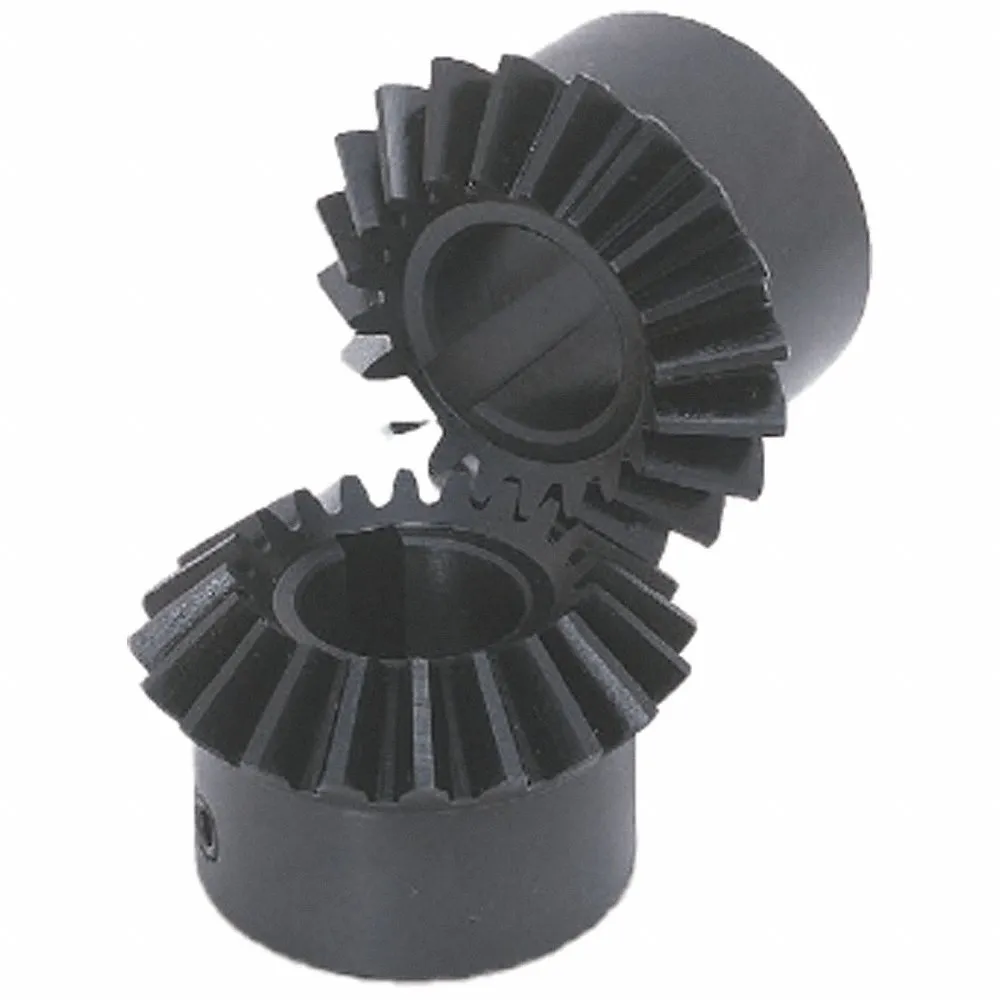

F	SMA2.5-20	20	18 mm	42 mm	50 mm	Finished	12 mm	53.54 mm	19 mm	€202.29
E	SMS1-20R	20	6 mm	16 mm	20 mm	Plain	5 mm	21.3 mm	8 mm	€102.30
D	SMA2-25	25	18 mm	40 mm	-	Finished	12 mm	52.83 mm	10 mm	€180.93
C	SUMA2-25	25	12 mm	45 mm	50 mm	Finished	12 mm	52.83 mm	-	€341.22
C	SUMA1-25	25	6 mm	20 mm	25 mm	Finished	6 mm	26.41 mm	8 mm	€168.01
C	SUMA1.5-25	25	10 mm	30 mm	37.5 mm	Finished	9 mm	39.62 mm	11.5 mm	€235.62
E	SMS2.5-25R	25	16 mm	50 mm	62.5 mm	Plain	15 mm	-	12.5 mm	€299.97
D	SMB2.5-25	25	18 mm	50 mm	62.5 mm	Finished	15 mm	66.04 mm	-	€245.56
B	PM1.25-25	25	8 mm	25 mm	31.25 mm	Plain	7 mm	33.02 mm	-	€100.69
E	SMS2-25R	25	12 mm	40 mm	50 mm	Plain	12 mm	52.38 mm	10 mm	€180.47
E	SMS1.5-25R	25	10 mm	30 mm	37.5 mm	Plain	9 mm	39.31 mm	-	€148.26
E	SMS1.5-25L	25	-	30 mm	37.5 mm	Plain	9 mm	39.31 mm	11.5 mm	€148.26
C	SUMA2.5-25	25	16 mm	55 mm	62.5 mm	Finished	15 mm	66.04 mm	15 mm	€450.45
D	SMA2.5-25	25	20 mm	50 mm	62.5 mm	Finished	15 mm	66.04 mm	-	€245.19
B	PM2.5-25	25	14 mm	50 mm	62.5 mm	Plain	15 mm	66.04 mm	12.5 mm	€212.56
E	SMS1-25R	25	6 mm	20 mm	25 mm	Plain	6 mm	26.22 mm	8 mm	€115.03
B	PM3-25	25	15 mm	60 mm	75 mm	Plain	20 mm	79.24 mm	15 mm	€272.15
D	SMB2-25	25	15 mm	40 mm	50 mm	-	12 mm	52.83 mm	10 mm	€172.65
E	SMS1-25L	25	6 mm	20 mm	25 mm	Plain	6 mm	26.22 mm	8 mm	€115.03
B	PM1.5-25	25	8 mm	30 mm	37.5 mm	Plain	9 mm	-	11.5 mm	€117.91
B	PM2-25	25	10 mm	40 mm	50 mm	Plain	12 mm	52.83 mm	10 mm	€159.29
B	PM1-25	25	6 mm	20 mm	25 mm	Plain	6 mm	26.41 mm	8 mm	€90.23
E	SMS2-25L	25	12 mm	40 mm	50 mm	Plain	12 mm	52.38 mm	10 mm	€180.47
