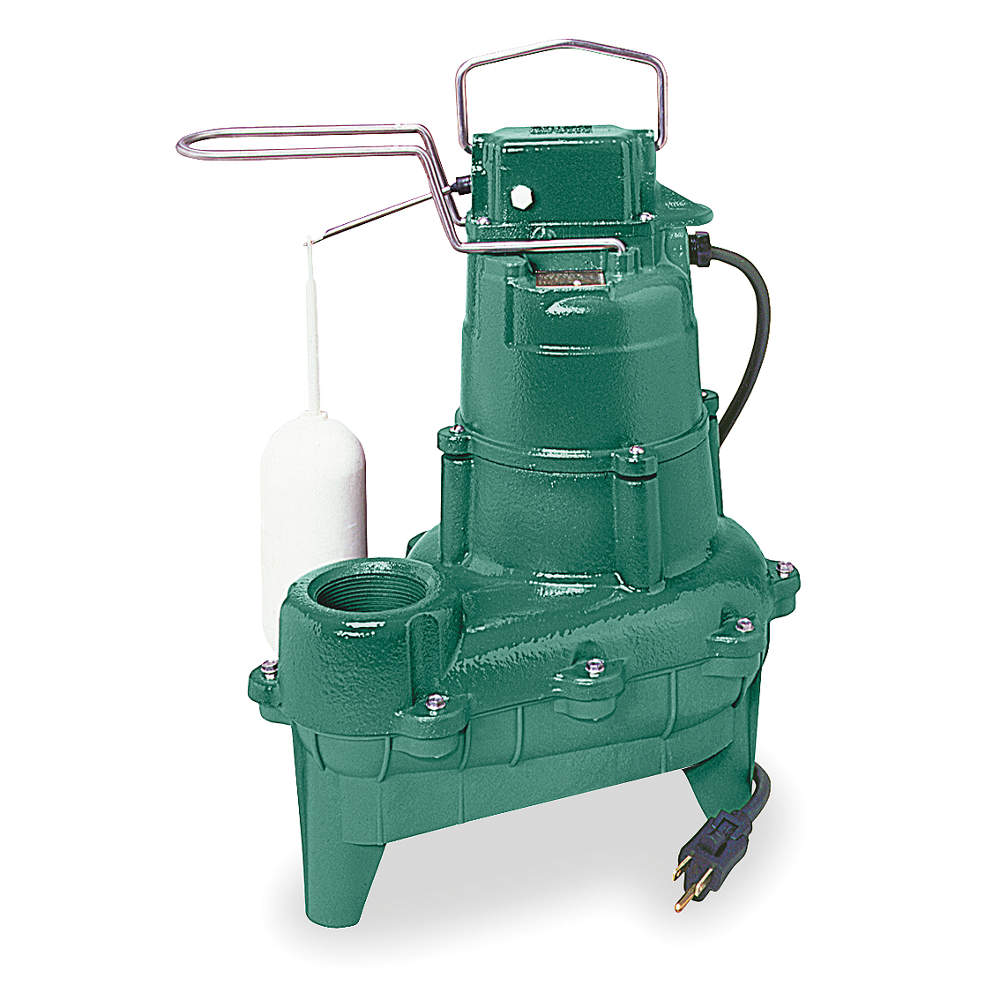

ZOELLER M264 Submersible Sewage Pump 4/10hp 115v 21 Feet
Get it by Thursday, Dec 25
10.00% off
€766.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Submersible Sewage Pump |
| Amps | 9.4A |
| Base Material | Polypropylene |
| Bearing Type | Sleeve |
| Body Dia. | 11 23/64" |
| Body Material | Cast Iron |
| Cord Length | 9 ft. |
| Cord Length - Pumps | 10 ft. |
| Dia. | 11 1/3" |
| Diameter | 11 1/3" |
| Discharge Dia. | 2" |
| Discharge Gender | Female |
| Discharge Npt | 2" |
| Discharge Size | 2"-NPT |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 60 GPM |
| Flow Rate @ 10 Ft. Of Head | 60 GPM |
| Flow Rate @ 15 Ft. Of Head | 23 GPM |
| Flow Rate @ 5 Ft. | 90 GPM |
| Height | 14 3/4" |
| Housing Material | Cast Iron |
| Hp | 4/10 hp |
| Impeller Material | Thermoplastic |
| Impeller Material - Pumps | Polypropylene |
| Input Phase Ac | 1 |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Dia. Solids | 2" |
| Max. Flow Rate @ 15 Ft. | 22 GPM |
| Max. Head | 18 ft. |
| Max. Head - Pumps | 18 ft. |
| Max. Liquid Temp. | 130°F |
| Max. Media Temp. | 130°F |
| Max. Solid Dia. | 2" |
| Min. Sump Pit Dia. | 18" |
| Motor Type | Hermetically Sealed, Oil Filled, Permanent Split Capacitor |
| Off Point | 4 1/2" |
| On Point | 12 1/2" |
| Outlet | 2" Fnpt |
| Outlet Size | 2" |
| Overall Height | 14 3/4" |
| Phase | 1 |
| Phase - Pumps | 1 |
| Pump Body Material | Cast Iron |
| Pump Type | Automatic |
| Rated Voltage | 115V |
| Rpm | 1725 RPM |
| Seal Material | Carbon Ceramic |
| Series | WASTE-MATE 260 Series |
| Shaft Seal Material | Carbon, Ceramic |
| Shaft Seal Material - Pumps | Ceramic, Carbon |
| Switch Actuation | Vertical Float |
| Switch Electrical Connection | Integral |
| Switch Type | Vertical |
| Switch Type - Pumps | Vertical |
| Thermal Protection | Yes |
| Top Material | Cast Iron |
| Type | Automatic |
| Voltage | 115V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 15.39 |
| Ship height (cm) | 37.47 |
| Ship length (cm) | 34.54 |
| Ship width (cm) | 37.47 |
| HS code | 8413702004 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Body Material | Voltage | Phase | Switch Actuation | Impeller Material | Max. Solid Dia. | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
514620 | 1 hp | Cast Iron | 230V AC | 1 | No Switch Included | Cast Iron | 2" | 35 ft. | €1,635.48 | |
|
514720 | 1 hp | Cast Iron | 230V AC | 3 | No Switch Included | Cast Iron | 2" | 35 ft. | €1,614.11 | |
 |
520301 | 1 1/2 hp | Cast Iron | 230V AC | 1 | No Switch Included | Cast Iron | 2" | 64 ft. | €1,812.27 | |
|
520100 | 2 hp | Cast Iron | 208/230V AC | 1 | No Switch Included | Cast Iron | 2" | 77 ft. | €2,049.45 | |
|
520150 | 2 hp | Cast Iron | 230V AC | 3 | No Switch Included | Cast Iron | 2" | 77 ft. | €1,974.36 | |
 |
2JGA4 | 4/10 hp | Stainless Steel | 115V AC | 1 | Tether Float | Stainless Steel | 2" | 25 ft. | €627.17 | |
 |
2JGA5 | 1/2 hp | Stainless Steel | 115V AC | 1 | Tether Float | Stainless Steel | 2" | 32 ft. | €2,118.15 |
