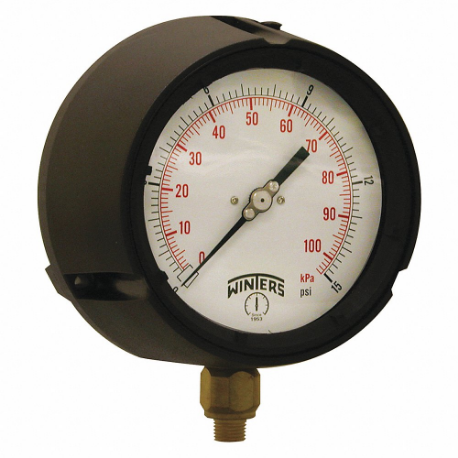

WINTERS INSTRUMENTS PPC5081-G-SG. Process Pressure Gauge, 0 To 15 Psi, White, 4 1/2 Inch DiaL, Liquid-Filled
Item: CV3TBMModel: PPC5081-G-SG.Cross Ref: 491D28
7 In Stock
Ships within 2 days via
5.00% off
€302.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. | -4°F to +150°F |
| Ambient Temp. | -4°F to +150°F |
| Application | Chemical Industries, Oil And Gas Industry, Power Industries, Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5.39" |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Solid Wall |
| Case Depth | 3 2/5" |
| Case Dia. | 5.835" |
| Case Material | Phenolic |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Chemicals, Highly Corrosive Media |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Features | Pressure Relief Back, Solid Front |
| Field Fillable | No |
| For Use With | Brass, Industrial Applications, Media Compatible With Copper Alloy |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Color | Black |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Phenolic |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Special Options | Heavy Duty |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Safety Glass |
| Lens Material Gauge | Safety Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mfr. Series | PPC |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 4 1/2" |
| Non Sparking | No |
| Over Pressure Limit | 25% |
| Panel Mount Characteristics | 3 0.24" Dia Holes On 5.39" Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 15 psi |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 15 psi |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +250°F |
| Range | 0 psi to 15 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 100 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PPC Series |
| Socket Material | Brass |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Phosphor Bronze |
| Wetted Parts Material | Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 1.61 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 14.82 |
| Ship width (cm) | 14.82 |
| Country of Origin | CN |
Product Variants
| Model | Socket Material | Sensor Material | Process Connection Size | Lens Material | Pressure | Pressure Type | Dry Dampening Feature | Gauge Wetted Parts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PPC5121WBG | Brass | Phosphor Bronze | 1/4" | Polycarbonate | - | Compound | None | Brass, Bronze | €669.24 | |
| PPC5131R1WBG | Stainless Steel | Stainless Steel | 1/4" | Polycarbonate | - | Compound | None | Stainless Steel | €669.24 | |
| PPC5131R1WBY | Stainless Steel | Stainless Steel | 1/4" | Polycarbonate | - | Compound | None | Stainless Steel | €320.62 | |
| PPC5121WBY | Brass | Phosphor Bronze | 1/4" | Polycarbonate | 30 psi to 0 psi to 30 psi | Compound | None | Brass, Bronze | €245.00 | |
| PPC5131R1WBYG | Stainless Steel | Stainless Steel | 1/4" | Polycarbonate | - | Compound | None | Stainless Steel | €320.62 | |
| PPC5121WBYG | Brass | Phosphor Bronze | 1/4" | Polycarbonate | 30 psi to 0 psi to 30 psi | Compound | None | Brass, Bronze | €245.00 | |
| PPC5131R1WBW | Stainless Steel | Stainless Steel | 1/4" | Polycarbonate | - | Compound | None | Stainless Steel | €669.24 |
