WINTERS INSTRUMENTS PPC5064G-SG45 Process Pressure Gauge, 0 To 100 Psi, White, 4 1/2 Inch DiaL, Liquid-Filled | CV3TBH 491D24

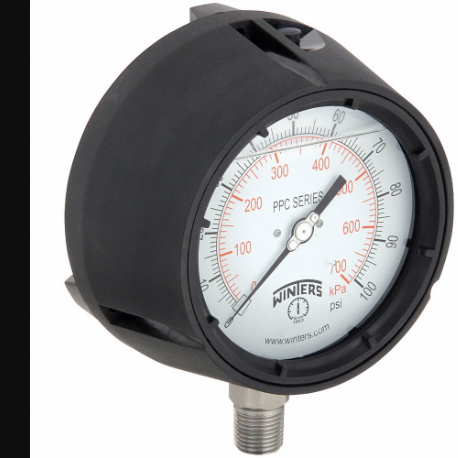

WINTERS INSTRUMENTS PPC5064G-SG45 Process Pressure Gauge, 0 To 100 Psi, White, 4 1/2 Inch DiaL, Liquid-Filled

Item: CV3TBHModel: PPC5064G-SG45Cross Ref: 491D24
7 In Stock

Ships within 2 days via

€347.40
5.00% off
€330.03 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pressure Gauge
Accuracy -0.5% to +0.5%
Accuracy Grade ASME B40.100 Grade 2A
Accuracy Scale Full Scale
Ambient Operating Temp. -4°F to +150°F
Ambient Temp. -4°F to +150°F
Application Chemical Industries, Highly Corrosive, Oil And Gas Industry, Power Industries, Process Industries
Bezel Gasket Material Silicone
Bezel Material Phenolic
Blowout Safety Back Yes
Bolt Circle Dia. 5.39"
Calibration Certificate Included No
Case Color Black
Case Construction Solid Wall
Case Depth 3 2/5"
Case Dia. 5.835"
Case Material Phenolic
Cleaned For Oxygen Service No
Compatible Process Media Chemicals, Highly Corrosive Media, Petroleum Products
Connection Location Bottom
Dial Color White
Dial Face Color White
Dial Face Material Aluminum
Dry Dampening Feature None
Features Pressure Relief Back, Solid Front
Field Fillable No
For Use With Media Compatible With 316L Stainless Steel
Freeze Resistant Movement No
Gauge Accuracy Grade Grade 2A Process
Gauge Case Color Black
Gauge Case Liquid Glycerin
Gauge Case Material Phenolic
Gauge Connection Location Bottom
Gauge Connection Size 1/2"
Gauge Filled With Glycerin
Gauge Nominal Dial Size 4 1/2"
Gauge Primary Range Units Psi
Gauge Special Options Heavy Duty
Gauge Wetted Parts Stainless Steel
Hazardous Location Rating Not Rated
Included Mounting Hardware No
Included Vent Plug No
Ip Rating, Nema Rating IP65
Ip/nema Rating Nema Ip65
Lens Material Safety Glass
Lens Material Gauge Safety Glass
Liquid Filled Yes
Liquid-filled Case Yes
Material Grade Grade 316L
Mfr. Series PPC
Mounting Hardware Included No
Mounting Type Stem Mount
Movement Material Stainless Steel
Movement Material Grade Grade 304
Movement Type Rotary
Nominal Dial Size 4 1/2"
Non Sparking No
Over Pressure Limit 25%
Panel Mount Characteristics 3 0.24" Dia Holes On 5.39" Dia Bolt Circle
Panel-mountable No
Pointer Characteristics Micrometer Adjustable
Pointer Color Black
Pointer Material Aluminum
Pressure 0 psi to 100 psi
Pressure Gauge Type Process Pressure Gauge
Pressure Type Pressure
Primary Pressure 0 psi to 100 psi
Primary Scale Minor Graduations 5, 50
Primary Scale Numeric Increments 10, 100
Primary Scale Units PSI
Process Connection 1/2" NPT Male
Process Connection Gender Male
Process Connection Location Bottom
Process Connection Size 1/2"
Process Connection Type NPT
Process Temp. -40°F to +250°F
Range 0 psi to 100 psi
Removable Bezel No
Scale Type Dual
Secondary Pressure Range 0 kPa to 690 kPa
Secondary Scale Units Kpa
Sensor Grade Grade 316L
Sensor Material Stainless Steel
Sensor Type Bourdon Tube
Series PPC Series
Socket Grade Grade 316L
Socket Material Stainless Steel
Vibration Resistance Liquid Filled
Wetted Material Stainless Steel
Wetted Parts Grade Grade 316L
Wetted Parts Material Stainless Steel

Shipping Info:

Ship weight (kg) 1.64
Ship height (cm)8.64
Ship length (cm)14.82
Ship width (cm)14.82
Country of OriginCN

Product Variants

ProductModelSocket MaterialSensor MaterialProcess Connection SizeLens MaterialPressurePressure TypeDry Dampening FeatureGauge Wetted PartsPrice
WINTERS INSTRUMENTS PPC5121WBG Process Compound Gauge, Glow-In-The-Dark White, 30 To 0 To 30 Inch Hg/Psi | CV3TAR 489H86 PPC5121WBGBrassPhosphor Bronze1/4"Polycarbonate-CompoundNoneBrass, Bronze€669.24
WINTERS INSTRUMENTS PPC5131R1WBG Process Compound Gauge, Glow-In-The-Dark White, 30 To 0 To 30 Inch Hg/Psi | CV3TAT 489H90 PPC5131R1WBGStainless SteelStainless Steel1/4"Polycarbonate-CompoundNoneStainless Steel€669.24
WINTERS INSTRUMENTS PPC5131R1WBY Process Compound Gauge, Reflective Fluorescent Yellow, 30 To 0 To 30 Inch Hg/Psi, Bottom | CV3TAU 489H92 PPC5131R1WBYStainless SteelStainless Steel1/4"Polycarbonate-CompoundNoneStainless Steel€320.62
WINTERS INSTRUMENTS PPC5121WBY Process Compound Gauge, Reflective Fluorescent Yellow, 30 To 0 To 30 Inch Hg/Psi, Bottom | CV3TAV 489H88 PPC5121WBYBrassPhosphor Bronze1/4"Polycarbonate30 psi to 0 psi to 30 psiCompoundNoneBrass, Bronze€245.00
WINTERS INSTRUMENTS PPC5131R1WBYG Process Compound Gauge, Reflective Fluorescent Yellow-Green, 30 To 0 To 30 Inch Hg/Psi | CV3TAW 489H93 PPC5131R1WBYGStainless SteelStainless Steel1/4"Polycarbonate-CompoundNoneStainless Steel€320.62
WINTERS INSTRUMENTS PPC5121WBYG Process Compound Gauge, Reflective Fluorescent Yellow-Green, 30 To 0 To 30 Inch Hg/Psi | CV3TAX 489H89 PPC5121WBYGBrassPhosphor Bronze1/4"Polycarbonate30 psi to 0 psi to 30 psiCompoundNoneBrass, Bronze€245.00
WINTERS INSTRUMENTS PPC5131R1WBW Process Compound Gauge, Reflective White, 30 To 0 To 30 Inch Hg/Psi, 4 1/2 Inch DiaL | CV3TAY 489H91 PPC5131R1WBWStainless SteelStainless Steel1/4"Polycarbonate-CompoundNoneStainless Steel€669.24
