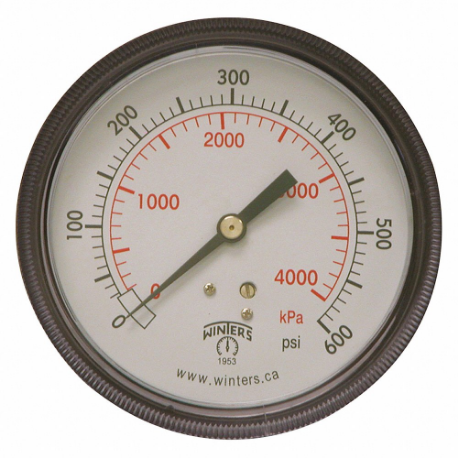

WINTERS INSTRUMENTS P9U901463UC Panel-Mount Pressure Gauge, U-Clamp, 0 To 600 PSI, 3 1/2 Inch Dial, 1/4 Inch Npt Male
Item: CV3TAQModel: P9U901463UCCross Ref: 491D67
7 In Stock
Ships within 2 days via
5.00% off
€33.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-2-1-2% |
| Accuracy Grade | ASME B40.100 Grade A |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -40°F to +150°F, -40°C to +65°C |
| Ambient Temp. | -40°F to +150°F |
| Application | Compressors, Panels, Severe Ambient Conditions, Water Pressure Testing |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 1.26" |
| Case Dia. | 3.976" |
| Case Finish | Painted |
| Case Material | Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Non-Clogging, Non-Corroding |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | Flutterless Pointer With Dampened Movement |
| Field Fillable | No |
| For Panel Cutout Size | 3 17/25" |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade A Industrial |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Mounting Type | U-Clamp |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | Yes |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Acrylic |
| Lens Material Gauge | Plastic |
| Liquid-filled Case | No |
| Mfr. Series | P9U 90 Series |
| Mounting Type | U Clamp |
| Movement Material | Brass |
| Nominal Dial Size | 3 1/2" |
| Non Sparking | No |
| Over Pressure Limit | 25% |
| Panel-mountable | Yes |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 600 psi |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 600 psi |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +150°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 4140 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Vibration Resistance | Dry Case Vibration Dampened |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.2 |
| Ship length (cm) | 10.1 |
| Ship width (cm) | 10.1 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure | Process Connection Size | Nominal Dial Size | Process Connection | Pressure Type | Primary Pressure | Wetted Parts Material | Case Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P9U901439UC | 0 psi to 100 psi | 1/4" | 2 1/2" | 1/4" NPT Male | Pressure | 0 psi to 100 psi | Brass, Phosphor Bronze | 2.834" | €22.70 | |
 |
P9U901406UC | 0 psi to 100 psi | 1/8" | 2" | 1/8" NPT Male | Pressure | 0 psi to 100 psi | Brass, Phosphor Bronze | 2.271" | €16.59 | |
 |
P9U901407UC | 0 psi to 100 psi | 1/4" | 2" | 1/4" NPT Male | Pressure | 0 psi to 100 psi | Brass, Phosphor Bronze | 2.271" | €25.94 | |
 |
P9U901458UC | 0 psi to 100 psi | 1/4" | 3 1/2" | 1/4" NPT Male | Pressure | 0 psi to 100 psi | Brass, Phosphor Bronze | 3.976" | €34.74 | |
 |
P9U901441UC | 0 psi to 200 psi | 1/4" | 2 1/2" | 1/4" NPT Male | Pressure | 0 psi to 200 psi | Brass, Phosphor Bronze | 2.834" | €22.70 | |
|
P9U901460UC | 0 psi to 200 psi | 1/4" | 3 1/2" | 1/4" NPT Male | Pressure | 0 psi to 200 psi | Brass, Phosphor Bronze | 3.976" | €34.74 | |
 |
P9U901437UC | 0 psi to 30 psi | 1/4" | 2 1/2" | 1/4" NPT Male | Pressure | 0 psi to 30 psi | Brass, Phosphor Bronze | 2.834" | €22.70 |
