WINTERS INSTRUMENTS Light Duty Panel Mount Pressure Gauges
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W| Style | Model | Nominal Dial Size | Vibration Resistance | Primary Scale Units | Case Dia. | Case Depth | Wetted Parts Material | Secondary Pressure Range | Compatible Process Media | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P9U901439UC | 2 1/2" | Dry Case Vibration Dampened | PSI | 2.834" | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | Non-Clogging, Non-Corroding | €22.70 | |
| B | P9U901431UC | 2 1/2" | - | In Hg | 2.271" | 1.2" | Brass | -101 kPa to 0 kPa | Non Clogging, Non Corroding | €23.75 | |
| C | P9U901441UC | 2 1/2" | Dry Case Vibration Dampened | PSI | 2.834" | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 1400 kPa | Non-Clogging, Non-Corroding | €22.70 | |
| D | P9U901442UC | 2 1/2" | Dry Case Vibration Dampened | PSI | 2.834" | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 2100 kPa | Non-Clogging, Non-Corroding | €22.70 | |

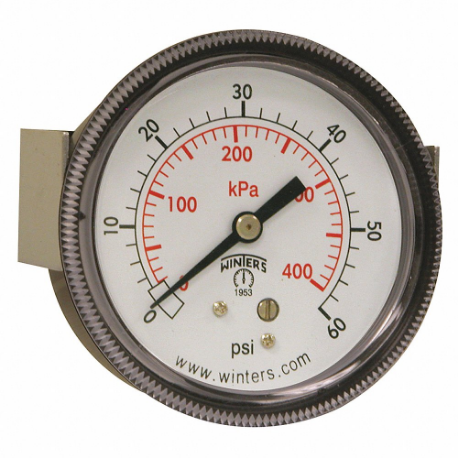

| E | P9U901438UC | 2 1/2" | Dry Case Vibration Dampened | PSI | 2.834" | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 410 kPa | Non-Clogging, Non-Corroding | €22.70 | |
| F | P9U901453UC | 2 1/2" | Dry Case Vibration Dampened | PSI | 2.834" | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 2800 kPa | Non-Clogging, Non-Corroding | €22.70 | |
| G | P9U901454UC | 2 1/2" | Dry Case Vibration Dampened | PSI | 2.834" | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 4140 kPa | Non-Clogging, Non-Corroding | €22.70 | |
| H | P9U901437UC | 2 1/2" | Dry Case Vibration Dampened | PSI | 2.834" | 1 1/5" | Brass, Phosphor Bronze | 0 kPa to 200 kPa | Non-Clogging, Non-Corroding | €22.70 | |
| I | P9U901426UC | 2" | None | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 1400 kPa | Non-Clogging, Non-Corroding | €16.59 | |
| J | P9U901411UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 2100 kPa | Non-Clogging, Non-Corroding | €25.94 | |
| K | P9U901404UC | 2" | None | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 410 kPa | Non-Clogging, Non-Corroding | €16.59 | |
| F | P9U901445UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 2800 kPa | Non-Clogging, Non-Corroding | €17.82 | |
| F | P9U901447UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 2800 kPa | Non-Clogging, Non-Corroding | €25.94 | |
| L | P9U901403UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 200 kPa | Non-Clogging, Non-Corroding | €25.94 | |
| M | P9U901402UC | 2" | None | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 200 kPa | Non-Clogging, Non-Corroding | €16.59 | |
| N | P9U901446UC | 2" | None | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 4140 kPa | Non-Clogging, Non-Corroding | €16.59 | |
| O | P9U901406UC | 2" | None | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | Non-Clogging, Non-Corroding | €16.59 | |
| F | P9U901448UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 4140 kPa | Non-Clogging, Non-Corroding | €25.94 | |
| P | P9U901410UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 1400 kPa | Non-Clogging, Non-Corroding | €25.94 | |
| Q | P9U901405UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 410 kPa | Non-Clogging, Non-Corroding | €25.94 | |
| R | P9U901427UC | 2" | None | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 2100 kPa | Non-Clogging, Non-Corroding | €17.82 | |
| S | P9U901407UC | 2" | Dry Case Vibration Dampened | PSI | 2.271" | 1.145" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | Non-Clogging, Non-Corroding | €25.94 | |
| T | P9U901424UC | 2" | None | in. hg | 2.271" | 1.145" | Brass | -101 kPa to 0 kPa | Non-Clogging, Non-Corroding | €17.04 | |
| F | P9U901455UC | 3 1/2" | None | in. hg | 3.976" | 1.26" | Brass | -101 kPa to 0 kPa | Non-Clogging, Non-Corroding | €36.70 | |
| U | P9U901463UC | 3 1/2" | Dry Case Vibration Dampened | PSI | 3.976" | 1.26" | Brass, Phosphor Bronze | 0 kPa to 4140 kPa | Non-Clogging, Non-Corroding | €34.74 | |
| B | P9U901456UC | 3 1/2" | - | PSI | 3.976" | 1.26" | Brass, Phosphor Bronze | 0 psi to 200 psi | Non Clogging, Non Corroding | €27.76 | |

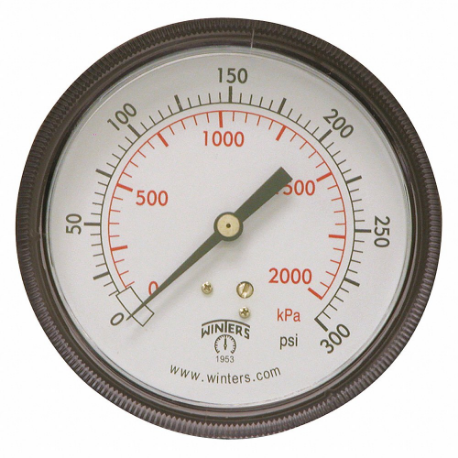

| V | P9U901461UC | 3 1/2" | Dry Case Vibration Dampened | PSI | 3.976" | 1.26" | Brass, Phosphor Bronze | 0 kPa to 2100 kPa | Non-Clogging, Non-Corroding | €34.74 | |
| W | P9U901462UC | 3 1/2" | Dry Case Vibration Dampened | PSI | 3.976" | 1.26" | Brass, Phosphor Bronze | 0 kPa to 2800 kPa | Non-Clogging, Non-Corroding | €34.74 | |
| F | P9U901460UC | 3 1/2" | None | PSI | 3.976" | 1.26" | Brass, Phosphor Bronze | 0 kPa to 1400 kPa | Non-Clogging, Non-Corroding | €34.74 | |
| F | P9U901458UC | 3 1/2" | None | PSI | 3.976" | 1.26" | Brass, Phosphor Bronze | 0 kPa to 690 kPa | Non-Clogging, Non-Corroding | €34.74 |
