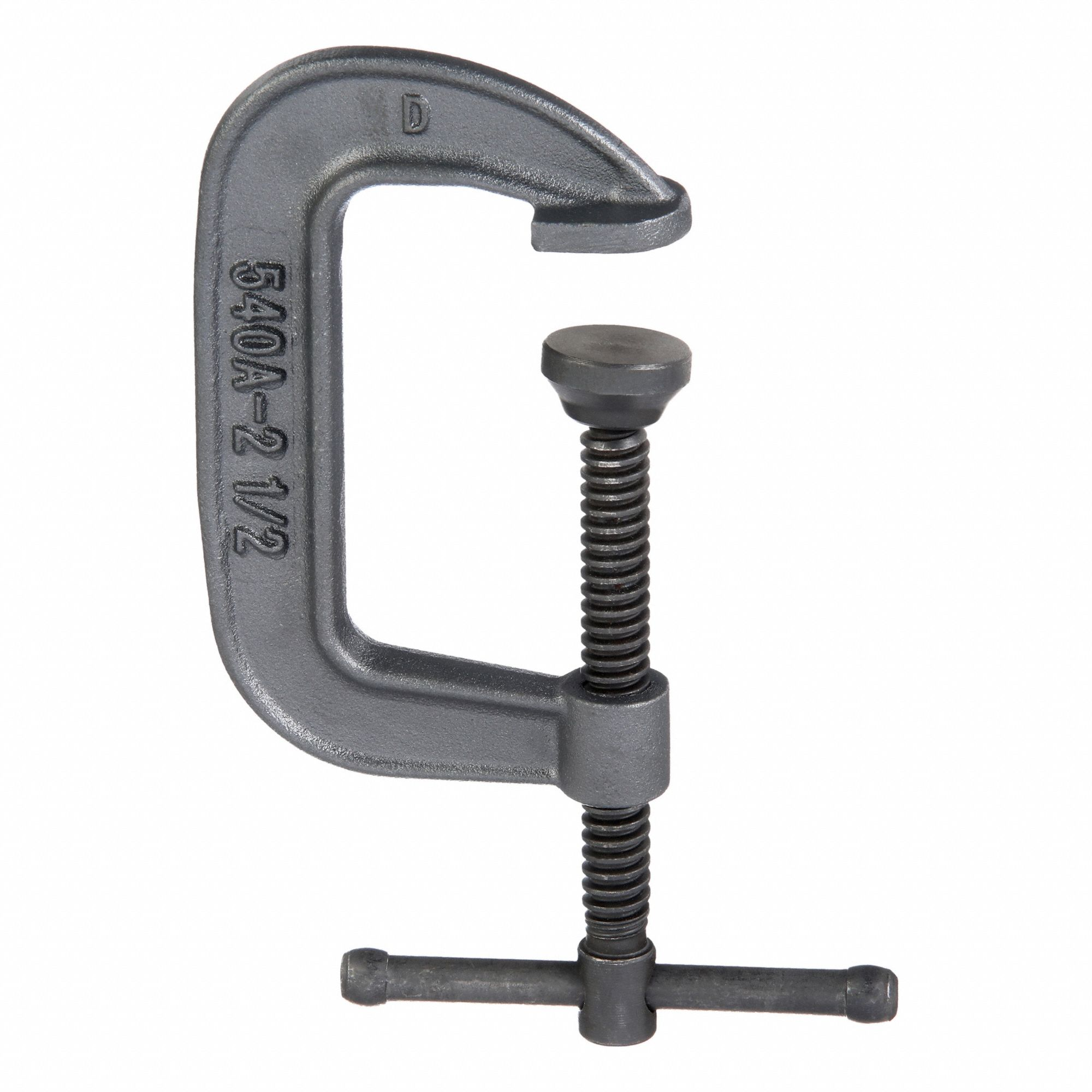

WILTON TOOLS WL9-22001 540A-2 C-clamp Carriage 2-1/2 Inch 1-3/4 Deep
Item: AA8JVTModel: WL9-22001Cross Ref: 18G735 / 540A-2
7 In Stock
Ships within 2 days via
5.00% off
€37.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | C-Clamp |
| Anvil | Flat |
| Anvil Shape | Flat |
| Body Color | Black |
| Body Finish | Black Oxide |
| Body Finish | Powder Coated |
| Body Material | Cast Iron |
| Clamping Force | 1110 lbs. |
| Clamping Pressure | 1100 lb. |
| Clamping Pressure | 1100 lbs. |
| Color | Black |
| Duty Rating | Medium Duty |
| Finish | Black Oxide |
| Frames | Cast Iron |
| Handle Material | No |
| Handle Style | Sliding T |
| High Visibility | No |
| Included Swivel Pad | Yes |
| Jaw Pad Type | Flat |
| Load Capacity | 1110 lbs. |
| Material | Cast Iron |
| Max. Jaw Opening | 2 1/2" |
| Max. Opening | 2 1/2" |
| Max. Opening | 2-1/2" |
| Min. Jaw Opening | 0" |
| Min. Opening | 0" |
| Min. Opening | 0.0" |
| Min. Proof Load Test | 1110 lbs. |
| Min. Proof Test (lb.) | 1110 |
| No. Of Anvils | 1 |
| No. Of Pieces | 1 |
| No. Of Spindles | 1 |
| Pad | Smooth |
| Release Mechanism | Standard Thread |
| Screws | Steel |
| Spindle Finish | Black Oxide |
| Spindle Material | Steel |
| Spindles | Black Oxide |
| Swivel Or Fixed Pad | Swivel |
| Swivel Pad | Steel |
| Swivel Pad | Yes |
| Throat Depth | 1 3/4" |
| Throat Shape | Standard |
| Type | Carriage |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16 |
| Ship width (cm) | 9.14 |
| HS code | 7326908588 |
| Country of Origin | CN |
Product Variants
| Product | Model | Throat Depth | Max. Jaw Opening | Clamping Force | Body Finish | Clamping Pressure | Load Capacity | Finish | Max. Opening | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WL9-22002 | 1 7/8" | 3" | 1800 lbs. | Powder Coating | 1800 lbs. | 1800 lbs. | Powder Coating | 3" | €44.61 | |
|
WL9-22003 | 2 1/16" | 4" | 2150 lbs. | Powder Coating | 2150 lbs. | 2150 lbs. | Powder Coating | 4" | €65.37 | |
 |
WL9-22004 | 2 1/2" | - | - | Powder Coating | 2250 lbs. | 2250 lbs. | Powder Coating | 5" | €79.96 | |
 |
WL9-22005 | 2 3/4" | 6" | 2450 lbs. | Powder Coating | 2450 lbs. | 2450 lbs. | Powder Coating | 6" | €96.14 | |
|
WL9-22006 | 3 1/4" | 8" | 2750 lbs. | Powder Coating | 2750 lbs. | 2750 lbs. | Powder Coating | 8" | €113.61 | |
 |
WL9-22007 | 3 5/8" | 10" | 2850 lbs. | Powder Coating | 2850 lbs. | 2850 lbs. | Powder Coating | 10" | €151.10 | |
 |
WL9-22008 | 3 5/8" | - | - | Powder Coating | 2850 lbs. | 2850 lbs. | Powder Coating | 12" | €183.59 |
