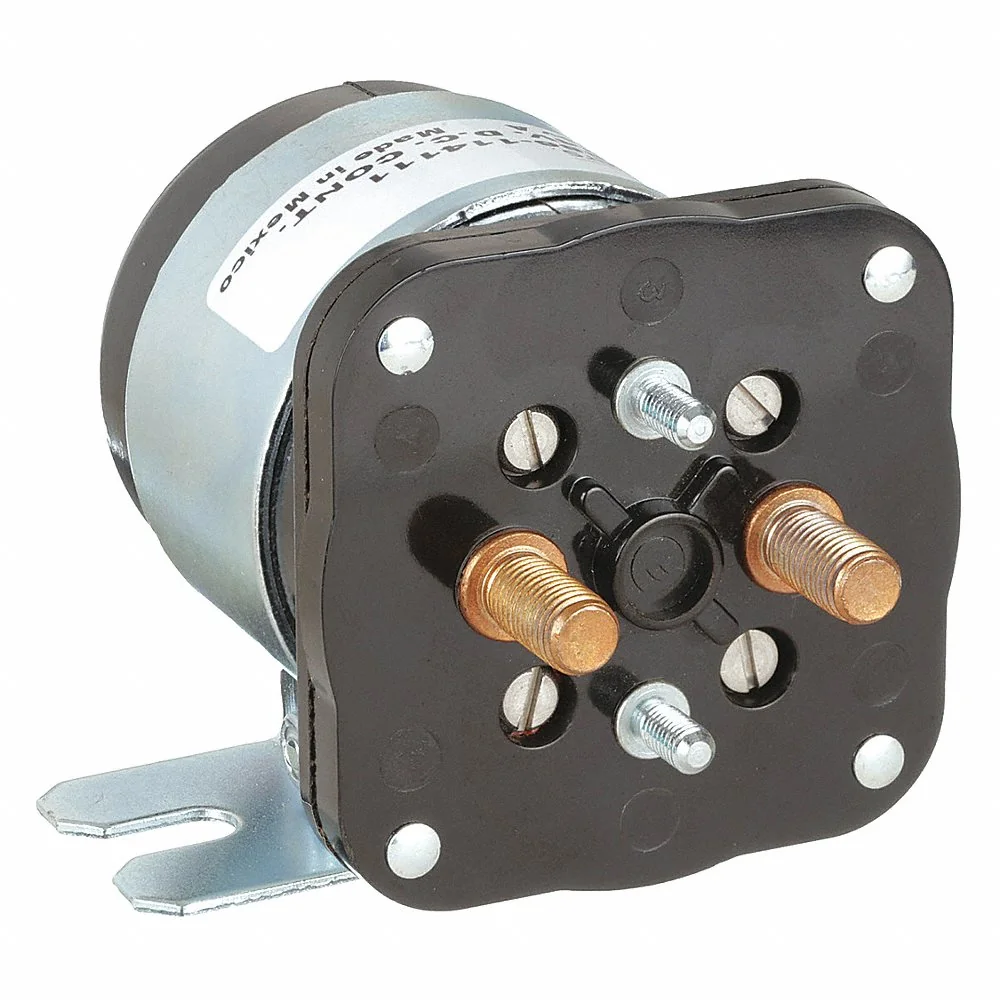

WHITE-RODGERS 586-117111 Power Solenoid, Water Resistant, 200/100, 36 V DC Coil Voltage DC, SPNO
Item: AE7YVKModel: 586-117111Cross Ref: 6C026
7 In Stock
Ships within 2 days via
5.00% off
€158.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Solenoid |
| Amps | 200A , 36A |
| Coil Resistance | 189 ohms |
| Coil Termination | #10-32 UNF-2A Thread |
| Coil Type | Isolated |
| Coil Voltage | 36V DC |
| Contact Form | SPST, NO |
| Contact Material | Silver Alloy |
| Contact Rating | 36A |
| Contact Termination | 5/16"-24 Unf-2A Thread |
| Dielectric Strength | 500V |
| Duty Cycle | Continuous |
| Electrical Operating Durability | 50000 |
| Enclosure | Water Resistant |
| Height | 2.9" |
| Length | 3.69" |
| Max. Operating Temp. | 149°F |
| Mechanical Operating Durability | 100000 |
| Min. Operating Temp. | -40°F |
| Mounting Base | Standard Bracket |
| No. Of Terminals | 4 |
| Overall Height | 2.9" |
| Overall Length | 3.69" |
| Overall Width | 3.3" |
| Power Consumption | 8 W |
| Resistance Properties | Dust Resistant, Water Resistant |
| Series | 586 Series |
| Width | 3.3" |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 11.18 |
| HS code | 8505908000 |
| Country of Origin | MX |
Product Details:
- Coil Termination (#10-32 UNF-2A Thread)
- Coil Voltage DC (36)
- Contact Termination (5/16-24 UNF-2A Thread)
- Mounting Base (Std. Bracket)
Product Variants
| Product | Model | Amps | Contact Form | Coil Type | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|
 |
120-105711 | 100A | SPST, NO | Isolated | Continuous | €56.47 | |
|
120-106131 | 80A | SPST, NO | Isolated | Intermittent | €42.20 | |
|
120-106132 | 80A | SPST, NO | Isolated | Intermittent | €42.38 | |
 |
124-105111 | 150A | SPST, NO | Isolated | Continuous | €98.17 | |
|
124-114111 | 150A | SPST, NO | Isolated | Continuous | €104.06 | |
|
124-117111 | 150A | SPST, NO | Isolated | Continuous | €88.48 | |
 |
124-305111 | 150A | SPDT | Isolated | - | €118.83 |
