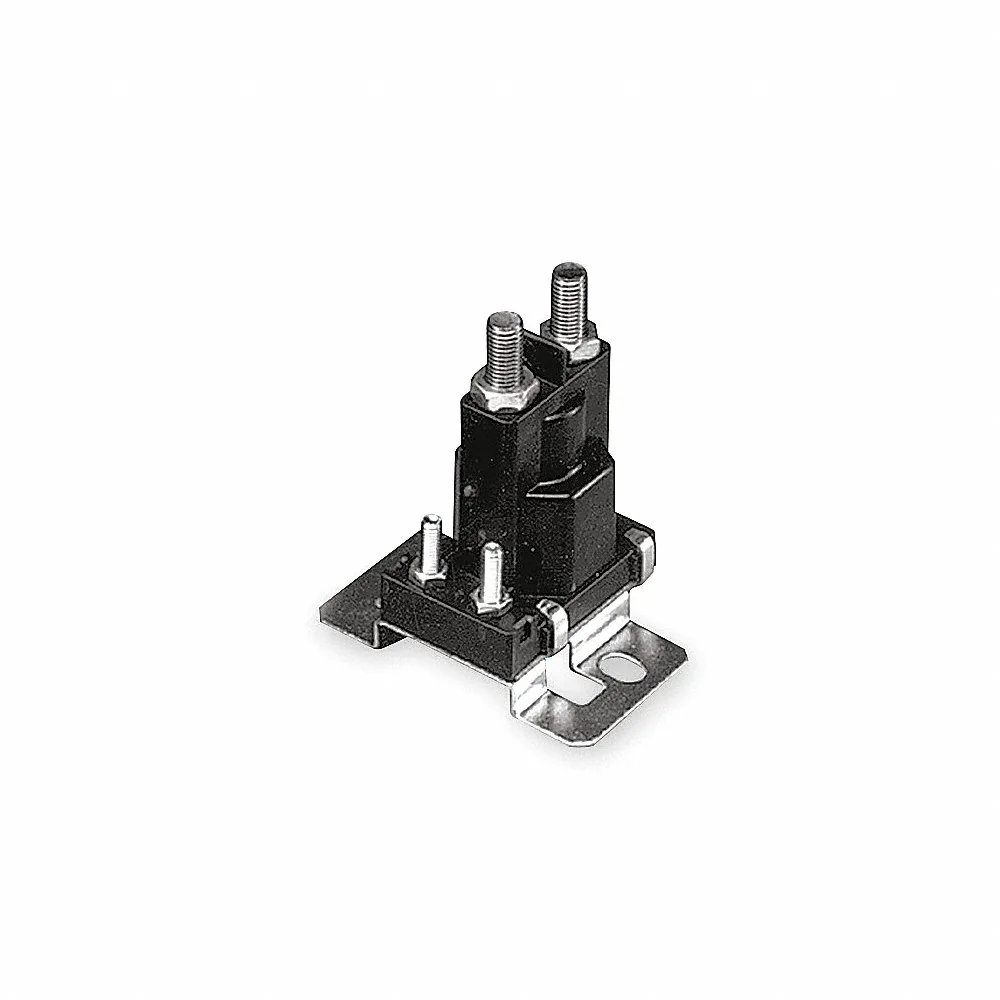

WHITE-RODGERS 120-106131 Power Solenoid, Dust and Water Resistant, 80, 12 V DC Coil Voltage DC, SPNO, #10-32
Item: AE7YVBModel: 120-106131Cross Ref: 6C018
7 In Stock
Ships within 2 days via
5.00% off
€40.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Solenoid |
| Amps | 12A , 80A |
| Coil Resistance | 6 ohms |
| Coil Termination | #10-32 |
| Coil Type | Isolated |
| Coil Voltage | 12V DC |
| Contact Form | SPST, NO |
| Contact Material | Copper |
| Contact Rating | 12A |
| Contact Termination | 5/16"-24 Studs |
| Dielectric Strength | 500V |
| Duty Cycle | Intermittent |
| Electrical Operating Durability | 50000 |
| Enclosure | Dust And Water Resistant |
| Height | 3.09" |
| Length | 2.13" |
| Max. Operating Temp. | 150°F |
| Mechanical Operating Durability | 100000 |
| Min. Operating Temp. | -20°F |
| Mounting Base | Standard Bracket |
| No. Of Terminals | 4 |
| Overall Height | 3.09" |
| Overall Length | 2.13" |
| Overall Width | 2 22/25" |
| Power Consumption | 8.1 W |
| Product Datasheet | white-rodgers-120-105711.pdf |
| Resistance Properties | Dust Resistant, Water Resistant |
| Series | 120 Series |
| Width | 2 22/25" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 9.4 |
| HS code | 8504409580 |
| Country of Origin | MX |
Product Details:
- Coil Termination (#10-32)
- Coil Voltage DC (12)
- Contact Termination (5/16-24)
- Mounting Base (Std. Bracket)
Documentation:
Product Variants
| Product | Model | Amps | Coil Voltage | Contact Material | Mounting Base | Contact Form | Coil Type | Enclosure | Contact Termination | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
120-105711 | 100A | 12V DC | Silver Alloy | Standard Bracket | SPST, NO | Isolated | Dust And Water Resistant | 5/16"-24 Studs | €56.47 | |
 |
120-106132 | 80A | 12V DC | Copper | L Bracket | SPST, NO | Isolated | Dust And Water Resistant | 5/16"-24 Studs | €42.38 | |
 |
124-105111 | 150A | 12V DC | Silver Alloy | Standard Bracket | SPST, NO | Isolated | Dust Resistant | 5/16"-24 Unf-2A Thread | €98.17 | |
 |
124-114111 | 150A | 24V DC | Silver Alloy | Standard Bracket | SPST, NO | Isolated | Dust Resistant | 5/16"-24 Unf-2A Thread | €104.06 | |
|
124-117111 | 150A | 36V DC | Silver Alloy | Standard Bracket | SPST, NO | Isolated | Dust Resistant | 5/16"-24 Unf-2A Thread | €88.48 | |
 |
124-305111 | 150A | 12V DC | Silver Alloy | Standard Bracket | SPDT | Isolated | Dust Resistant | 5/16"-24 Unf-2A Thread | €118.83 | |
 |
124-314111 | 150A | 24V DC | Silver Alloy | Standard Bracket | SPDT | Isolated | Dust Resistant | 5/16"-24 Unf-2A Thread | €147.91 |
