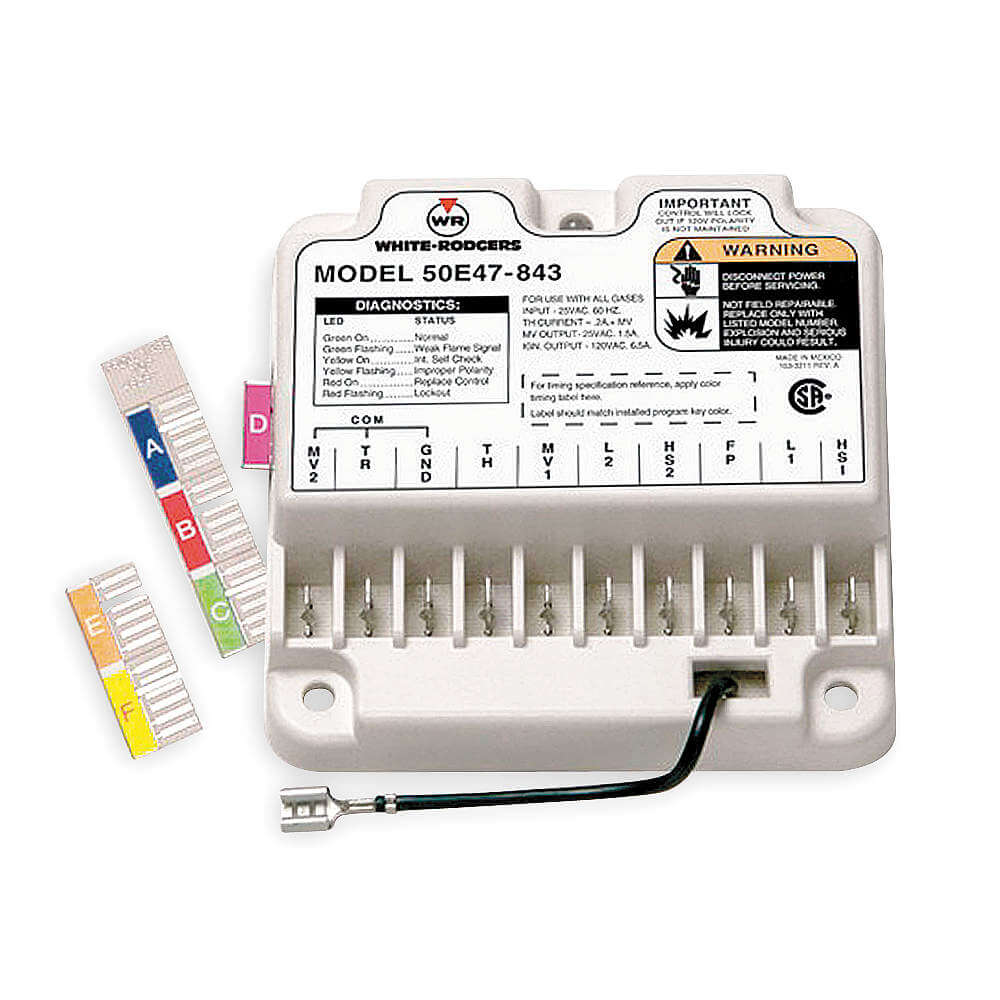

WHITE-RODGERS 50E47843S1 Universal Hsi Ignition Mod
Item: AH9KGAModel: 50E47843S1Cross Ref: 3XA74
7 In Stock
Ships within 2 days via
10.00% off
€349.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ignition Module |
| Amps Ac | 0.2A |
| Application | Boilers, Forced-Air Furnaces, Lp/Natural Gas Furnaces |
| Automatic Reset Time | 1 hr. |
| Board Type | Non-Integrated Board |
| Control Voltage | 24V AC |
| Control Volts | 24 |
| Electrical Connection Type | 1/4" Quick-Connect |
| Flame Sensor Current Output | 0.2 µA |
| For Fuel Type | LP, Natural Gas |
| Frequency | 50/60 Hz |
| Gas Type | Liquid Propane, Natural Gas |
| Height | 1 1/2" |
| Ignition Cycle Time | 4 Seconds (Tfi), 30 Seconds (Pre-Purge), 45 Seconds (Inter-Purge) |
| Includes | Double Sided Foam Back Tape, Program Keys |
| Lock Out Time | 5 min. |
| Main Valve Current Output | 1.5A |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Temperature | -40°F |
| Number Of Retries | 2 |
| Operating Temperature Range | -40°F to +175°F |
| Overall Depth | 1 1/2" |
| Overall Height | 4 1/8" |
| Overall Width | 4 1/8" |
| Pre-purge Time | 30 sec. |
| Product Type | Universal Ignition Control |
| Replacement For Oem Brand | Amana, ICP, Trane, White-Rodgers, York |
| Replacement Type | Universal |
| Series | 843 Series |
| Thermostat Anticipator Setting | No Thermostat Anticipator |
| Type | Hot Surface Ignition |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 19.81 |
| Ship width (cm) | 12.7 |
| Country of Origin | MX |
Product Details:
- Electrical Ratings : 24 VAC
- Operation Description : Universal Replacement Hot Surface Ignition (HSI) Control Designed For Maximum Compatibility
- Retries : 0 to 2
- Igniter Warm-Up Time (Sec.) : 17 to 45
Product Variants
| Product | Model | Height | Electrical Connection Type | Amps Ac | Depth | Electrical Ratings | Lead Length | Gas Type | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50A55 843S1 | 1 1/2" | 1/4" Quick-Connect | 0.45A | - | - | - | Liquid Propane, Natural Gas | Hot Surface Ignition | €257.34 | |
 |
50A65 843S1 | 1 1/2" | 1/4" Quick-Connect | 0.45A | - | - | - | Liquid Propane, Natural Gas | Hot Surface Ignition | €298.38 | |
 |
768A-844 | 1.609" | Plug In | - | 1.938" | 80V AC | 12" | - | - | €70.70 | |
 |

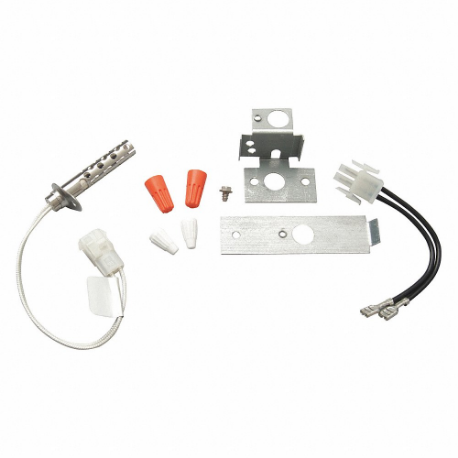

767A-381 | 3" | Plug In | - | 2 1/2" | 120V AC | 7 1/2" | - | - | €87.49 |
