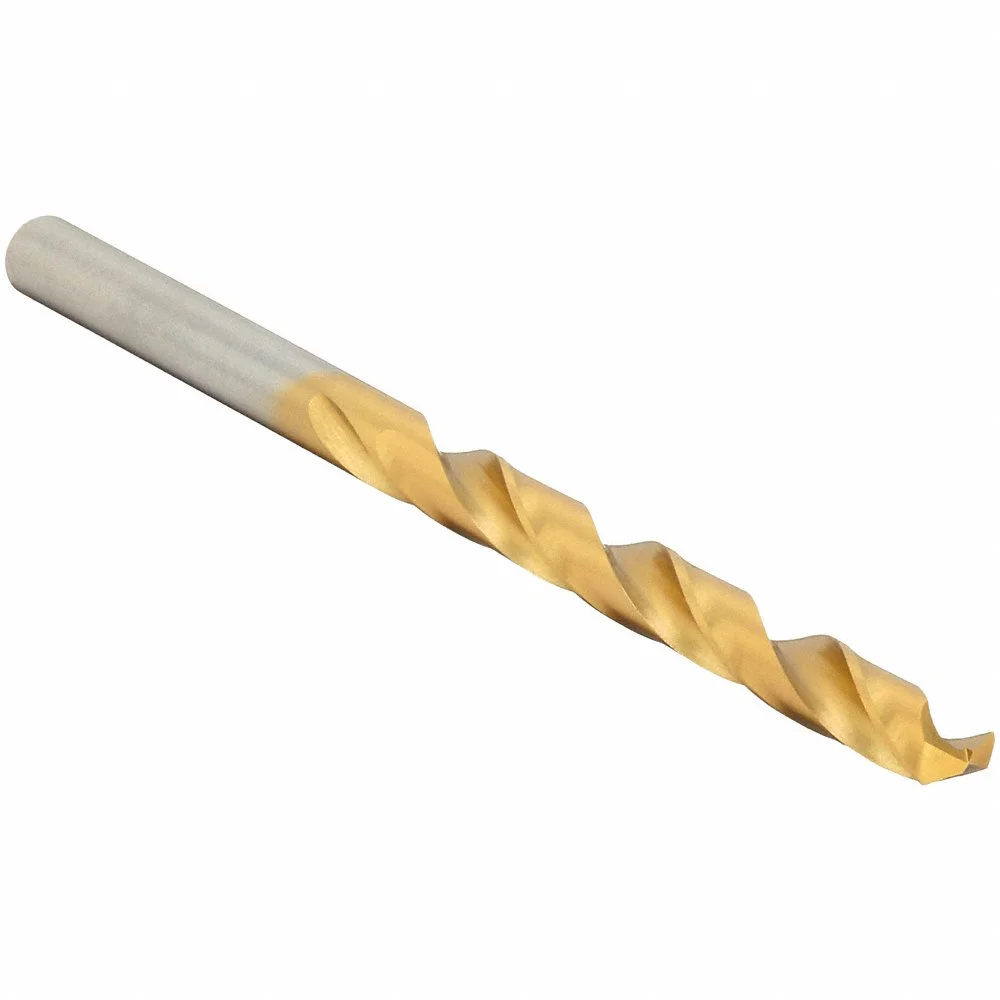

WESTWARD 5UDJ4 Jobber Drill Bit High Speed Steel Tin Coated 1/2 In
Item: AE6NMEModel: 5UDJ4
7 In Stock
Ships within 2 days via
10.00% off
€40.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/2" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Tin Coat |
| Finish - Machining | Tin |
| Flute Length | 4 1/2" |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | +21° to +34° |
| List Number | Westward |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 3 3/8" |
| No. Of Pieces | 1 |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 1/2" |
| Shank Length | 1 1/2" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 18 |
| Ship width (cm) | 9.5 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Flute Type | Overall Length | Flute Length | Decimal Equivalent | Drill Bit Size | Shank Dia. | Finish | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2UFE1 | Spiral | 4 3/8" | 3 1/16" | 0.2969 | 19/64" | 0.296" | Black Oxide | 2 19/64" | €6.01 | |
| 2UFE2 | Spiral | 4 5/8" | 3 5/16" | 0.3281 | 21/64" | 0.328" | Black Oxide | - | €7.24 | |
| 2UFE3 | Spiral | 4 3/4" | - | - | 11/32" | 0.343" | Black Oxide | - | €11.09 | |
| 2UFE4 | Spiral | 4 7/8" | 3 1/2" | 0.3594 | 23/64" | 0.359" | Black Oxide | - | €8.44 | |
| 2UFE5 | Spiral | 5 1/4" | 3 7/8" | 0.4063 | 13/32" | 0.406" | Black Oxide | 2 29/32" | €10.04 | |
| 2UFE6 | Spiral | 5 3/8" | 3 15/16" | 0.4219 | 27/64" | 0.421" | Black Oxide | - | €12.37 | |
| 2UFE7 | Spiral | 5 1/2" | 4 1/16" | 0.4375 | 7/16" | 0.437" | Black Oxide | - | €17.89 |
