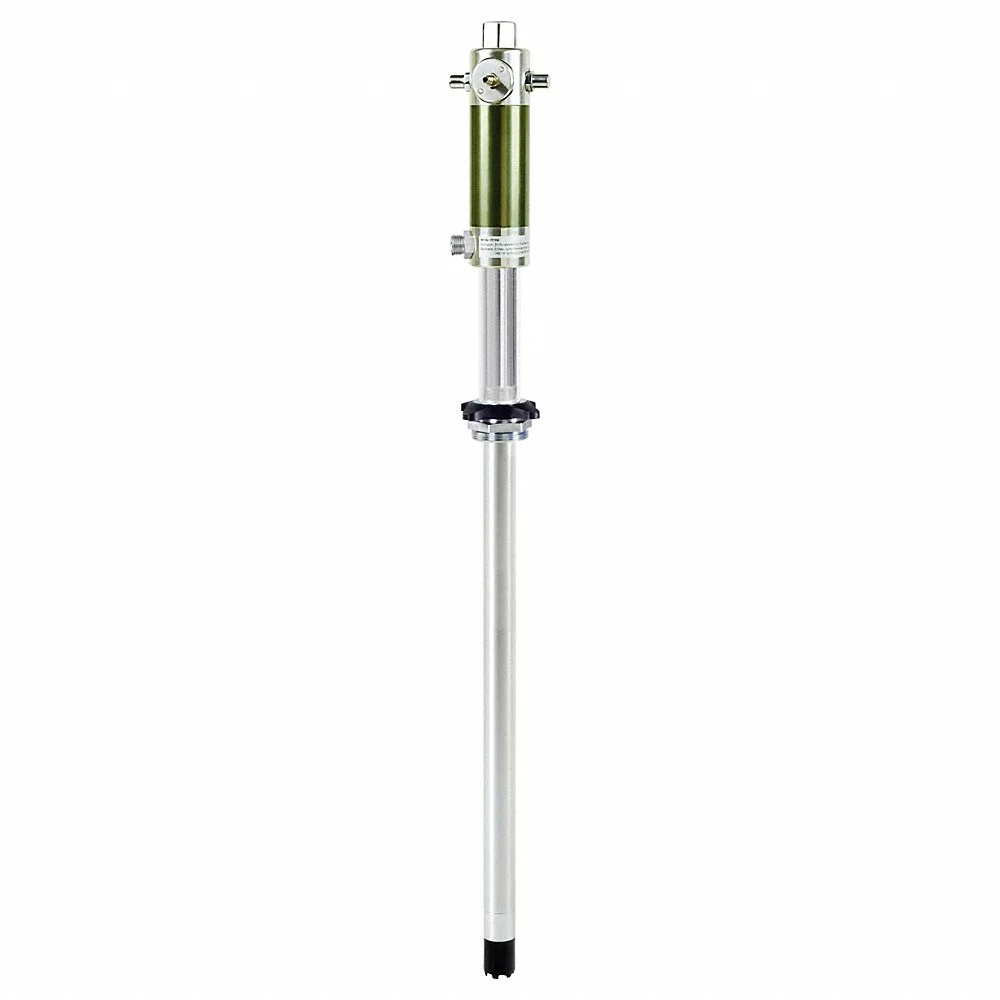

WESTWARD 5TCT9 Oil Pump Air Op Pump Ratio 3 1 16 Gal
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€652.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Oil Pump |
| Air Inlet Size | 1/4" |
| Air Motor Size | 2 1/2" |
| Air Motor Size | 2.5 In. |
| Compatible Chemicals | Motor Oil |
| Consumption @ 100 Psi | 5 CFM |
| Container Size | 16 gal., 30 gal., 55 gal. |
| Discharge Connection Type | MNPT |
| Discharge Tube Outlet Id | 1/2" |
| Fluid Outlet Thread (in.) | 3/4 MNPT |
| For Container Type | Drum, Pail |
| For Media Type | Motor Oil |
| For Use With | Oils Up To Sae 130 |
| Includes | Pump, Suction Tube |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Max. Air Inlet (psi) | 115 |
| Max. Air Inlet Pressure | 115 psi |
| Max. Air Pressure | 115 psi |
| Max. Flow Rate | 7.5 GPM |
| Max. Oil Flow | 7.5 GPM |
| Max. Outlet Pressure | 348 psi |
| Max. Output | 7.5 GPM |
| Max. Working Flow | 7.5 GPM |
| Metered | No |
| Min. Air Inlet Pressure | 70 |
| Min. Air Pressure | 70 psi |
| Outlet Pressure Max. (psi) | 345 |
| Power Source | Air |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Pump Ratio | 3:1 |
| Ratio | 3:1 |
| Type | Air Operated |
| Wetted Materials | Buna N, Polyurethane, Steel |
| Working Flow Max. (gpm) | 7.5 |
Shipping Info:
| Ship weight (kg) | 6.94 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 128.27 |
| Ship width (cm) | 13.46 |
| HS code | 8413500090 |
| Country of Origin | CN |
Product Details:
- Pump for Multiple Outlets (Yes)
Product Variants
| Product | Model | For Container Size | Max. Flow Rate | For Container Type | Includes Discharge Hose | Power Source | Hose Length | Includes Spout | Hose Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
21EM06 | 55 gal. | 26 oz./stroke | Drum | No | Hand Operated | Not Applicable | Yes | Not Applicable | €47.38 | |
 |
21EM38 | 5 gal. | 1.9 oz./stroke | Drum | Yes | Hand Operated | - | - | - | €53.36 | |
 |
5TCU1 | 275 gal. | 7.5 GPM | Tote | No | Air | Not Applicable | No | Not Applicable | €733.07 | |
 |
5TCU3 | 16 gal. | 6.6 GPM | Drum, Pail | No | Air | Not Applicable | No | Not Applicable | €735.22 | |
 |
5TCU4 | 55 gal. | 6.6 GPM | Drum | No | Air | Not Applicable | No | Not Applicable | €1,263.89 | |
 |
5TCU5 | 275 gal. | 10.5 GPM | Tote | No | Air | Not Applicable | No | Not Applicable | €1,030.10 | |
 |
5TCU8 | 5 gal. | Not Applicable | Bucket | No | Hand Operated | 1.5m | - | 16 mm | €259.98 |
