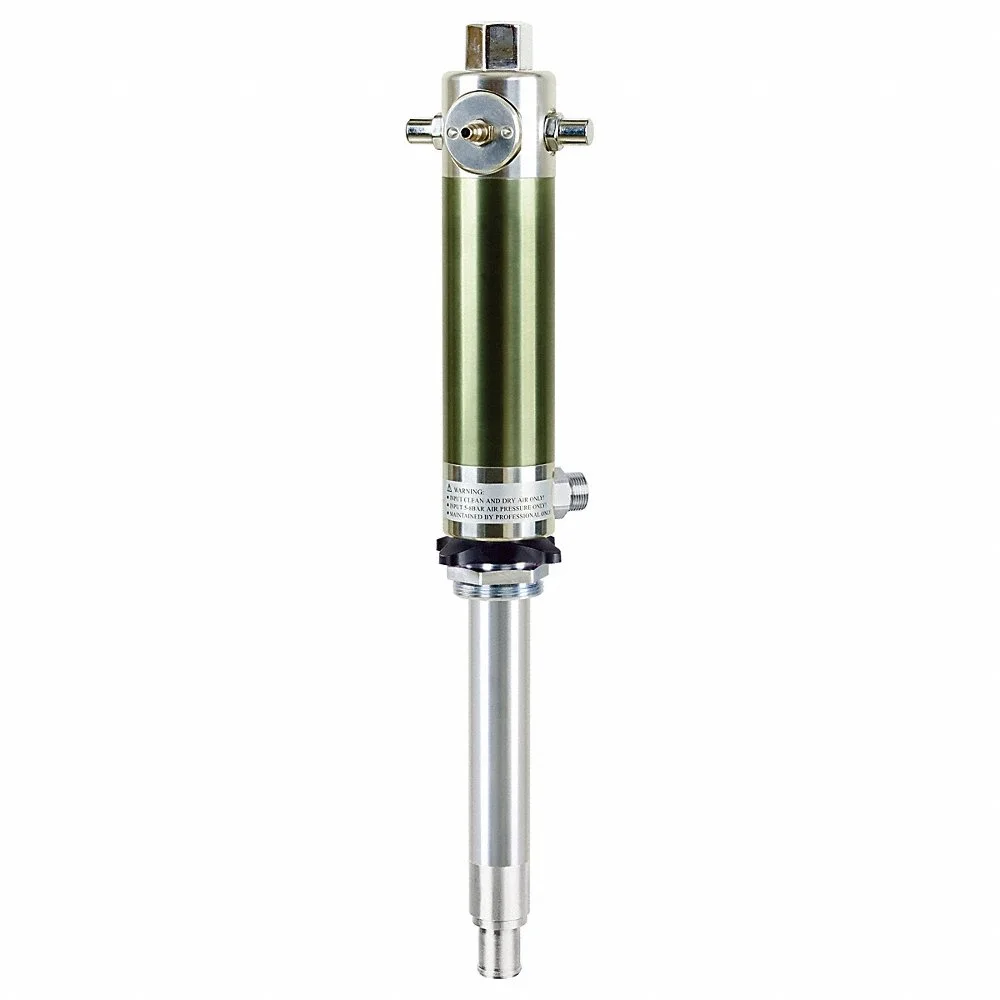

WESTWARD 5TCU2 Air Drum Pump, Pump Only, 5:1, Tote, 6.6 Gpm Max. Flow Rate, 176 Deg. F Max. Fluid Temperature
Item: AE6JNEModel: 5TCU2
7 In Stock
Ships within 2 days via
€573.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Stub Oil Pump |
| Air Inlet Size | 1/4" |
| Air Motor Size | 2 1/2" |
| Air Motor Size | 2.5 In. |
| Compatible Chemicals | Motor Oil |
| Consumption @ 100 Psi | 6.5 CFM |
| Container Size | 28 gal. |
| Discharge Connection Type | MNPT |
| Discharge Tube Outlet Id | 3/4" |
| Fluid Outlet Thread (in.) | 3/4 MNPT |
| For Container Size | 55 gal., 275 gal. |
| For Container Type | Drum, Tote |
| For Media Type | Motor Oil |
| For Use With | Oils Up To Sae 240 |
| Hose Cover Material | Not Applicable |
| Hose Inside Dia. | Not Applicable |
| Hose Length | Not Applicable |
| Hose Material | Not Applicable |
| Hose Outside Dia. | Not Applicable |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Max. Air Inlet (psi) | 115 |
| Max. Air Inlet Pressure | 115 psi |
| Max. Air Pressure | 115 psi |
| Max. Flow Rate | 6.6 GPM |
| Max. Oil Flow | 6.6 GPM |
| Max. Outlet Pressure | 580 psi |
| Max. Output | 6.6 GPM |
| Max. Working Flow | 6.6 GPM |
| Metered | No |
| Min. Air Inlet Pressure | 70 |
| Min. Air Pressure | 70 psi |
| Outlet Pressure Max. (psi) | 580 |
| Power Source | Air |
| Pump For Multiple Outlets | Yes |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Pump Ratio | 5:1 |
| Pump Ratio | 51 |
| Ratio | 51 |
| Type | Air Operated |
| Wetted Materials | Buna N, Polyurethane, Steel |
| Working Flow Max. (gpm) | 6.6 |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 72.64 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 13.21 |
| HS code | 8413500090 |
| Country of Origin | CN |
Product Details:
- Pump for Multiple Outlets (Yes)
Product Variants
| Product | Model | For Container Size | Max. Flow Rate | Max. Outlet Pressure | For Container Type | Includes Discharge Hose | Includes Nozzle | Max. Working Flow | Metered | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5TCT9 | 16 gal., 30 gal., 55 gal. | 7.5 GPM | 348 psi | Drum, Pail | No | No | 7.5 GPM | No | €784.44 | |
 |
5TCU1 | 275 gal. | 7.5 GPM | 348 psi | Tote | No | No | 7.5 GPM | No | €738.25 | |
 |
5TCU3 | 16 gal. | 6.6 GPM | 580 psi | Drum, Pail | No | No | 6.6 GPM | No | €768.09 | |
 |
5TCU4 | 55 gal. | 6.6 GPM | 580 psi | Drum | No | No | 6.6 GPM | No | €1,189.54 | |
 |
5TCU5 | 275 gal. | 10.5 GPM | 870 psi | Tote | No | No | 6.6 GPM | No | €1,076.17 | |
 |
5TCU7 | 16 gal. | 6.6 GPM | 580 psi | Drum | Yes | Yes | 6.6 GPM | Yes | €1,042.96 |
