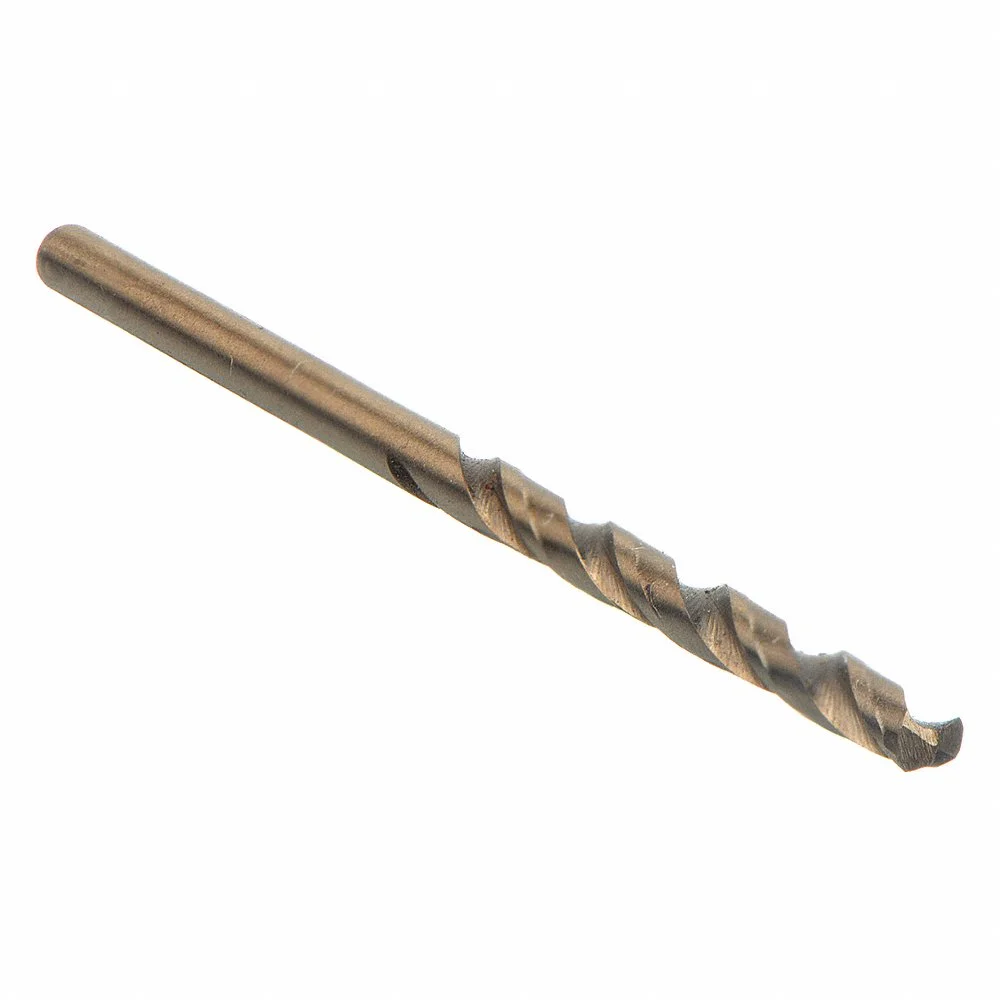

WESTWARD 5PLZ1 Jobber Drill Bit Cobalt Amber #10
Item: AE6BWEModel: 5PLZ1
7 In Stock
Ships within 2 days via
10.00% off
€6.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1935 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Wire Size |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #10 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Finish | Amber |
| Finish - Machining | Straw, Bronze |
| Flute Length | 2 5/16" |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | +21° to +34° |
| List Number | Westward |
| Material | Cobalt Steel |
| Material - Machining | Cobalt |
| Material Grade - Machining | HIGH PERFORMANCE |
| Maximum Drilling Depth | 1 13/16" |
| Measurement System | Wire |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 3 5/8" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel, Aluminum And Non-Ferrous Material, Hi-Temp Alloy, Hardened Steel |
| Primary Material Application Iso Code | H, K, N, P, S |
| Shank Dia. | 0.193" |
| Shank Diameter | 3/16" |
| Shank Length | 1 5/16" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #10 |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 9.14 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Flute Length | Overall Length | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Shank Dia. | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5PLY2 | 0.228 | 2 5/8" | 3 7/8" | #1 | 135° | Split Point | 0.228" | - | €8.80 | |
|
5PLY5 | 0.209 | 2 1/2" | 3 3/4" | #4 | 135° | Split Point | 0.209" | - | €9.87 | |
|
5PLY7 | 0.204 | 2 1/2" | 3 3/4" | #6 | 135° | Split Point | 0.204" | - | €9.87 | |
 |
5PLY8 | 0.201 | 2 7/16" | 3 5/8" | #7 | 135° | Split Point | - | - | €7.68 | |
 |
5PLY9 | 0.199" | 2.437" | 3 5/8" | - | - | - | 0.199" | - | €23.71 | |
|
5PLZ2 | 0.191 | 2 5/16" | 3 1/2" | #11 | 135° | Split Point | 0.191" | 1 47/64" | €7.68 | |
|
5PLZ4 | 0.185 | 2 5/16" | 3 1/2" | #13 | 135° | Split Point | 0.185" | - | €7.58 |
