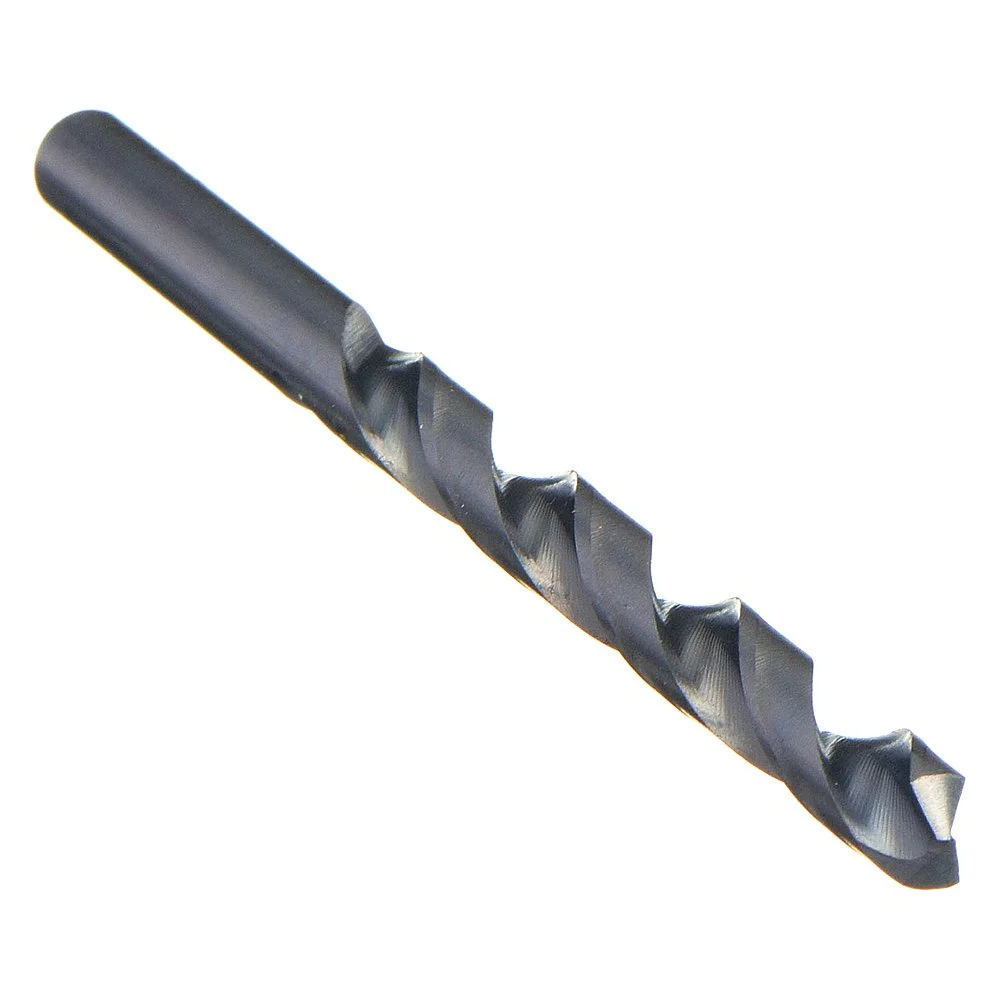

WESTWARD 5PLX2 Jobber Length Drill Bit, Letter Q, 135 Deg. Split Point, Black Oxide HSS
Item: AE6BVJModel: 5PLX2
7 In Stock
Ships within 2 days via
€9.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.332 |
| Depth Dia. Ratio | 5xd |
| Dimensions Type | Letter |
| Drill Bit Dimension Type | Letter |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | Q |
| Drill Dia. Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Black Oxide |
| Finish-machining | Black Oxide |
| Flute Length | 3 7/16" |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | +21° to +34° |
| List Number | Westward |
| Material | High Speed Steel |
| Material Grade-machining | HIGH PERFORMANCE |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 2 9/16" |
| No. Of Coolant Holes | 0 |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 4 3/4" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Non-Ferrous Metals |
| Secondary Material Application Iso Code | K, N |
| Shank Dia. | 0.332" |
| Shank Length | 1 5/16" |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | Q |
| Spiral Direction | Right Hand |
| System Of Measurement | Letter |
| Web Thinning | Thinned |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 6.86 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Flute Type | Max. Drilling Depth | Overall Length | Flute Length | Decimal Equivalent | Drill Bit Size | Shank Dia. | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2UFE1 | Spiral | 2 19/64" | 4 3/8" | 3 1/16" | 0.2969 | 19/64" | 0.296" | Black Oxide | €4.28 | |
| 2UFE2 | Spiral | 2 31/64" | 4 5/8" | 3 5/16" | 0.3281 | 21/64" | 0.328" | Black Oxide | €6.23 | |
| 2UFE3 | Spiral | 2 9/16" | 4 3/4" | - | - | 11/32" | 0.343" | Black Oxide | €9.52 | |
| 2UFE4 | Spiral | 2 5/8" | 4 7/8" | 3 1/2" | 0.3594 | 23/64" | 0.359" | Black Oxide | €7.27 | |
| 2UFE5 | Spiral | 2 29/32" | 5 1/4" | 3 7/8" | 0.4063 | 13/32" | 0.406" | Black Oxide | €7.11 | |
| 2UFE6 | Spiral | 2 15/16" | 5 3/8" | 3 15/16" | 0.4219 | 27/64" | 0.421" | Black Oxide | €10.60 | |
| 2UFE7 | Spiral | 3 3/64" | 5 1/2" | 4 1/16" | 0.4375 | 7/16" | 0.437" | Black Oxide | €15.35 |
