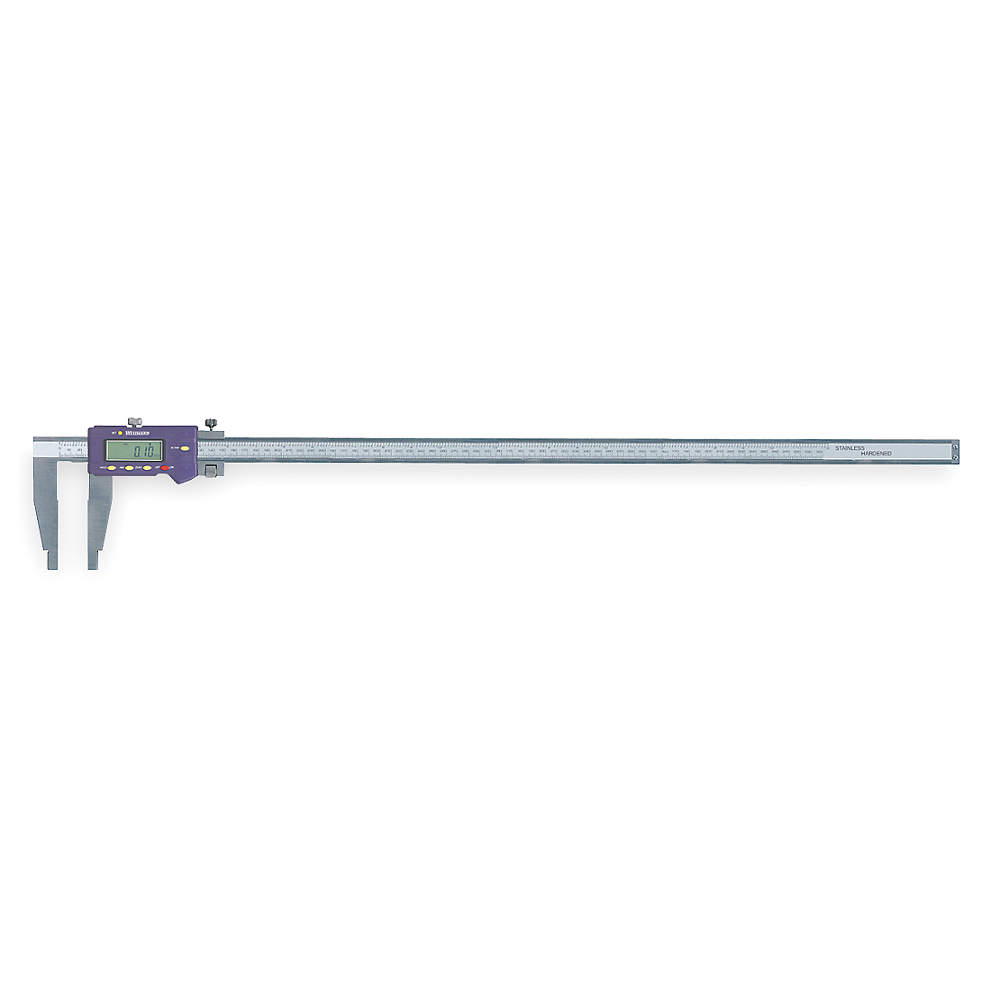

WESTWARD 4KY19 Caliper Digital Lcd 0-24 In
Item: AD8LXUModel: 4KY19
7 In Stock
Ships within 2 days via
10.00% off
€1,463.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Caliper |
| Absolute Positioning | Yes |
| Accuracy | 0"≤Range≤6", -0.001" to +0.001", 0.02 mm, 6" Less Than Range≤8", -0.0015" to +0.0015", 0.03 mm, 8" Less Than Range≤12", -0.0015" to +0.0015", 0.04 mm, 12" Less Than Range≤24", -0.002" to +0.002" |
| Battery Included | Yes |
| Battery Size | CR2032 |
| Calibration Certificate | No |
| Caliper Grouping | Digital Caliper |
| Caliper Material | Stainless Steel |
| Case | Wooden |
| Case Material | Wooden |
| Case Type | Plastic Case |
| Coolant Resistant | No |
| Data Output Type | Cabled |
| Depth Rod Shape | Rectangular |
| Dimension Type | Inch, Metric |
| Display Type | LCD |
| Dust Resistant | Yes |
| Graduations (lower Scale) | 0.1" |
| Graduations - Lower Scale | 1 mm |
| Graduations - Upper Scale | 0.1" |
| Includes Case | Yes |
| Ip Rating | Not Rated |
| Jaw Actuation Type | Thumb Wheel |
| Jaw Depth | 4" |
| Jaw Material | Steel |
| Jaw Shape | Nib-Style |
| Left-handed Operation | No |
| Linear Encoder Type | Electrostatic Capacitance |
| Long Form Calibration Certificate | No |
| Material | Stainless Steel |
| Max. Measurement | 24" |
| Maximum Measurement - Mm | 600 mm |
| Measurements | Inside, Outside |
| Measures Depth | No |
| Measures Inside Dimension | Yes |
| Measures Outside Dimension | Yes |
| Measures Step | No |
| Minimum Measurement - Fractional Inch | 0" |
| Minimum Measurement - Inch | 0" |
| Minimum Measurement - Mm | 0 mm |
| Non-magnetic | No |
| Range | 0" to 24", 0 mm to 600 mm |
| Repeatability | 0" Less Than Not Equal to Range Less Than Not Equal to 6", +/-0010"/02mm, 6" Less Than Range Less Than Not Equal to 8", +/-0015"/03mm, 8" Less Than Range Less Than Not Equal to 12", +/-0015"/04mm, 12" |
| Resolution | 0.0005" |
| Spc Output | Yes |
| Water Resistant | No |
| With Locking Nut | Yes |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 81.79 |
| Ship width (cm) | 19.3 |
| HS code | 9017304000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Range | Resolution | Jaw Actuation Type | Jaw Depth | Material | Case | Spc Output | Caliper Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AAU4 | 0" to 6", 0 mm to 150 mm | 0.0005" | Thumb Wheel | 1 1/2" | Stainless Steel | Molded Plastic | No | Stainless Steel | €219.52 | |
 |
29AD36 | 0" to 6", 0 mm to 150 mm | 0.0005", 0.01 mm, 1", 64" | Slide | 1.57" | Stainless Steel | Plastic | No | Stainless Steel | €197.97 | |
 |
29AD37 | 0" to 8" | 0.0005" | Slide | 1.97" | Stainless Steel | Plastic | Yes | Stainless Steel | €340.86 | |
 |
29AD39 | 0" to 18", 0 mm to 450 mm | 0.0005" | Slide | 3.54" | Stainless Steel | Plastic | Yes | Stainless Steel | €1,245.73 | |
 |
29AD40 | 0" to 12" | 0.0005" | Slide | 2 23/64" | Stainless Steel | Plastic | Yes | Stainless Steel | €670.10 | |
 |
29AD41 | 0" to 8" | 0.0005" | Slide | 1.97" | Stainless Steel | Plastic | Yes | Stainless Steel | €407.51 | |
 |
2YNC6 | 0" to 6", 0 mm to 150 mm | 0.0005" | Thumb Wheel | 1 1/2" | Polycarbonate | Vinyl Pouch | No | Plastic | €40.18 |
