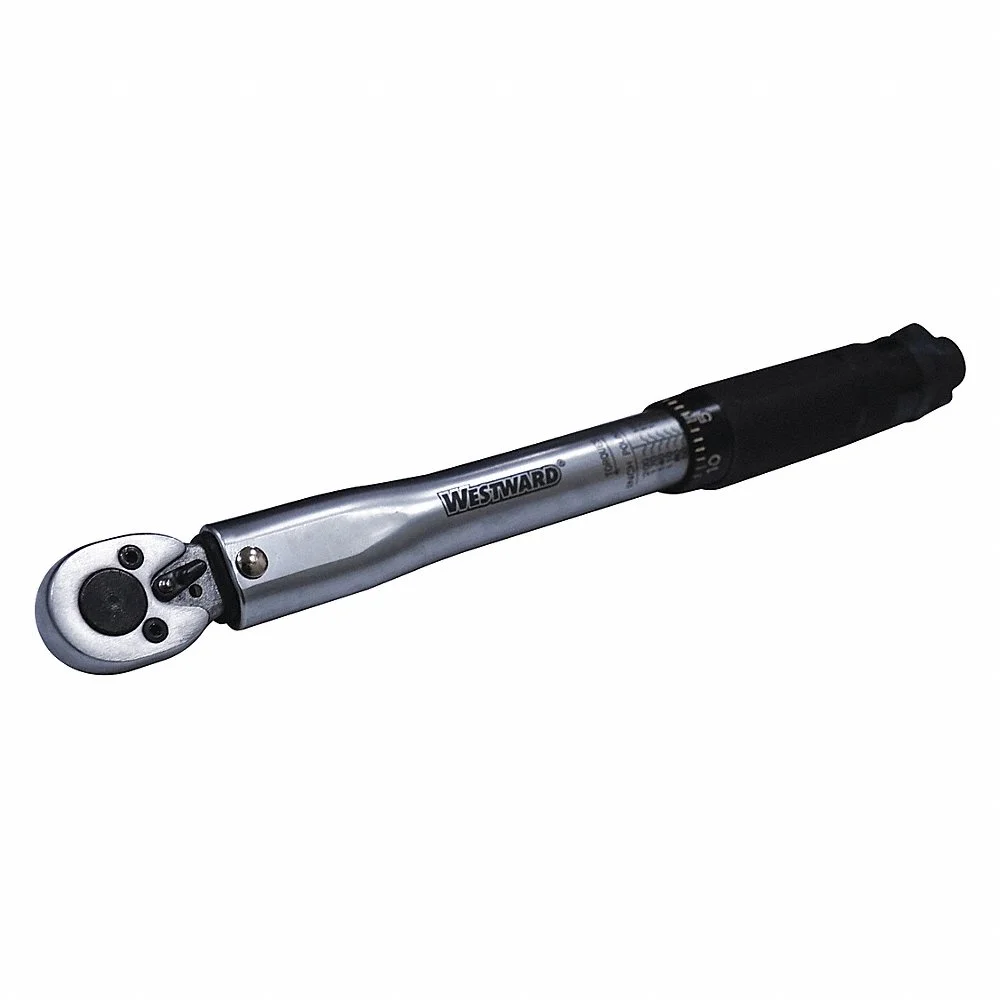

WESTWARD 4DA94 Micrometer Torque Wrench, 1/4 Inch Drive Size, 2.3 To 23 N-m Torque Range, Steel
Item: CH3PWBModel: 4DA94
7 In Stock
Ships within 2 days via
€82.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Micrometer Torque Wrench |
| Calibration Certificate Included | No |
| Clockwise Accuracy | -4% to +4% |
| Corrosion Resistance | No |
| Counterclockwise Accuracy | -4% to +4% |
| Direction | CW |
| Drive Size | 1/4" |
| Dual Scale | Yes |
| Extended Data Testing | Yes, Asme B 107.300 |
| Finish | Chrome |
| Handle Color | Black |
| Handle Material | Alloy, Steel |
| Handle Type | Kurled |
| Head Movement | Ratcheting |
| Head Type | Standard |
| Included | (1) Case |
| Insulated | No |
| Material | Alloy, Steel |
| Min. Arc Swing | 15.5° |
| No. Of Geared Teeth | 24 |
| No. Of Teeth | 24 |
| Non Sparking | No |
| Overall Length | 10" |
| Overall Width | 1" |
| Primary Scale Max. Torque | 200 lbs.-in. |
| Primary Scale Min. Torque | 20 lbs.-in. |
| Ratcheting | Yes |
| Rotation | CW |
| Secondary Scale Max. Torque | 23 N-m |
| Secondary Scale Min. Torque | 2.3 N-m |
| Tether Style | Tether Capable |
| Torque | 20 lbs.-in. to 200 lbs.-in. |
| Torque Adjustability | Adjustable |
| Torque Increments | 0.1 N-m, 1 lbs.-in. |
| Torque Limiting Mechanism | Click Type |
| Torque Measurement Type | In.-Lbs., Newton Meter |
| Torque Setting | Adjustable |
| Visual/audible Indicators | Audible Click |
Shipping Info:
| Ship weight (kg) | 0.87 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | Drive Size | Rotation | Calibration Certificate Included | Torque Increments | Tether Style | Overall Length | Insulated | Primary Scale Increments | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6PAH9 | 3/8" | CW, CCW | Yes | 0.5 lbs.-ft., 0.7 N-m | Tether Capable | 16" | - | - | €133.26 | |
 |
55JA95 | 3/8" | CW, CCW | Yes | 0.5 lbs.-ft., 0.7 N-m | Not Tether Capable | 17 1/16" | Yes | 0.5 lbs.-ft. | €112.98 | |
 |
55JA97 | 3/8" | CW, CCW | Yes | 0.5 lbs.-ft., 0.7 N-m | Not Tether Capable | 17 1/16" | Yes | 0.5 lbs.-ft. | €124.32 | |
 |
55JA92 | 3/8" | CW, CCW | Yes | 0.11 N-m, 1 lbs.-in. | Not Tether Capable | 11 1/2" | Yes | 1 lbs.-in. | €125.30 | |
 |
55JA99 | 1/2" | CW, CCW | Yes | 1 lbs.-ft., 1.4 N-m | Not Tether Capable | 24 1/2" | Yes | 1 lbs.-ft. | €141.36 | |
 |
55JA98 | 1/2" | CW, CCW | Yes | 1 lbs.-ft., 1.4 N-m | Not Tether Capable | 20" | Yes | 1 lbs.-ft. | €163.51 | |
 |
55JC01 | 3/4" | CW, CCW | Yes | 2 lbs.-ft. | Not Tether Capable | 48 1/2" | No | 2 lbs.-ft. | €365.52 |
