WESTWARD 55JA97 Micrometer Torque Wrench, 3/8 inch Size, 17-1/16 inch Length, 10 to 80 ft-lb
Get it by Monday, May 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€137.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Micrometer Torque Wrench |
| Calibration Certificate Included | Yes |
| Clockwise Accuracy | -4% to +4% |
| Corrosion Resistance | Yes |
| Counterclockwise Accuracy | -6% to +6% |
| Drive Size | 3/8" |
| Dual Scale | Yes |
| Extended Data Testing | No |
| Finish | Chrome |
| Handle | Knurled |
| Handle Color | Blue |
| Handle Material | Aluminum |
| Handle Type | Kurled |
| Head Movement | Ratcheting |
| Head Type | Standard |
| Includes | (1) Case |
| Insulated | Yes |
| Material | Alloy Steel |
| Min. Arc Swing | 5° |
| Min. No. Of Cycles | 5000 |
| Min. Number Of Cycles | 5,000 |
| Non Sparking | No |
| Number Of Geared Teeth | 72 |
| Overall Length | 17 1/16" |
| Overall Width | 1 5/8" |
| Primary Scale Increments | 0.5 lbs.-ft. |
| Primary Scale Maximum Torque | 80 lbs.-ft. |
| Primary Scale Minimum Torque | 10 lbs.-ft. |
| Primary Scale Range | 10 lbs.-ft. to 80 lbs.-ft. |
| Ratcheting | Yes |
| Rotation | CW/CCW |
| Secondary Scale Maximum Torque | 111.9 N-m |
| Secondary Scale Minimum Torque | 17 N-m |
| Secondary Scale Range | 17 to 111.9 Nm |
| Secondary Scale Range | 17 N-m to 111.9 N-m |
| Tether Capable | Not Tether Capable |
| Tether Style | Not Tether Capable |
| Torque Adjustability | Adjustable |
| Torque Increments | 0.5 lbs.-ft., 0.7 N-m |
| Torque Limiting Mechanism | Click Type |
| Torque Measurement Type | Foot-Pound, Newton Meter |
| Torque Range | 10 lbs.-ft. to 80 lbs.-ft. |
| Torque Setting | Adjustable |
| Visual/audible Indicators | Audible Click |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship length (cm) | 43.34 |
| Ship width (cm) | 4.13 |
| Country of Origin | TW |
Product Variants
| Product | Model | Drive Size | Rotation | Calibration Certificate Included | Torque Range | Torque Increments | Primary Scale Maximum Torque | Primary Scale Minimum Torque | Tether Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6PAH9 | 3/8" | CW/CCW | Yes | 15 lbs.-ft. to 80 lbs.-ft. | 0.5 lbs.-ft., 0.7 N-m | 80 lbs.-ft. | 15 lbs.-ft. | Tether Capable | €190.38 | |
 |
55JA95 | 3/8" | CW/CCW | Yes | 20 lbs.-ft. to 100 lbs.-ft. | 0.5 lbs.-ft., 0.7 N-m | 100 lbs.-ft. | 20 lbs.-ft. | Not Tether Capable | €125.93 | |
 |
55JA92 | 3/8" | CW/CCW | Yes | 40 lbs.-in. to 200 lbs.-in. | 0.11 N-m, 1 lbs.-in. | 200 lbs.-in. | 40 lbs.-in. | Not Tether Capable | €143.74 | |
 |
55JA99 | 1/2" | CW/CCW | Yes | 50 lbs.-ft. to 250 lbs.-ft. | 1 lbs.-ft., 1.4 N-m | 250 lbs.-ft. | 50 lbs.-ft. | Not Tether Capable | €168.75 | |
 |
55JA98 | 1/2" | CW/CCW | Yes | 20 lbs.-ft. to 150 lbs.-ft. | 1 lbs.-ft., 1.4 N-m | 150 lbs.-ft. | 20 lbs.-ft. | Not Tether Capable | €206.00 | |
 |

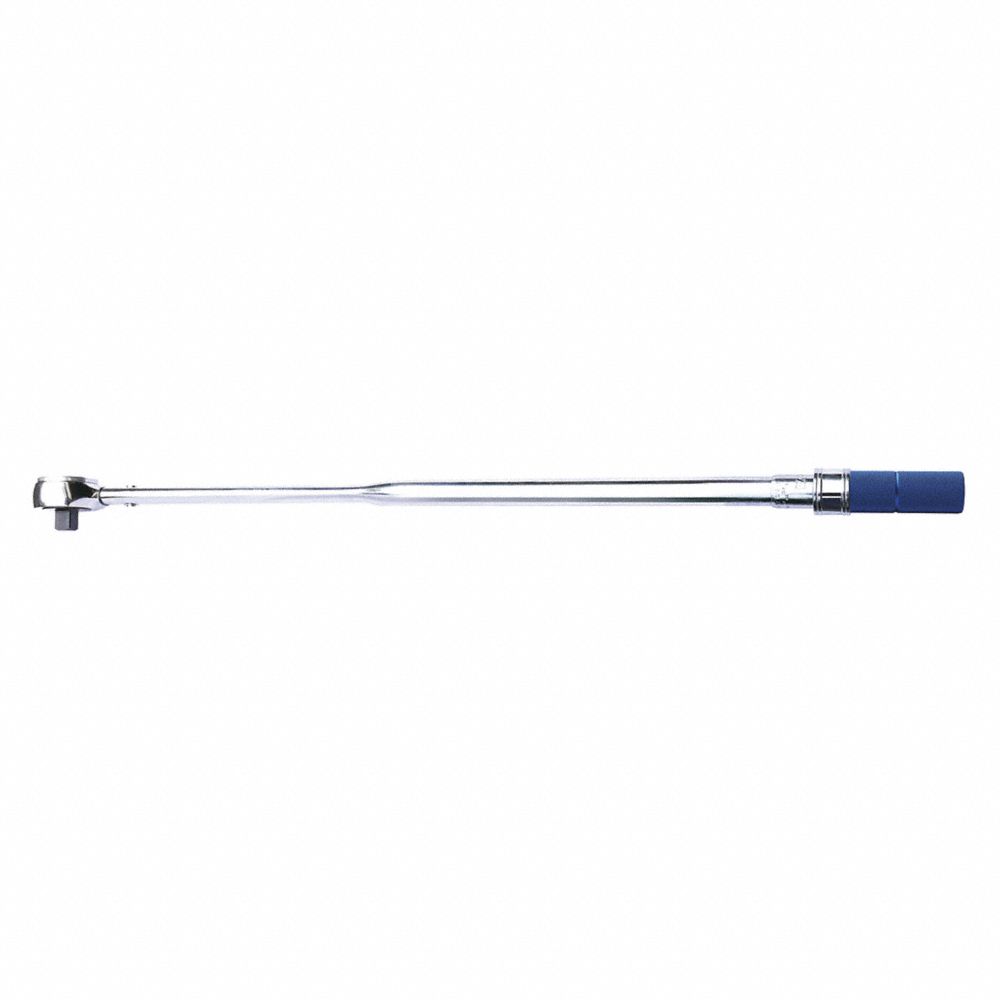

55JC01 | 3/4" | CW/CCW | Yes | 120 lbs.-ft. to 600 lbs.-ft. | 2 lbs.-ft. | 600 lbs.-ft. | 120 lbs.-ft. | Not Tether Capable | €437.33 | |
 |
55JA93 | 3/4" | CW/CCW | Yes | 60 lbs.-ft. to 300 lbs.-ft. | 2 lbs.-ft., 2.7 N-m | 300 lbs.-ft. | 60 lbs.-ft. | Not Tether Capable | €369.12 |
