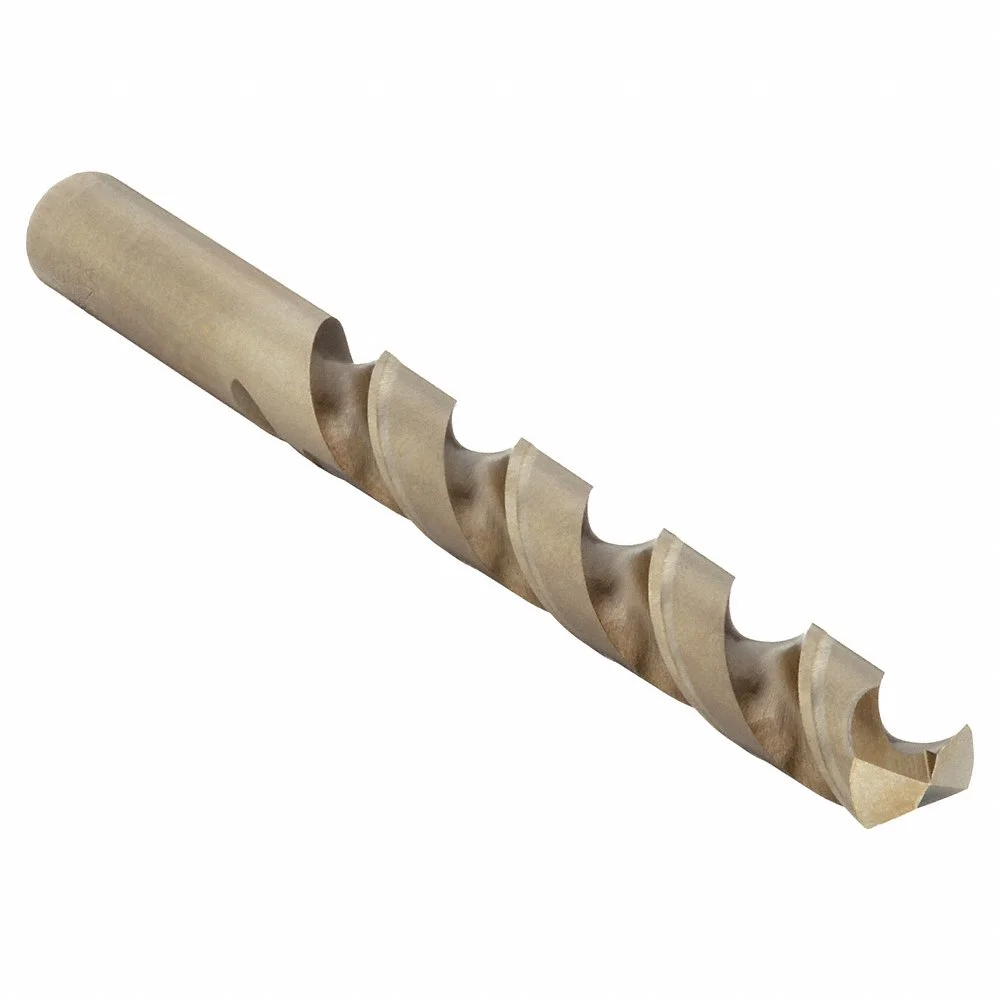

WESTWARD 401J86 Jobber Length Drill Bit, 31/64 Inch Size Drill Bit Size, 5-7/8 Inch Overall Length | CU9XEY

WESTWARD 401J86 Jobber Length Drill Bit, 31/64 Inch Size, 5-7/8 Inch Overall Length

Item: CU9XEYModel: 401J86
7 In Stock

Ships within 2 days via

€30.50
10.00% off
€27.45 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Aircraft Drill No
Application For Cast Iron, High Temperature Alloys, Stainless Steel And Titanium
Coolant Fed Non-Coolant Through
Coolant Through No
Cutting Direction Right Hand
Decimal Equivalent 0.4844
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Fractional Inch
Drill Bit Grouping Drill Bit
Drill Bit Material Cobalt
Drill Bit Point Angle 135°
Drill Bit Point Type Split Point
Drill Bit Size 31/64"
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Jobber Length
Finish Straw, Bronze
Finish - Machining Straw, Bronze
Flute Length 4 3/8"
Flute Type Spiral
Grade Heavy Duty
Helix Angle +21° to +34°
List Number Westward
Material Cobalt
Material - Machining Cobalt
Material Grade - Machining HIGH PERFORMANCE
Max. Drilling Depth 3 9/32"
No. Of Pieces 0
Number Of Flutes 2
Overall Length 5 7/8"
Point Angle 135°
Point Type Split Point
Primary Material Application Cast Iron, Steel, Aluminum And Non Ferrous Material, High Temperature Alloy, Hardened Steel
Primary Material Application Iso Code H, K, N, P, S
Shank Dia. 0.484"
Shank Diameter 31/64"
Shank Length 1 1/2"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.484"
Spiral Direction Right Hand
System Of Measurement Fractional Inch
Web Thinning Thinned

Shipping Info:

Ship weight (kg) 0.57
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelDecimal EquivalentFlute LengthMax. Drilling DepthShank Dia.Overall LengthDrill Bit SizeDepth X Dia. RatioShank LengthPrice
WESTWARD 401J54 Jobber Length Drill Bit, 1/16 Inch Size Drill Bit Size, 1-7/8 Inch Overall Length | CU9XEC 401J540.06257/8"21/32"0.062"1 7/8"1/16"4xd1"€3.62
WESTWARD 401J61 Jobber Length Drill Bit, 1/2 Inch Size Drill Bit Size, 6 Inch Overall Length | CU9XED 401J610.54 1/2"4 1/2"1/2"6"1/2"--€37.02
WESTWARD 401J57 Jobber Length Drill Bit, 1/4 Inch Size Drill Bit Size, 4 Inch Overall Length, Cobalt | CU9XEE 401J570.252 3/4"2 3/4"1/4"4"1/4"--€8.85
WESTWARD 401J55 Jobber Length Drill Bit, 1/8 Inch Size Drill Bit Size, 2 3/4 Inch Overall Length | CU9XEF 401J550.1251 5/8"1 5/8"1/8"2 3/4"1/8"--€4.22
WESTWARD 401J79 Jobber Length Drill Bit, 11/32 Inch Size Drill Bit Size, 4-3/4 Inch Overall Length | CU9XEG 401J790.34383 7/16"2 9/16"0.344"4 3/4"11/32"4xd1 5/16"€14.13
WESTWARD 401J71 Jobber Length Drill Bit, 11/64 Inch Size Drill Bit Size, 3 1/4 Inch Overall Length | CU9XEH 401J710.17192 1/4"2 1/4"0.172"3 1/4"11/64"--€3.57
WESTWARD 401J82 Jobber Length Drill Bit, 13/32 Inch Size Drill Bit Size, 5-1/4 Inch Overall Length | CU9XEJ 401J820.40633 7/8"2 29/32"0.406"5 1/4"-4xd1 3/8"€21.67
