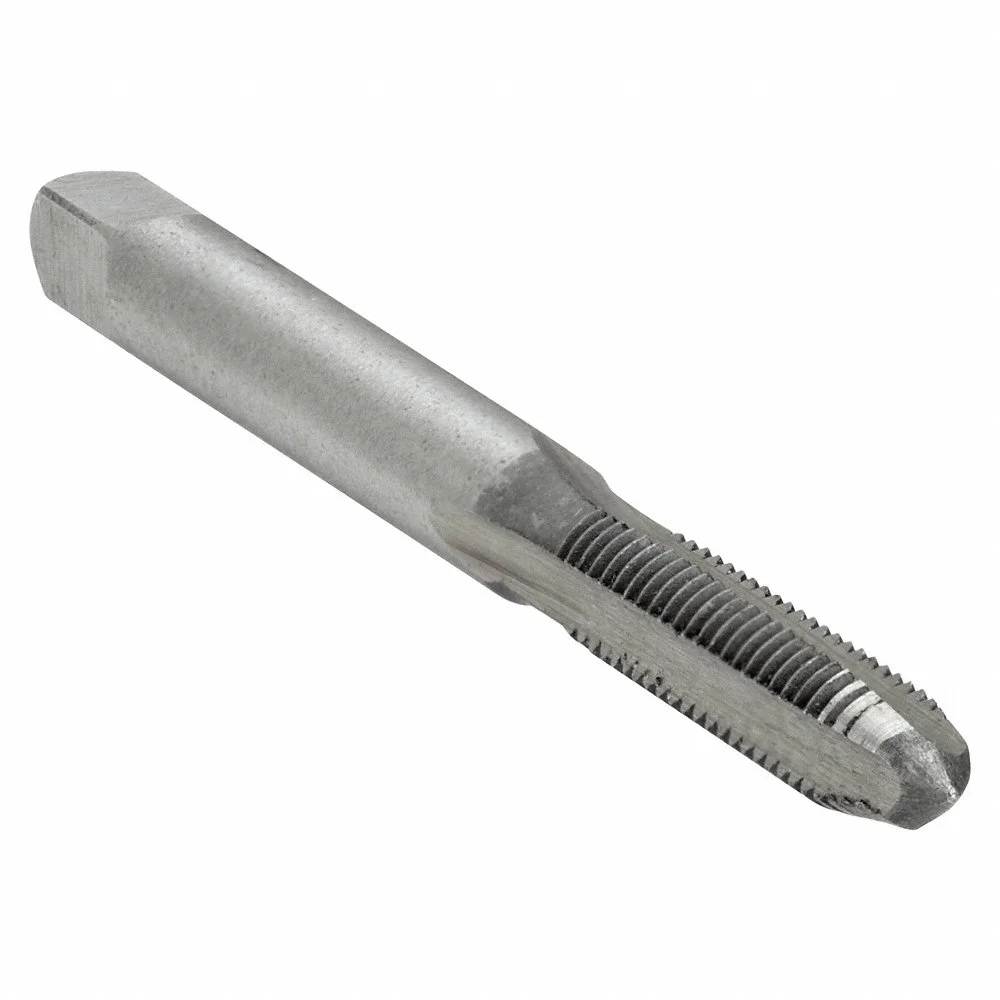

WESTWARD 2LXG2 Hand Tap Plug Carbon Steel #10-32
Item: AC2PXNModel: 2LXG2
7 In Stock
Ships within 2 days via
10.00% off
€6.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hand Tap |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | #21 |
| Finish | Uncoated |
| Material | High Carbon Steel |
| Measurement System | Pipe |
| Number Of Flutes | 3 |
| Overall Length | 2 3/8" |
| Pitch Diameter Limits | H3 |
| Pitch Type | 32 |
| Primary Material Application | All Materials |
| Shank Dia. | 3/16" |
| Shank Type - Machining | Straight |
| Size | #10 |
| Square Size | 0.152" |
| Standards | Asme |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | Carbon Steel |
| Tap Style | Straight Flute |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 7/8" |
| Thread Size | #10-32 |
| Thread Standard | Unf |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 8207406000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | Number Of Flutes | Tap Chamfer | Shank Dia. | Thread Standard | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2LXD4 | #10-24 | 7/8" | 2 3/8" | 3 | Taper | 3/16" | UNC | Coarse | €3.89 | |
|
2LXG4 | 1/4"-20 | 1" | 2 1/2" | 3 | Plug | 1/4" | UNC | Coarse | €7.68 | |
 |
2LXG6 | 5/16"-18 | 1 1/8" | 2 23/32" | 4 | Plug | 5/16" | UNC | Coarse | €8.25 | |
|
2LXH3 | 1/2"-13 | 1 21/32" | 3 3/8" | 4 | Plug | 23/64" | UNC | Coarse | €12.28 | |
|
2LXH9 | 3/4"-10 | 2" | 4 1/4" | 4 | Plug | 37/64" | UNC | Coarse | €25.65 | |
|
2LXJ4 | 1"-8 | 2 1/2" | 5 1/8" | 4 | Plug | 51/64" | UNC | Coarse | €20.29 | |
|
2LXJ5 | 1"-14 | 2 1/2" | 5 1/8" | 4 | Plug | 51/64" | Uns | UNS | €20.30 |
