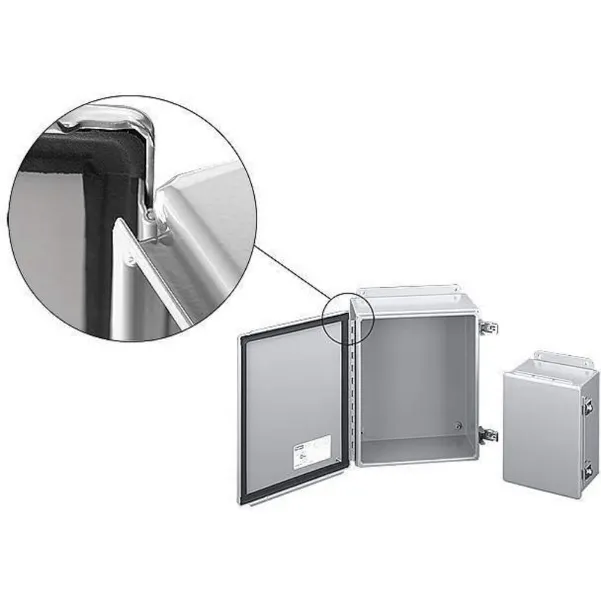

HOFFMAN A1614CHFTC Metallic Junction Box Enclosure 16 Inch Height x 14 Inch Width
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€434.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Junction Box Enclosure |
| Basic Material | Metallic |
| Body Material Thickness | 16 ga. |
| Closure Method | Quick Release Latch |
| Color | Gray |
| Compatible Panel Model Number | A16P14, A16P14G |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Cover Type | Hinged |
| Depth | 6 3/4" |
| Enclosure Cover Features | Plated Latches |
| Enclosure Height | 16" |
| Enclosure Material | Steel |
| Enclosure Width | 14" |
| Environment | Dust Tight |
| Finish | Powder Coated |
| Gasket | Neoprene |
| Gasket Material | Neoprene |
| Ip Rating | IP65 |
| Knockouts | Not Included |
| Knockouts / No Knockouts | No Knockouts |
| Metal Gauge | 14 ga., 16 ga. |
| Mounting | Wall |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 12, NEMA 13 |
| Nominal Depth | 7" |
| Nominal Height | 16" |
| Nominal Width | 14" |
| Overall Depth | 6.75" |
| Overall Height | 16" |
| Overall Width | 14" |
| Panel Height | 14.75" |
| Panel Width | 12.88" |
| Product Type | Continuous Hinge Enclosure |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 45.09 |
| Ship width (cm) | 39.37 |
| HS code | 8536908030 |
| Country of Origin | US |
Product Variants
| Model | Enclosure Width | Enclosure Height | Depth | Cover Type | Enclosure Material | Mounting | Color | Metal Gauge | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

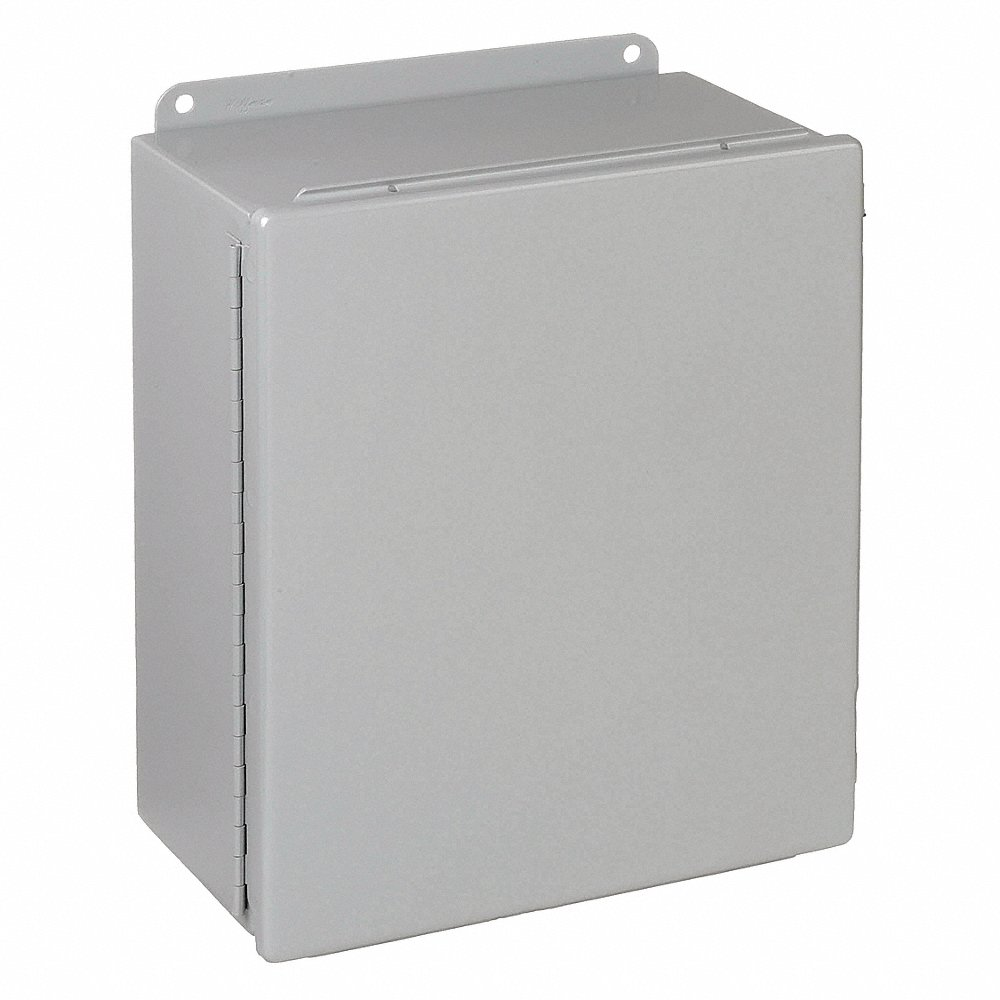

| A604CHFTC | 4" | 6" | 4 3/4" | Hinged | Steel | Wall | Gray | 14 ga., 16 ga. | €205.63 | |
| A806CHFTC | 6" | 8" | 4 3/4" | Hinged | Steel | Wall | Gray | 14 ga., 16 ga. | €266.75 | |
| A1008CHFTC | 8" | 10" | 4 3/4" | Hinged | Steel | Wall | Gray | 14 ga., 16 ga. | €310.33 | |
| A1210CHFTC | 10" | 12" | 5 3/4" | Hinged | Steel | Wall | Gray | 14 ga., 16 ga. | €339.88 | |
| A1412CHFTC | 12" | 14" | - | Hinged | Steel | Wall | Gray | 14 ga., 16 ga. | €416.93 |
